| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_163T01_9000003010_20338cztM0_level2.evt | modeM0/AS1A05_163T01_9000003010_20338cztM0_level2_quad_clean.evt |
| Size (bytes) | 447,068,160 | 82,339,200 |
| Size | 426.4 MB | 78.5 MB |
| Events in quadrant A | 3,137,324 | 517,486 |
| Events in quadrant B | 3,218,681 | 530,972 |
| Events in quadrant C | 3,172,613 | 508,086 |
| Events in quadrant D | 3,583,396 | 497,670 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13064 | 2 |
| B | 0 | 13224 | 2 |
| C | 0 | 13155 | 3 |
| D | 0 | 14840 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6292 | 45 | 0.715194% |
| B | 6292 | 69 | 1.096631% |
| C | 6291 | 58 | 0.921952% |
| D | 6291 | 41 | 0.651725% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7507 | 6293 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7507 | 6293 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7506 | 6292 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7506 | 6292 | 12 | 12 | 0.16% | 0.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 6850 | 36.97 | 815 | 799 | 163.7 |
| A | 13 | 254 | 6711 | 36.12 | 815 | 799 | 163.7 |
| A | 3 | 137 | 6466 | 34.63 | 815 | 799 | 163.7 |
| B | 12 | 111 | 18615 | 115.15 | 812 | 792 | 154.8 |
| B | 11 | 111 | 16609 | 102.19 | 812 | 792 | 154.8 |
| B | 0 | 198 | 15585 | 95.58 | 812 | 792 | 154.8 |
| C | 14 | 238 | 121077 | 655.72 | 782 | 791 | 183.4 |
| C | 13 | 61 | 5420 | 25.23 | 782 | 791 | 183.4 |
| C | 3 | 233 | 2346 | 8.48 | 782 | 791 | 183.4 |
| D | 1 | 52 | 544089 | 2849.62 | 788 | 766 | 190.7 |
| D | 2 | 234 | 27015 | 137.67 | 788 | 766 | 190.7 |
| D | 12 | 218 | 22914 | 116.16 | 788 | 766 | 190.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

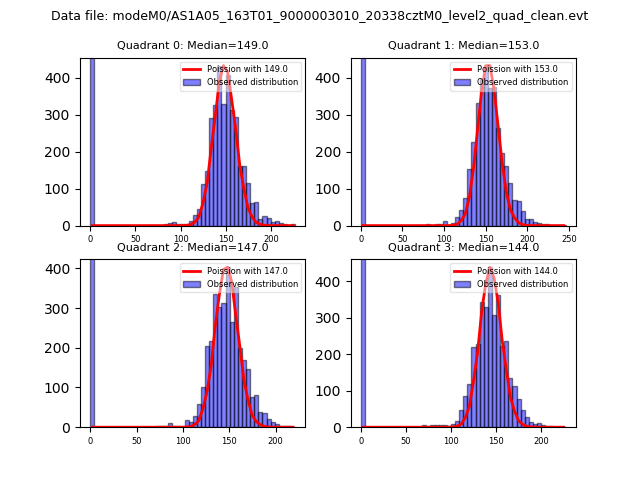

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

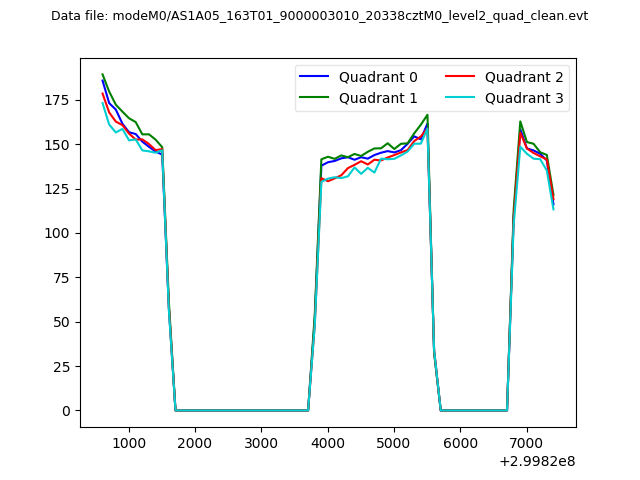

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

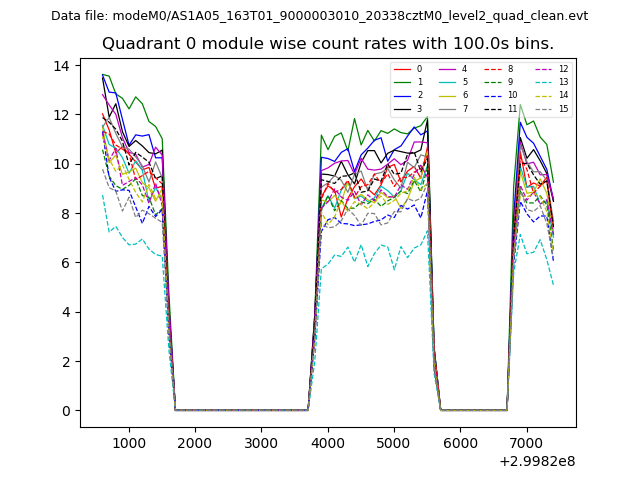

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

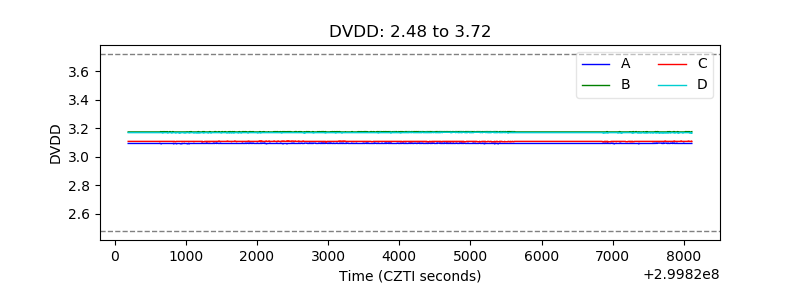

| D_VDD |  |

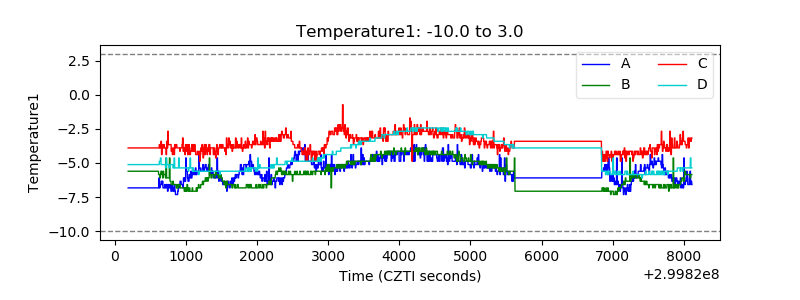

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

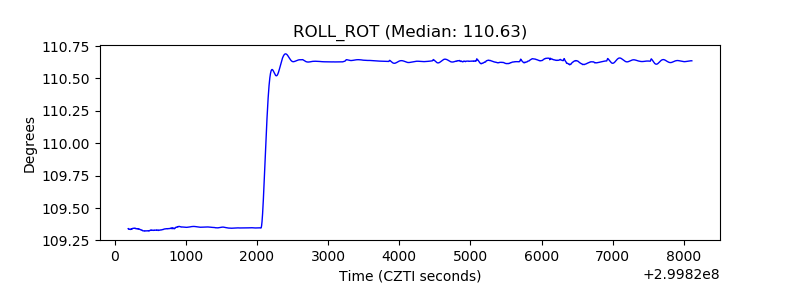

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
