| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_163T01_9000003010_20340cztM0_level2.evt | modeM0/AS1A05_163T01_9000003010_20340cztM0_level2_quad_clean.evt |
| Size (bytes) | 527,218,560 | 90,002,880 |
| Size | 502.8 MB | 85.8 MB |
| Events in quadrant A | 3,795,374 | 549,121 |
| Events in quadrant B | 3,896,816 | 555,392 |
| Events in quadrant C | 3,850,976 | 541,247 |
| Events in quadrant D | 3,893,696 | 537,150 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 158 | 0 |
| B | 0 | 158 | 0 |
| C | 0 | 158 | 0 |
| D | 0 | 158 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16272 | 2 |
| B | 0 | 16346 | 2 |
| C | 0 | 16321 | 2 |
| D | 0 | 16866 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7807 | 188 | 2.408095% |
| B | 7808 | 232 | 2.971311% |
| C | 7808 | 230 | 2.945697% |
| D | 7807 | 155 | 1.985398% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9167 | 7809 | 0 | 0 | 0.00% | 0.00% |  |
| B | 9168 | 7809 | 0 | 0 | 0.00% | 0.00% |  |
| C | 9168 | 7809 | 0 | 0 | 0.00% | 0.00% |  |
| D | 9167 | 7809 | 30 | 30 | 0.33% | 0.38% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 8624 | 38.67 | 984 | 962 | 198.1 |
| A | 3 | 137 | 8467 | 37.88 | 984 | 962 | 198.1 |
| A | 13 | 254 | 8389 | 37.49 | 984 | 962 | 198.1 |
| B | 0 | 198 | 50179 | 257.19 | 979 | 952 | 191.4 |
| B | 12 | 111 | 24442 | 122.72 | 979 | 952 | 191.4 |
| B | 11 | 111 | 21315 | 106.39 | 979 | 952 | 191.4 |
| C | 14 | 238 | 144702 | 644.05 | 946 | 953 | 223.2 |
| C | 7 | 220 | 12071 | 49.81 | 946 | 953 | 223.2 |
| C | 13 | 61 | 6662 | 25.58 | 946 | 953 | 223.2 |
| D | 2 | 16 | 68651 | 287.19 | 964 | 935 | 235.8 |
| D | 1 | 20 | 61460 | 256.69 | 964 | 935 | 235.8 |
| D | 11 | 176 | 54502 | 227.18 | 964 | 935 | 235.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

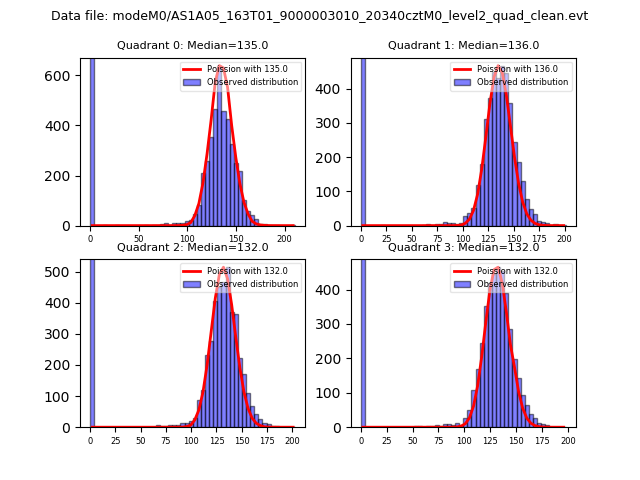

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

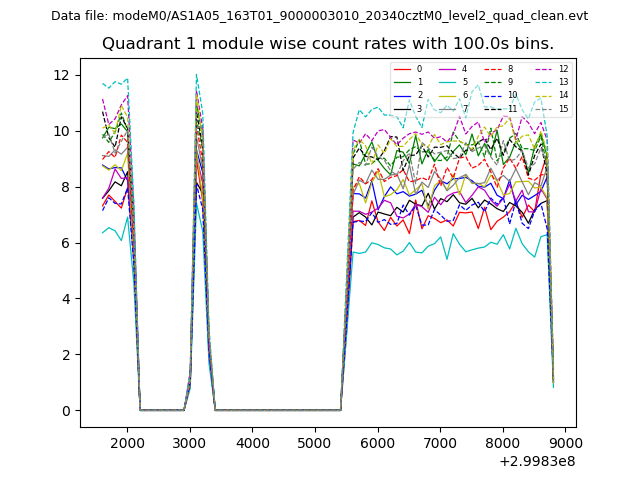

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

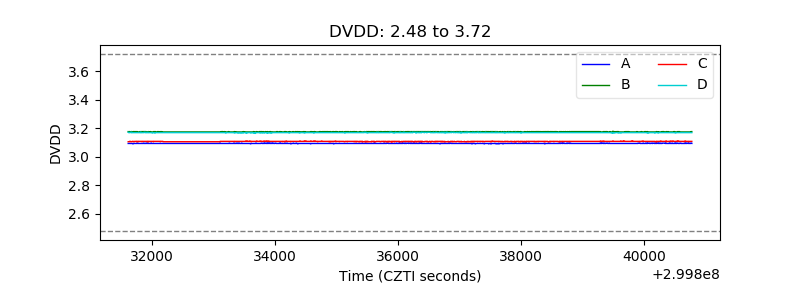

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

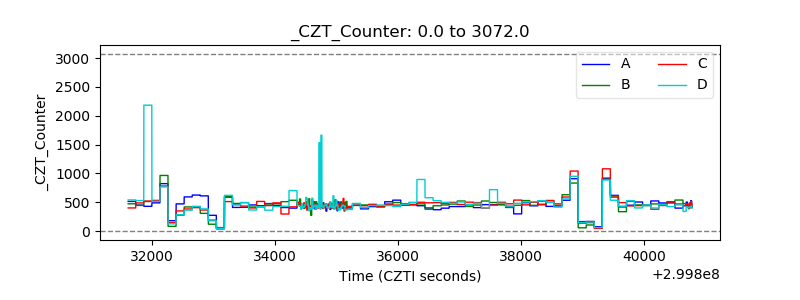

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

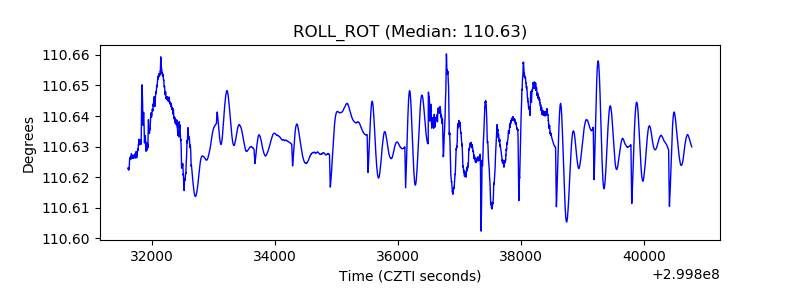

| _ROLL_ROT |  |
| _Roll_DEC |  |

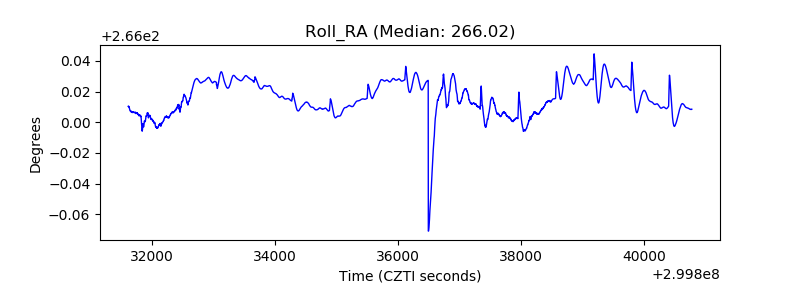

| _Roll_RA |  |

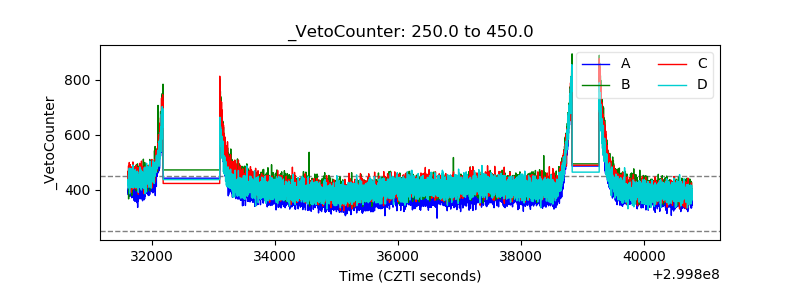

| Veto Counter |  |
