| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_163T01_9000003010_20342cztM0_level2.evt | modeM0/AS1A05_163T01_9000003010_20342cztM0_level2_quad_clean.evt |
| Size (bytes) | 549,313,920 | 85,199,040 |
| Size | 523.9 MB | 81.3 MB |
| Events in quadrant A | 3,877,007 | 512,948 |
| Events in quadrant B | 4,064,883 | 516,749 |
| Events in quadrant C | 3,911,606 | 499,861 |
| Events in quadrant D | 4,238,180 | 493,556 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 162 | 0 |
| B | 0 | 162 | 0 |
| C | 0 | 162 | 0 |
| D | 0 | 162 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16694 | 2 |
| B | 0 | 17010 | 2 |
| C | 0 | 16703 | 2 |
| D | 0 | 17956 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8017 | 312 | 3.891730% |
| B | 8018 | 328 | 4.090796% |
| C | 8018 | 330 | 4.115740% |
| D | 8018 | 347 | 4.327763% |

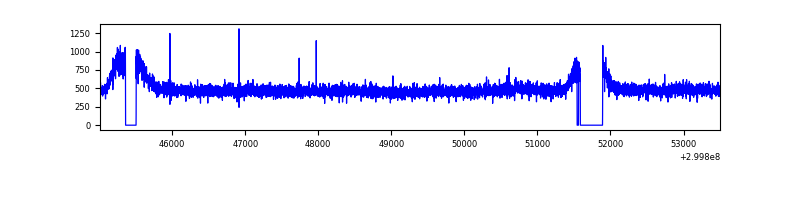

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8487 | 8018 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8488 | 8021 | 0 | 0 | 0.00% | 0.00% |  |
| C | 8488 | 8020 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8488 | 8020 | 91 | 91 | 1.07% | 1.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 9540 | 42.03 | 1005 | 981 | 203.6 |
| A | 3 | 137 | 8941 | 39.09 | 1005 | 981 | 203.6 |
| A | 0 | 226 | 8385 | 36.36 | 1005 | 981 | 203.6 |
| B | 0 | 198 | 96878 | 489.22 | 994 | 963 | 196.1 |
| B | 10 | 247 | 34614 | 171.64 | 994 | 963 | 196.1 |
| B | 12 | 111 | 24659 | 120.86 | 994 | 963 | 196.1 |
| C | 14 | 238 | 147493 | 643.28 | 963 | 969 | 227.8 |
| C | 3 | 233 | 7315 | 27.86 | 963 | 969 | 227.8 |
| C | 13 | 61 | 6661 | 24.99 | 963 | 969 | 227.8 |
| D | 1 | 52 | 312950 | 1303.85 | 978 | 950 | 239.3 |
| D | 7 | 238 | 91573 | 378.71 | 978 | 950 | 239.3 |
| D | 12 | 218 | 67212 | 276.91 | 978 | 950 | 239.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

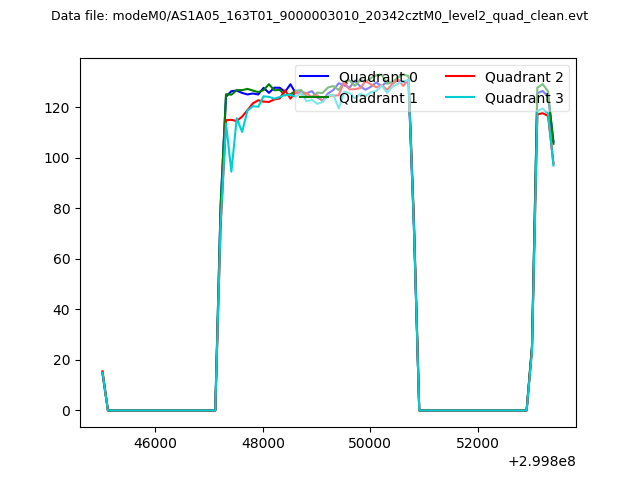

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

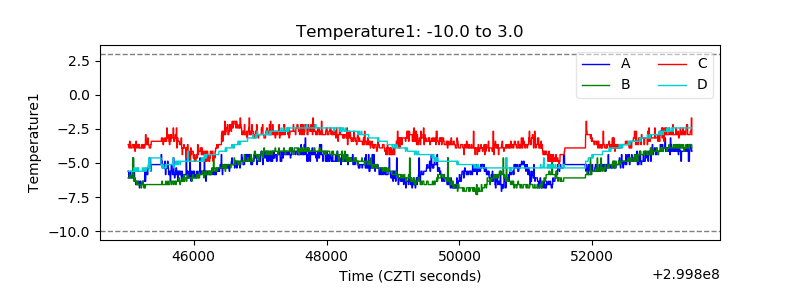

| Temperature 1 |  |

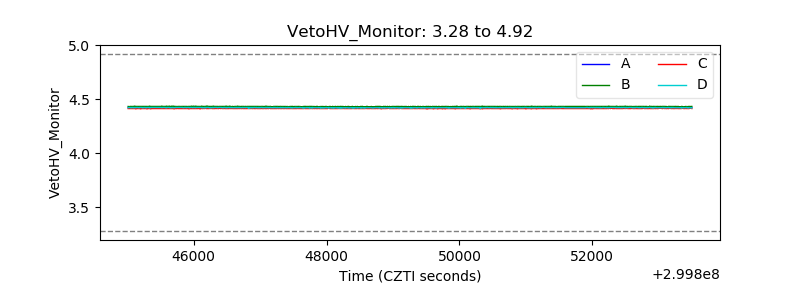

| Veto HV Monitor |  |
| Veto LLD |  |

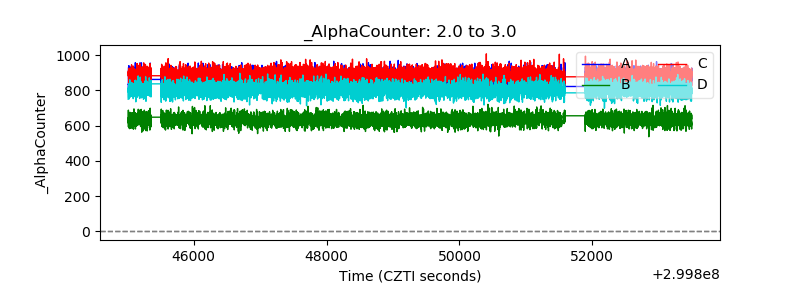

| Alpha Counter |  |

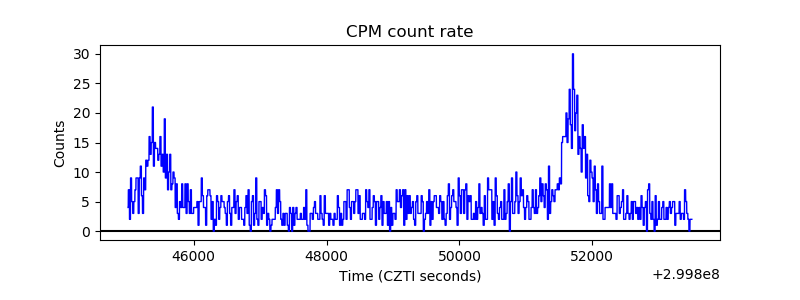

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

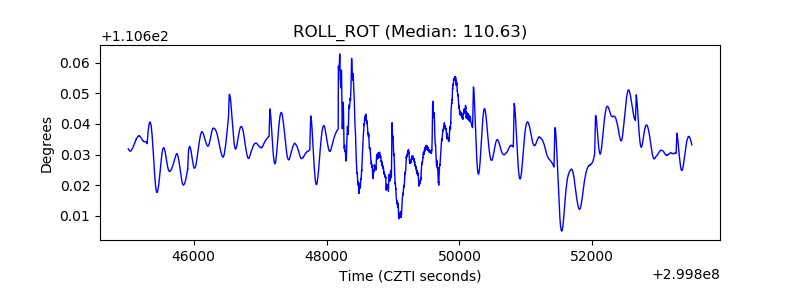

| _ROLL_ROT |  |

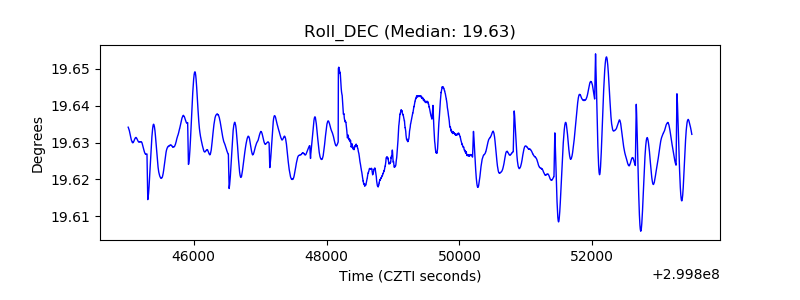

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
