| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_163T01_9000003010_20349cztM0_level2.evt | modeM0/AS1A05_163T01_9000003010_20349cztM0_level2_quad_clean.evt |
| Size (bytes) | 433,077,120 | 93,438,720 |
| Size | 413.0 MB | 89.1 MB |
| Events in quadrant A | 3,056,639 | 603,120 |
| Events in quadrant B | 3,198,203 | 619,277 |
| Events in quadrant C | 3,178,595 | 592,949 |
| Events in quadrant D | 3,261,407 | 582,190 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13065 | 2 |
| B | 0 | 13435 | 2 |
| C | 0 | 13367 | 2 |
| D | 0 | 13908 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 23 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6192 | 40 | 0.645995% |
| B | 6192 | 51 | 0.823643% |
| C | 6192 | 67 | 1.082041% |
| D | 6192 | 51 | 0.823643% |

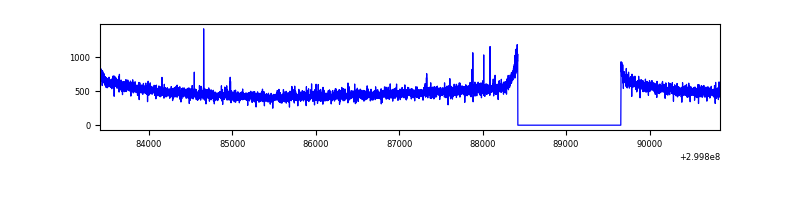

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7427 | 6193 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7427 | 6192 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7427 | 6192 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7427 | 6193 | 38 | 38 | 0.51% | 0.61% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 8709 | 49.8 | 791 | 777 | 159.3 |
| A | 13 | 254 | 7149 | 40.01 | 791 | 777 | 159.3 |
| A | 0 | 226 | 6717 | 37.3 | 791 | 777 | 159.3 |
| B | 0 | 198 | 71569 | 476.84 | 793 | 775 | 148.5 |
| B | 12 | 111 | 18067 | 116.47 | 793 | 775 | 148.5 |
| B | 11 | 111 | 16136 | 103.47 | 793 | 775 | 148.5 |
| C | 14 | 238 | 121322 | 671.83 | 769 | 776 | 179.4 |
| C | 3 | 9 | 20761 | 111.38 | 769 | 776 | 179.4 |
| C | 3 | 233 | 16744 | 88.99 | 769 | 776 | 179.4 |
| D | 7 | 238 | 247173 | 1323.87 | 773 | 751 | 186.1 |
| D | 2 | 16 | 82261 | 437.9 | 773 | 751 | 186.1 |
| D | 2 | 234 | 22662 | 117.71 | 773 | 751 | 186.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

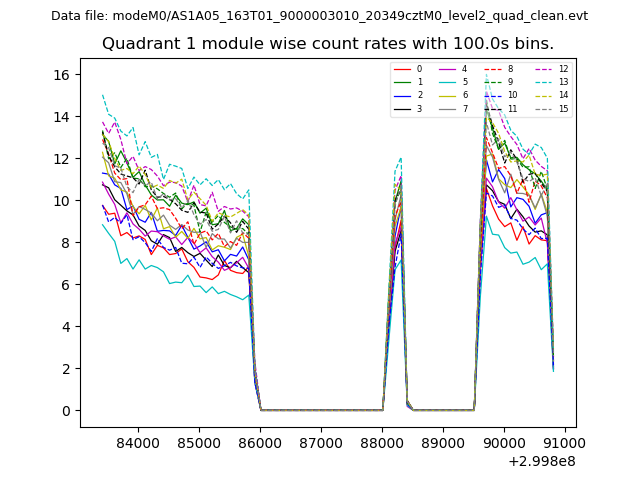

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

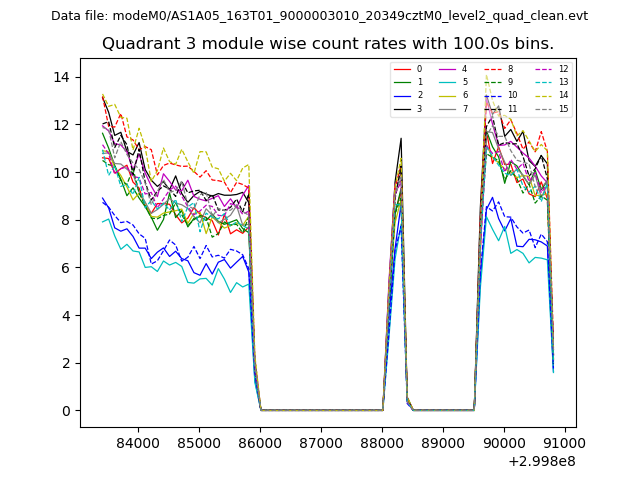

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

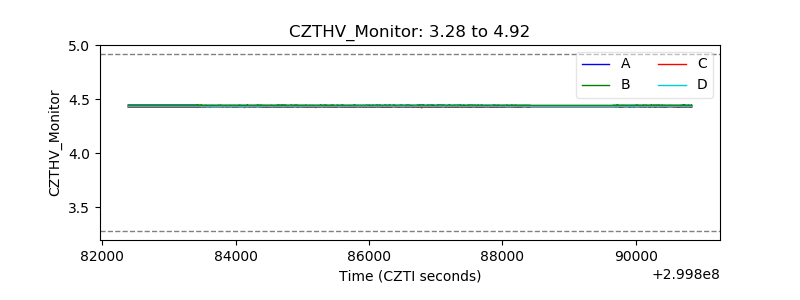

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

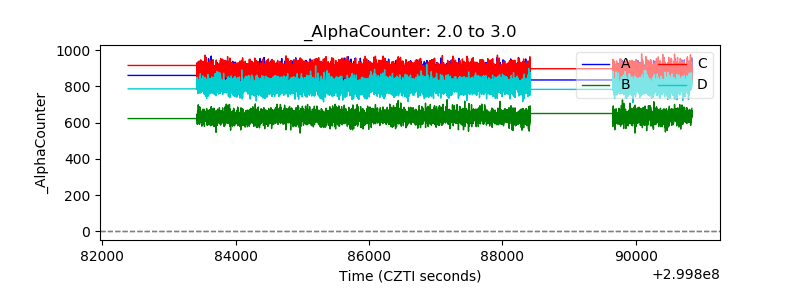

| Alpha Counter |  |

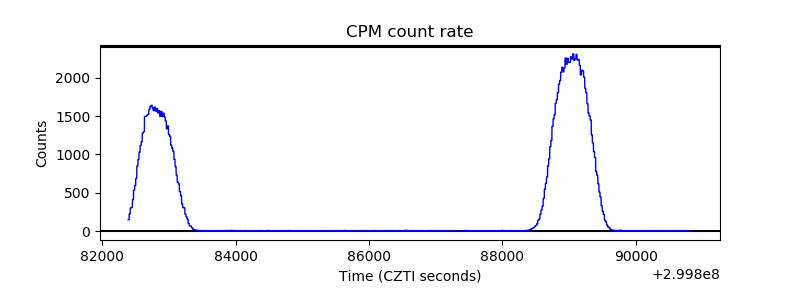

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

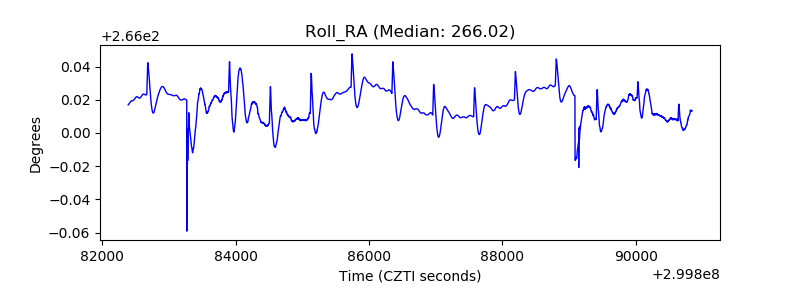

| _Roll_RA |  |
| Veto Counter |  |
