| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_163T01_9000003010_20357cztM0_level2.evt | modeM0/AS1A05_163T01_9000003010_20357cztM0_level2_quad_clean.evt |
| Size (bytes) | 522,152,640 | 85,838,400 |
| Size | 498.0 MB | 81.9 MB |
| Events in quadrant A | 3,644,950 | 526,258 |
| Events in quadrant B | 3,766,520 | 528,913 |
| Events in quadrant C | 3,658,563 | 507,391 |
| Events in quadrant D | 4,224,003 | 505,053 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 158 | 0 |
| B | 0 | 158 | 0 |
| C | 0 | 158 | 0 |
| D | 0 | 158 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15729 | 2 |
| B | 0 | 15922 | 2 |
| C | 0 | 15713 | 2 |
| D | 0 | 17674 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7639 | 198 | 2.591962% |
| B | 7639 | 228 | 2.984684% |
| C | 7639 | 234 | 3.063228% |
| D | 7640 | 272 | 3.560209% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

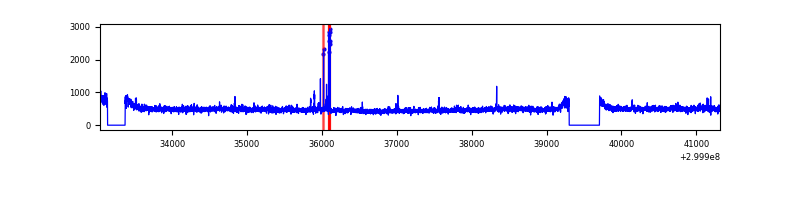

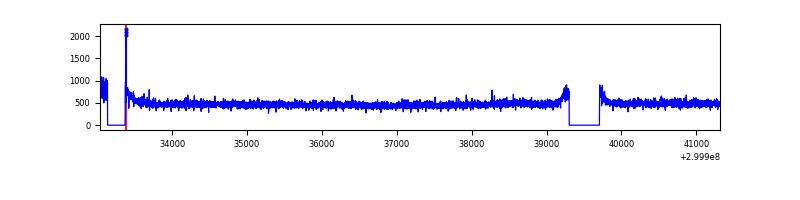

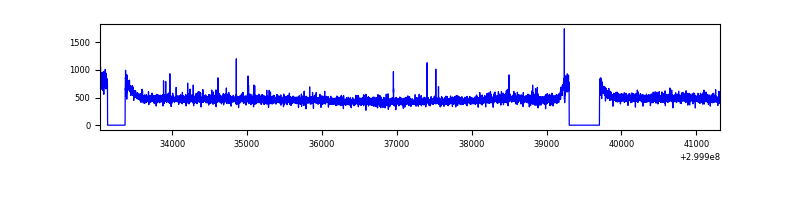

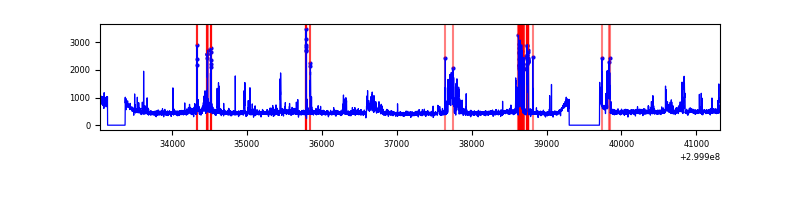

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8279 | 7640 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8279 | 7639 | 10 | 10 | 0.12% | 0.13% |  |
| C | 8279 | 7641 | 3 | 3 | 0.04% | 0.04% |  |
| D | 8280 | 7641 | 84 | 84 | 1.01% | 1.10% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 9145 | 43.03 | 942 | 918 | 191.2 |
| A | 13 | 254 | 8636 | 40.37 | 942 | 918 | 191.2 |
| A | 3 | 137 | 8397 | 39.12 | 942 | 918 | 191.2 |
| B | 10 | 247 | 48488 | 261.38 | 932 | 905 | 182.0 |
| B | 0 | 214 | 26160 | 138.73 | 932 | 905 | 182.0 |
| B | 12 | 111 | 23366 | 123.38 | 932 | 905 | 182.0 |
| C | 14 | 238 | 140587 | 659.76 | 899 | 906 | 211.7 |
| C | 7 | 220 | 11101 | 48.15 | 899 | 906 | 211.7 |
| C | 13 | 61 | 6156 | 24.8 | 899 | 906 | 211.7 |
| D | 1 | 52 | 491531 | 2208.04 | 913 | 884 | 222.2 |
| D | 7 | 238 | 255875 | 1147.52 | 913 | 884 | 222.2 |
| D | 2 | 234 | 30289 | 132.33 | 913 | 884 | 222.2 |

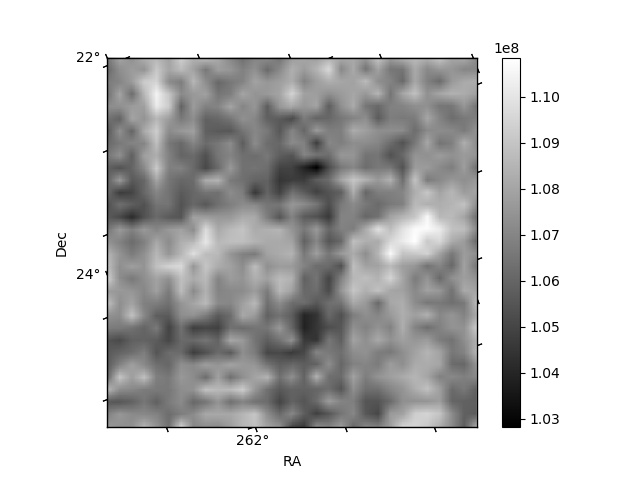

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

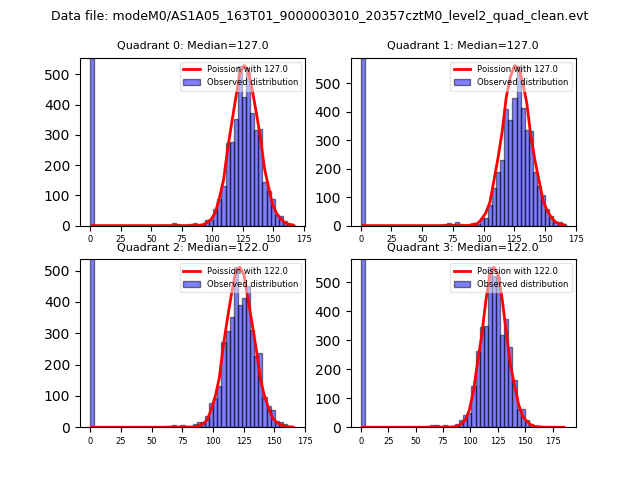

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

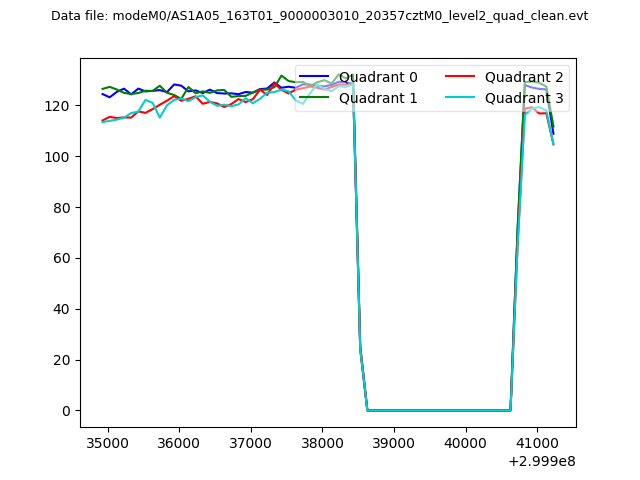

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

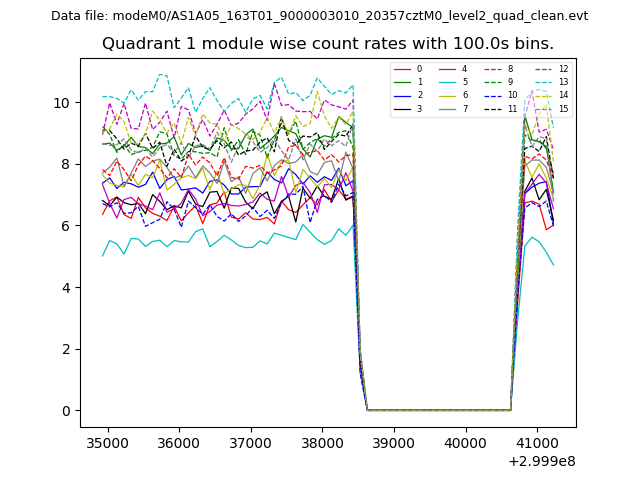

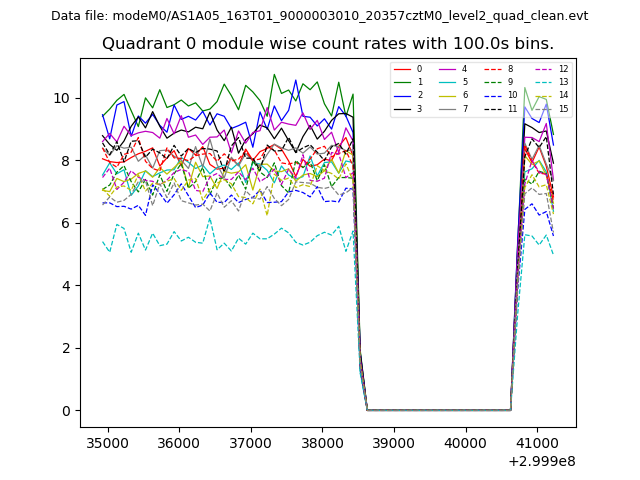

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

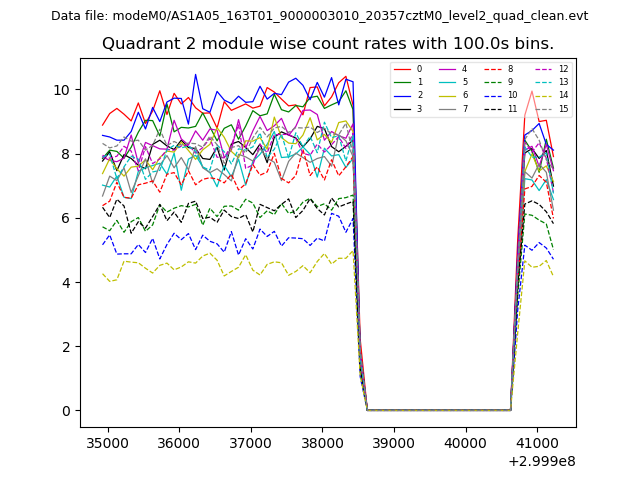

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

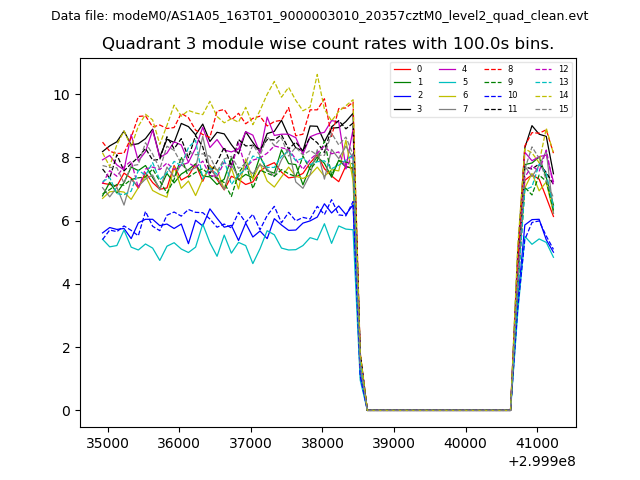

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

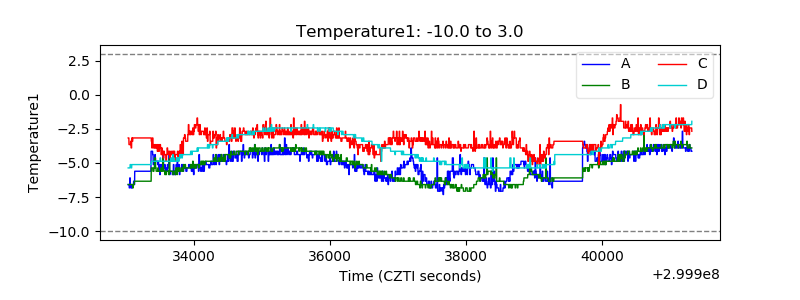

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

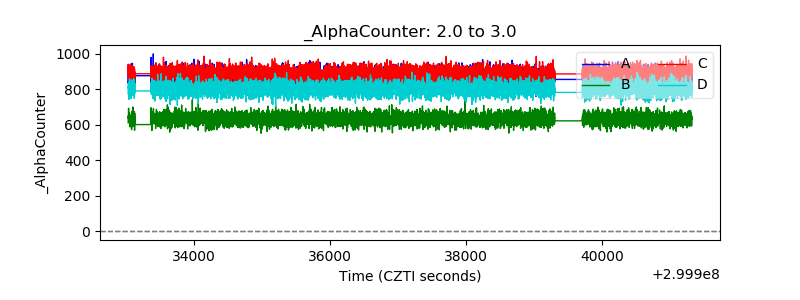

| Alpha Counter |  |
| _CPM_Rate |  |

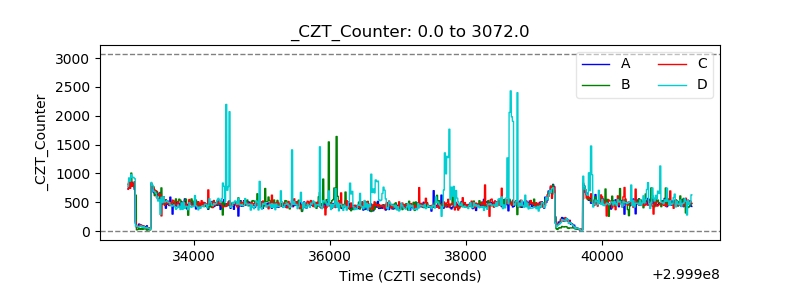

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

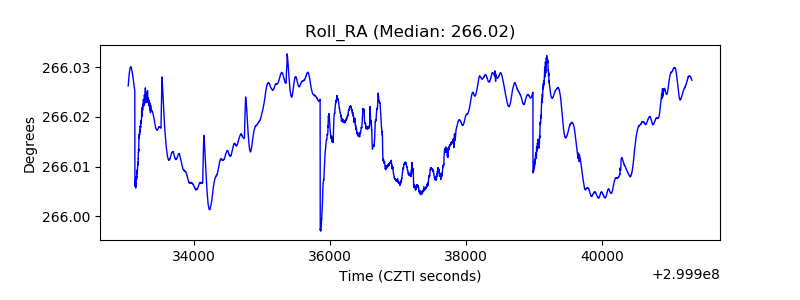

| _Roll_RA |  |

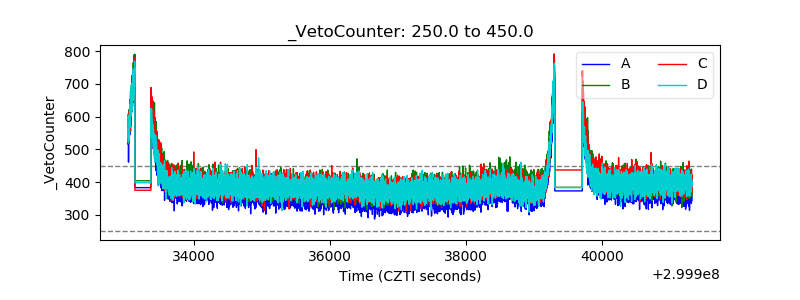

| Veto Counter |  |
