| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_205T01_9000003012_20365cztM0_level2.evt | modeM0/AS1A05_205T01_9000003012_20365cztM0_level2_quad_clean.evt |
| Size (bytes) | 434,854,080 | 96,451,200 |
| Size | 414.7 MB | 92.0 MB |
| Events in quadrant A | 3,100,043 | 629,278 |
| Events in quadrant B | 3,315,869 | 651,388 |
| Events in quadrant C | 3,136,122 | 621,225 |
| Events in quadrant D | 3,205,129 | 595,327 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12913 | 2 |
| B | 0 | 13515 | 2 |
| C | 0 | 12863 | 2 |
| D | 0 | 13404 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6067 | 39 | 0.642822% |
| B | 6067 | 91 | 1.499918% |
| C | 6067 | 62 | 1.021922% |
| D | 6067 | 29 | 0.477996% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

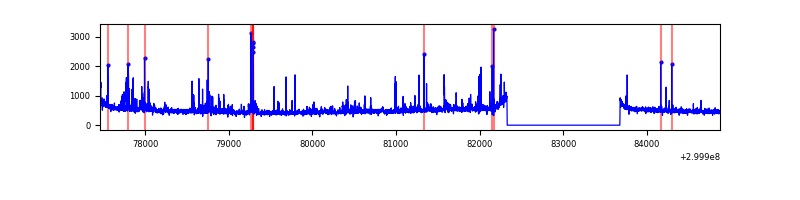

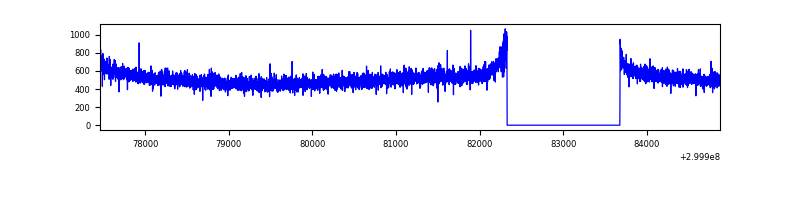

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7417 | 6068 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7417 | 6068 | 27 | 27 | 0.36% | 0.44% |  |
| C | 7417 | 6068 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7417 | 6068 | 14 | 14 | 0.19% | 0.23% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 111 | 25476 | 156.25 | 792 | 779 | 158.1 |
| A | 12 | 96 | 18850 | 114.33 | 792 | 779 | 158.1 |
| A | 13 | 254 | 7700 | 43.79 | 792 | 779 | 158.1 |
| B | 7 | 220 | 106015 | 698.97 | 803 | 783 | 150.6 |
| B | 0 | 197 | 20124 | 128.47 | 803 | 783 | 150.6 |
| B | 12 | 111 | 17256 | 109.42 | 803 | 783 | 150.6 |
| C | 14 | 238 | 123429 | 687.03 | 771 | 779 | 178.5 |
| C | 13 | 61 | 5477 | 26.32 | 771 | 779 | 178.5 |
| C | 7 | 220 | 3289 | 14.06 | 771 | 779 | 178.5 |
| D | 1 | 52 | 231729 | 1230.27 | 769 | 749 | 187.7 |
| D | 2 | 234 | 26844 | 138.99 | 769 | 749 | 187.7 |
| D | 5 | 222 | 17108 | 87.13 | 769 | 749 | 187.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

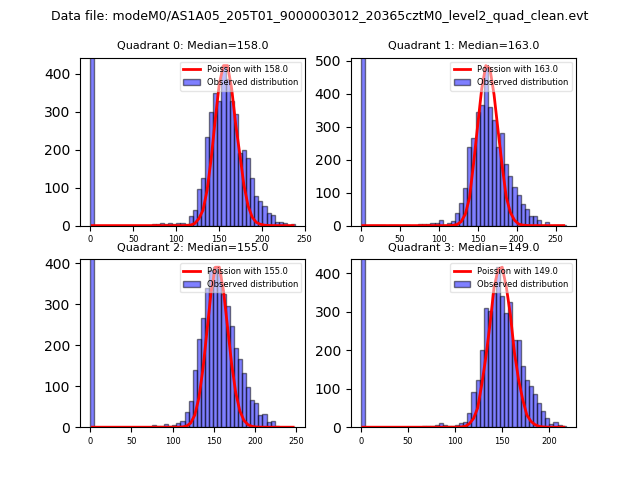

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

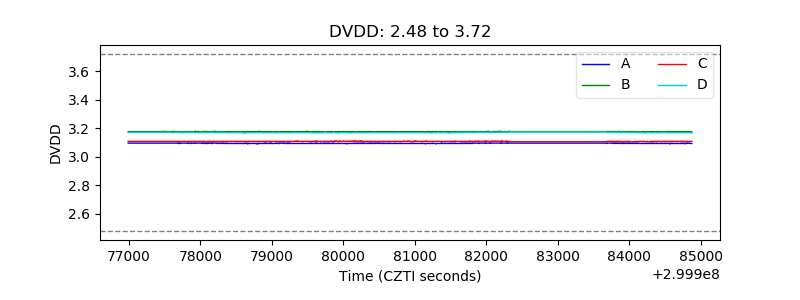

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

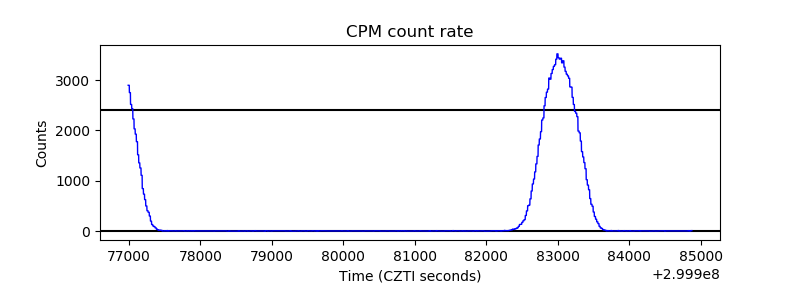

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

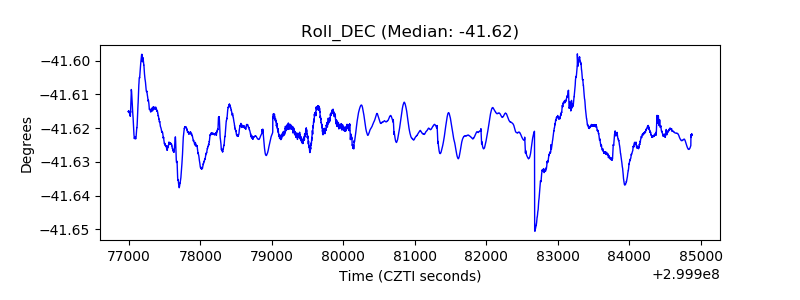

| _Roll_DEC |  |

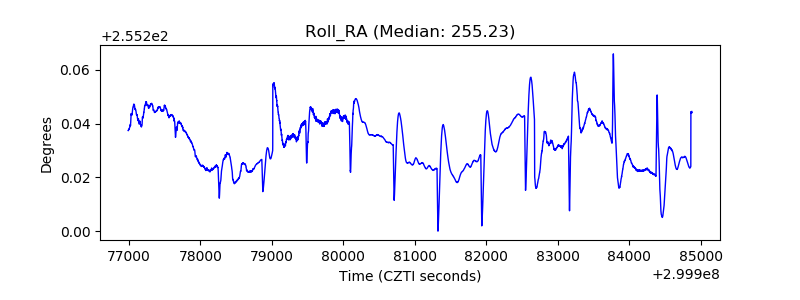

| _Roll_RA |  |

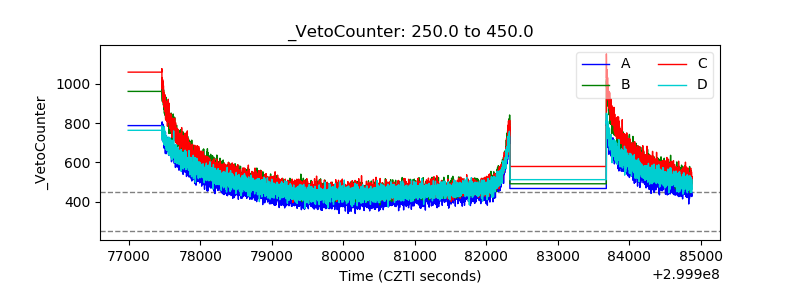

| Veto Counter |  |
