| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_205T01_9000003012_20366cztM0_level2.evt | modeM0/AS1A05_205T01_9000003012_20366cztM0_level2_quad_clean.evt |
| Size (bytes) | 473,077,440 | 96,108,480 |
| Size | 451.2 MB | 91.7 MB |
| Events in quadrant A | 3,321,946 | 618,591 |
| Events in quadrant B | 3,791,154 | 632,227 |
| Events in quadrant C | 3,433,172 | 611,172 |
| Events in quadrant D | 3,332,248 | 587,844 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27 | 0 |
| B | 0 | 27 | 0 |
| C | 0 | 27 | 0 |
| D | 0 | 27 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13866 | 2 |
| B | 0 | 15237 | 2 |
| C | 0 | 13953 | 2 |
| D | 0 | 14074 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6599 | 39 | 0.590999% |
| B | 6599 | 155 | 2.348841% |
| C | 6600 | 70 | 1.060606% |
| D | 6600 | 30 | 0.454545% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9334 | 6601 | 0 | 0 | 0.00% | 0.00% |  |
| B | 9334 | 6601 | 52 | 52 | 0.56% | 0.79% |  |
| C | 9335 | 6602 | 0 | 0 | 0.00% | 0.00% |  |
| D | 9335 | 6602 | 11 | 11 | 0.12% | 0.17% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 7458 | 38.3 | 862 | 848 | 172.6 |
| A | 0 | 226 | 7281 | 37.27 | 862 | 848 | 172.6 |
| A | 3 | 137 | 6933 | 35.26 | 862 | 848 | 172.6 |
| B | 7 | 220 | 182053 | 1131.23 | 867 | 848 | 160.2 |
| B | 0 | 198 | 86251 | 533.16 | 867 | 848 | 160.2 |
| B | 4 | 80 | 58217 | 358.14 | 867 | 848 | 160.2 |
| C | 14 | 238 | 133911 | 683.94 | 844 | 855 | 194.5 |
| C | 13 | 61 | 5890 | 25.88 | 844 | 855 | 194.5 |
| C | 7 | 220 | 3216 | 12.14 | 844 | 855 | 194.5 |
| D | 1 | 52 | 101474 | 492.45 | 841 | 818 | 204.4 |
| D | 2 | 234 | 29448 | 140.07 | 841 | 818 | 204.4 |
| D | 7 | 238 | 21288 | 100.15 | 841 | 818 | 204.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

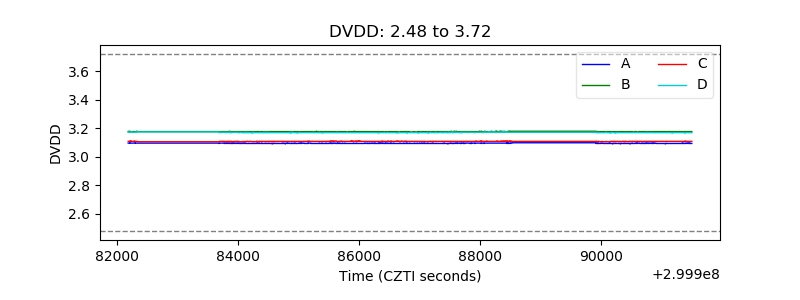

| D_VDD |  |
| Temperature 1 |  |

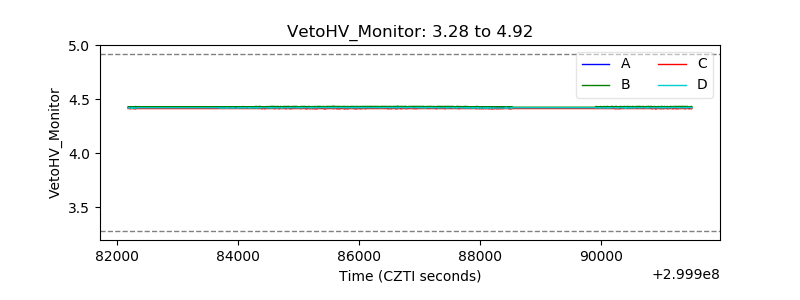

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

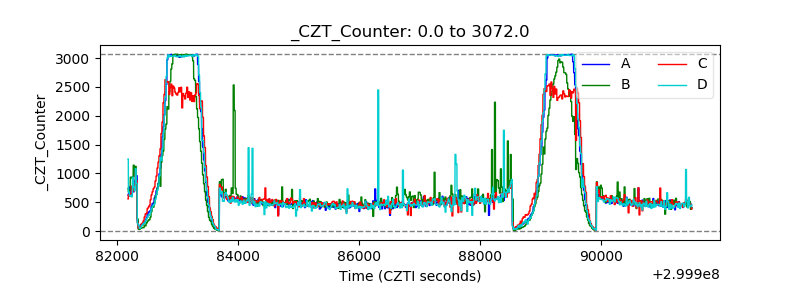

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

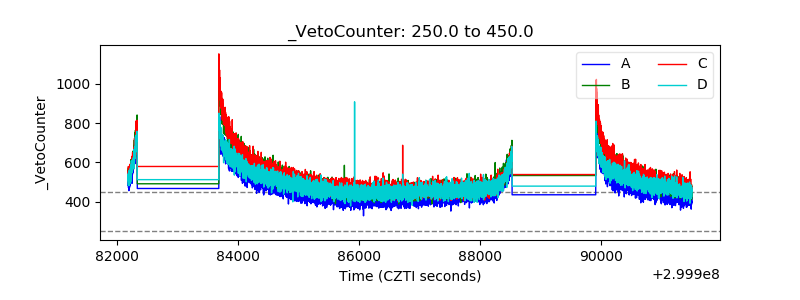

| Veto Counter |  |
