| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_205T01_9000003012_20371cztM0_level2.evt | modeM0/AS1A05_205T01_9000003012_20371cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,681,908,480 | 293,621,760 |
| Size | 1.6 GB | 280.0 MB |
| Events in quadrant A | 11,307,816 | 1,845,255 |
| Events in quadrant B | 12,510,766 | 1,859,349 |
| Events in quadrant C | 11,410,299 | 1,804,519 |
| Events in quadrant D | 14,102,005 | 1,749,031 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 480 | 0 |
| B | 0 | 480 | 0 |
| C | 0 | 480 | 0 |
| D | 0 | 480 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 49133 | 5 |
| B | 0 | 51853 | 5 |
| C | 0 | 48986 | 5 |
| D | 0 | 58040 | 5 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 23765 | 496 | 2.087103% |
| B | 23766 | 735 | 3.092653% |
| C | 23766 | 626 | 2.634015% |
| D | 23766 | 883 | 3.715392% |

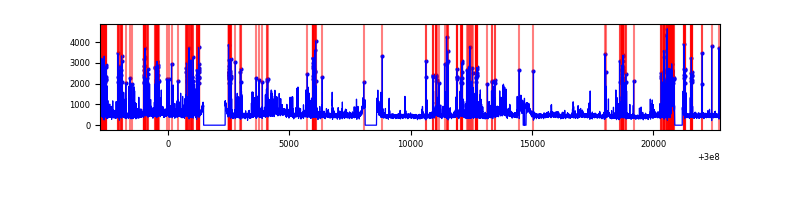

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 25540 | 23770 | 3 | 3 | 0.01% | 0.01% |  |
| B | 25541 | 23770 | 124 | 124 | 0.49% | 0.52% |  |
| C | 25541 | 23771 | 0 | 0 | 0.00% | 0.00% |  |
| D | 25541 | 23771 | 386 | 386 | 1.51% | 1.62% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 96 | 67282 | 110.18 | 2911 | 2847 | 584.8 |
| A | 0 | 226 | 25079 | 38.01 | 2911 | 2847 | 584.8 |
| A | 3 | 137 | 24358 | 36.78 | 2911 | 2847 | 584.8 |
| B | 7 | 220 | 507031 | 918.35 | 2897 | 2825 | 549.0 |
| B | 0 | 198 | 181191 | 324.87 | 2897 | 2825 | 549.0 |
| B | 0 | 197 | 148906 | 266.07 | 2897 | 2825 | 549.0 |
| C | 14 | 238 | 433904 | 660.84 | 2798 | 2813 | 652.3 |
| C | 10 | 91 | 39834 | 56.75 | 2798 | 2813 | 652.3 |
| C | 3 | 233 | 19654 | 25.82 | 2798 | 2813 | 652.3 |
| D | 1 | 52 | 2960412 | 4309.43 | 2820 | 2741 | 686.3 |
| D | 7 | 238 | 132302 | 188.77 | 2820 | 2741 | 686.3 |
| D | 13 | 138 | 132043 | 188.4 | 2820 | 2741 | 686.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

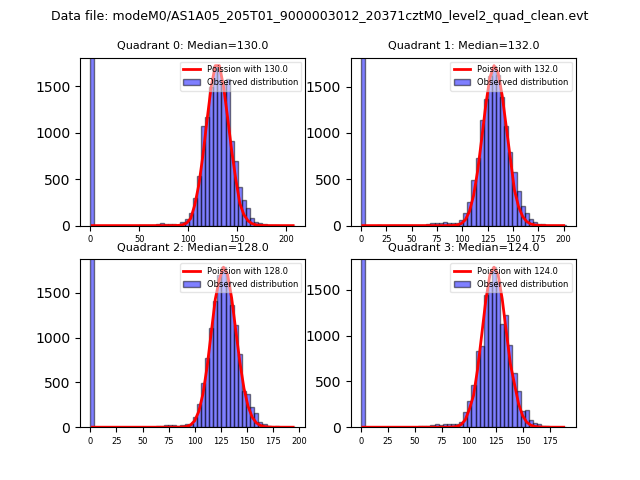

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

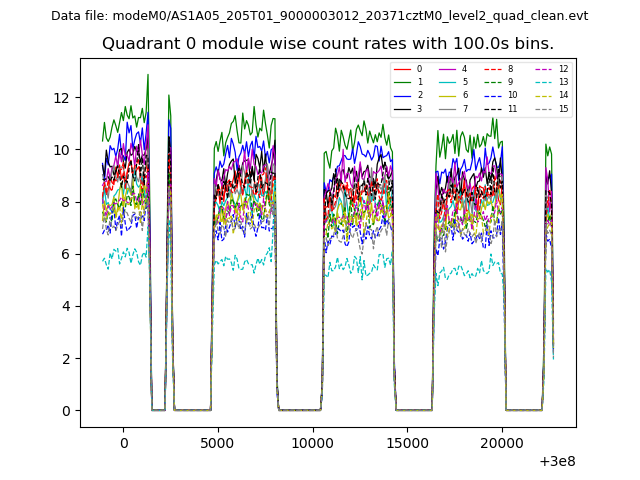

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

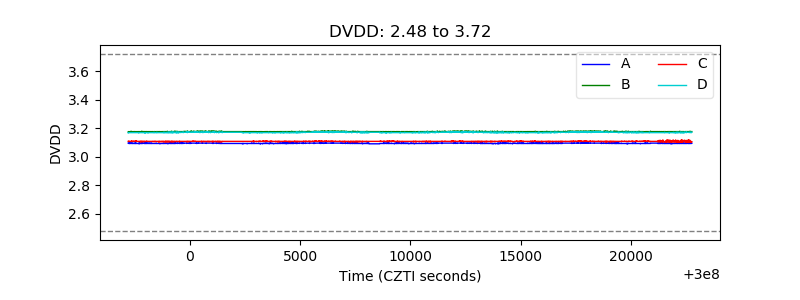

| D_VDD |  |
| Temperature 1 |  |

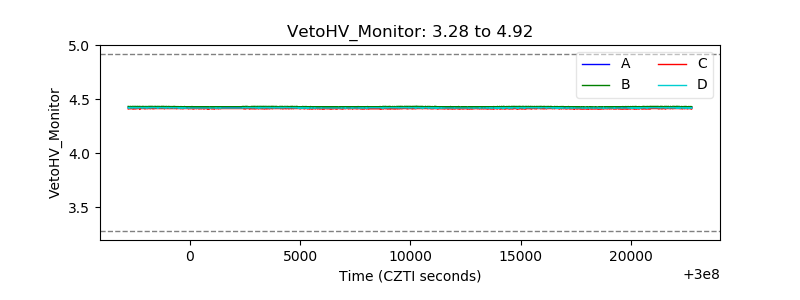

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

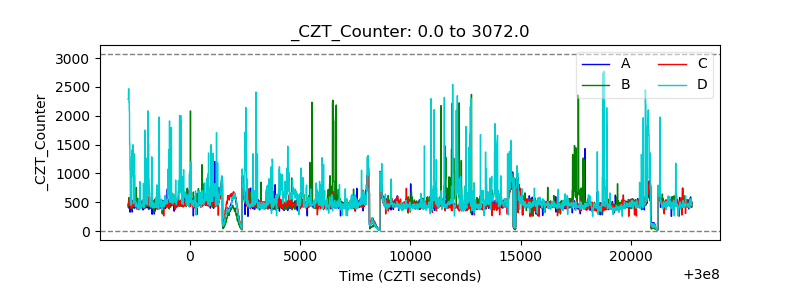

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

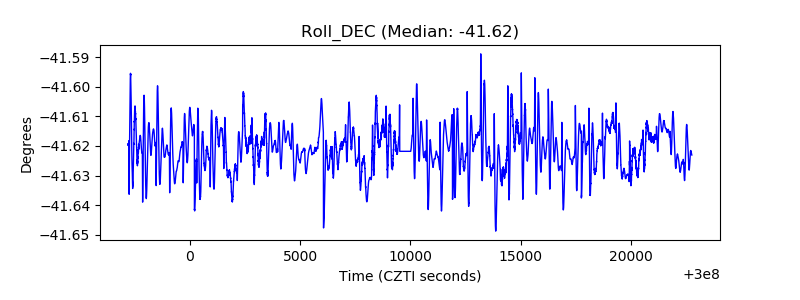

| _Roll_DEC |  |
| _Roll_RA |  |

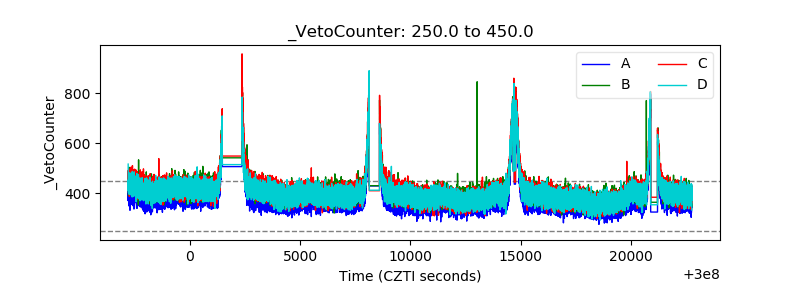

| Veto Counter |  |
