| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_205T01_9000003012_20383cztM0_level2.evt | modeM0/AS1A05_205T01_9000003012_20383cztM0_level2_quad_clean.evt |
| Size (bytes) | 509,250,240 | 88,087,680 |
| Size | 485.7 MB | 84.0 MB |
| Events in quadrant A | 3,544,701 | 546,784 |
| Events in quadrant B | 3,863,831 | 554,339 |
| Events in quadrant C | 3,580,297 | 533,746 |
| Events in quadrant D | 3,932,309 | 518,769 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 0 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15329 | 2 |
| B | 0 | 16102 | 2 |
| C | 0 | 15268 | 2 |
| D | 0 | 16703 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7381 | 70 | 0.948381% |
| B | 7381 | 163 | 2.208373% |
| C | 7381 | 143 | 1.937407% |
| D | 7381 | 147 | 1.991600% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9166 | 7383 | 0 | 0 | 0.00% | 0.00% |  |
| B | 9166 | 7383 | 30 | 30 | 0.33% | 0.41% |  |
| C | 9166 | 7383 | 0 | 0 | 0.00% | 0.00% |  |
| D | 9166 | 7383 | 78 | 78 | 0.85% | 1.06% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 16 | 27685 | 145.19 | 909 | 890 | 184.5 |
| A | 0 | 226 | 8032 | 38.7 | 909 | 890 | 184.5 |
| A | 12 | 96 | 7753 | 37.19 | 909 | 890 | 184.5 |
| B | 7 | 220 | 207974 | 1187.36 | 912 | 891 | 174.4 |
| B | 12 | 111 | 21196 | 116.42 | 912 | 891 | 174.4 |
| B | 0 | 197 | 19767 | 108.23 | 912 | 891 | 174.4 |
| C | 14 | 238 | 137545 | 663.45 | 880 | 885 | 206.0 |
| C | 13 | 61 | 6093 | 25.28 | 880 | 885 | 206.0 |
| C | 8 | 128 | 5198 | 20.94 | 880 | 885 | 206.0 |
| D | 1 | 52 | 491484 | 2244.48 | 887 | 860 | 218.6 |
| D | 13 | 153 | 34541 | 154.08 | 887 | 860 | 218.6 |
| D | 2 | 234 | 32411 | 144.34 | 887 | 860 | 218.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

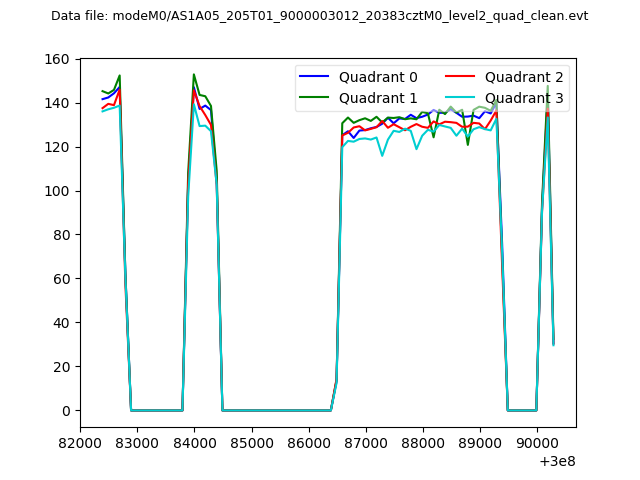

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

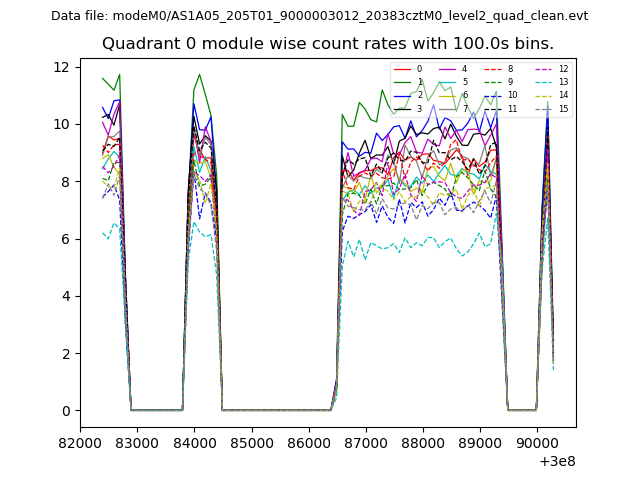

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

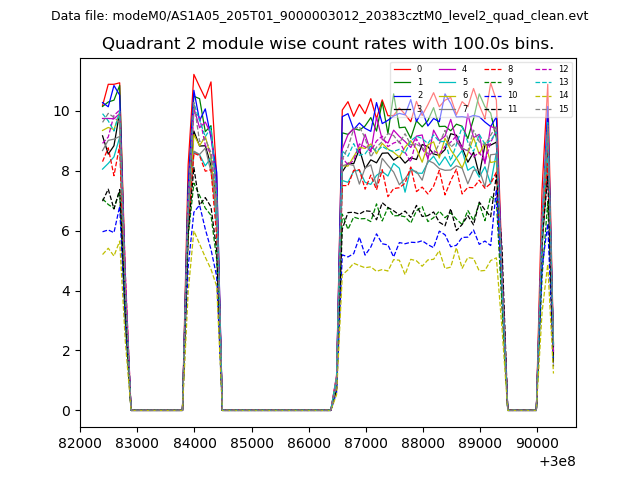

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

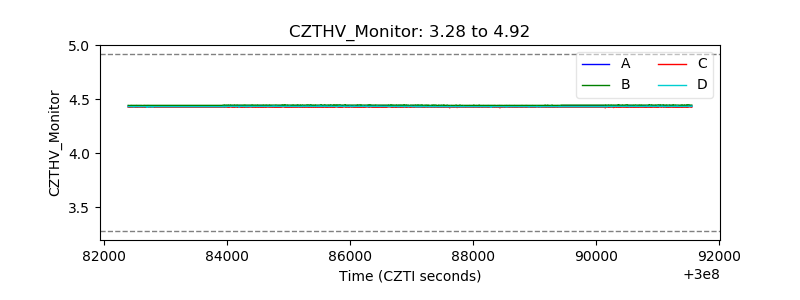

| CZT HV Monitor |  |

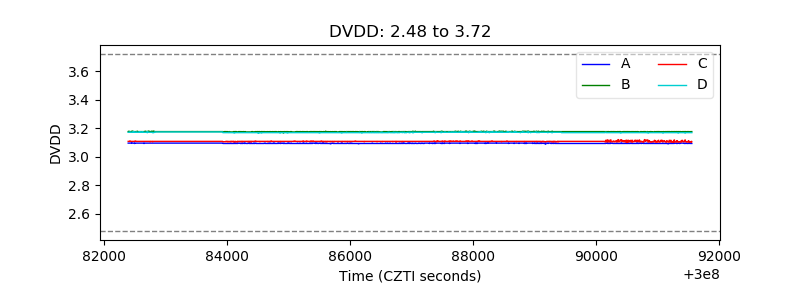

| D_VDD |  |
| Temperature 1 |  |

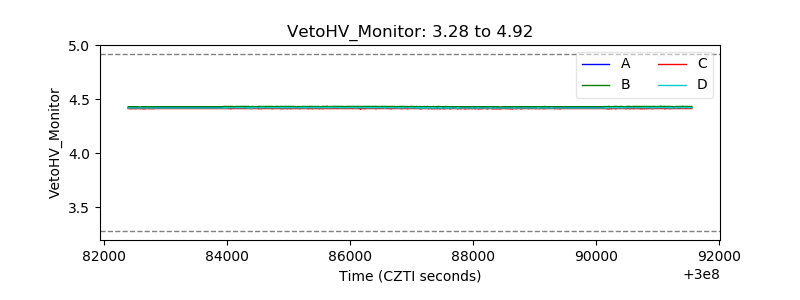

| Veto HV Monitor |  |
| Veto LLD |  |

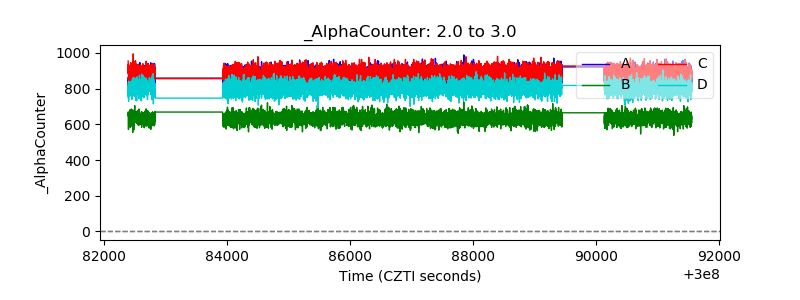

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

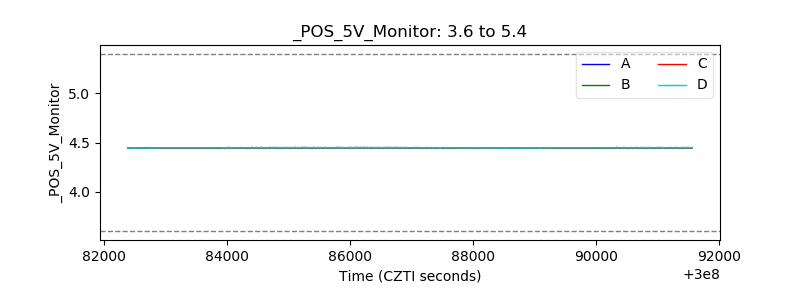

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
