| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_198T01_9000003014_20392cztM0_level2.evt | modeM0/AS1A05_198T01_9000003014_20392cztM0_level2_quad_clean.evt |
| Size (bytes) | 599,636,160 | 96,393,600 |
| Size | 571.9 MB | 91.9 MB |
| Events in quadrant A | 3,280,774 | 641,279 |
| Events in quadrant B | 3,413,250 | 650,535 |
| Events in quadrant C | 3,364,716 | 625,579 |
| Events in quadrant D | 7,666,539 | 553,746 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13894 | 2 |
| B | 0 | 14332 | 2 |
| C | 0 | 14146 | 2 |
| D | 0 | 27262 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 24 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6419 | 60 | 0.934725% |
| B | 6418 | 71 | 1.106264% |
| C | 6419 | 103 | 1.604611% |
| D | 6419 | 1420 | 22.121826% |

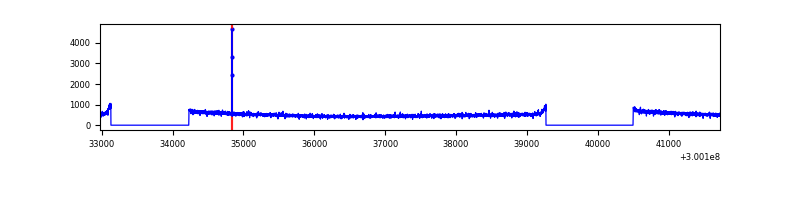

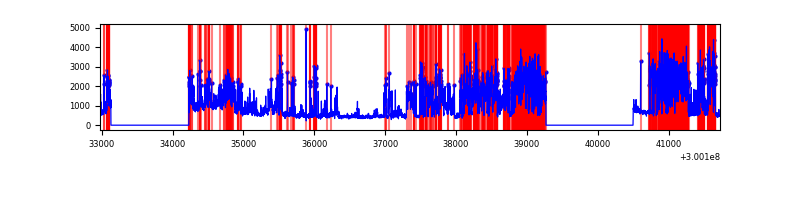

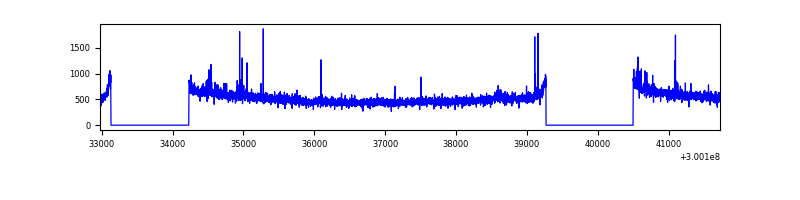

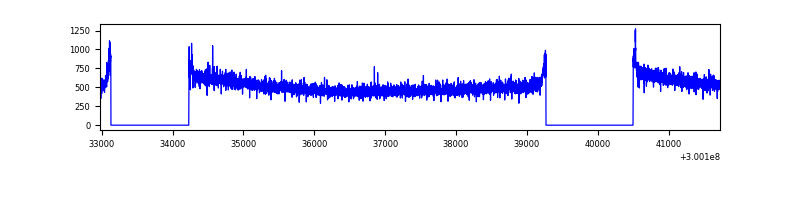

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8749 | 6421 | 3 | 3 | 0.03% | 0.05% |  |
| B | 8748 | 6420 | 0 | 0 | 0.00% | 0.00% |  |
| C | 8749 | 6421 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8749 | 6419 | 1138 | 1138 | 13.01% | 17.73% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 96 | 12551 | 68.51 | 848 | 832 | 171.1 |
| A | 0 | 226 | 7285 | 37.72 | 848 | 832 | 171.1 |
| A | 3 | 137 | 6925 | 35.62 | 848 | 832 | 171.1 |
| B | 12 | 111 | 18622 | 111.34 | 850 | 830 | 159.8 |
| B | 11 | 111 | 16705 | 99.35 | 850 | 830 | 159.8 |
| B | 7 | 220 | 15151 | 89.62 | 850 | 830 | 159.8 |
| C | 14 | 238 | 129182 | 668.61 | 825 | 832 | 192.0 |
| C | 3 | 233 | 6813 | 31.16 | 825 | 832 | 192.0 |
| C | 0 | 207 | 5736 | 25.55 | 825 | 832 | 192.0 |
| D | 1 | 52 | 4328527 | 23364.5 | 766 | 744 | 185.2 |
| D | 13 | 153 | 185295 | 996.34 | 766 | 744 | 185.2 |
| D | 2 | 165 | 181985 | 978.47 | 766 | 744 | 185.2 |

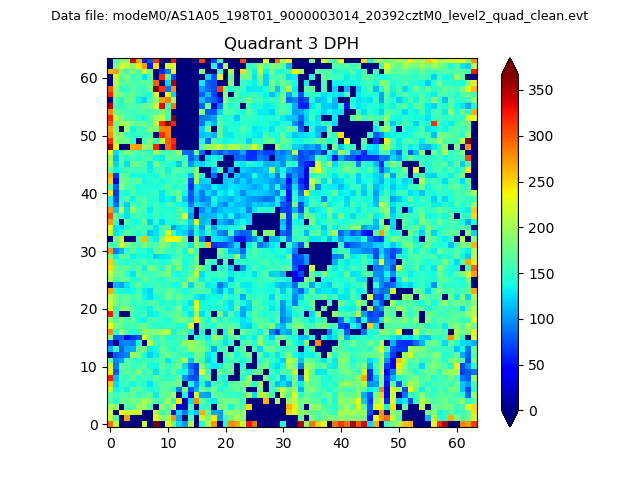

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

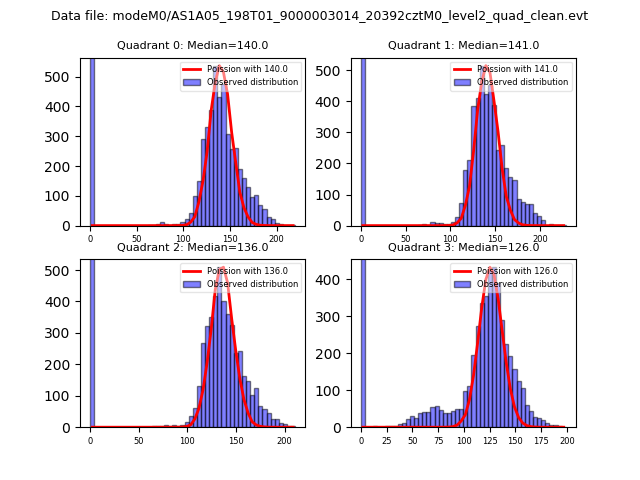

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

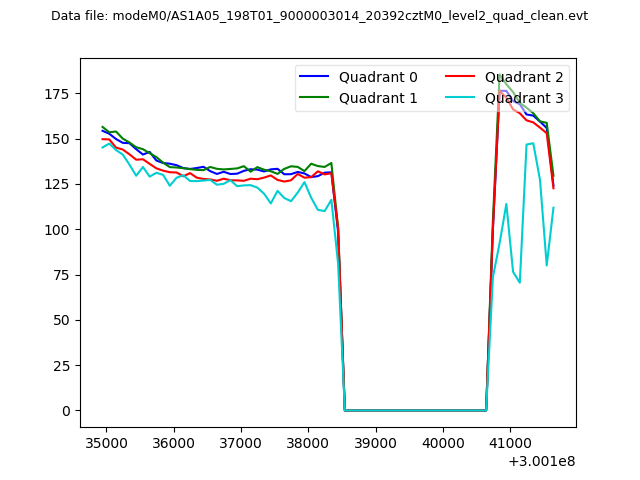

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

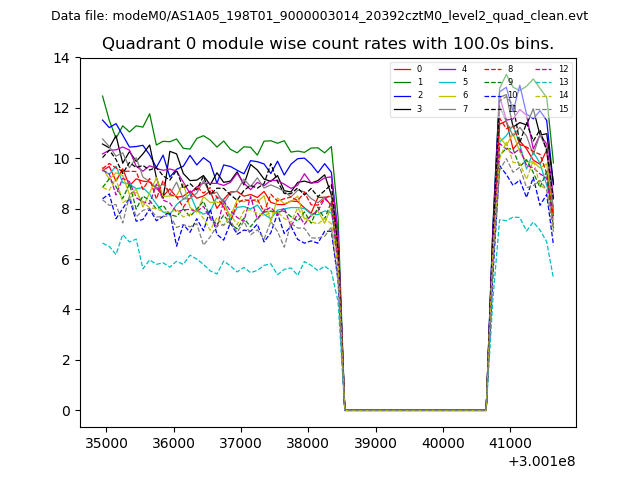

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

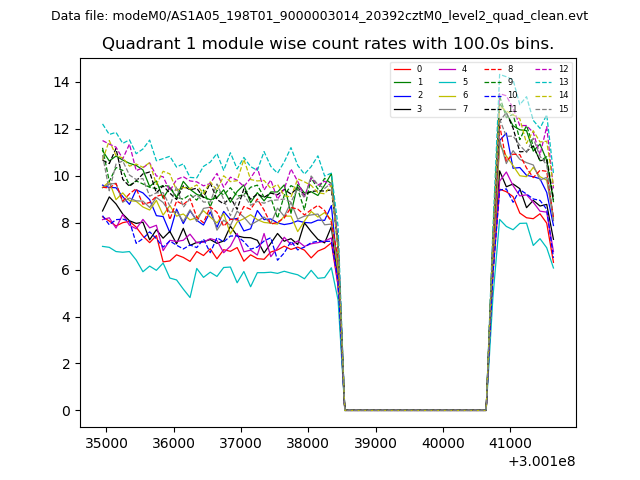

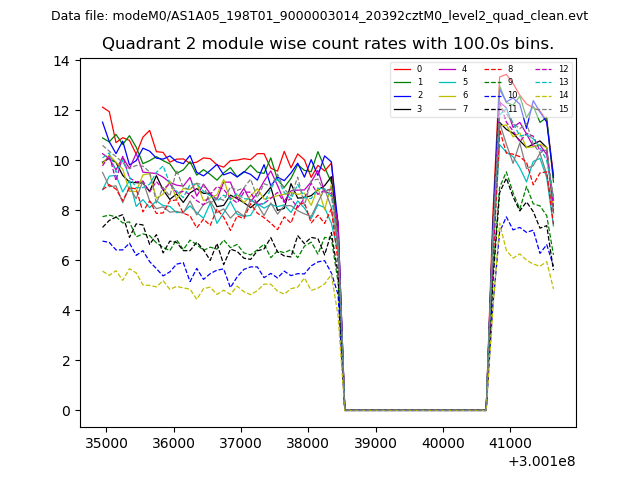

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

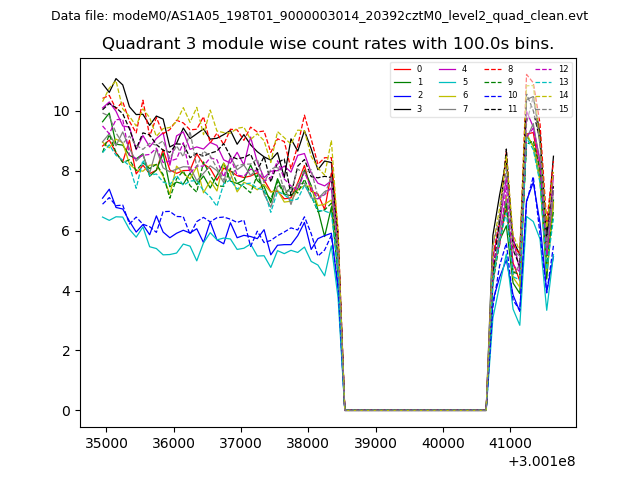

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

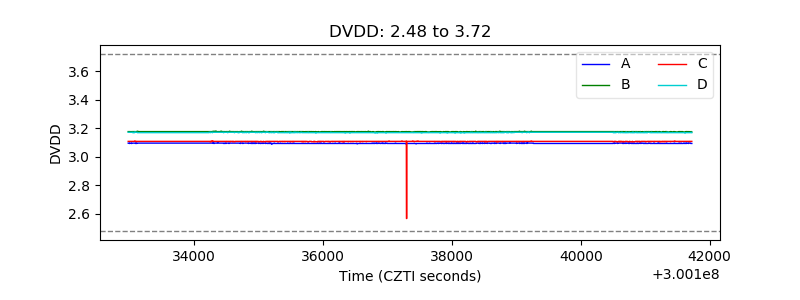

| D_VDD |  |

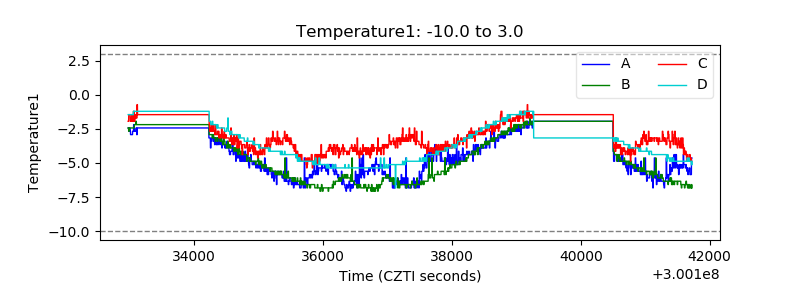

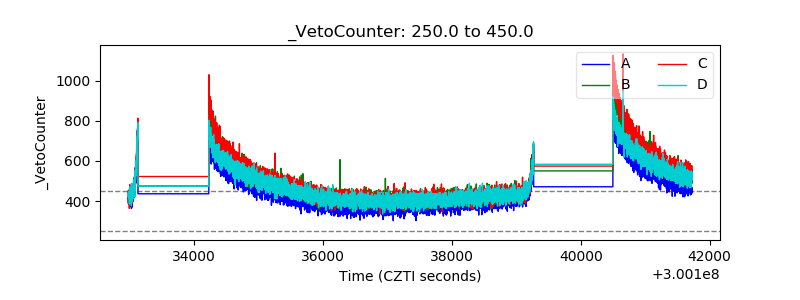

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

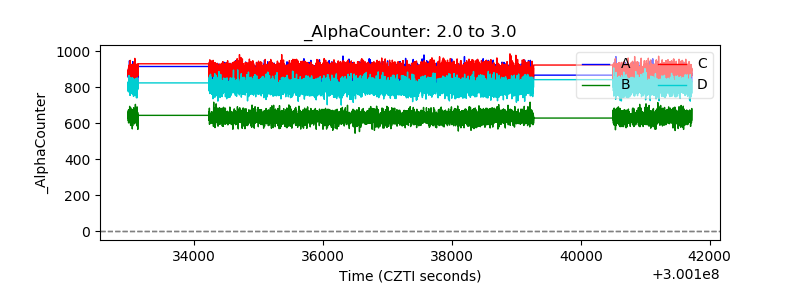

| Alpha Counter |  |

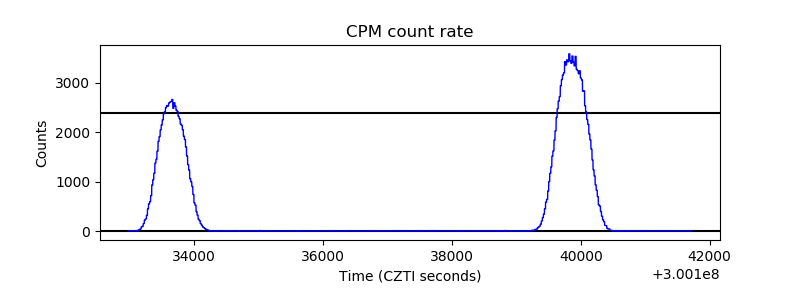

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

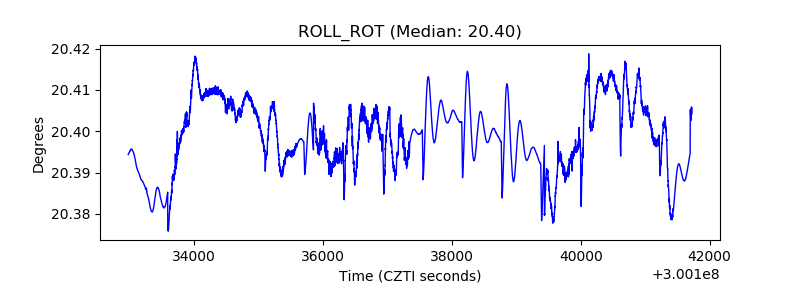

| _ROLL_ROT |  |

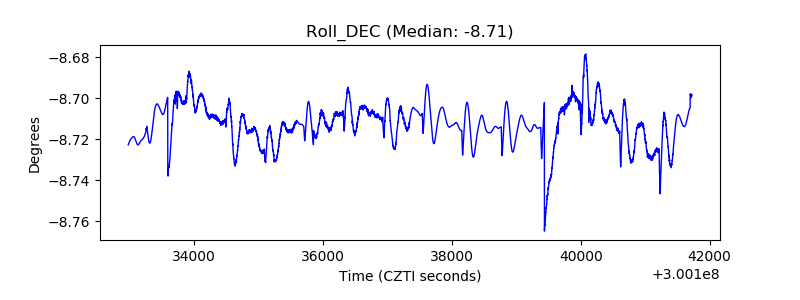

| _Roll_DEC |  |
