| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_198T01_9000003014_20394cztM0_level2.evt | modeM0/AS1A05_198T01_9000003014_20394cztM0_level2_quad_clean.evt |
| Size (bytes) | 600,197,760 | 110,802,240 |
| Size | 572.4 MB | 105.7 MB |
| Events in quadrant A | 3,874,873 | 740,892 |
| Events in quadrant B | 3,472,733 | 772,275 |
| Events in quadrant C | 3,360,251 | 741,108 |
| Events in quadrant D | 7,055,445 | 674,256 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15440 | 2 |
| B | 0 | 14263 | 2 |
| C | 0 | 13776 | 2 |
| D | 0 | 25206 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6114 | 176 | 2.878639% |
| B | 6114 | 79 | 1.292116% |
| C | 6114 | 89 | 1.455675% |
| D | 6113 | 1026 | 16.783903% |

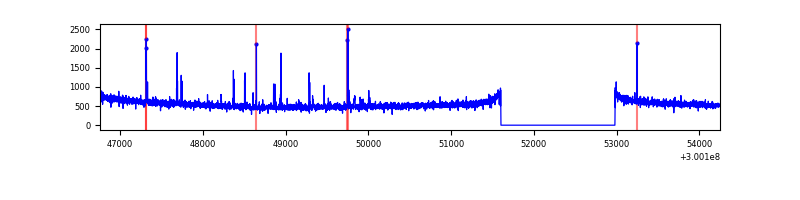

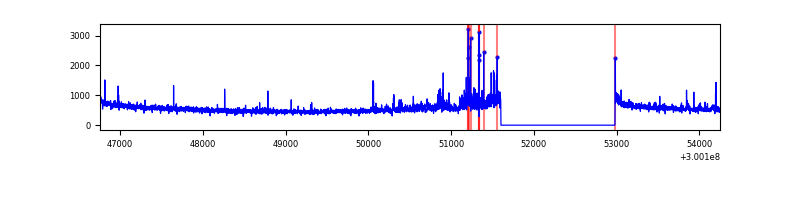

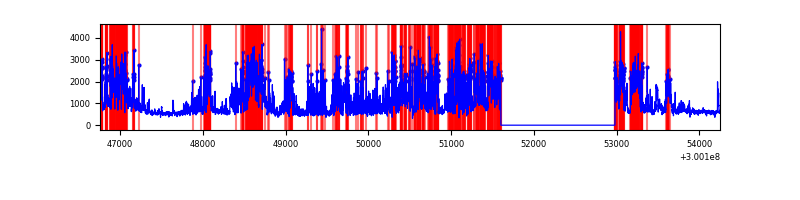

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7494 | 6115 | 98 | 98 | 1.31% | 1.60% |  |
| B | 7494 | 6115 | 10 | 10 | 0.13% | 0.16% |  |
| C | 7494 | 6115 | 6 | 6 | 0.08% | 0.10% |  |
| D | 7493 | 6113 | 875 | 875 | 11.68% | 14.31% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 96 | 683799 | 4179.9 | 816 | 801 | 163.4 |
| A | 9 | 143 | 44559 | 267.8 | 816 | 801 | 163.4 |
| A | 0 | 226 | 6965 | 37.72 | 816 | 801 | 163.4 |
| B | 0 | 189 | 109764 | 707.93 | 828 | 810 | 153.9 |
| B | 7 | 220 | 90001 | 579.52 | 828 | 810 | 153.9 |
| B | 12 | 111 | 17953 | 111.39 | 828 | 810 | 153.9 |
| C | 14 | 238 | 128287 | 676.66 | 810 | 820 | 188.4 |
| C | 9 | 221 | 65070 | 341.07 | 810 | 820 | 188.4 |
| C | 13 | 61 | 5572 | 25.23 | 810 | 820 | 188.4 |
| D | 1 | 52 | 3972867 | 21625.91 | 768 | 749 | 183.7 |
| D | 12 | 218 | 68235 | 367.42 | 768 | 749 | 183.7 |
| D | 6 | 18 | 37733 | 201.36 | 768 | 749 | 183.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

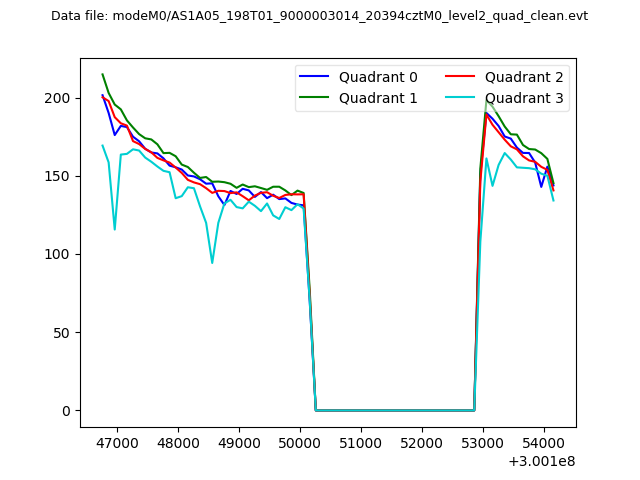

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

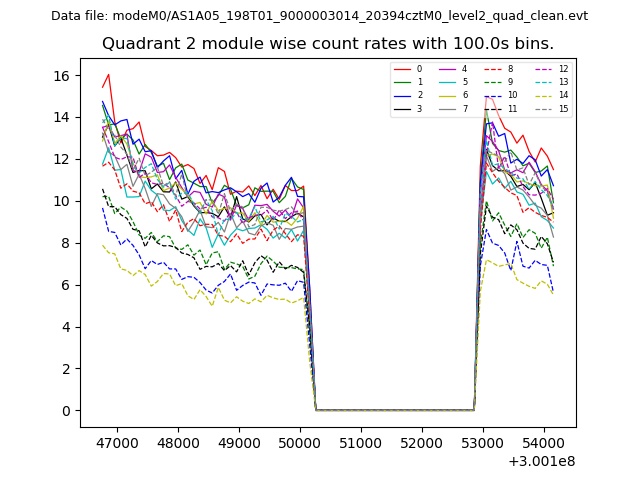

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

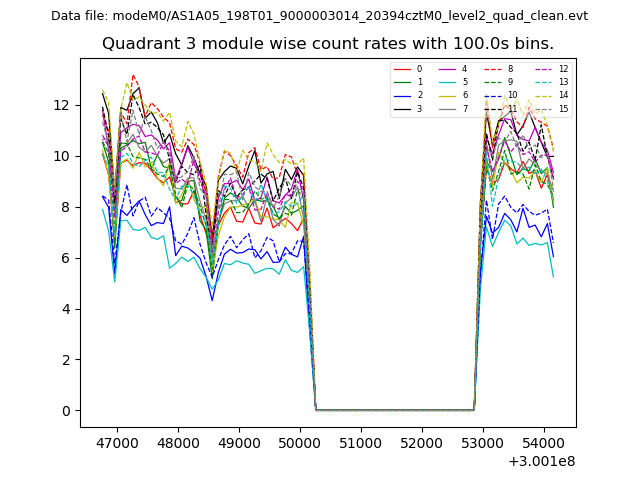

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

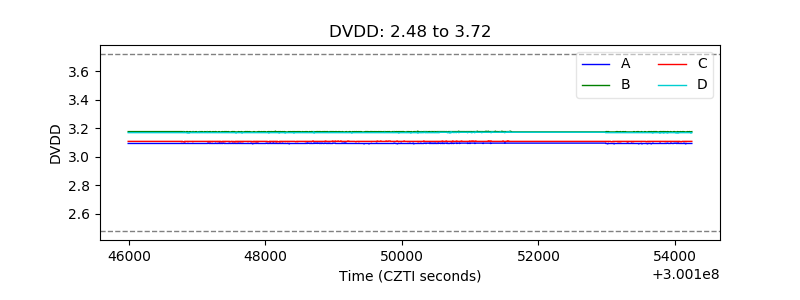

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

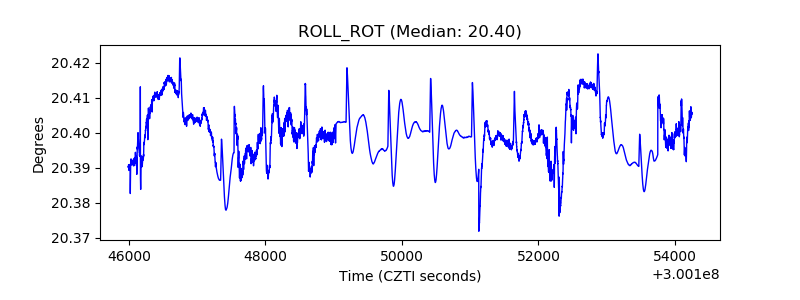

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
