| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_198T01_9000003014_20395cztM0_level2.evt | modeM0/AS1A05_198T01_9000003014_20395cztM0_level2_quad_clean.evt |
| Size (bytes) | 615,242,880 | 102,556,800 |
| Size | 586.7 MB | 97.8 MB |
| Events in quadrant A | 3,542,801 | 680,800 |
| Events in quadrant B | 3,551,139 | 703,847 |
| Events in quadrant C | 3,306,129 | 671,012 |
| Events in quadrant D | 7,812,687 | 617,058 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14389 | 2 |
| B | 0 | 14500 | 2 |
| C | 0 | 13560 | 2 |
| D | 0 | 27511 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6206 | 77 | 1.240735% |
| B | 6206 | 72 | 1.160168% |
| C | 6206 | 83 | 1.337415% |
| D | 6206 | 1488 | 23.976797% |

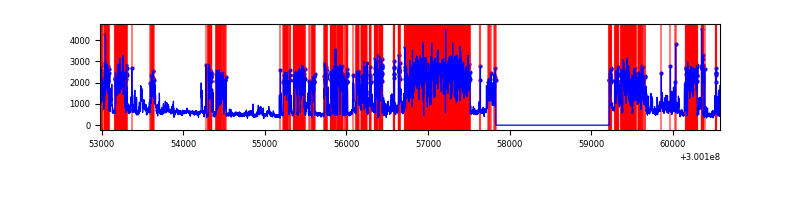

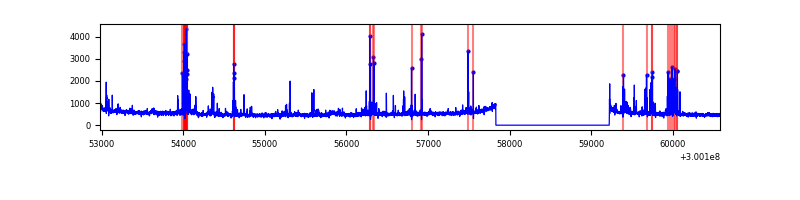

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7596 | 6207 | 40 | 40 | 0.53% | 0.64% |  |
| B | 7596 | 6207 | 8 | 8 | 0.11% | 0.13% |  |
| C | 7596 | 6207 | 5 | 5 | 0.07% | 0.08% |  |
| D | 7596 | 6207 | 1428 | 1428 | 18.80% | 23.01% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 96 | 373733 | 2275.66 | 819 | 806 | 163.9 |
| A | 5 | 16 | 11483 | 65.15 | 819 | 806 | 163.9 |
| A | 0 | 226 | 7080 | 38.28 | 819 | 806 | 163.9 |
| B | 0 | 189 | 215829 | 1399.17 | 824 | 804 | 153.7 |
| B | 7 | 220 | 81461 | 524.83 | 824 | 804 | 153.7 |
| B | 12 | 111 | 17948 | 111.56 | 824 | 804 | 153.7 |
| C | 14 | 238 | 127359 | 676.6 | 802 | 810 | 187.0 |
| C | 9 | 221 | 35643 | 186.23 | 802 | 810 | 187.0 |
| C | 5 | 4 | 6803 | 32.04 | 802 | 810 | 187.0 |
| D | 1 | 52 | 4912058 | 27460.56 | 745 | 726 | 178.9 |
| D | 6 | 18 | 37827 | 207.44 | 745 | 726 | 178.9 |
| D | 2 | 234 | 23262 | 126.0 | 745 | 726 | 178.9 |

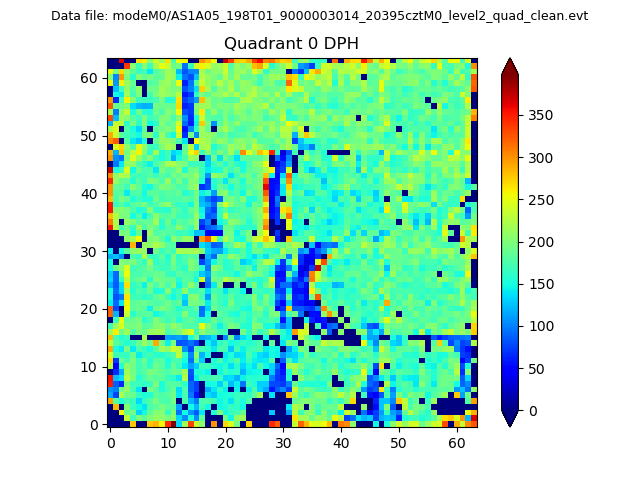

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

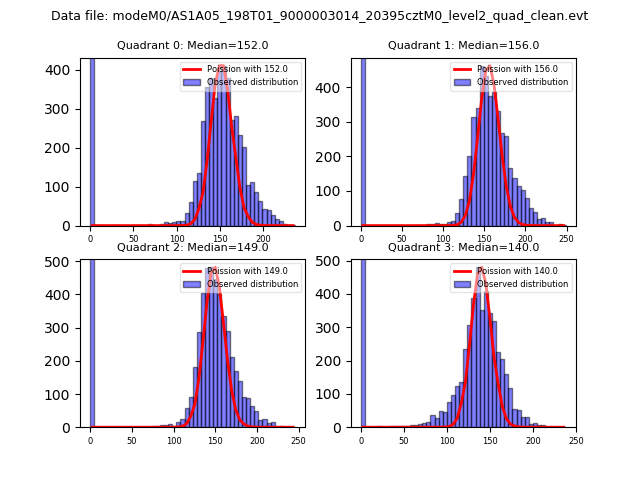

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

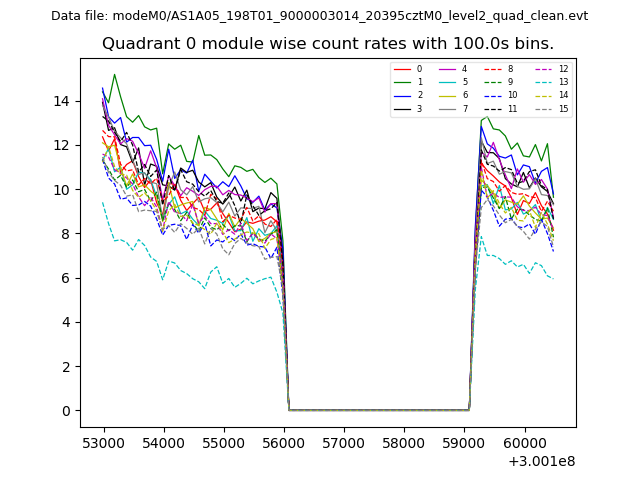

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
