| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_188T01_9000003018_20433cztM0_level2.evt | modeM0/AS1A05_188T01_9000003018_20433cztM0_level2_quad_clean.evt |
| Size (bytes) | 439,516,800 | 96,436,800 |
| Size | 419.2 MB | 92.0 MB |
| Events in quadrant A | 3,134,194 | 630,530 |
| Events in quadrant B | 3,212,414 | 629,193 |
| Events in quadrant C | 3,119,595 | 600,936 |
| Events in quadrant D | 3,393,758 | 597,592 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13562 | 2 |
| B | 0 | 13677 | 2 |
| C | 0 | 13607 | 2 |
| D | 0 | 14517 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6625 | 24 | 0.362264% |
| B | 6626 | 25 | 0.377302% |
| C | 6626 | 42 | 0.633867% |
| D | 6626 | 52 | 0.784787% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

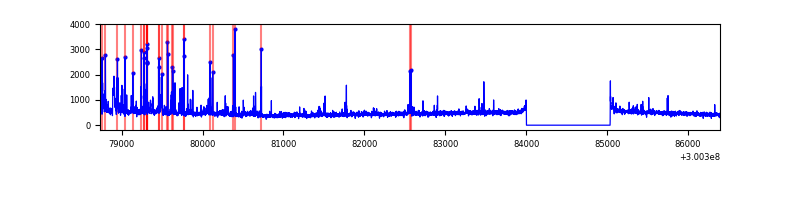

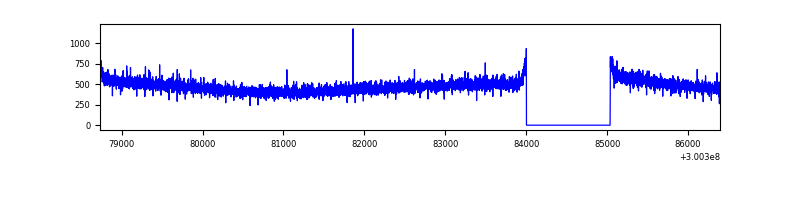

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7660 | 6626 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7661 | 6627 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7661 | 6627 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7661 | 6627 | 29 | 29 | 0.38% | 0.44% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 7147 | 38.85 | 813 | 796 | 163.5 |
| A | 3 | 137 | 6841 | 36.98 | 813 | 796 | 163.5 |
| A | 13 | 254 | 6318 | 33.78 | 813 | 796 | 163.5 |
| B | 12 | 111 | 18595 | 116.12 | 803 | 782 | 153.4 |
| B | 0 | 230 | 18154 | 113.24 | 803 | 782 | 153.4 |
| B | 11 | 111 | 16747 | 104.07 | 803 | 782 | 153.4 |
| C | 14 | 238 | 122104 | 674.49 | 765 | 770 | 179.9 |
| C | 3 | 247 | 12001 | 62.43 | 765 | 770 | 179.9 |
| C | 13 | 61 | 5413 | 25.81 | 765 | 770 | 179.9 |
| D | 1 | 52 | 287627 | 1500.1 | 781 | 756 | 191.2 |
| D | 13 | 153 | 136914 | 711.99 | 781 | 756 | 191.2 |
| D | 2 | 234 | 29256 | 149.03 | 781 | 756 | 191.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

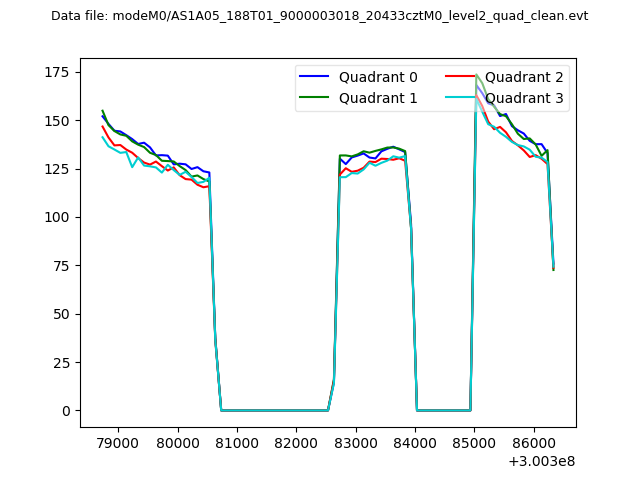

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

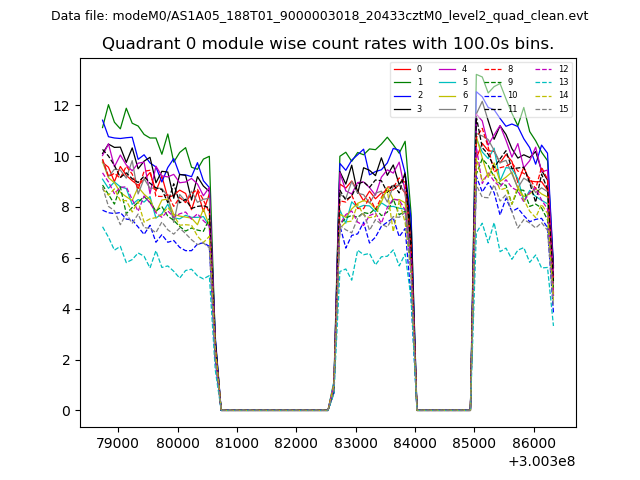

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

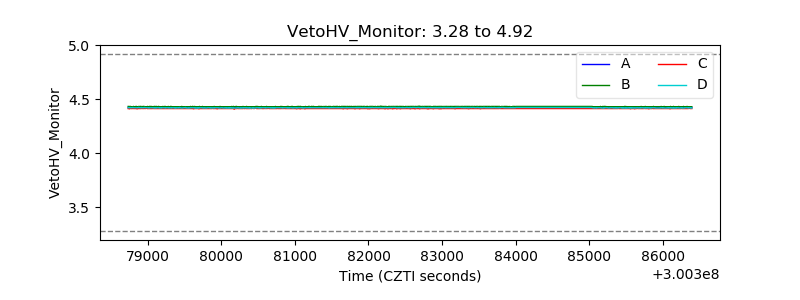

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

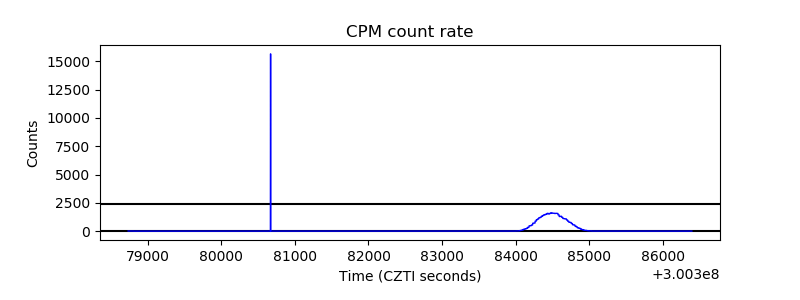

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

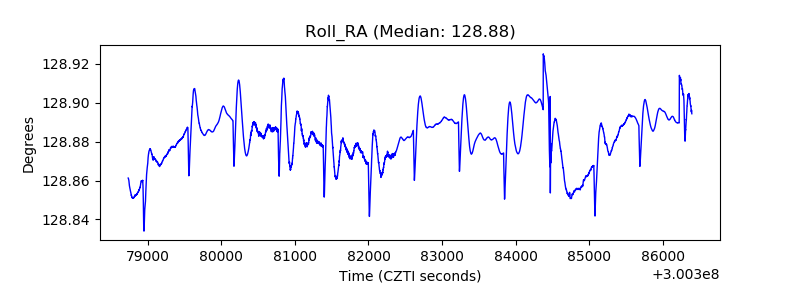

| _Roll_RA |  |

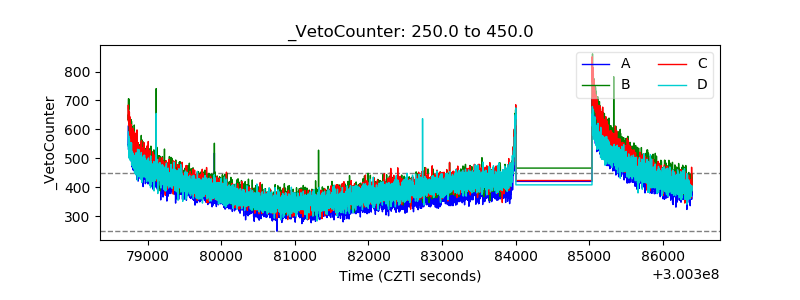

| Veto Counter |  |
