| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_188T01_9000003018_20435cztM0_level2.evt | modeM0/AS1A05_188T01_9000003018_20435cztM0_level2_quad_clean.evt |
| Size (bytes) | 433,402,560 | 92,511,360 |
| Size | 413.3 MB | 88.2 MB |
| Events in quadrant A | 3,113,485 | 604,022 |
| Events in quadrant B | 3,201,951 | 608,682 |
| Events in quadrant C | 3,120,097 | 576,706 |
| Events in quadrant D | 3,255,629 | 566,324 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13335 | 2 |
| B | 0 | 13465 | 2 |
| C | 0 | 13368 | 2 |
| D | 0 | 13909 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6389 | 29 | 0.453905% |
| B | 6389 | 41 | 0.641728% |
| C | 6389 | 43 | 0.673032% |
| D | 6388 | 47 | 0.735755% |

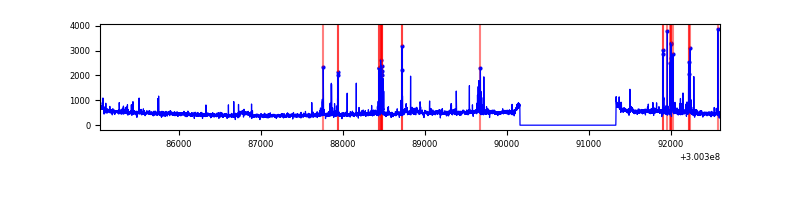

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7559 | 6389 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7559 | 6389 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7559 | 6390 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7558 | 6389 | 26 | 26 | 0.34% | 0.41% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 7205 | 39.99 | 807 | 791 | 160.4 |
| A | 3 | 137 | 6652 | 36.54 | 807 | 791 | 160.4 |
| A | 13 | 254 | 5919 | 31.97 | 807 | 791 | 160.4 |
| B | 12 | 111 | 18297 | 115.98 | 802 | 782 | 151.0 |
| B | 11 | 111 | 16092 | 101.38 | 802 | 782 | 151.0 |
| B | 0 | 189 | 15311 | 96.21 | 802 | 782 | 151.0 |
| C | 14 | 238 | 121126 | 679.75 | 759 | 766 | 177.1 |
| C | 3 | 247 | 32105 | 176.99 | 759 | 766 | 177.1 |
| C | 3 | 233 | 7096 | 35.75 | 759 | 766 | 177.1 |
| D | 1 | 52 | 293573 | 1577.94 | 770 | 748 | 185.6 |
| D | 13 | 153 | 41971 | 222.14 | 770 | 748 | 185.6 |
| D | 2 | 234 | 26719 | 139.95 | 770 | 748 | 185.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

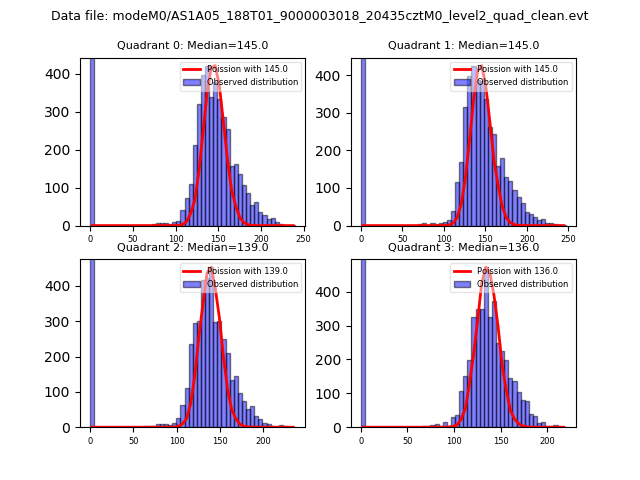

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

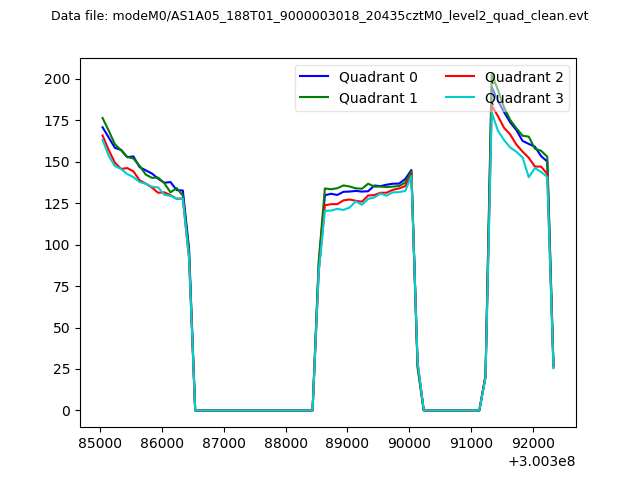

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

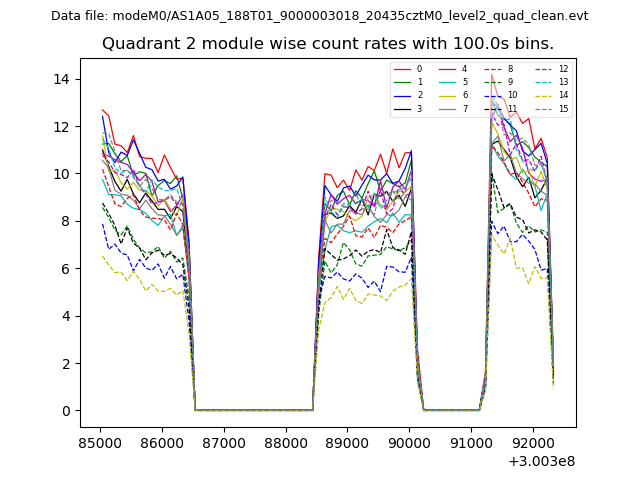

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

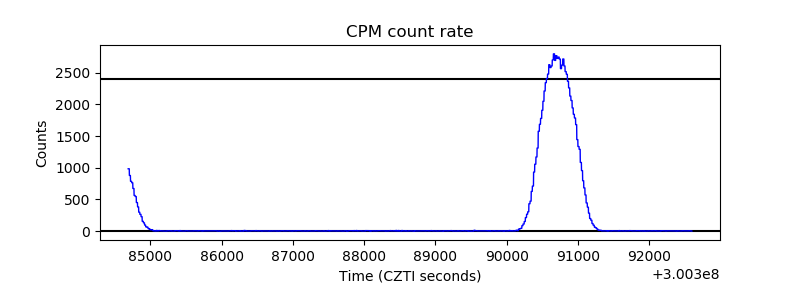

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

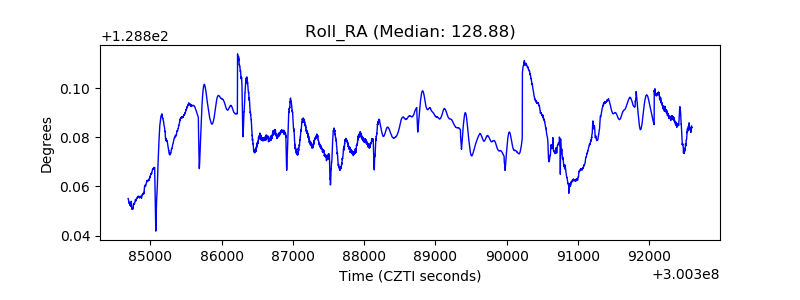

| _Roll_RA |  |

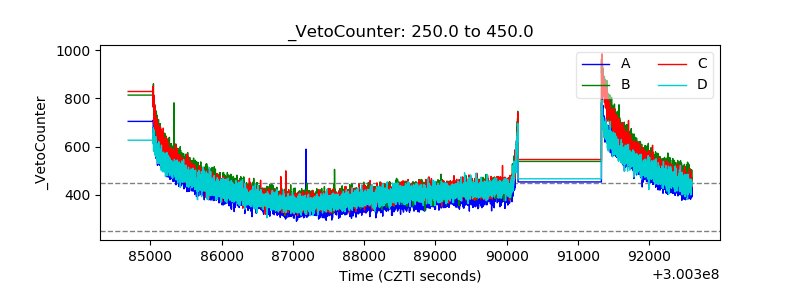

| Veto Counter |  |
