| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_188T01_9000003018_20438cztM0_level2.evt | modeM0/AS1A05_188T01_9000003018_20438cztM0_level2_quad_clean.evt |
| Size (bytes) | 452,995,200 | 68,368,320 |
| Size | 432.0 MB | 65.2 MB |
| Events in quadrant A | 3,165,255 | 420,733 |
| Events in quadrant B | 3,258,228 | 431,612 |
| Events in quadrant C | 3,248,913 | 406,967 |
| Events in quadrant D | 3,642,394 | 394,871 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25 | 0 |
| B | 0 | 26 | 0 |
| C | 0 | 26 | 0 |
| D | 0 | 26 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12817 | 2 |
| B | 0 | 13094 | 2 |
| C | 0 | 12978 | 2 |
| D | 0 | 14448 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5950 | 25 | 0.420168% |
| B | 5950 | 23 | 0.386555% |
| C | 5950 | 48 | 0.806723% |
| D | 5950 | 136 | 2.285714% |

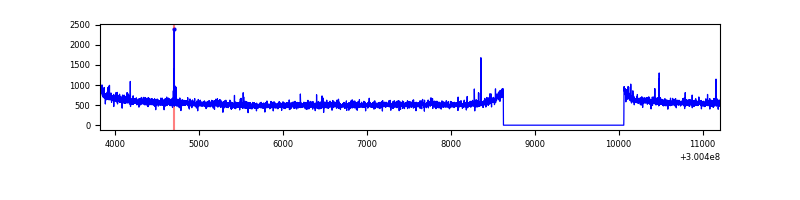

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

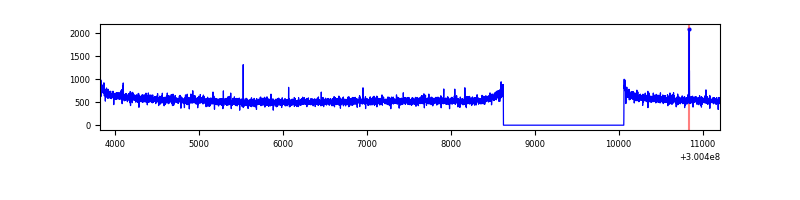

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7385 | 5951 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7385 | 5951 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7385 | 5951 | 1 | 1 | 0.01% | 0.02% |  |

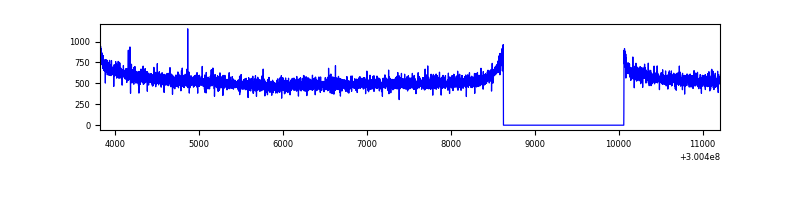

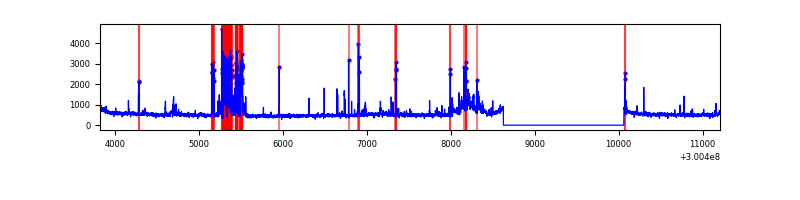

| D | 7385 | 5951 | 124 | 124 | 1.68% | 2.08% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 16 | 7359 | 40.67 | 821 | 808 | 161.1 |
| A | 0 | 226 | 7290 | 40.24 | 821 | 808 | 161.1 |
| A | 12 | 194 | 6782 | 37.09 | 821 | 808 | 161.1 |
| B | 12 | 111 | 17571 | 111.05 | 823 | 807 | 151.0 |
| B | 11 | 111 | 15666 | 98.43 | 823 | 807 | 151.0 |
| B | 14 | 111 | 14392 | 89.99 | 823 | 807 | 151.0 |
| C | 14 | 238 | 127989 | 713.3 | 783 | 792 | 178.3 |
| C | 3 | 233 | 34238 | 187.56 | 783 | 792 | 178.3 |
| C | 3 | 247 | 23645 | 128.16 | 783 | 792 | 178.3 |
| D | 7 | 96 | 478140 | 2556.42 | 782 | 762 | 186.7 |
| D | 1 | 52 | 182818 | 974.93 | 782 | 762 | 186.7 |
| D | 2 | 234 | 24805 | 128.75 | 782 | 762 | 186.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

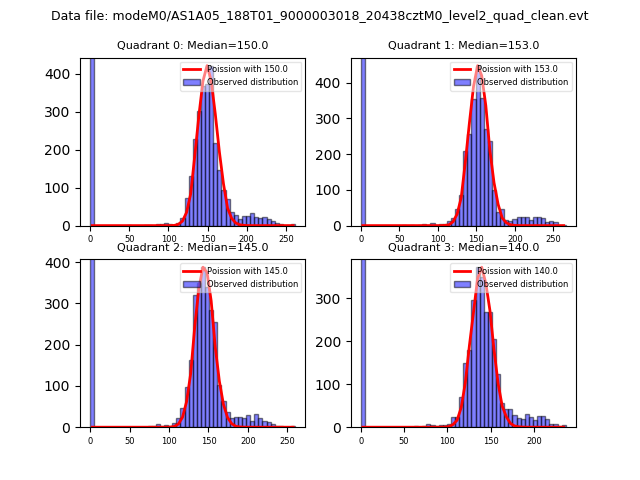

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

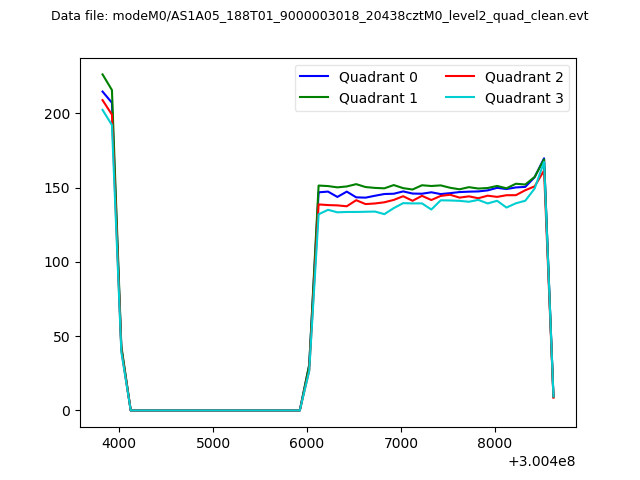

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

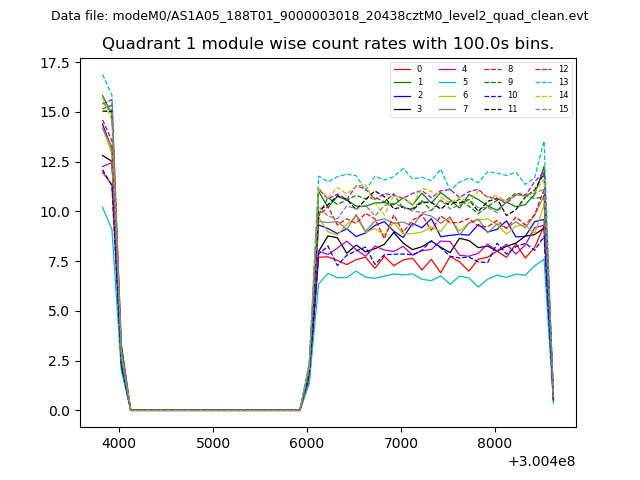

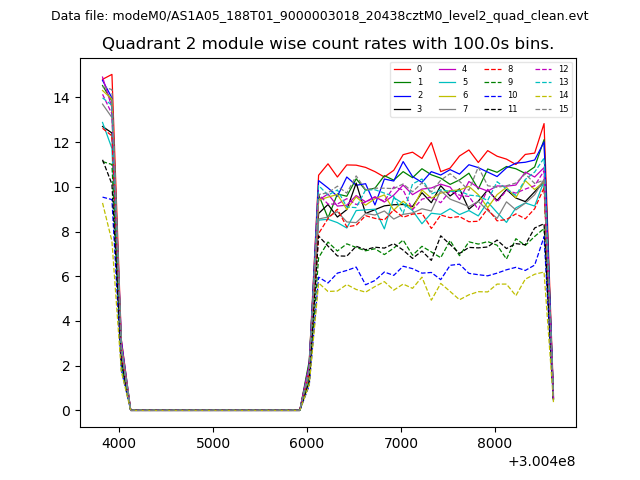

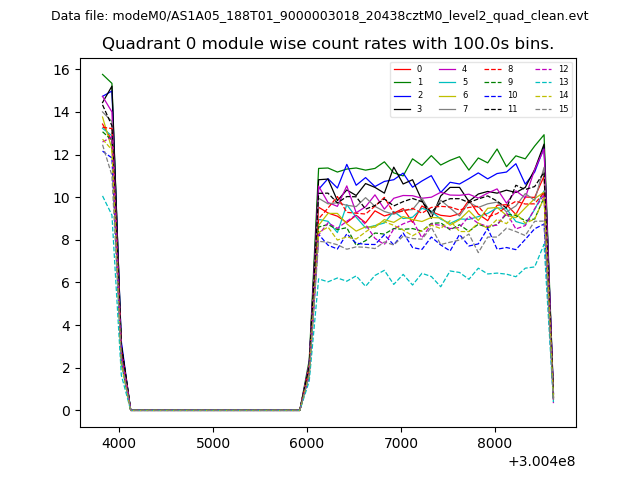

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

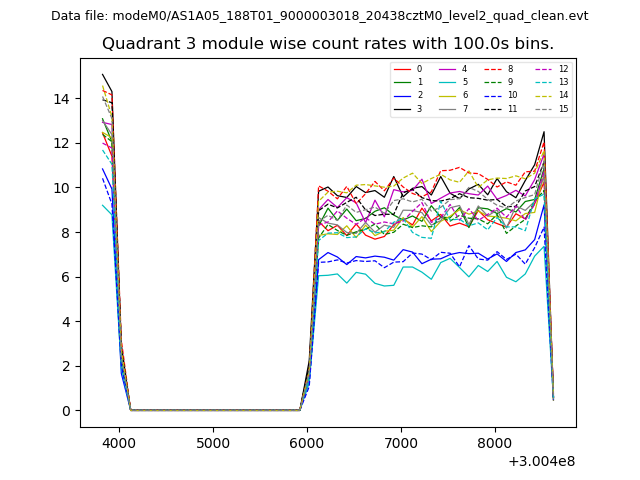

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

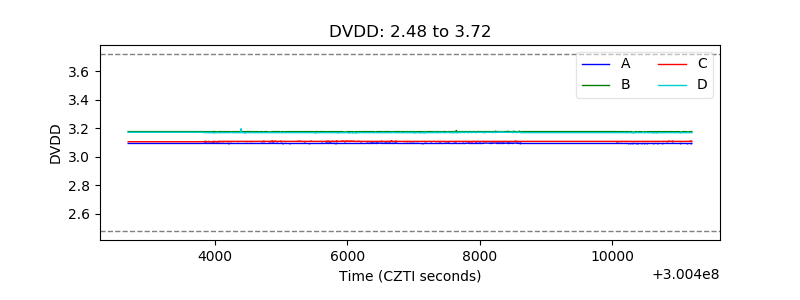

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

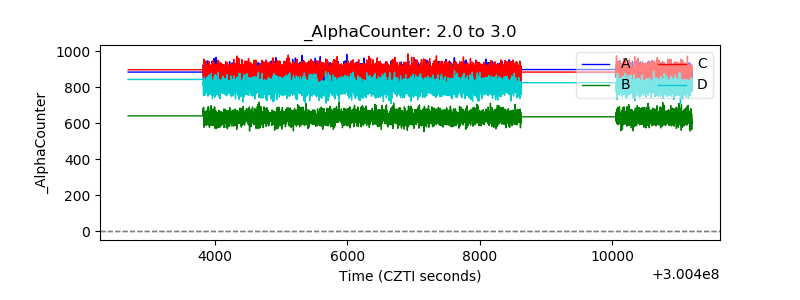

| Alpha Counter |  |

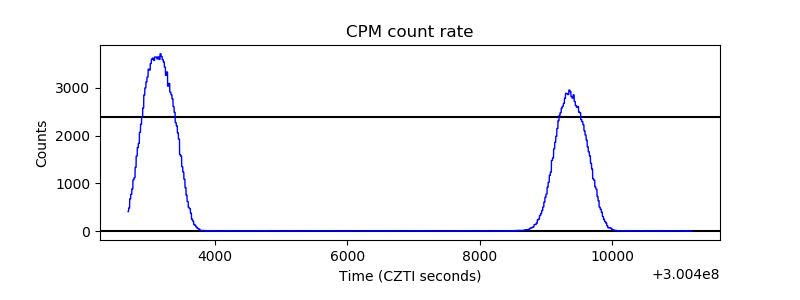

| _CPM_Rate |  |

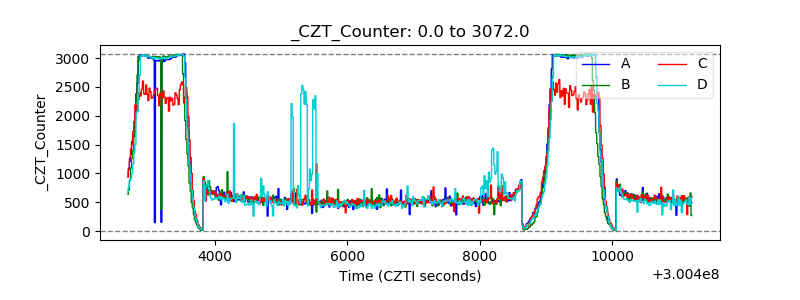

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

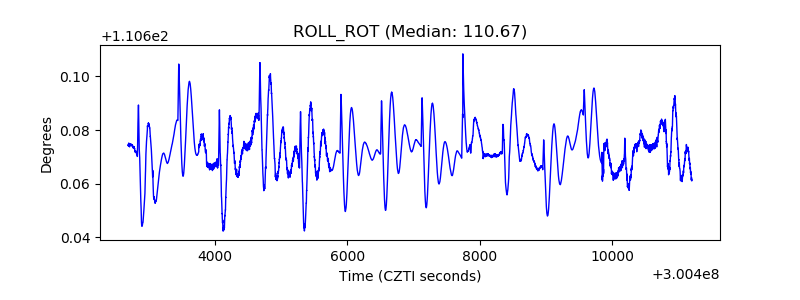

| _ROLL_ROT |  |

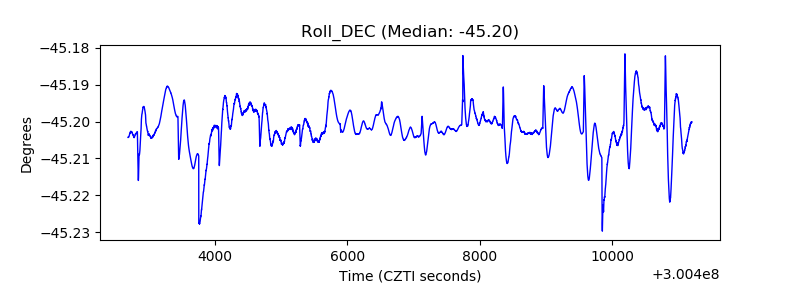

| _Roll_DEC |  |

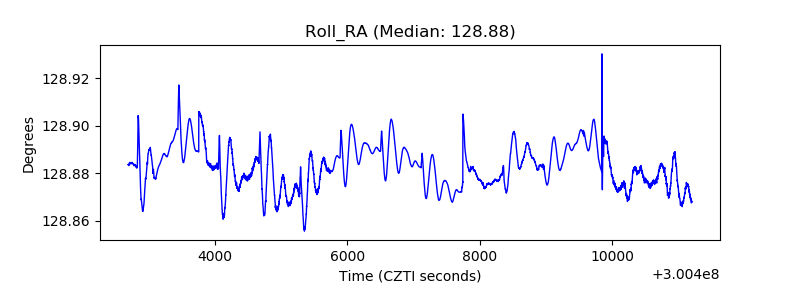

| _Roll_RA |  |

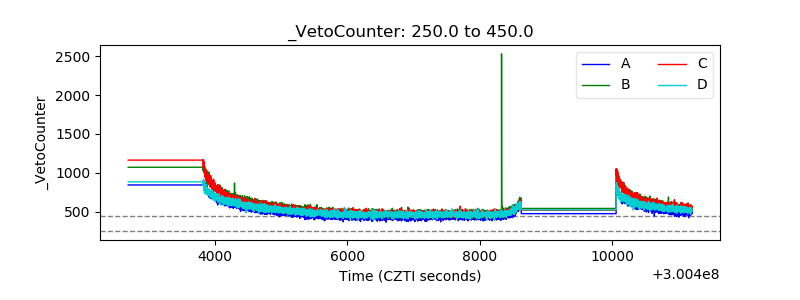

| Veto Counter |  |
