| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_160T02_9000003022_20450cztM0_level2.evt | modeM0/AS1A05_160T02_9000003022_20450cztM0_level2_quad_clean.evt |
| Size (bytes) | 462,049,920 | 85,429,440 |
| Size | 440.6 MB | 81.5 MB |
| Events in quadrant A | 2,957,775 | 557,184 |
| Events in quadrant B | 3,255,318 | 570,909 |
| Events in quadrant C | 3,064,597 | 534,591 |
| Events in quadrant D | 4,308,062 | 505,146 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12652 | 0 |
| B | 0 | 13499 | 0 |
| C | 0 | 12835 | 0 |
| D | 0 | 16954 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6006 | 48 | 0.799201% |
| B | 6007 | 56 | 0.932246% |
| C | 6007 | 62 | 1.032129% |
| D | 6006 | 278 | 4.628705% |

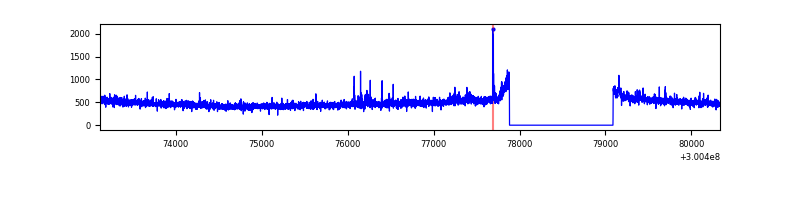

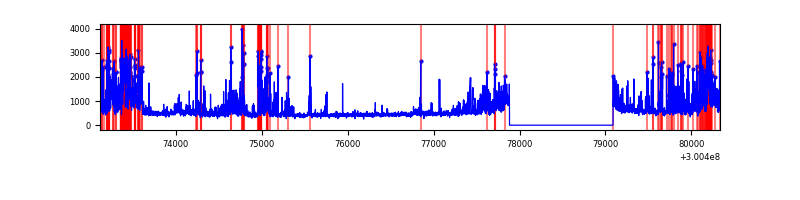

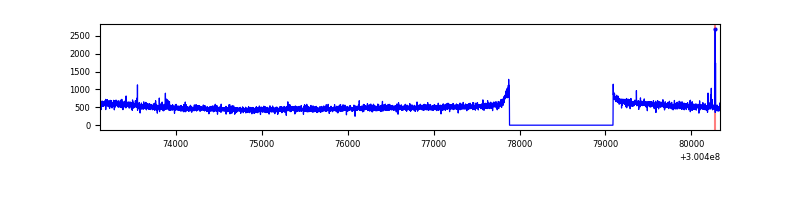

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7211 | 6006 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7212 | 6007 | 4 | 4 | 0.06% | 0.07% |  |
| C | 7212 | 6007 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7211 | 6006 | 218 | 218 | 3.02% | 3.63% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 16 | 36991 | 237.76 | 748 | 733 | 152.5 |
| A | 15 | 222 | 26790 | 170.87 | 748 | 733 | 152.5 |
| A | 12 | 194 | 11300 | 69.29 | 748 | 733 | 152.5 |
| B | 0 | 189 | 159434 | 1113.89 | 756 | 738 | 142.5 |
| B | 5 | 251 | 29382 | 201.05 | 756 | 738 | 142.5 |
| B | 0 | 219 | 24698 | 168.18 | 756 | 738 | 142.5 |
| C | 14 | 238 | 113888 | 670.82 | 723 | 729 | 168.7 |
| C | 3 | 233 | 99049 | 582.85 | 723 | 729 | 168.7 |
| C | 9 | 221 | 14503 | 81.65 | 723 | 729 | 168.7 |
| D | 12 | 218 | 673725 | 3839.08 | 716 | 694 | 175.3 |
| D | 1 | 52 | 452274 | 2575.89 | 716 | 694 | 175.3 |
| D | 13 | 153 | 189637 | 1077.76 | 716 | 694 | 175.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

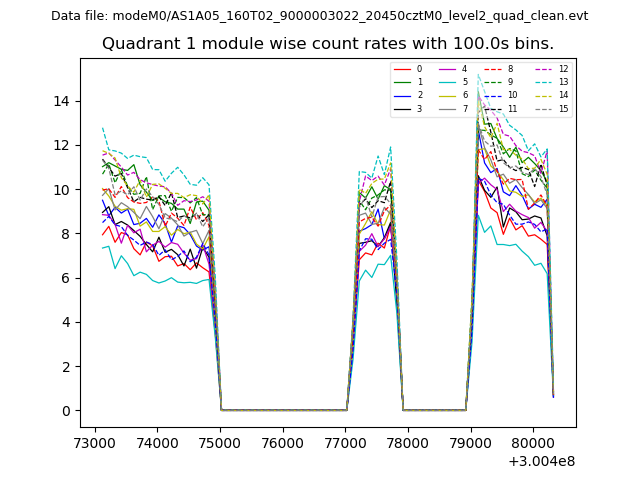

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

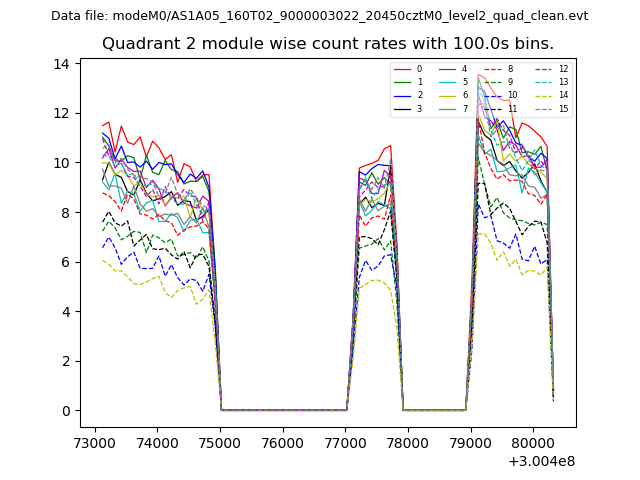

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

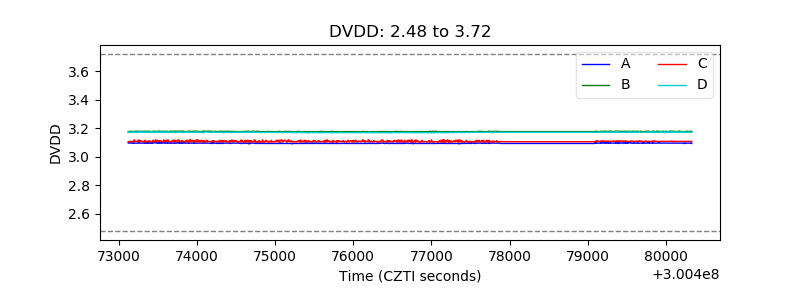

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

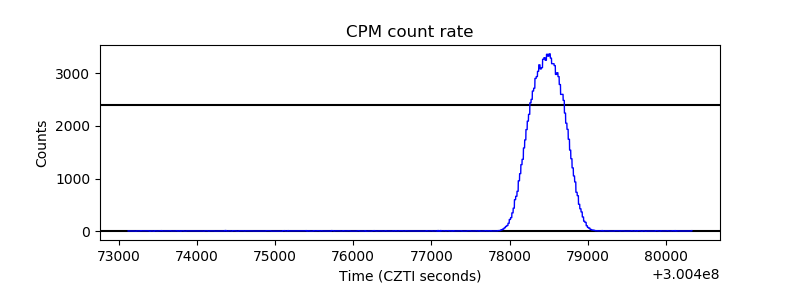

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

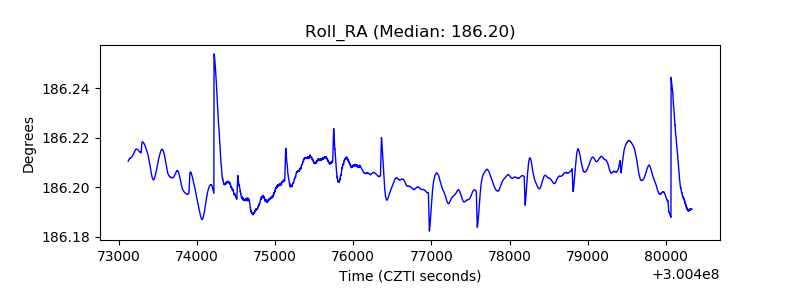

| _Roll_RA |  |
| Veto Counter |  |
