| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_198T01_9000003024_20461cztM0_level2.evt | modeM0/AS1A05_198T01_9000003024_20461cztM0_level2_quad_clean.evt |
| Size (bytes) | 2,611,457,280 | 421,018,560 |
| Size | 2.4 GB | 401.5 MB |
| Events in quadrant A | 17,118,938 | 2,653,946 |
| Events in quadrant B | 19,522,448 | 2,661,257 |
| Events in quadrant C | 18,542,596 | 2,528,327 |
| Events in quadrant D | 21,503,219 | 2,463,527 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 24 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 722 | 0 |
| B | 0 | 722 | 0 |
| C | 0 | 722 | 0 |
| D | 0 | 722 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 73570 | 5 |
| B | 0 | 80346 | 5 |
| C | 0 | 77187 | 5 |
| D | 0 | 87753 | 5 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 35574 | 774 | 2.175746% |
| B | 35575 | 1126 | 3.165144% |
| C | 35575 | 896 | 2.518623% |
| D | 35575 | 1562 | 4.390724% |

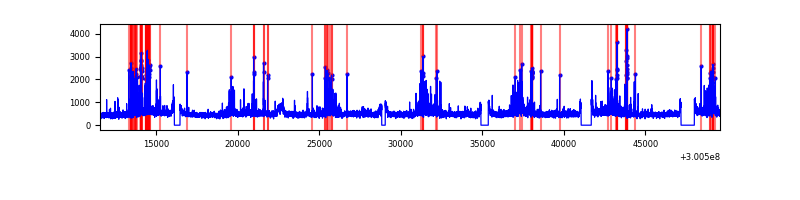

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 38049 | 35574 | 2 | 2 | 0.01% | 0.01% |  |
| B | 38050 | 35576 | 167 | 167 | 0.44% | 0.47% |  |
| C | 38050 | 35576 | 29 | 29 | 0.08% | 0.08% |  |
| D | 38050 | 35575 | 825 | 825 | 2.17% | 2.32% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 222 | 214255 | 239.53 | 4381 | 4280 | 876.6 |
| A | 0 | 226 | 37756 | 38.19 | 4381 | 4280 | 876.6 |
| A | 3 | 137 | 36550 | 36.81 | 4381 | 4280 | 876.6 |
| B | 7 | 220 | 997528 | 1192.45 | 4336 | 4217 | 833.0 |
| B | 0 | 189 | 606265 | 722.75 | 4336 | 4217 | 833.0 |
| B | 0 | 197 | 342543 | 406.15 | 4336 | 4217 | 833.0 |
| C | 3 | 233 | 1281717 | 1309.32 | 4178 | 4202 | 975.7 |
| C | 14 | 238 | 653452 | 665.41 | 4178 | 4202 | 975.7 |
| C | 9 | 221 | 151351 | 150.81 | 4178 | 4202 | 975.7 |
| D | 15 | 0 | 2002216 | 1950.07 | 4222 | 4105 | 1024.6 |
| D | 12 | 218 | 1533287 | 1492.41 | 4222 | 4105 | 1024.6 |
| D | 1 | 52 | 812766 | 789.22 | 4222 | 4105 | 1024.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

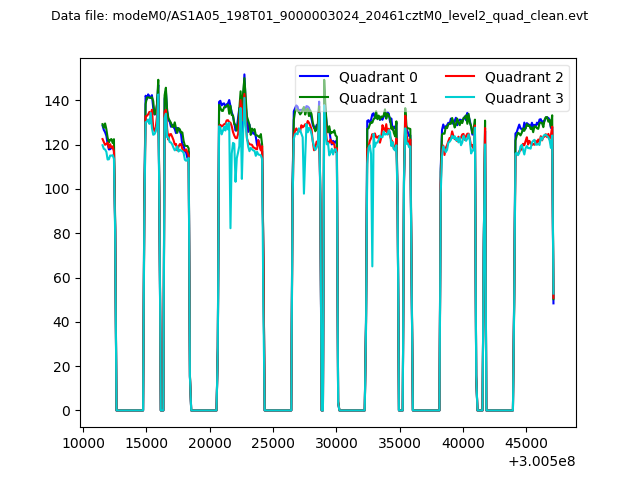

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

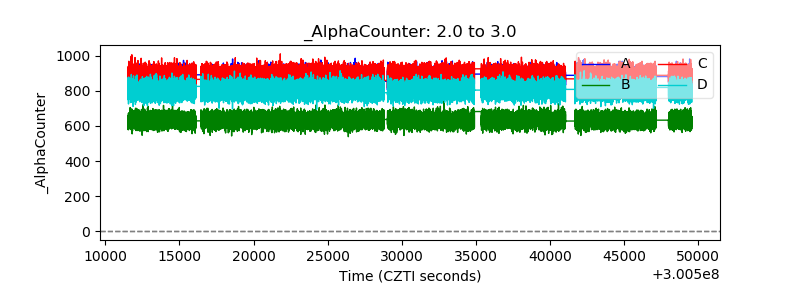

| Alpha Counter |  |

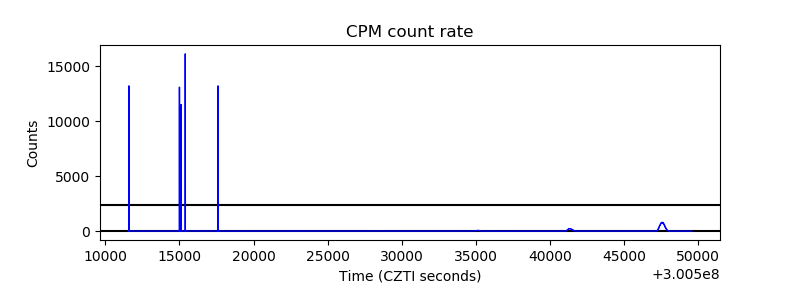

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

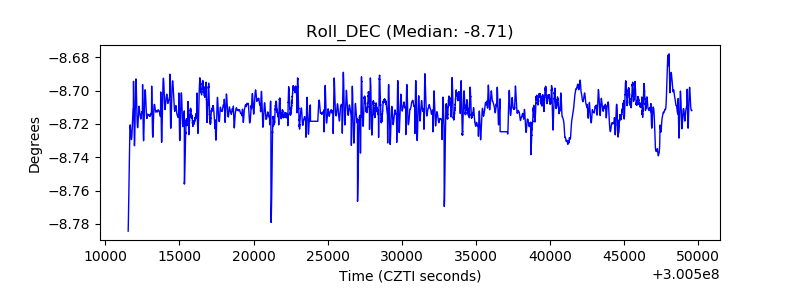

| _Roll_DEC |  |
| _Roll_RA |  |

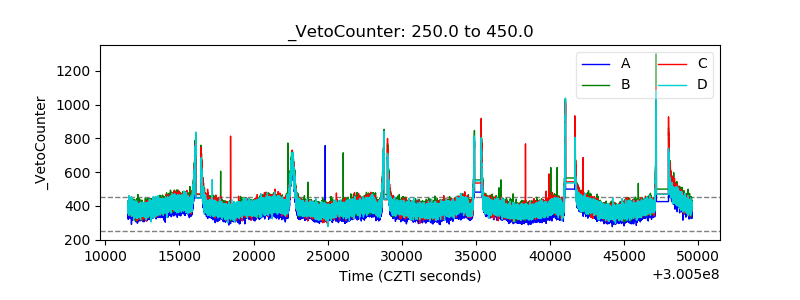

| Veto Counter |  |
