| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_208T03_9000003026_20482cztM0_level2.evt | modeM0/AS1A05_208T03_9000003026_20482cztM0_level2_quad_clean.evt |
| Size (bytes) | 514,319,040 | 89,625,600 |
| Size | 490.5 MB | 85.5 MB |
| Events in quadrant A | 3,128,583 | 589,482 |
| Events in quadrant B | 3,402,632 | 608,195 |
| Events in quadrant C | 3,097,631 | 575,005 |
| Events in quadrant D | 5,536,415 | 518,013 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12988 | 2 |
| B | 0 | 13744 | 2 |
| C | 0 | 12839 | 2 |
| D | 0 | 20588 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 23 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6060 | 38 | 0.627063% |
| B | 6060 | 68 | 1.122112% |
| C | 6060 | 42 | 0.693069% |
| D | 6060 | 481 | 7.937294% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

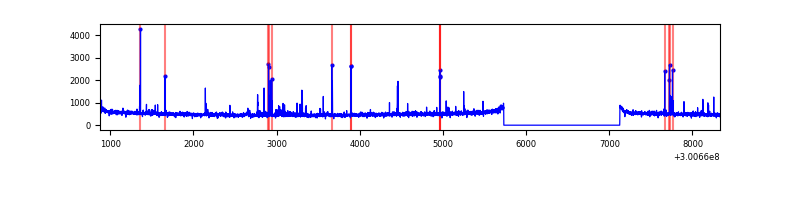

| A | 7455 | 6061 | 15 | 15 | 0.20% | 0.25% |  |
| B | 7455 | 6061 | 9 | 9 | 0.12% | 0.15% |  |
| C | 7455 | 6061 | 1 | 1 | 0.01% | 0.02% |  |

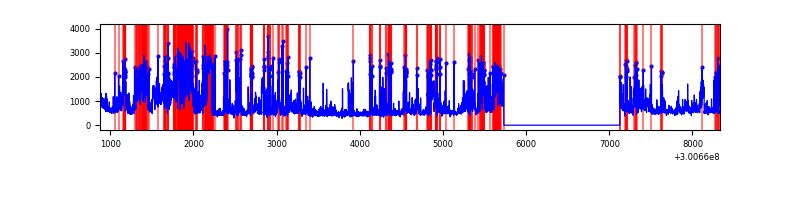

| D | 7455 | 6060 | 475 | 475 | 6.37% | 7.84% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 16 | 82611 | 528.01 | 772 | 757 | 155.0 |
| A | 9 | 143 | 50045 | 317.94 | 772 | 757 | 155.0 |
| A | 2 | 79 | 24504 | 153.18 | 772 | 757 | 155.0 |
| B | 0 | 197 | 98533 | 680.7 | 782 | 764 | 143.6 |
| B | 0 | 189 | 84841 | 585.37 | 782 | 764 | 143.6 |
| B | 0 | 219 | 66203 | 455.61 | 782 | 764 | 143.6 |
| C | 14 | 238 | 119580 | 685.44 | 751 | 756 | 173.4 |
| C | 9 | 221 | 25313 | 141.66 | 751 | 756 | 173.4 |
| C | 3 | 233 | 24897 | 139.26 | 751 | 756 | 173.4 |
| D | 1 | 52 | 1195531 | 6747.99 | 726 | 704 | 177.1 |
| D | 5 | 222 | 590306 | 3329.88 | 726 | 704 | 177.1 |
| D | 7 | 38 | 418794 | 2361.23 | 726 | 704 | 177.1 |

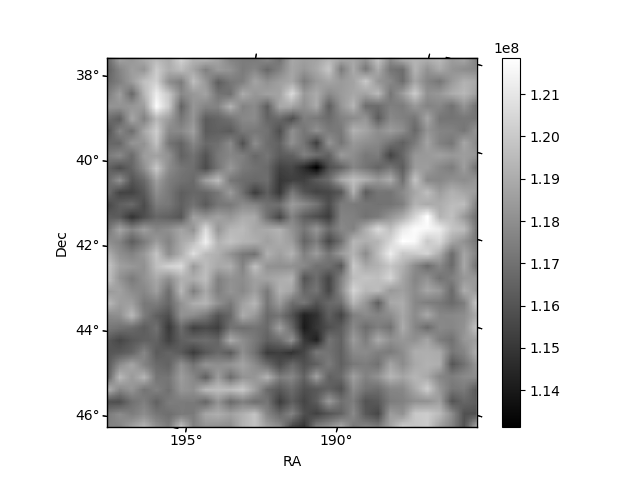

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

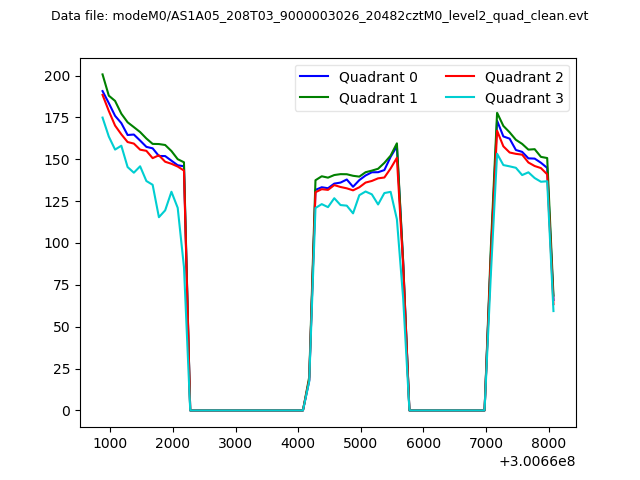

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

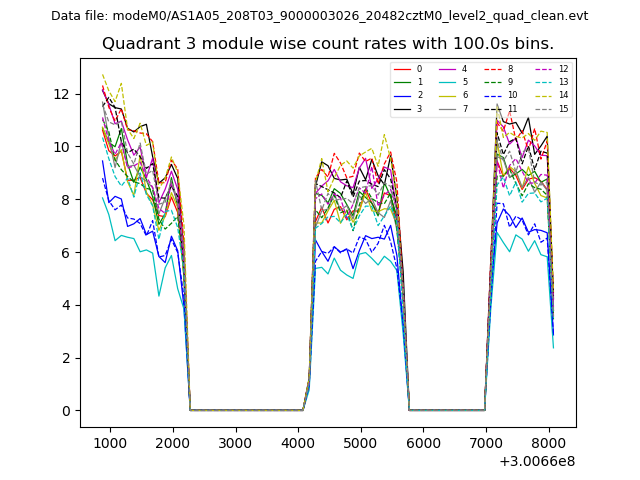

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

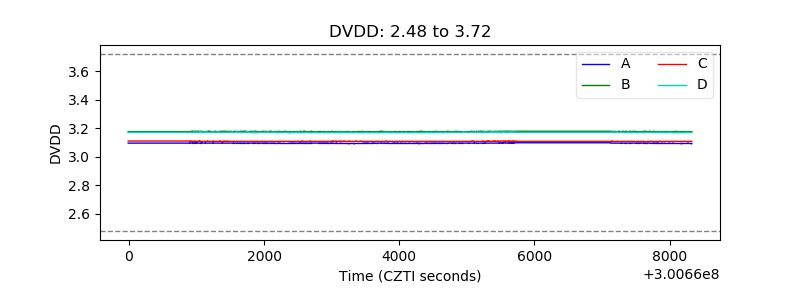

| D_VDD |  |

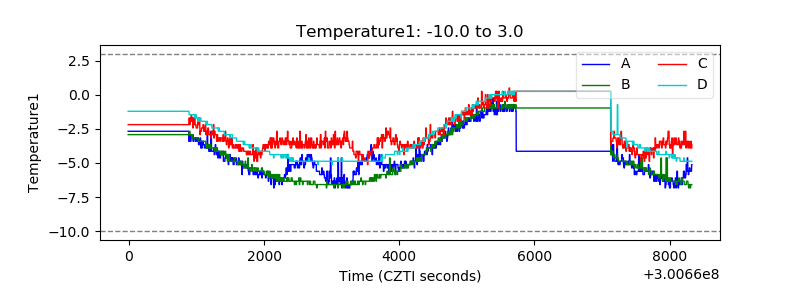

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

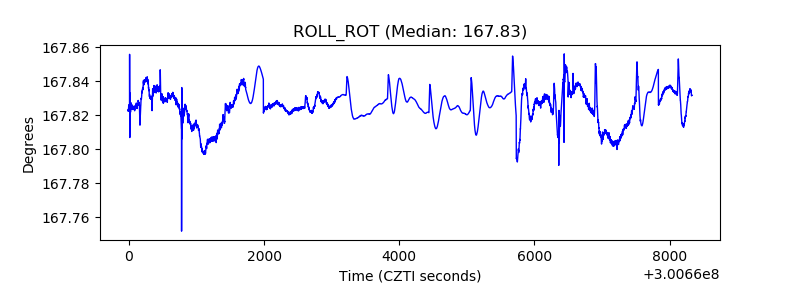

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
