| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_208T03_9000003026_20484cztM0_level2.evt | modeM0/AS1A05_208T03_9000003026_20484cztM0_level2_quad_clean.evt |
| Size (bytes) | 517,371,840 | 77,722,560 |
| Size | 493.4 MB | 74.1 MB |
| Events in quadrant A | 3,276,252 | 483,043 |
| Events in quadrant B | 3,896,319 | 486,939 |
| Events in quadrant C | 3,471,261 | 466,444 |
| Events in quadrant D | 4,559,267 | 438,792 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14195 | 2 |
| B | 0 | 16041 | 3 |
| C | 0 | 14520 | 2 |
| D | 0 | 18376 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6861 | 33 | 0.480979% |
| B | 6860 | 111 | 1.618076% |
| C | 6860 | 64 | 0.932945% |
| D | 6860 | 278 | 4.052478% |

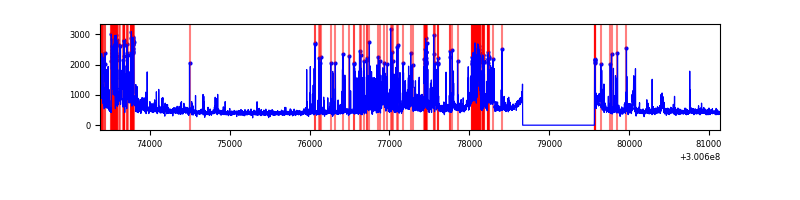

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7761 | 6861 | 7 | 7 | 0.09% | 0.10% |  |
| B | 7760 | 6860 | 24 | 24 | 0.31% | 0.35% |  |
| C | 7760 | 6861 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7760 | 6861 | 221 | 221 | 2.85% | 3.22% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 16 | 60921 | 360.12 | 830 | 812 | 166.9 |
| A | 9 | 143 | 12611 | 70.69 | 830 | 812 | 166.9 |
| A | 13 | 254 | 7914 | 42.55 | 830 | 812 | 166.9 |
| B | 7 | 220 | 218699 | 1373.05 | 834 | 813 | 158.7 |
| B | 0 | 189 | 167091 | 1047.83 | 834 | 813 | 158.7 |
| B | 0 | 197 | 143349 | 898.22 | 834 | 813 | 158.7 |
| C | 3 | 233 | 154265 | 824.04 | 801 | 809 | 186.2 |
| C | 14 | 238 | 125486 | 669.5 | 801 | 809 | 186.2 |
| C | 3 | 9 | 35655 | 187.12 | 801 | 809 | 186.2 |
| D | 1 | 52 | 429270 | 2225.11 | 793 | 772 | 192.6 |
| D | 7 | 238 | 333907 | 1729.91 | 793 | 772 | 192.6 |
| D | 5 | 222 | 331412 | 1716.95 | 793 | 772 | 192.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

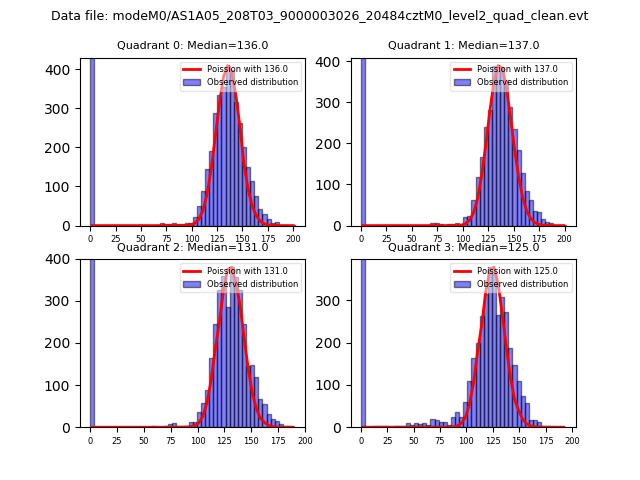

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

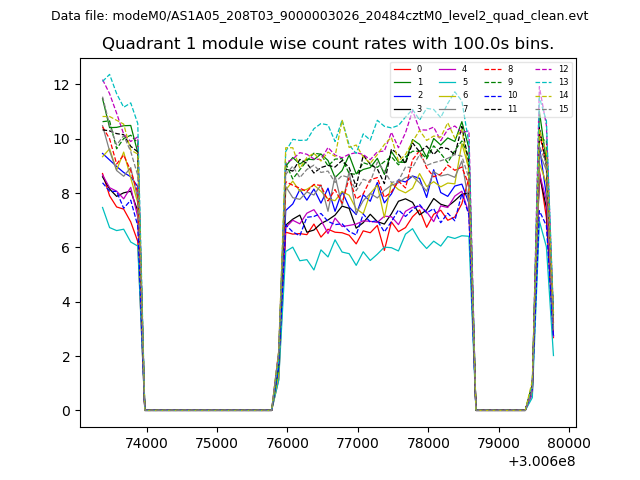

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

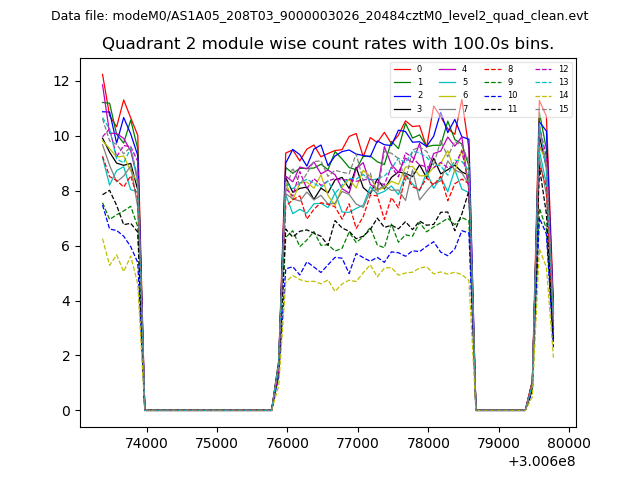

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

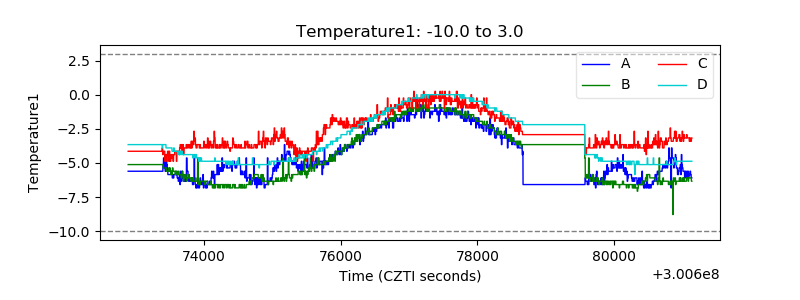

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

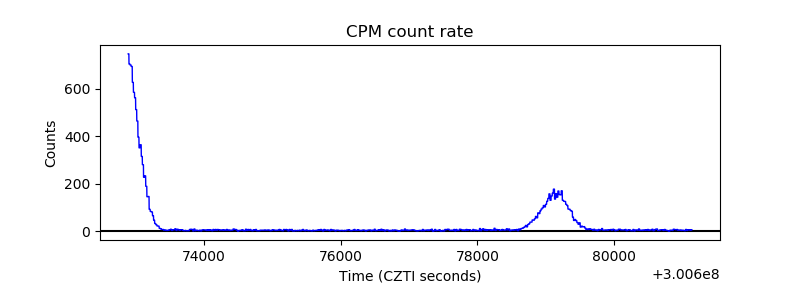

| _CPM_Rate |  |

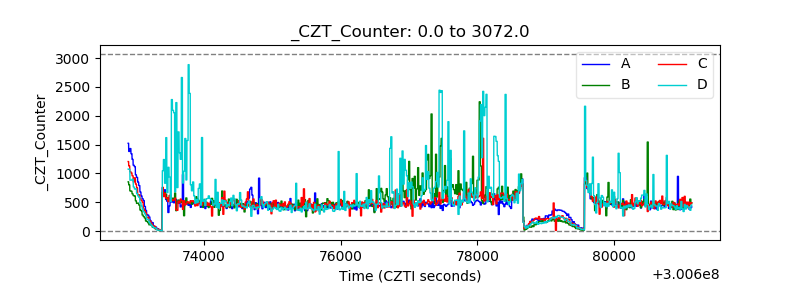

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

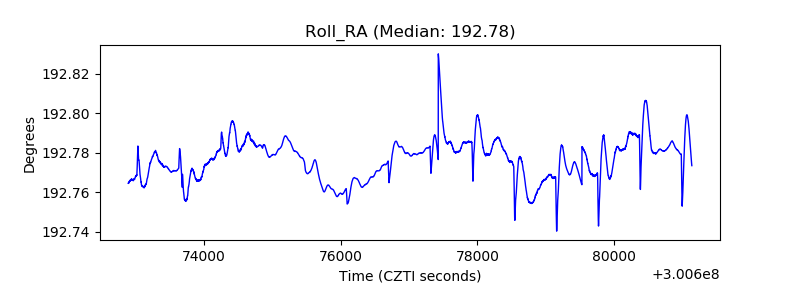

| _Roll_RA |  |
| Veto Counter |  |
