| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_208T03_9000003026_20485cztM0_level2.evt | modeM0/AS1A05_208T03_9000003026_20485cztM0_level2_quad_clean.evt |
| Size (bytes) | 610,536,960 | 74,494,080 |
| Size | 582.3 MB | 71.0 MB |
| Events in quadrant A | 3,295,816 | 453,578 |
| Events in quadrant B | 3,778,512 | 459,336 |
| Events in quadrant C | 3,580,741 | 439,762 |
| Events in quadrant D | 7,354,066 | 407,707 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14580 | 1 |
| B | 0 | 15765 | 1 |
| C | 0 | 15018 | 2 |
| D | 0 | 26923 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7117 | 92 | 1.292679% |
| B | 7118 | 147 | 2.065187% |
| C | 7117 | 108 | 1.517493% |
| D | 7117 | 323 | 4.538429% |

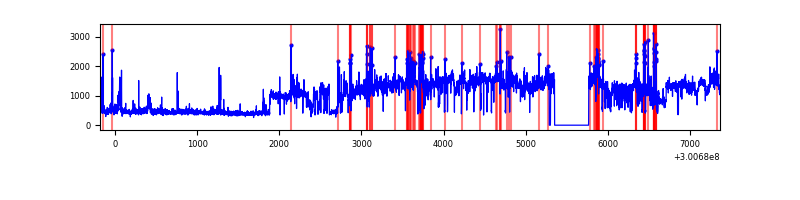

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7547 | 7118 | 1 | 1 | 0.01% | 0.01% |  |
| B | 7548 | 7119 | 19 | 19 | 0.25% | 0.27% |  |
| C | 7547 | 7118 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7547 | 7117 | 99 | 99 | 1.31% | 1.39% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 16 | 30593 | 173.77 | 846 | 827 | 171.3 |
| A | 0 | 226 | 7555 | 39.28 | 846 | 827 | 171.3 |
| A | 3 | 137 | 6865 | 35.25 | 846 | 827 | 171.3 |
| B | 7 | 220 | 166557 | 1025.44 | 849 | 828 | 161.6 |
| B | 0 | 189 | 140181 | 862.24 | 849 | 828 | 161.6 |
| B | 0 | 197 | 65454 | 399.87 | 849 | 828 | 161.6 |
| C | 3 | 9 | 180385 | 944.52 | 817 | 822 | 190.1 |
| C | 14 | 238 | 126205 | 659.53 | 817 | 822 | 190.1 |
| C | 3 | 233 | 75370 | 392.13 | 817 | 822 | 190.1 |
| D | 1 | 52 | 3765882 | 19076.64 | 809 | 784 | 197.4 |
| D | 5 | 222 | 155525 | 784.03 | 809 | 784 | 197.4 |
| D | 13 | 153 | 124347 | 626.06 | 809 | 784 | 197.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

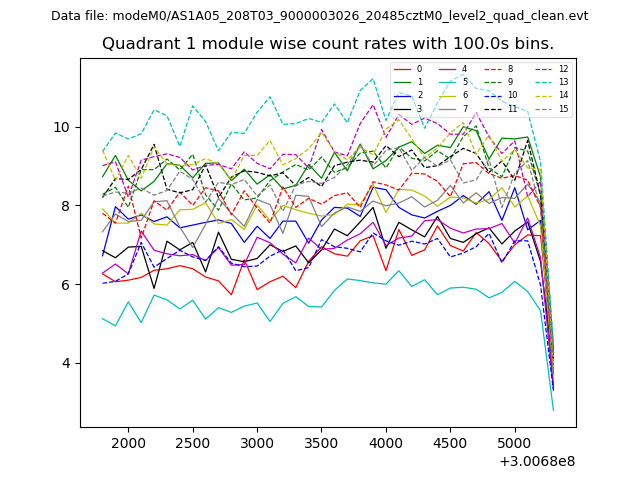

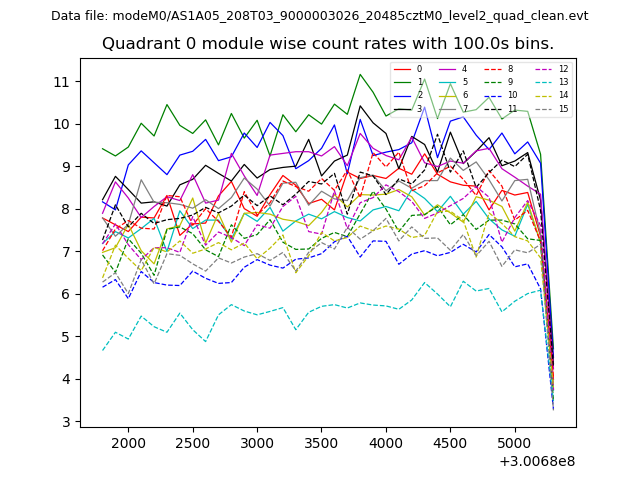

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

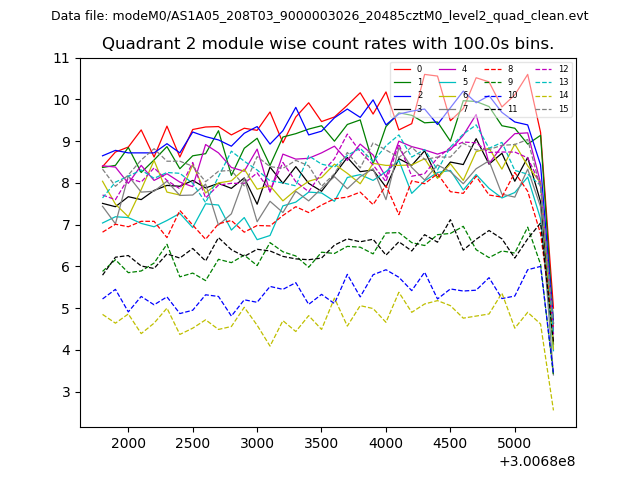

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

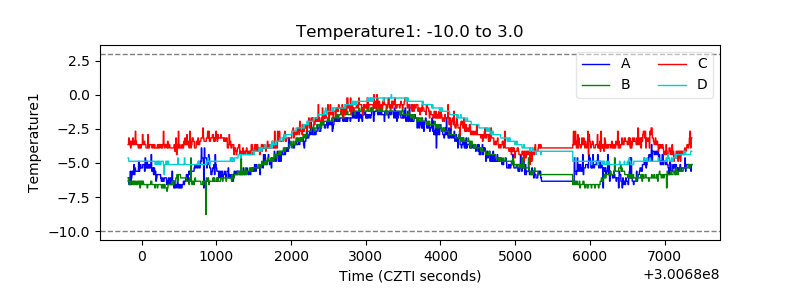

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

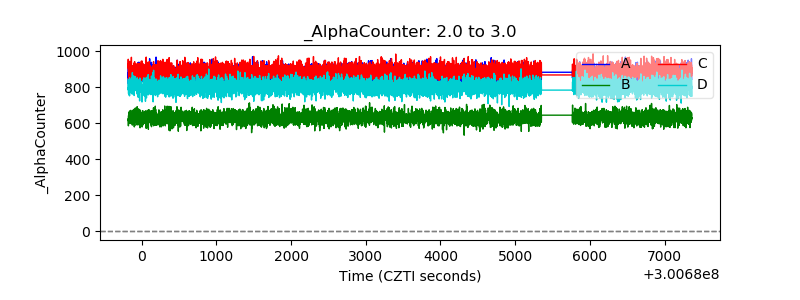

| Alpha Counter |  |
| _CPM_Rate |  |

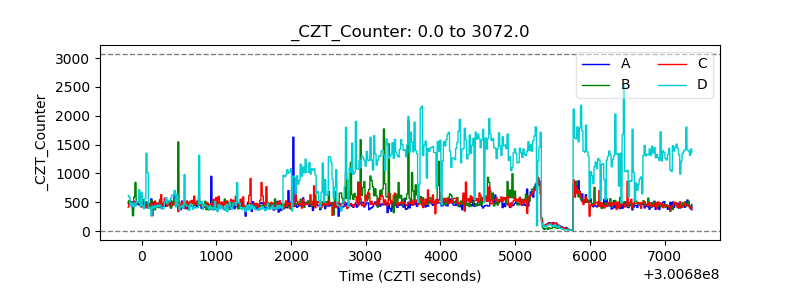

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

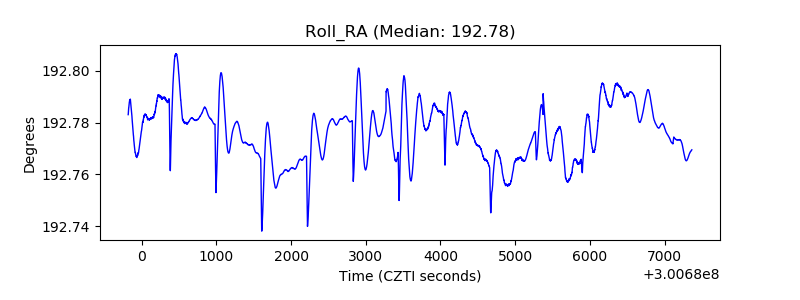

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
