| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_022T08_9000003036_20719cztM0_level2.evt | modeM0/AS1A05_022T08_9000003036_20719cztM0_level2_quad_clean.evt |
| Size (bytes) | 118,440,000 | 30,280,320 |
| Size | 113.0 MB | 28.9 MB |
| Events in quadrant A | 829,199 | 205,588 |
| Events in quadrant B | 869,485 | 203,070 |
| Events in quadrant C | 811,576 | 193,030 |
| Events in quadrant D | 955,396 | 187,496 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 57 | 18 |
| B | 0 | 60 | 18 |
| C | 0 | 57 | 17 |
| D | 0 | 57 | 21 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5766 | 2096 |
| B | 0 | 6474 | 2729 |
| C | 0 | 5706 | 2093 |
| D | 0 | 7794 | 3828 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 1 |
| B | 0 | 6 | 1 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1751 | 25 | 1.427756% |
| B | 1735 | 46 | 2.651297% |
| C | 1750 | 24 | 1.371429% |
| D | 1678 | 31 | 1.847437% |

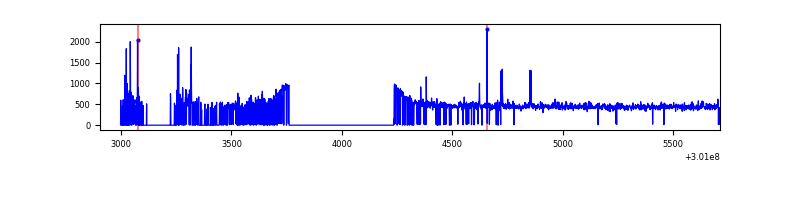

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 2807 | 1936 | 1 | 1 | 0.04% | 0.05% |  |
| B | 2713 | 1928 | 2 | 2 | 0.07% | 0.10% |  |
| C | 2707 | 1933 | 0 | 0 | 0.00% | 0.00% |  |
| D | 2689 | 1863 | 11 | 11 | 0.41% | 0.59% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 16826 | 369.57 | 210 | 206 | 45.0 |
| A | 5 | 16 | 2349 | 47.65 | 210 | 206 | 45.0 |
| A | 0 | 226 | 1805 | 35.56 | 210 | 206 | 45.0 |
| B | 0 | 190 | 17993 | 415.55 | 208 | 203 | 42.8 |
| B | 7 | 220 | 14482 | 333.54 | 208 | 203 | 42.8 |
| B | 12 | 111 | 4907 | 109.88 | 208 | 203 | 42.8 |
| C | 14 | 238 | 30894 | 624.65 | 198 | 199 | 49.1 |
| C | 7 | 247 | 3790 | 73.08 | 198 | 199 | 49.1 |
| C | 8 | 208 | 2376 | 44.3 | 198 | 199 | 49.1 |
| D | 1 | 52 | 147601 | 3045.18 | 192 | 186 | 48.4 |
| D | 5 | 222 | 33774 | 693.83 | 192 | 186 | 48.4 |
| D | 7 | 38 | 19085 | 390.4 | 192 | 186 | 48.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

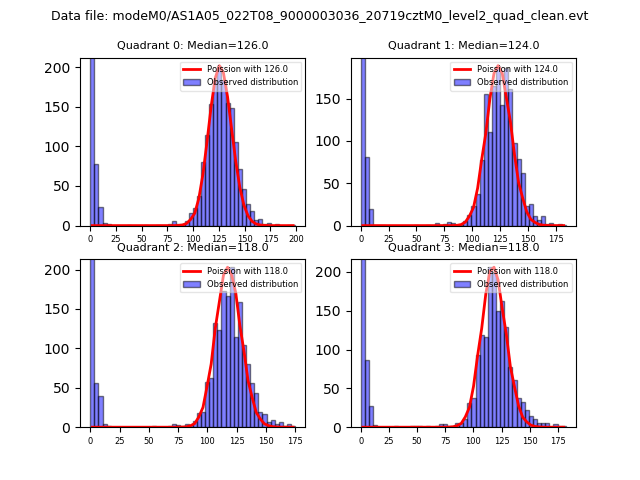

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

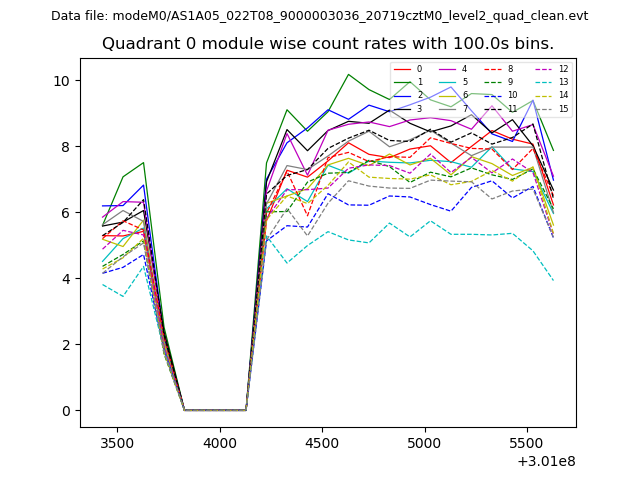

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

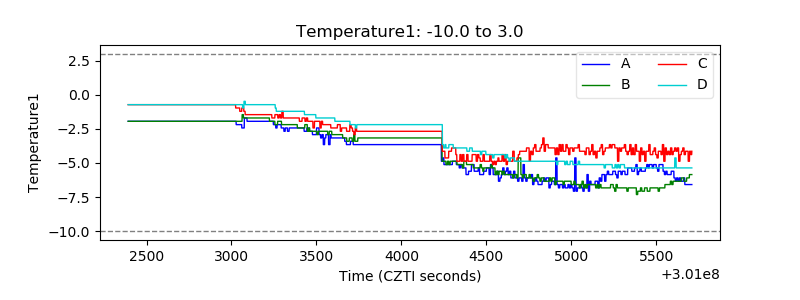

| Temperature 1 |  |

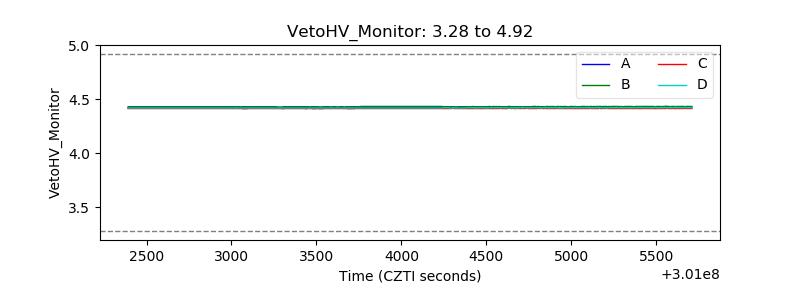

| Veto HV Monitor |  |
| Veto LLD |  |

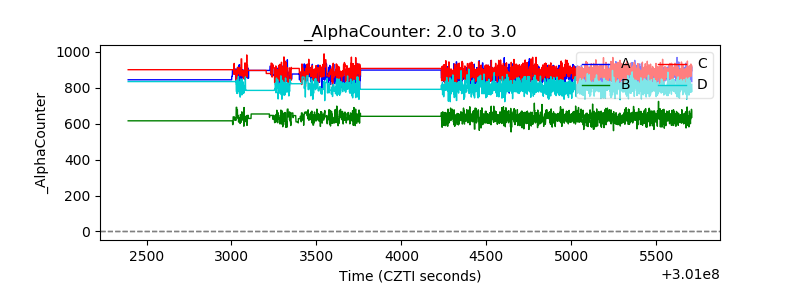

| Alpha Counter |  |
| _CPM_Rate |  |

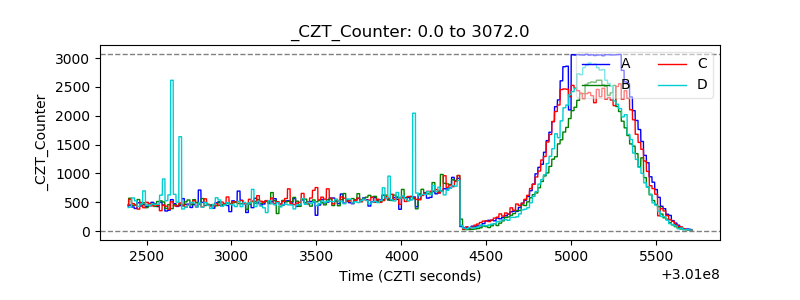

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
