| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_176T04_9000003034_20534cztM0_level2.evt | modeM0/AS1A05_176T04_9000003034_20534cztM0_level2_quad_clean.evt |
| Size (bytes) | 254,753,280 | 46,359,360 |
| Size | 243.0 MB | 44.2 MB |
| Events in quadrant A | 1,796,602 | 303,825 |
| Events in quadrant B | 1,916,619 | 302,401 |
| Events in quadrant C | 1,822,417 | 290,366 |
| Events in quadrant D | 1,964,934 | 283,572 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 64 | 0 |
| B | 0 | 64 | 0 |
| C | 0 | 64 | 0 |
| D | 0 | 64 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7364 | 1 |
| B | 0 | 7776 | 1 |
| C | 0 | 7346 | 1 |
| D | 0 | 7866 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3140 | 30 | 0.955414% |
| B | 3140 | 79 | 2.515924% |
| C | 3140 | 62 | 1.974522% |
| D | 3140 | 109 | 3.471338% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

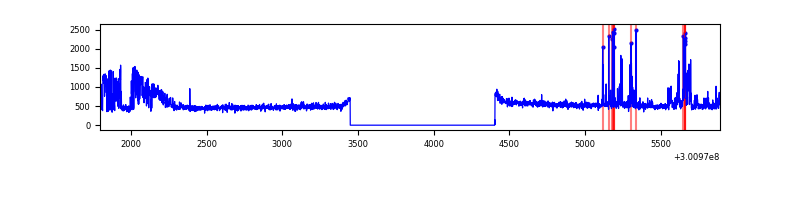

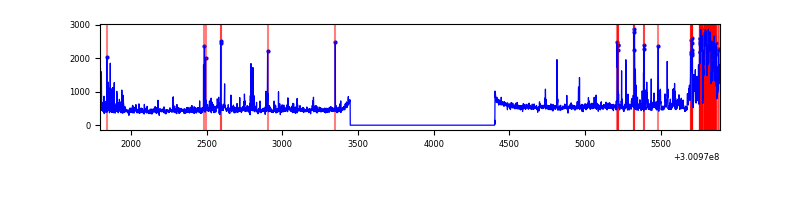

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4095 | 3141 | 8 | 8 | 0.20% | 0.25% |  |
| B | 4095 | 3141 | 34 | 34 | 0.83% | 1.08% |  |
| C | 4095 | 3141 | 14 | 14 | 0.34% | 0.45% |  |
| D | 4095 | 3141 | 100 | 100 | 2.44% | 3.18% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 273458 | 3340.45 | 394 | 386 | 81.7 |
| A | 11 | 29 | 5325 | 60.42 | 394 | 386 | 81.7 |
| A | 0 | 226 | 3411 | 37.0 | 394 | 386 | 81.7 |
| B | 7 | 220 | 205381 | 2723.09 | 390 | 380 | 75.3 |
| B | 0 | 197 | 88063 | 1164.72 | 390 | 380 | 75.3 |
| B | 0 | 189 | 48340 | 637.07 | 390 | 380 | 75.3 |
| C | 8 | 208 | 181461 | 2042.2 | 374 | 376 | 88.7 |
| C | 0 | 207 | 121904 | 1370.54 | 374 | 376 | 88.7 |
| C | 14 | 238 | 58758 | 658.41 | 374 | 376 | 88.7 |
| D | 12 | 238 | 291869 | 3134.97 | 377 | 366 | 93.0 |
| D | 13 | 153 | 79207 | 847.9 | 377 | 366 | 93.0 |
| D | 7 | 38 | 35499 | 377.84 | 377 | 366 | 93.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

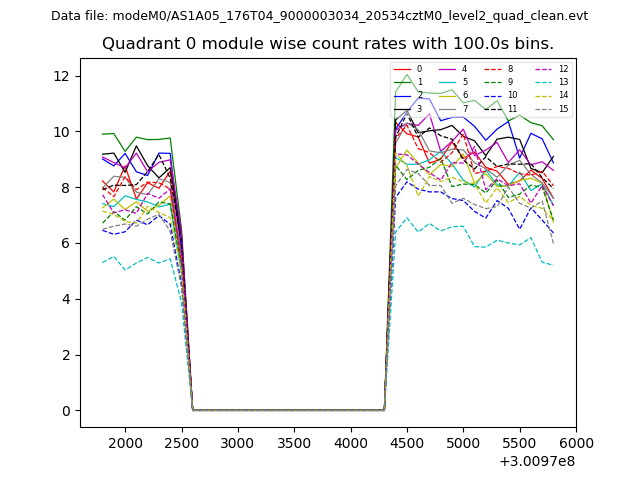

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

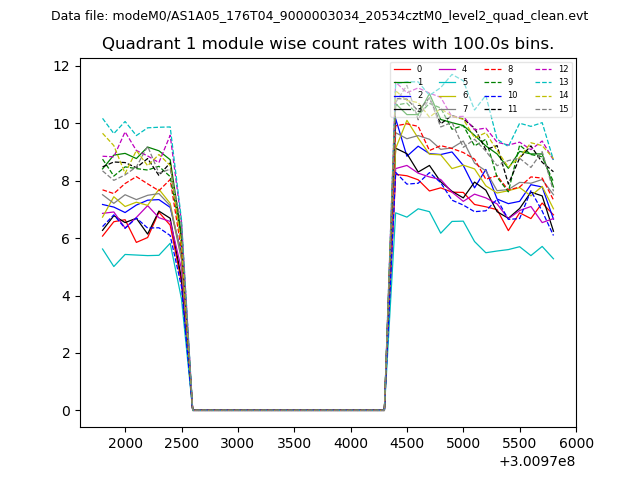

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

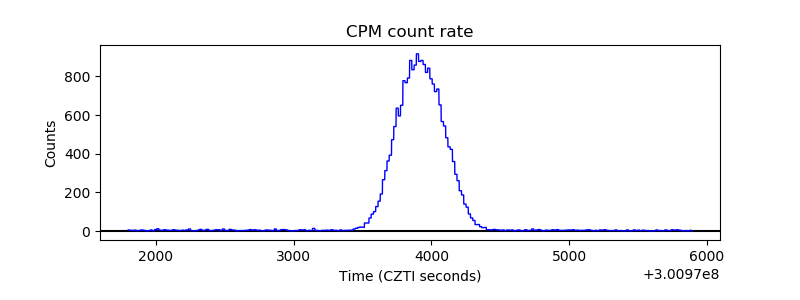

| _CPM_Rate |  |

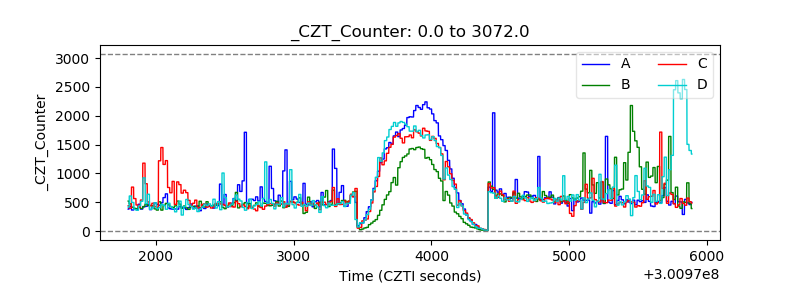

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

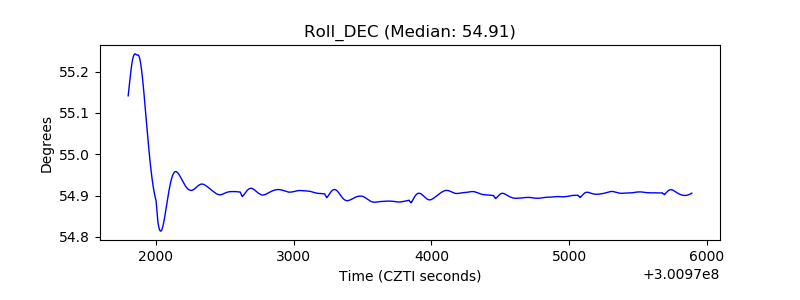

| _Roll_DEC |  |
| _Roll_RA |  |

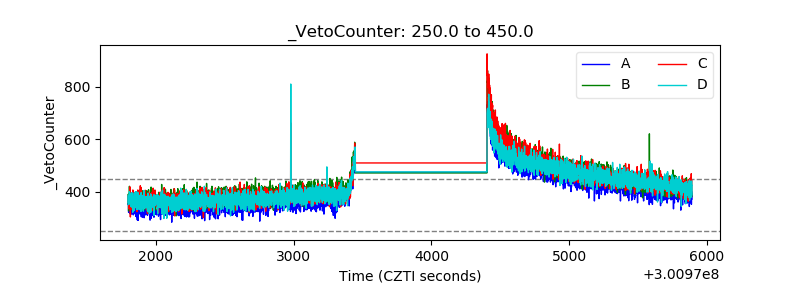

| Veto Counter |  |
