| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_069T02_9000003038_20545cztM0_level2.evt | modeM0/AS1A05_069T02_9000003038_20545cztM0_level2_quad_clean.evt |
| Size (bytes) | 465,425,280 | 89,236,800 |
| Size | 443.9 MB | 85.1 MB |
| Events in quadrant A | 3,214,725 | 561,800 |
| Events in quadrant B | 3,376,096 | 573,709 |
| Events in quadrant C | 3,257,392 | 545,293 |
| Events in quadrant D | 3,766,170 | 528,723 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14361 | 1 |
| B | 0 | 14534 | 1 |
| C | 0 | 14417 | 1 |
| D | 0 | 16221 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7075 | 65 | 0.918728% |
| B | 7075 | 93 | 1.314488% |
| C | 7075 | 71 | 1.003534% |
| D | 7074 | 119 | 1.682217% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7420 | 7076 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7420 | 7076 | 1 | 1 | 0.01% | 0.01% |  |
| C | 7420 | 7076 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7419 | 7075 | 78 | 78 | 1.05% | 1.10% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 137 | 7359 | 39.05 | 831 | 813 | 167.6 |
| A | 0 | 226 | 7035 | 37.12 | 831 | 813 | 167.6 |
| A | 8 | 205 | 6235 | 32.35 | 831 | 813 | 167.6 |
| B | 0 | 219 | 48722 | 297.48 | 830 | 809 | 161.1 |
| B | 0 | 189 | 30631 | 185.16 | 830 | 809 | 161.1 |
| B | 12 | 111 | 20233 | 120.6 | 830 | 809 | 161.1 |
| C | 14 | 238 | 122574 | 647.82 | 796 | 800 | 188.0 |
| C | 8 | 208 | 31289 | 162.2 | 796 | 800 | 188.0 |
| C | 13 | 61 | 5486 | 24.93 | 796 | 800 | 188.0 |
| D | 1 | 52 | 577240 | 2962.53 | 799 | 775 | 194.6 |
| D | 13 | 153 | 70389 | 357.76 | 799 | 775 | 194.6 |
| D | 2 | 234 | 27895 | 139.37 | 799 | 775 | 194.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

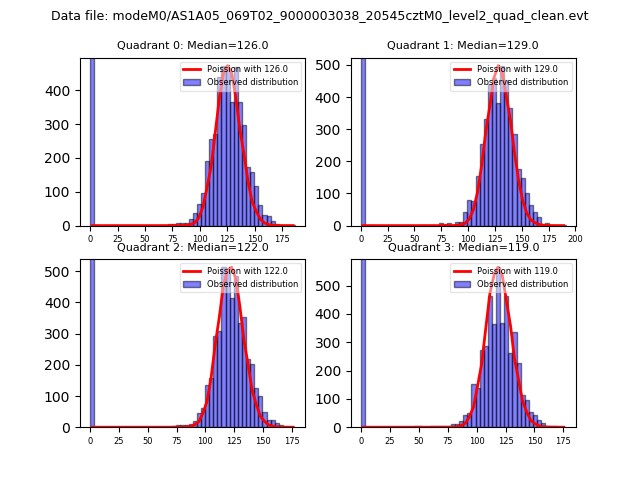

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

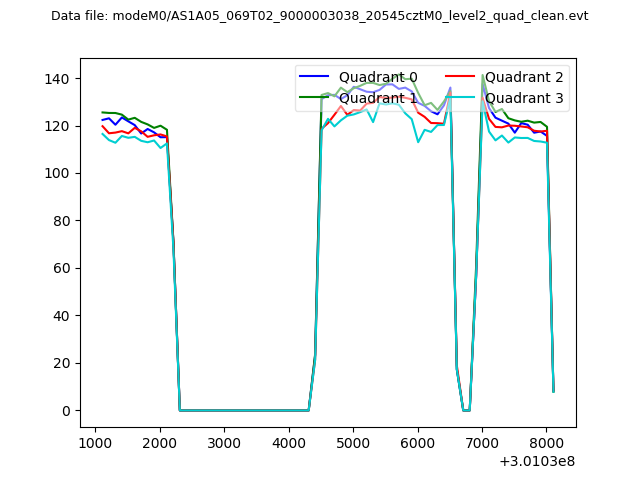

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

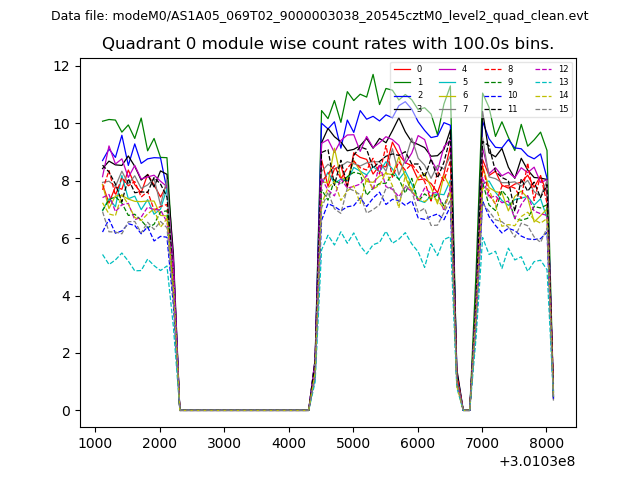

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

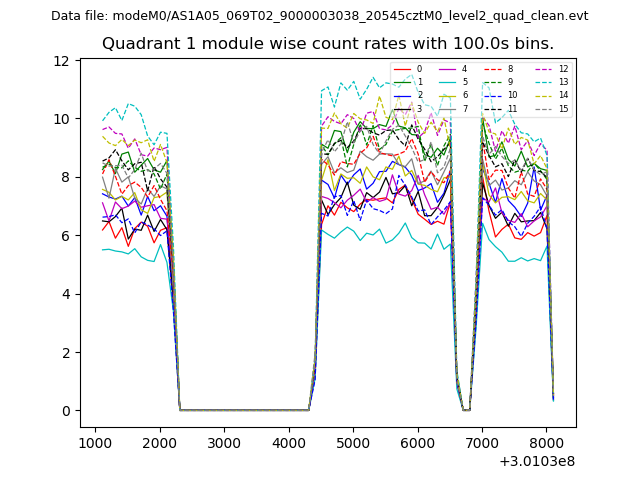

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

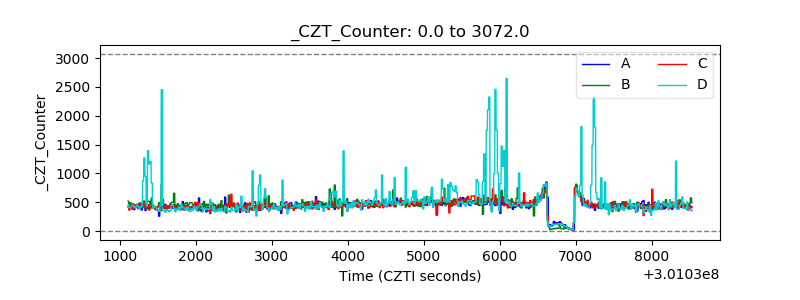

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
