| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_069T02_9000003038_20549cztM0_level2.evt | modeM0/AS1A05_069T02_9000003038_20549cztM0_level2_quad_clean.evt |
| Size (bytes) | 471,245,760 | 71,297,280 |
| Size | 449.4 MB | 68.0 MB |
| Events in quadrant A | 3,600,054 | 430,478 |
| Events in quadrant B | 3,406,434 | 436,557 |
| Events in quadrant C | 3,341,165 | 411,901 |
| Events in quadrant D | 3,463,430 | 407,634 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14994 | 2 |
| B | 0 | 14314 | 2 |
| C | 0 | 14100 | 2 |
| D | 0 | 14618 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6772 | 141 | 2.082103% |
| B | 6773 | 133 | 1.963679% |
| C | 6773 | 155 | 2.288498% |
| D | 6773 | 125 | 1.845563% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8577 | 6774 | 6 | 6 | 0.07% | 0.09% |  |
| B | 8578 | 6775 | 0 | 0 | 0.00% | 0.00% |  |
| C | 8578 | 6775 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8578 | 6775 | 22 | 22 | 0.26% | 0.32% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 253196 | 1449.36 | 866 | 848 | 174.1 |
| A | 14 | 111 | 9374 | 48.97 | 866 | 848 | 174.1 |
| A | 0 | 226 | 7361 | 37.41 | 866 | 848 | 174.1 |
| B | 12 | 111 | 20610 | 119.38 | 860 | 839 | 165.6 |
| B | 0 | 230 | 20210 | 116.97 | 860 | 839 | 165.6 |
| B | 11 | 111 | 18273 | 105.27 | 860 | 839 | 165.6 |
| C | 14 | 238 | 127578 | 657.44 | 822 | 825 | 192.8 |
| C | 8 | 208 | 8914 | 41.96 | 822 | 825 | 192.8 |
| C | 13 | 61 | 5794 | 25.77 | 822 | 825 | 192.8 |
| D | 1 | 52 | 207290 | 1012.66 | 839 | 815 | 203.9 |
| D | 10 | 199 | 30616 | 146.16 | 839 | 815 | 203.9 |
| D | 7 | 238 | 24995 | 118.59 | 839 | 815 | 203.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

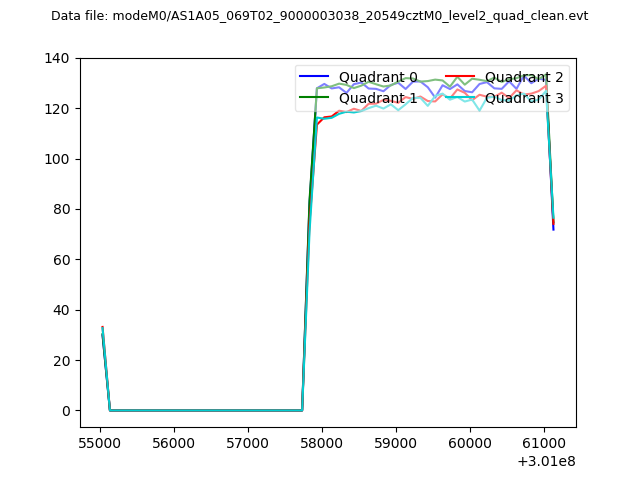

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

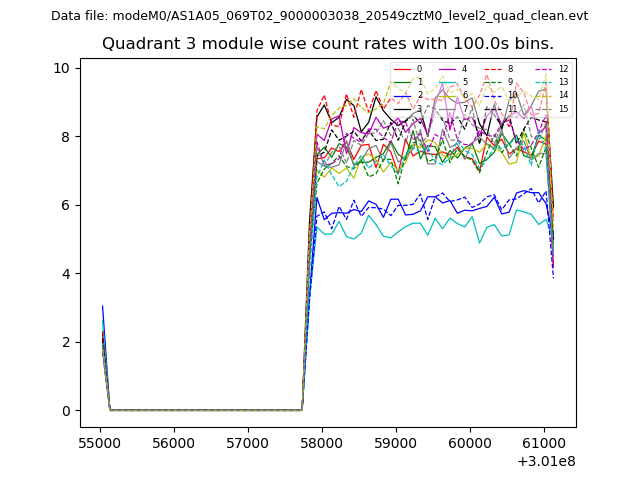

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

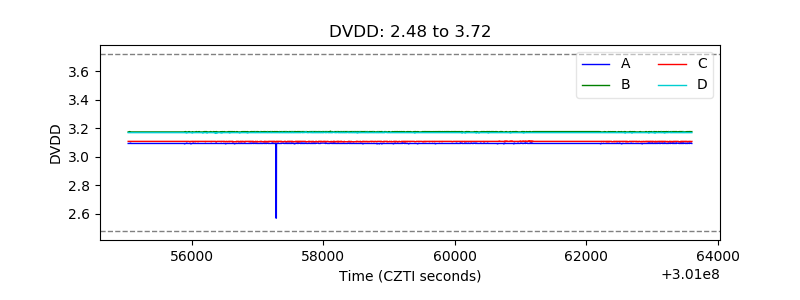

| D_VDD |  |

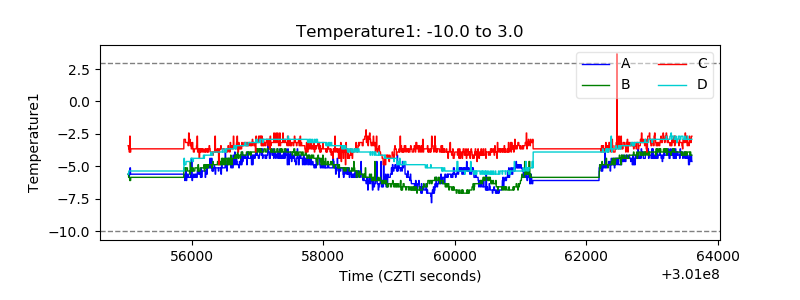

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

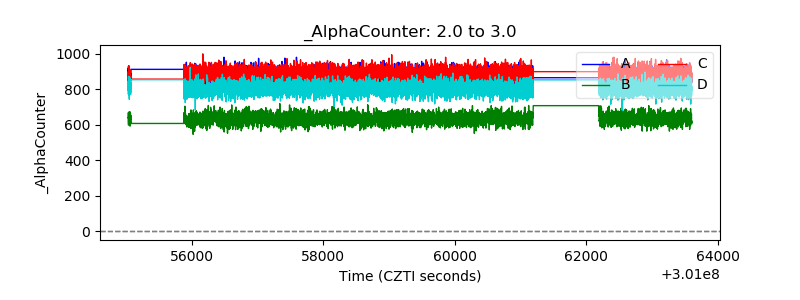

| Alpha Counter |  |
| _CPM_Rate |  |

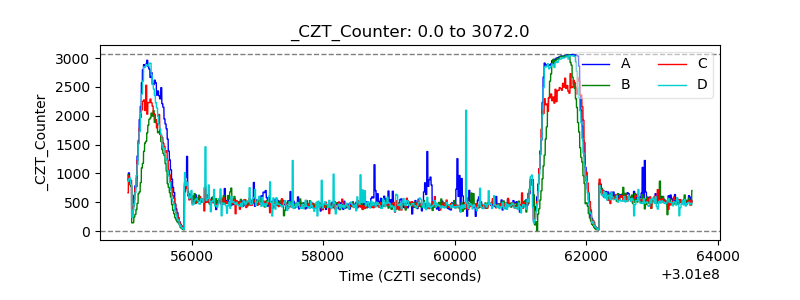

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

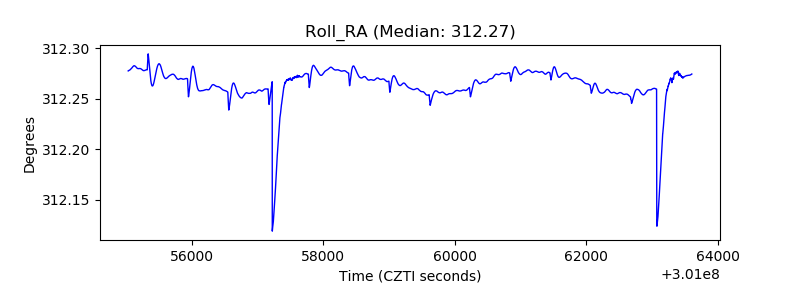

| _Roll_RA |  |
| Veto Counter |  |
