| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_072T04_9000003040_20555cztM0_level2.evt | modeM0/AS1A05_072T04_9000003040_20555cztM0_level2_quad_clean.evt |
| Size (bytes) | 466,030,080 | 96,598,080 |
| Size | 444.4 MB | 92.1 MB |
| Events in quadrant A | 3,140,319 | 628,189 |
| Events in quadrant B | 3,240,276 | 637,772 |
| Events in quadrant C | 3,228,778 | 622,883 |
| Events in quadrant D | 4,074,262 | 594,709 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13358 | 2 |
| B | 0 | 13566 | 2 |
| C | 0 | 13502 | 2 |
| D | 0 | 16286 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6336 | 53 | 0.836490% |
| B | 6335 | 70 | 1.104972% |
| C | 6335 | 115 | 1.815312% |
| D | 6335 | 138 | 2.178374% |

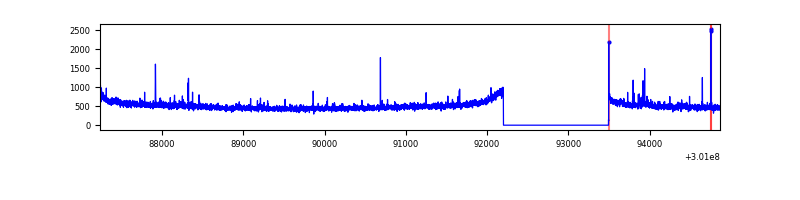

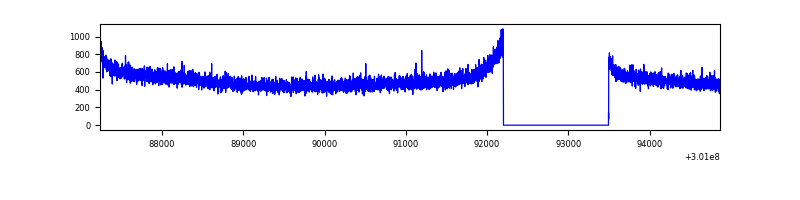

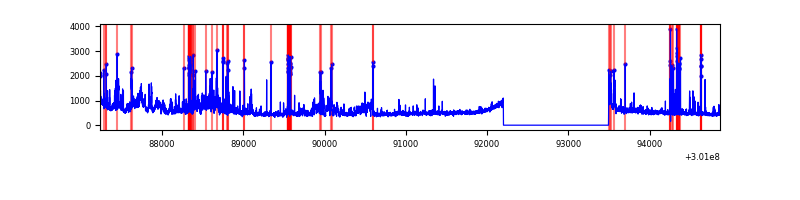

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7631 | 6337 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7630 | 6336 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7630 | 6336 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7630 | 6336 | 98 | 98 | 1.28% | 1.55% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 96 | 12796 | 74.47 | 810 | 795 | 161.2 |
| A | 8 | 205 | 9198 | 52.14 | 810 | 795 | 161.2 |
| A | 0 | 226 | 6961 | 38.26 | 810 | 795 | 161.2 |
| B | 12 | 111 | 17748 | 112.38 | 809 | 790 | 150.9 |
| B | 11 | 111 | 15835 | 99.7 | 809 | 790 | 150.9 |
| B | 3 | 64 | 14276 | 89.37 | 809 | 790 | 150.9 |
| C | 14 | 238 | 124831 | 674.56 | 793 | 801 | 183.9 |
| C | 8 | 208 | 7760 | 37.85 | 793 | 801 | 183.9 |
| C | 13 | 61 | 5437 | 25.21 | 793 | 801 | 183.9 |
| D | 1 | 52 | 759491 | 3983.66 | 792 | 773 | 190.5 |
| D | 13 | 153 | 220388 | 1153.09 | 792 | 773 | 190.5 |
| D | 7 | 238 | 27068 | 138.06 | 792 | 773 | 190.5 |

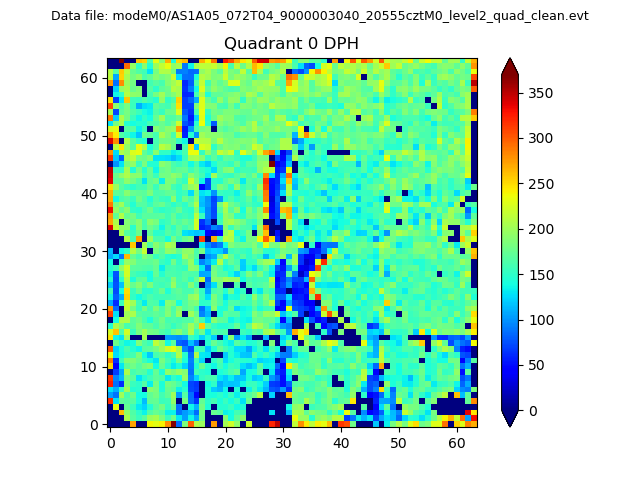

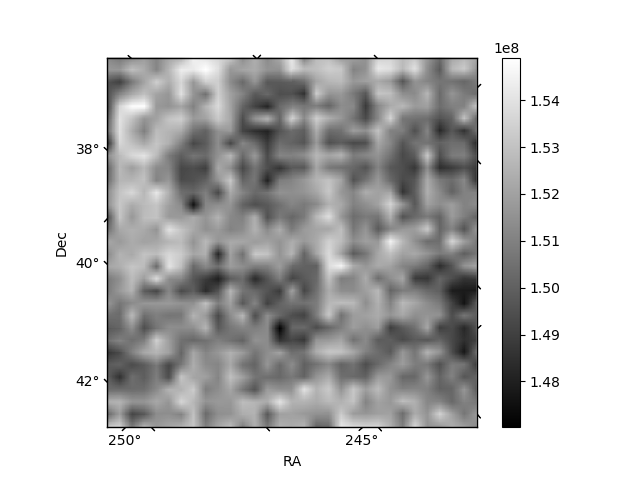

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

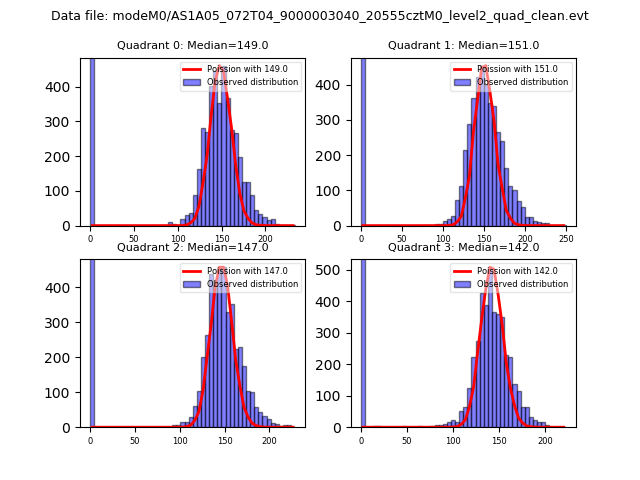

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

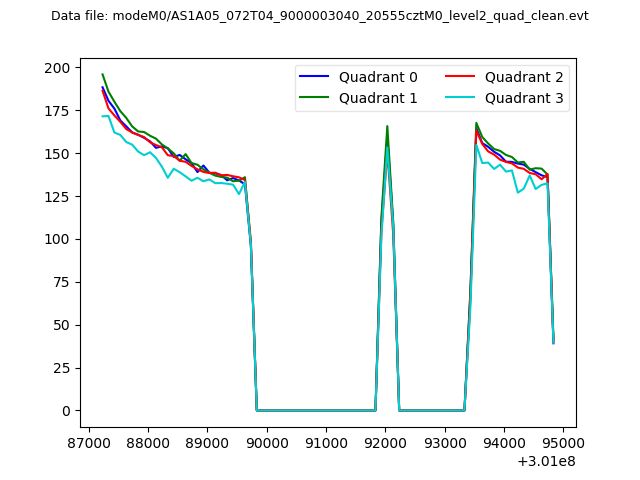

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

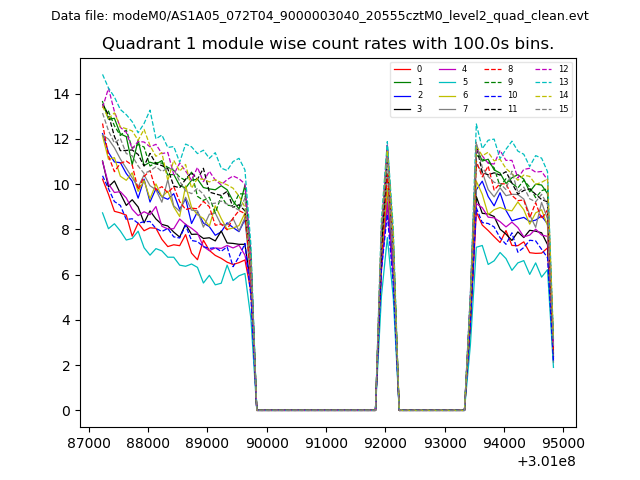

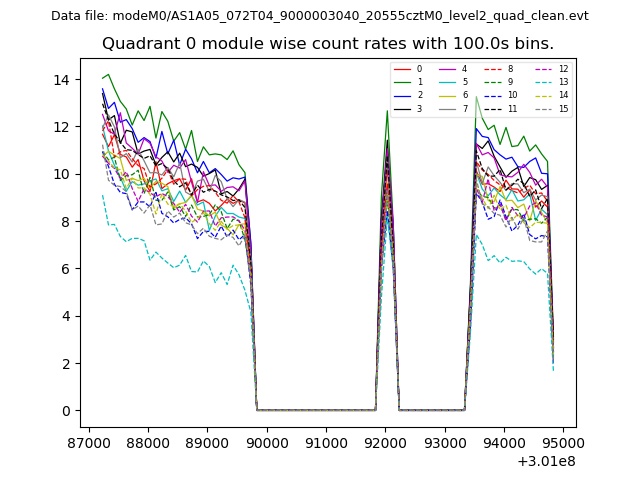

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

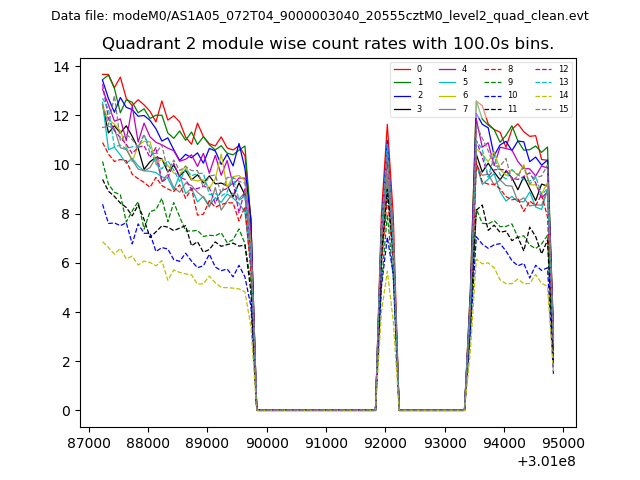

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

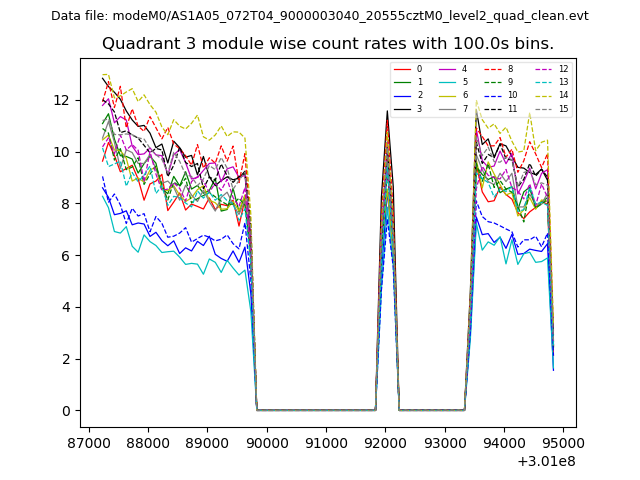

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

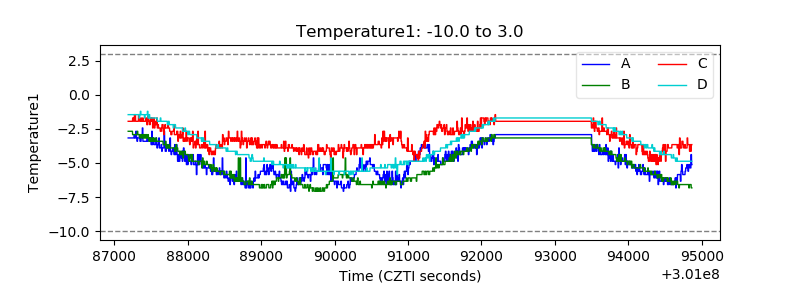

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

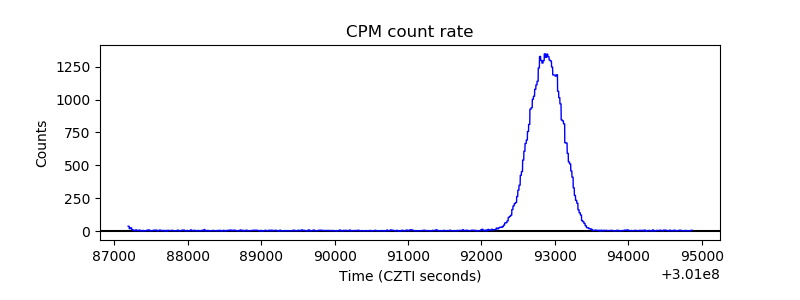

| _CPM_Rate |  |

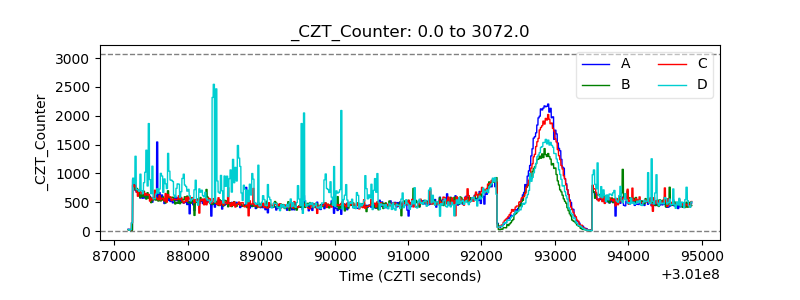

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

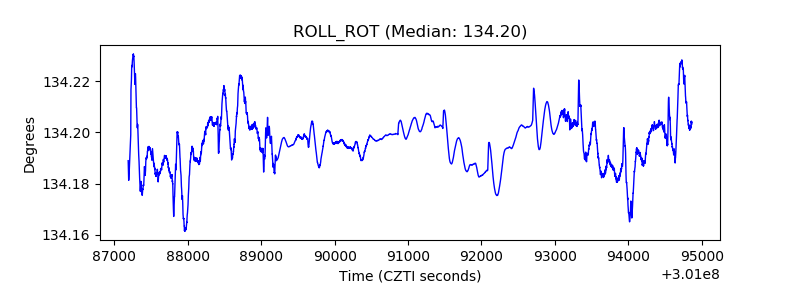

| _ROLL_ROT |  |

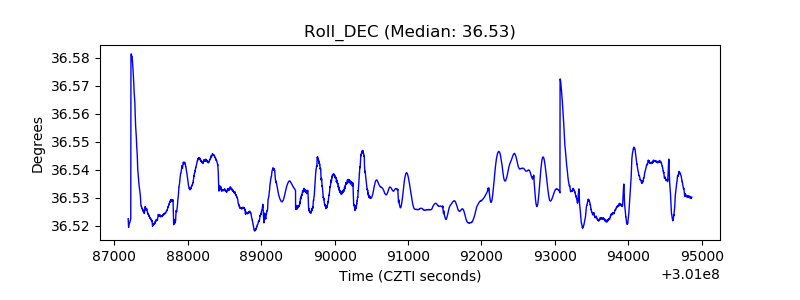

| _Roll_DEC |  |

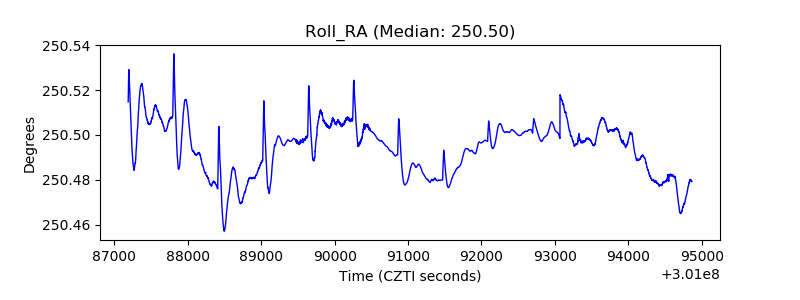

| _Roll_RA |  |

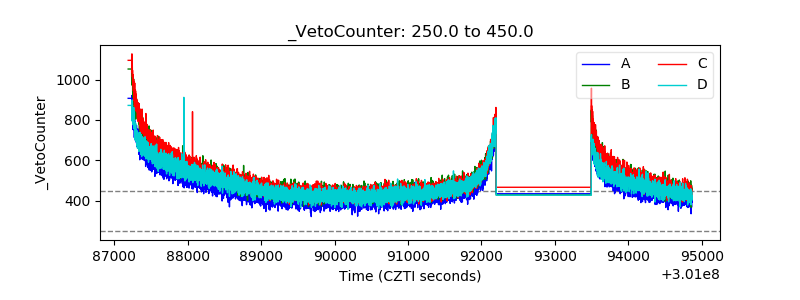

| Veto Counter |  |
