| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_072T04_9000003040_20557cztM0_level2.evt | modeM0/AS1A05_072T04_9000003040_20557cztM0_level2_quad_clean.evt |
| Size (bytes) | 469,604,160 | 99,483,840 |
| Size | 447.8 MB | 94.9 MB |
| Events in quadrant A | 3,246,508 | 637,427 |
| Events in quadrant B | 3,369,166 | 643,772 |
| Events in quadrant C | 3,310,245 | 630,596 |
| Events in quadrant D | 3,820,932 | 613,985 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14312 | 2 |
| B | 0 | 14586 | 2 |
| C | 0 | 14390 | 2 |
| D | 0 | 16175 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6993 | 24 | 0.343200% |
| B | 6993 | 41 | 0.586301% |
| C | 6993 | 67 | 0.958101% |
| D | 6993 | 87 | 1.244101% |

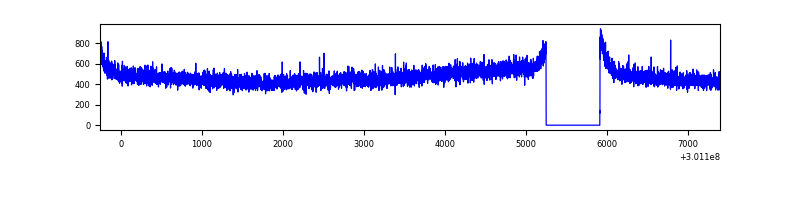

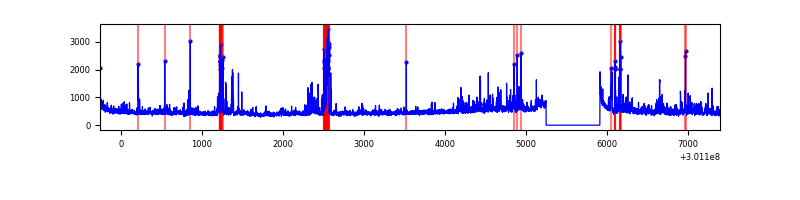

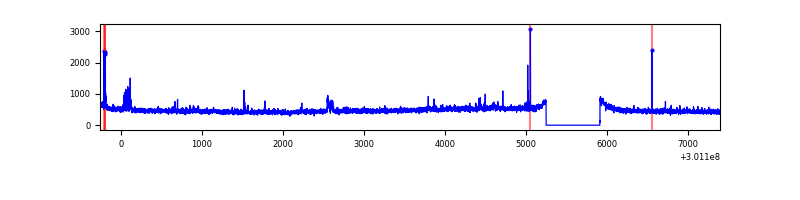

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7658 | 6994 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7658 | 6994 | 5 | 5 | 0.07% | 0.07% |  |
| C | 7658 | 6994 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7658 | 6994 | 67 | 67 | 0.87% | 0.96% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 29 | 15045 | 84.41 | 835 | 817 | 168.6 |
| A | 14 | 239 | 8194 | 43.77 | 835 | 817 | 168.6 |
| A | 8 | 205 | 7473 | 39.49 | 835 | 817 | 168.6 |
| B | 0 | 197 | 28672 | 175.24 | 835 | 816 | 159.0 |
| B | 3 | 64 | 23968 | 145.65 | 835 | 816 | 159.0 |
| B | 12 | 111 | 19555 | 117.89 | 835 | 816 | 159.0 |
| C | 14 | 238 | 126770 | 661.27 | 813 | 819 | 190.5 |
| C | 8 | 208 | 11364 | 55.36 | 813 | 819 | 190.5 |
| C | 13 | 61 | 5673 | 25.48 | 813 | 819 | 190.5 |
| D | 1 | 20 | 265518 | 1339.18 | 812 | 789 | 197.7 |
| D | 5 | 222 | 132833 | 667.97 | 812 | 789 | 197.7 |
| D | 13 | 153 | 124371 | 625.16 | 812 | 789 | 197.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

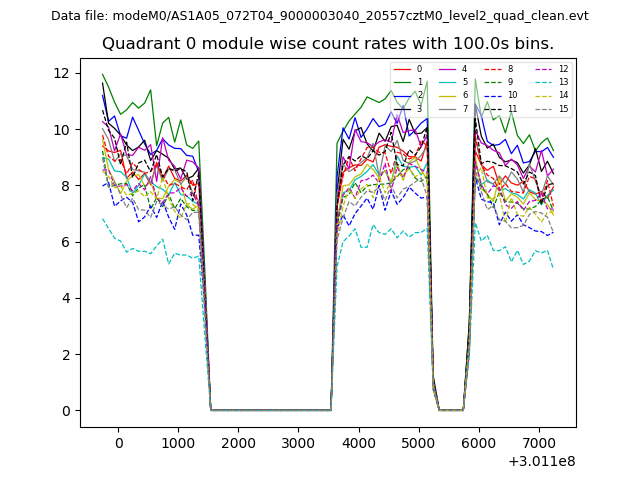

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

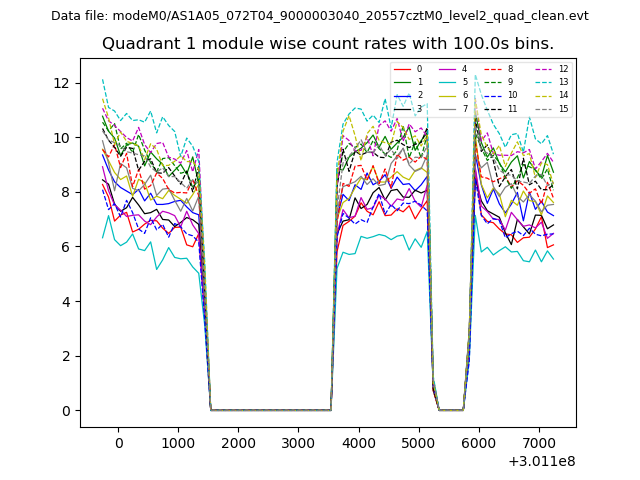

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

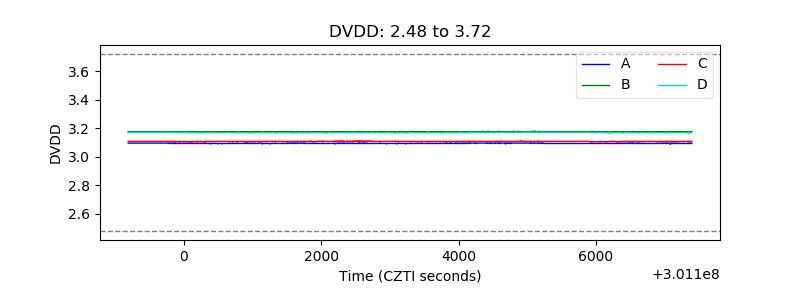

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

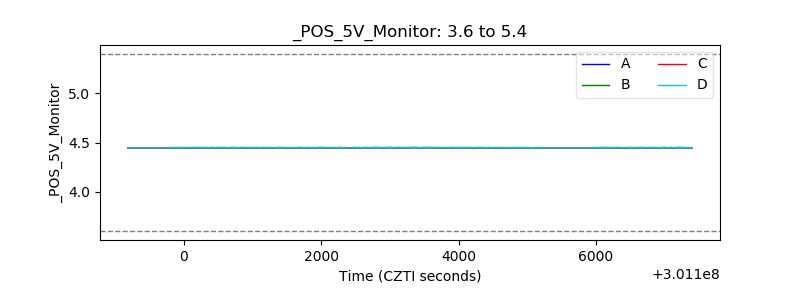

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
