| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_088T03_9000003042_20567cztM0_level2.evt | modeM0/AS1A05_088T03_9000003042_20567cztM0_level2_quad_clean.evt |
| Size (bytes) | 523,290,240 | 105,742,080 |
| Size | 499.0 MB | 100.8 MB |
| Events in quadrant A | 3,211,347 | 733,556 |
| Events in quadrant B | 3,435,907 | 729,542 |
| Events in quadrant C | 3,200,747 | 709,863 |
| Events in quadrant D | 5,584,249 | 601,399 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13473 | 1 |
| B | 0 | 14241 | 1 |
| C | 0 | 13336 | 1 |
| D | 0 | 20769 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6128 | 73 | 1.191253% |
| B | 6129 | 99 | 1.615272% |
| C | 6129 | 102 | 1.664219% |
| D | 6129 | 971 | 15.842715% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7398 | 6129 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7399 | 6130 | 15 | 15 | 0.20% | 0.24% |  |
| C | 7399 | 6130 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7399 | 6130 | 747 | 747 | 10.10% | 12.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 58781 | 358.63 | 816 | 801 | 161.7 |
| A | 8 | 205 | 13170 | 76.51 | 816 | 801 | 161.7 |
| A | 0 | 226 | 7178 | 39.44 | 816 | 801 | 161.7 |
| B | 7 | 220 | 211278 | 1417.99 | 804 | 785 | 148.4 |
| B | 0 | 197 | 33223 | 218.52 | 804 | 785 | 148.4 |
| B | 0 | 219 | 18724 | 120.84 | 804 | 785 | 148.4 |
| C | 14 | 238 | 123509 | 680.11 | 786 | 796 | 180.4 |
| C | 7 | 220 | 8594 | 43.22 | 786 | 796 | 180.4 |
| C | 13 | 61 | 5527 | 26.22 | 786 | 796 | 180.4 |
| D | 5 | 222 | 2007519 | 11558.6 | 727 | 708 | 173.6 |
| D | 1 | 52 | 617182 | 3550.7 | 727 | 708 | 173.6 |
| D | 13 | 153 | 66887 | 381.17 | 727 | 708 | 173.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

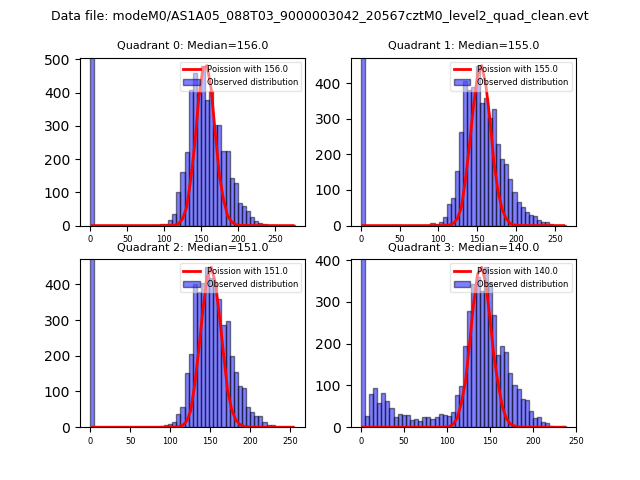

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

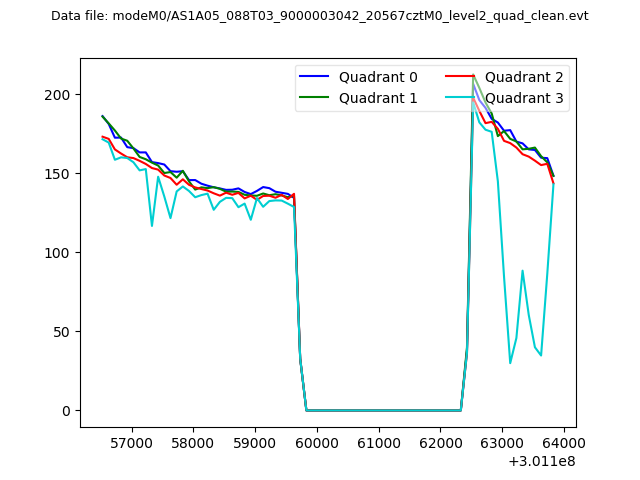

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

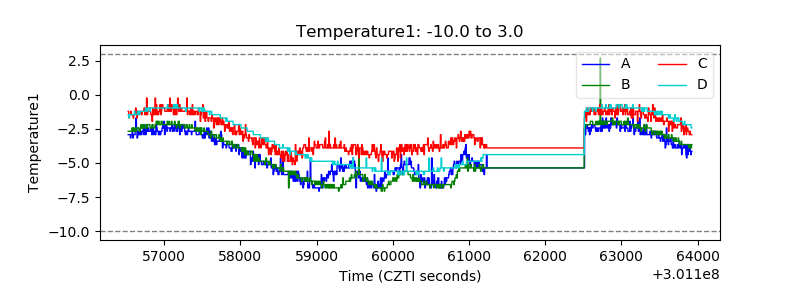

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

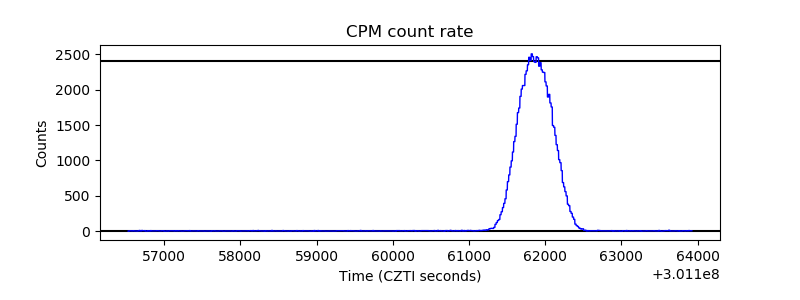

| _CPM_Rate |  |

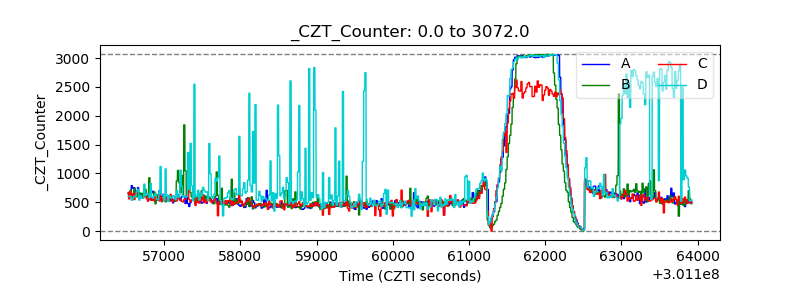

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

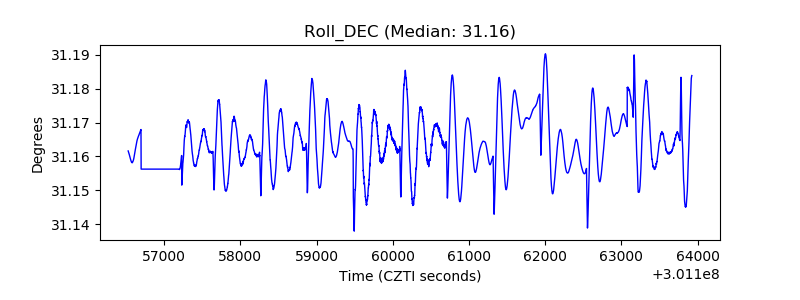

| _Roll_DEC |  |

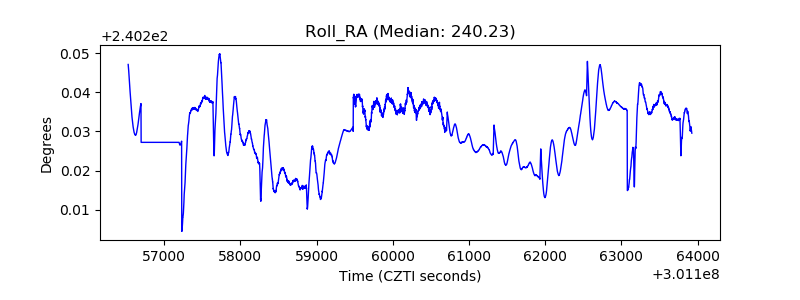

| _Roll_RA |  |

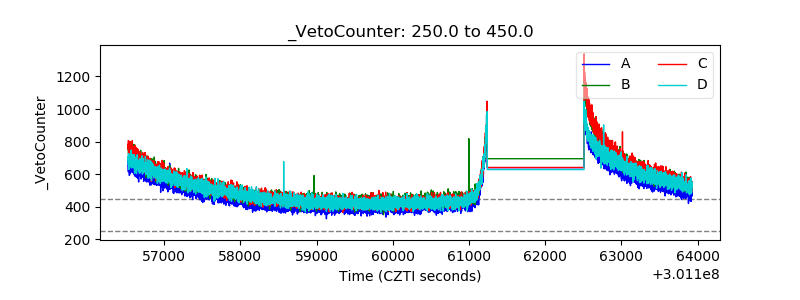

| Veto Counter |  |
