| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_003T04_9000003046_20578cztM0_level2.evt | modeM0/AS1A06_003T04_9000003046_20578cztM0_level2_quad_clean.evt |
| Size (bytes) | 521,717,760 | 85,573,440 |
| Size | 497.5 MB | 81.6 MB |
| Events in quadrant A | 3,280,527 | 541,164 |
| Events in quadrant B | 3,726,282 | 549,398 |
| Events in quadrant C | 3,257,561 | 528,257 |
| Events in quadrant D | 5,071,981 | 496,018 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13992 | 2 |
| B | 0 | 15235 | 2 |
| C | 0 | 13923 | 3 |
| D | 0 | 19486 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6839 | 38 | 0.555637% |
| B | 6840 | 102 | 1.491228% |
| C | 6839 | 45 | 0.657991% |
| D | 6839 | 538 | 7.866647% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7854 | 6840 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7855 | 6841 | 33 | 33 | 0.42% | 0.48% |  |
| C | 7854 | 6840 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7854 | 6840 | 432 | 432 | 5.50% | 6.32% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 240 | 10096 | 54.46 | 848 | 831 | 170.1 |
| A | 12 | 96 | 9038 | 48.24 | 848 | 831 | 170.1 |
| A | 0 | 226 | 7426 | 38.76 | 848 | 831 | 170.1 |
| B | 7 | 220 | 311536 | 1956.94 | 836 | 815 | 158.8 |
| B | 0 | 197 | 54998 | 341.25 | 836 | 815 | 158.8 |
| B | 0 | 190 | 27973 | 171.04 | 836 | 815 | 158.8 |
| C | 14 | 238 | 126331 | 664.31 | 802 | 806 | 189.0 |
| C | 13 | 61 | 5603 | 25.39 | 802 | 806 | 189.0 |
| C | 8 | 208 | 3711 | 15.37 | 802 | 806 | 189.0 |
| D | 5 | 222 | 1586279 | 8057.84 | 803 | 778 | 196.8 |
| D | 1 | 52 | 241335 | 1222.56 | 803 | 778 | 196.8 |
| D | 7 | 238 | 119590 | 603.83 | 803 | 778 | 196.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

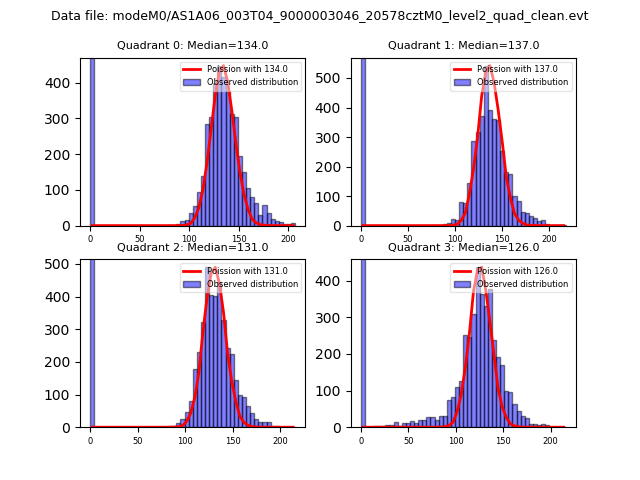

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

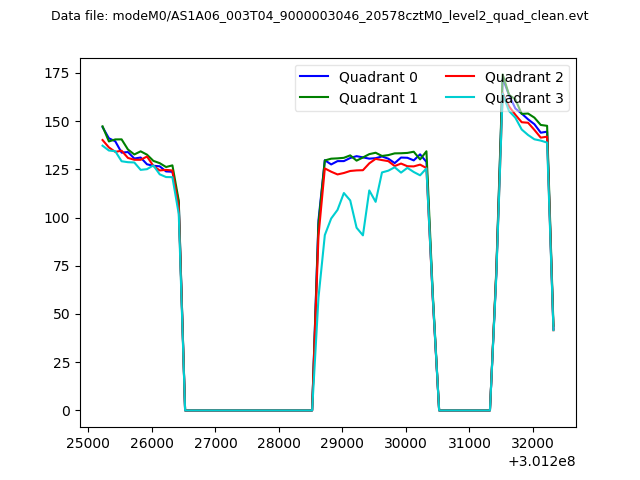

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

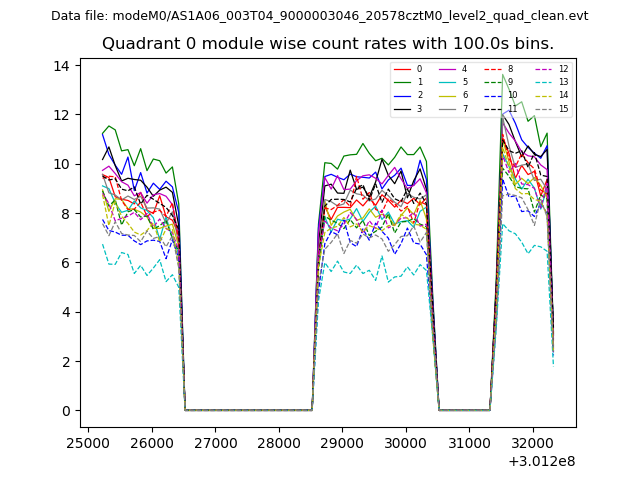

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

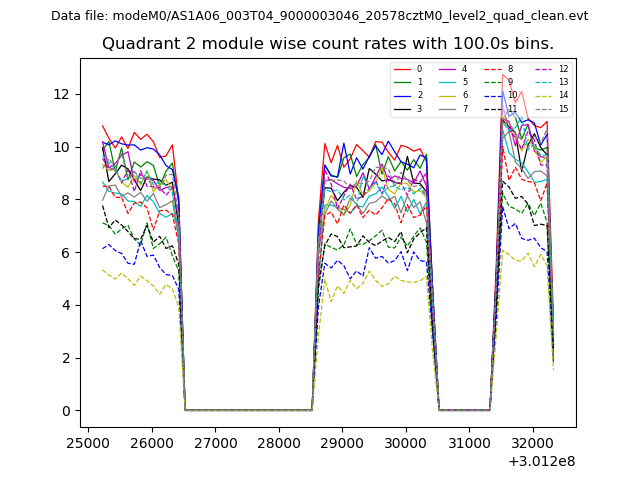

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

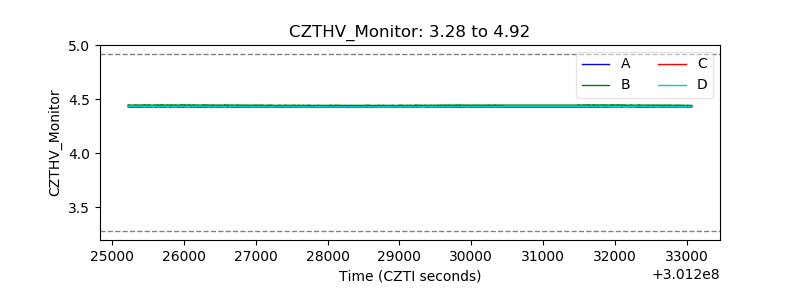

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

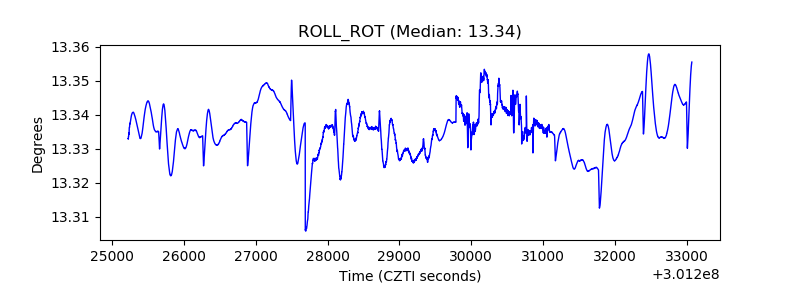

| _ROLL_ROT |  |

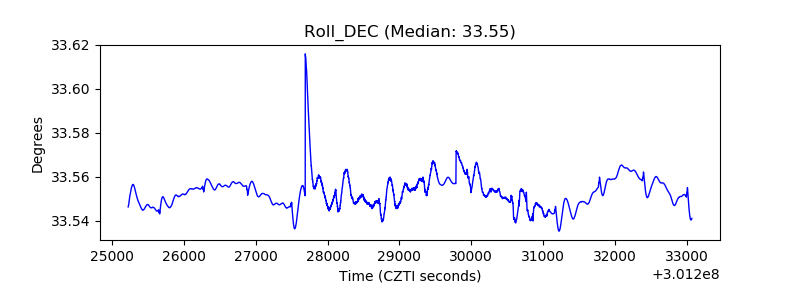

| _Roll_DEC |  |

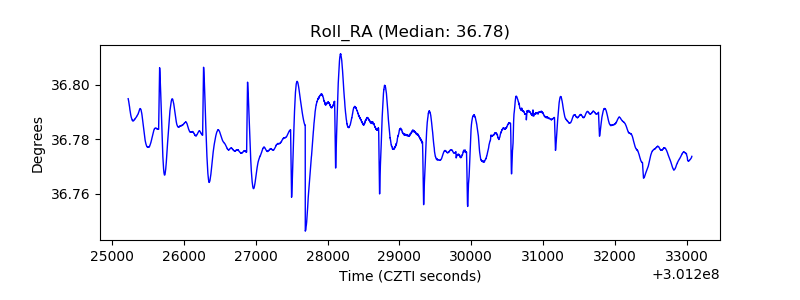

| _Roll_RA |  |
| Veto Counter |  |
