| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_003T04_9000003046_20591cztM0_level2.evt | modeM0/AS1A06_003T04_9000003046_20591cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,366,456,320 | 236,076,480 |
| Size | 1.3 GB | 225.1 MB |
| Events in quadrant A | 8,497,855 | 1,486,821 |
| Events in quadrant B | 9,766,367 | 1,514,811 |
| Events in quadrant C | 9,767,359 | 1,456,190 |
| Events in quadrant D | 12,108,907 | 1,423,955 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 37605 | 3 |
| B | 0 | 41385 | 3 |
| C | 0 | 41118 | 3 |
| D | 0 | 48569 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 372 | 0 |
| B | 0 | 372 | 0 |
| C | 0 | 372 | 0 |
| D | 0 | 372 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18411 | 123 | 0.668079% |
| B | 18412 | 299 | 1.623941% |
| C | 18412 | 412 | 2.237671% |
| D | 18412 | 301 | 1.634803% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 20276 | 18414 | 2 | 2 | 0.01% | 0.01% |  |
| B | 20277 | 18415 | 74 | 74 | 0.36% | 0.40% |  |
| C | 20277 | 18415 | 138 | 138 | 0.68% | 0.75% |  |
| D | 20277 | 18415 | 184 | 184 | 0.91% | 1.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 40359 | 87.22 | 2183 | 2139 | 438.2 |
| A | 8 | 205 | 24501 | 51.03 | 2183 | 2139 | 438.2 |
| A | 12 | 16 | 23671 | 49.13 | 2183 | 2139 | 438.2 |
| B | 7 | 220 | 471647 | 1131.61 | 2180 | 2128 | 414.9 |
| B | 4 | 171 | 178148 | 424.23 | 2180 | 2128 | 414.9 |
| B | 4 | 216 | 146320 | 347.52 | 2180 | 2128 | 414.9 |
| C | 3 | 9 | 650357 | 1330.62 | 2085 | 2100 | 487.2 |
| C | 9 | 54 | 355622 | 725.64 | 2085 | 2100 | 487.2 |
| C | 14 | 238 | 323259 | 659.21 | 2085 | 2100 | 487.2 |
| D | 5 | 222 | 1592538 | 3066.07 | 2116 | 2051 | 518.7 |
| D | 1 | 20 | 1104399 | 2125.06 | 2116 | 2051 | 518.7 |
| D | 7 | 238 | 873227 | 1679.42 | 2116 | 2051 | 518.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

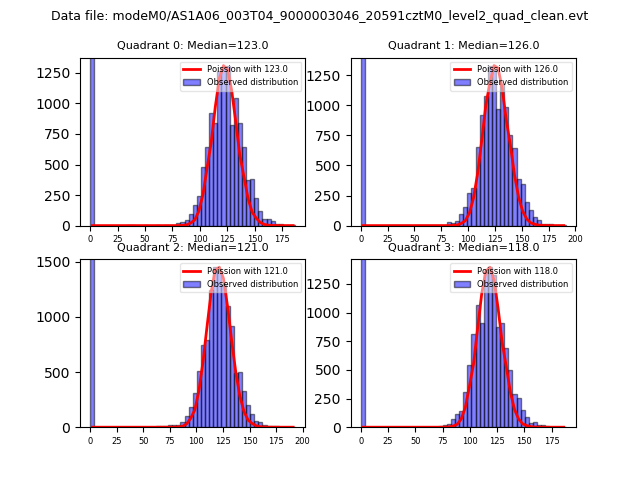

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

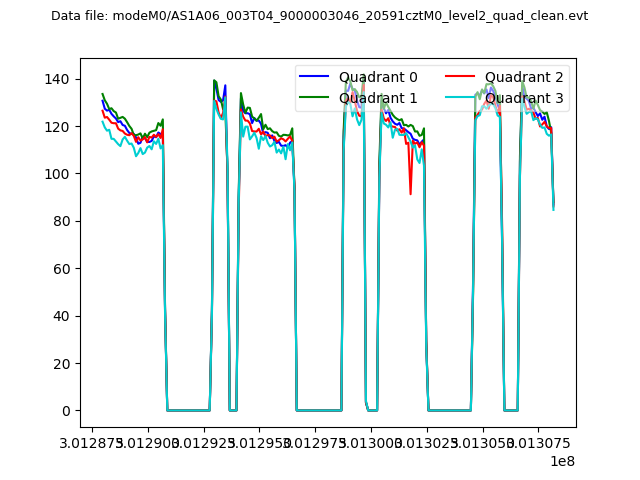

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

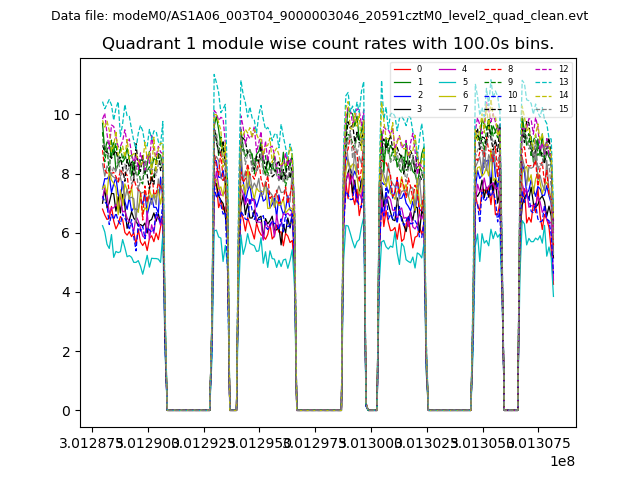

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

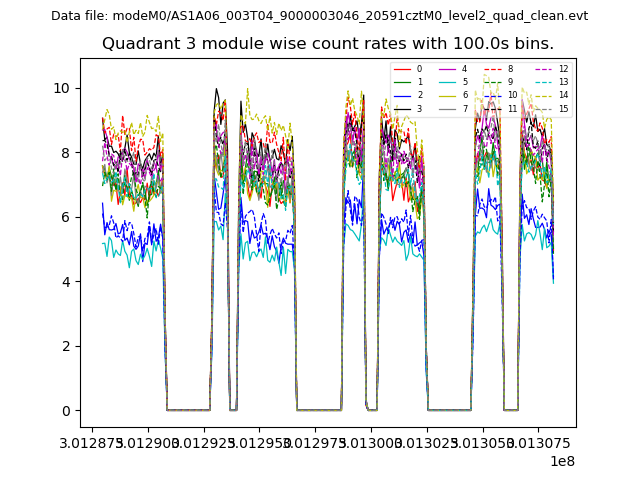

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

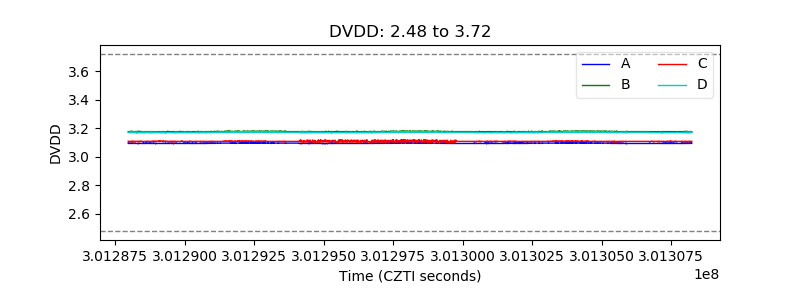

| D_VDD |  |
| Temperature 1 |  |

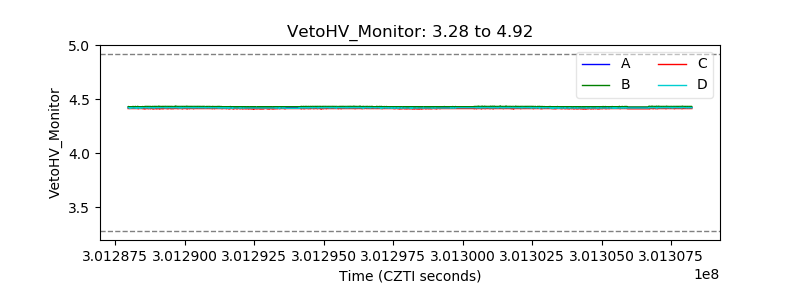

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

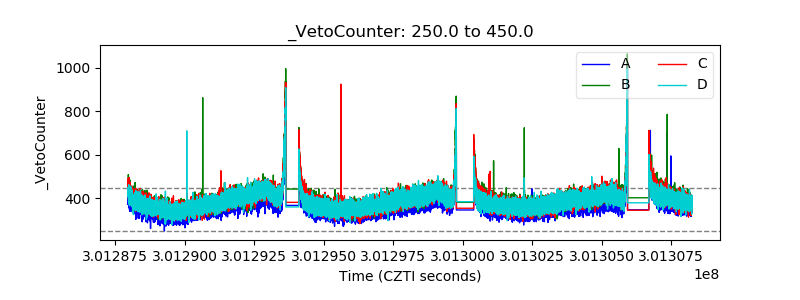

| Veto Counter |  |
