| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_003T04_9000003046_20597cztM0_level2.evt | modeM0/AS1A06_003T04_9000003046_20597cztM0_level2_quad_clean.evt |
| Size (bytes) | 494,334,720 | 67,752,000 |
| Size | 471.4 MB | 64.6 MB |
| Events in quadrant A | 3,194,810 | 418,671 |
| Events in quadrant B | 3,792,165 | 424,092 |
| Events in quadrant C | 3,359,867 | 408,378 |
| Events in quadrant D | 4,234,783 | 398,671 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13364 | 1 |
| B | 0 | 14860 | 1 |
| C | 0 | 13718 | 1 |
| D | 0 | 16451 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 118 | 0 |
| B | 0 | 118 | 0 |
| C | 0 | 118 | 0 |
| D | 0 | 118 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5739 | 85 | 1.481094% |
| B | 5739 | 208 | 3.624325% |
| C | 5739 | 142 | 2.474299% |
| D | 5740 | 244 | 4.250871% |

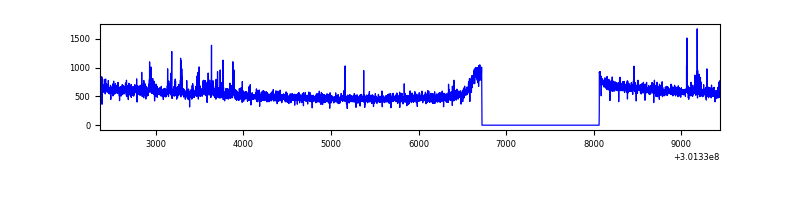

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7079 | 5740 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7079 | 5740 | 52 | 52 | 0.73% | 0.91% |  |
| C | 7079 | 5740 | 7 | 7 | 0.10% | 0.12% |  |
| D | 7080 | 5741 | 140 | 140 | 1.98% | 2.44% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 16 | 82488 | 513.18 | 802 | 788 | 159.2 |
| A | 12 | 194 | 19396 | 116.88 | 802 | 788 | 159.2 |
| A | 5 | 16 | 11849 | 69.48 | 802 | 788 | 159.2 |
| B | 7 | 220 | 462060 | 3132.91 | 792 | 774 | 147.2 |
| B | 0 | 197 | 84512 | 568.72 | 792 | 774 | 147.2 |
| B | 0 | 190 | 55649 | 372.69 | 792 | 774 | 147.2 |
| C | 8 | 208 | 176984 | 1001.65 | 771 | 780 | 175.9 |
| C | 14 | 238 | 122769 | 693.46 | 771 | 780 | 175.9 |
| C | 0 | 207 | 45295 | 253.05 | 771 | 780 | 175.9 |
| D | 5 | 222 | 682529 | 3664.38 | 781 | 761 | 186.1 |
| D | 7 | 38 | 305617 | 1638.54 | 781 | 761 | 186.1 |
| D | 1 | 20 | 172649 | 923.87 | 781 | 761 | 186.1 |

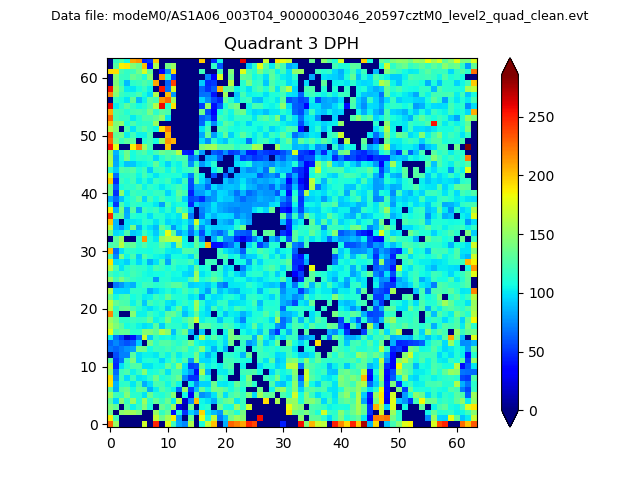

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

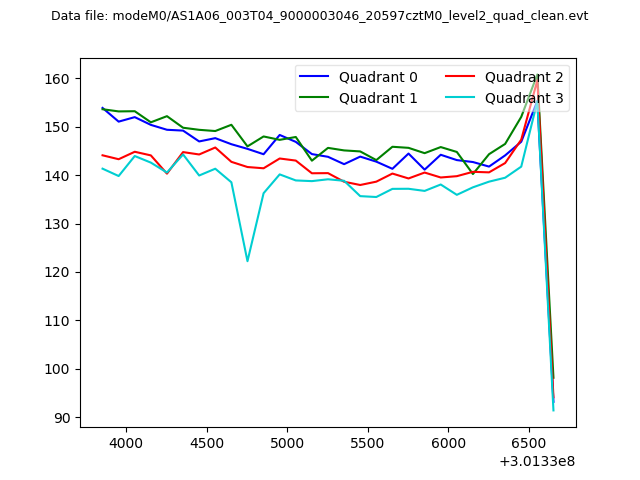

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

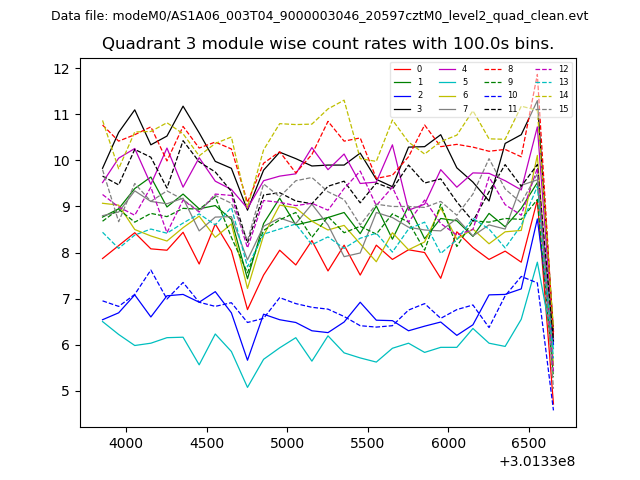

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

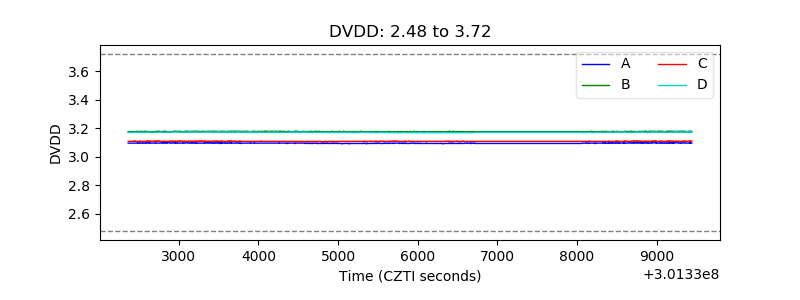

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

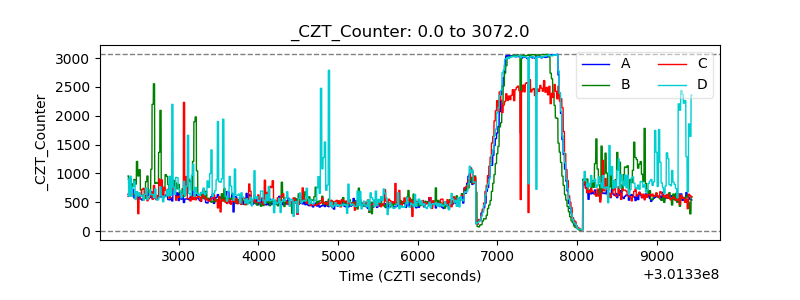

| CZT Counter |  |

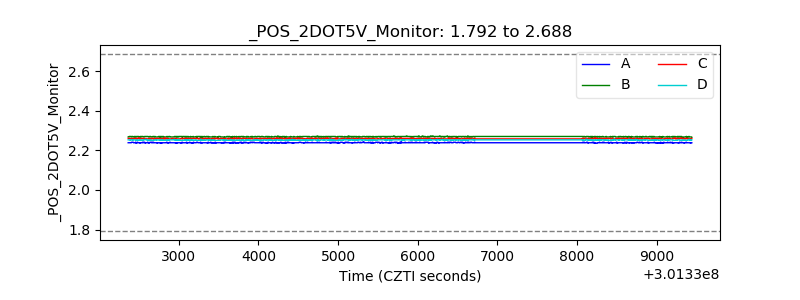

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

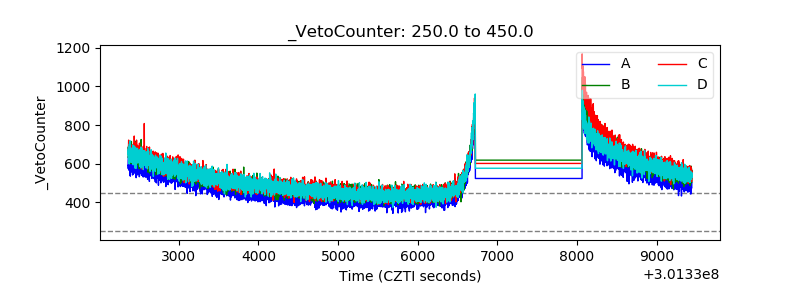

| Veto Counter |  |
