| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_003T04_9000003046_20601cztM0_level2.evt | modeM0/AS1A06_003T04_9000003046_20601cztM0_level2_quad_clean.evt |
| Size (bytes) | 575,098,560 | 101,712,960 |
| Size | 548.5 MB | 97.0 MB |
| Events in quadrant A | 3,516,291 | 653,850 |
| Events in quadrant B | 3,881,417 | 661,581 |
| Events in quadrant C | 3,682,322 | 640,091 |
| Events in quadrant D | 5,842,874 | 617,307 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15316 | 2 |
| B | 0 | 16426 | 2 |
| C | 0 | 15676 | 2 |
| D | 0 | 22404 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 150 | 0 |
| C | 0 | 150 | 0 |
| D | 0 | 150 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7283 | 55 | 0.755183% |
| B | 7283 | 136 | 1.867362% |
| C | 7283 | 137 | 1.881093% |
| D | 7283 | 266 | 3.652341% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7728 | 7284 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7728 | 7284 | 14 | 14 | 0.18% | 0.19% |  |
| C | 7728 | 7284 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7728 | 7284 | 119 | 119 | 1.54% | 1.63% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 41864 | 223.99 | 899 | 880 | 183.0 |
| A | 12 | 16 | 16349 | 84.54 | 899 | 880 | 183.0 |
| A | 12 | 194 | 9814 | 48.83 | 899 | 880 | 183.0 |
| B | 7 | 220 | 70880 | 410.33 | 900 | 877 | 170.6 |
| B | 0 | 189 | 65396 | 378.18 | 900 | 877 | 170.6 |
| B | 0 | 190 | 54087 | 311.89 | 900 | 877 | 170.6 |
| C | 8 | 208 | 141731 | 690.01 | 866 | 871 | 204.1 |
| C | 14 | 238 | 136007 | 661.97 | 866 | 871 | 204.1 |
| C | 5 | 4 | 14805 | 68.26 | 866 | 871 | 204.1 |
| D | 1 | 20 | 1661622 | 7836.42 | 868 | 842 | 211.9 |
| D | 5 | 222 | 365841 | 1722.25 | 868 | 842 | 211.9 |
| D | 2 | 165 | 135430 | 635.06 | 868 | 842 | 211.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

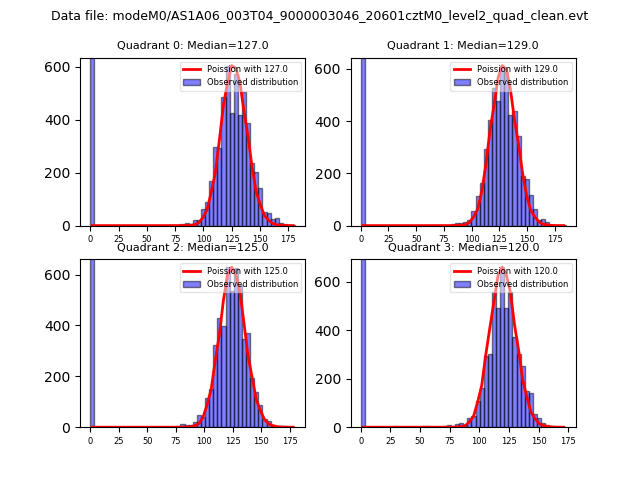

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

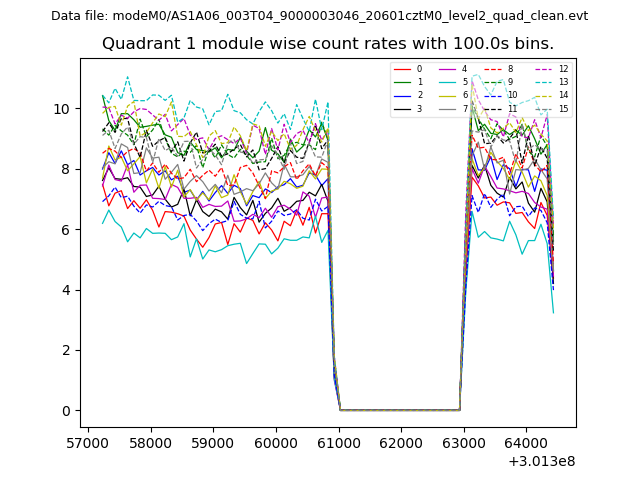

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

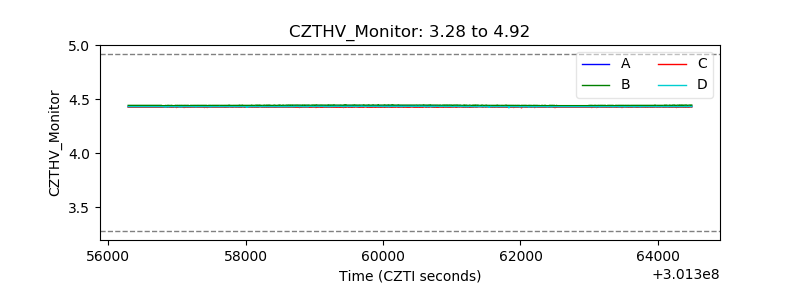

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

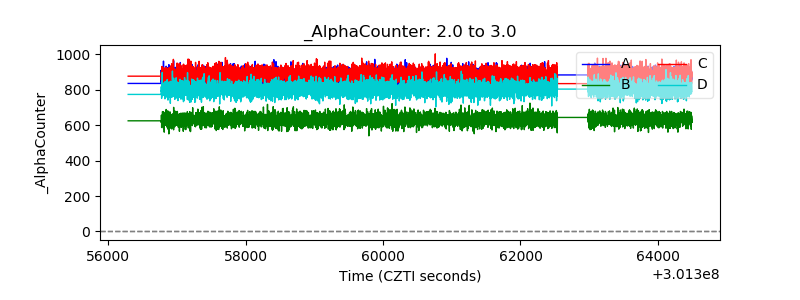

| Alpha Counter |  |

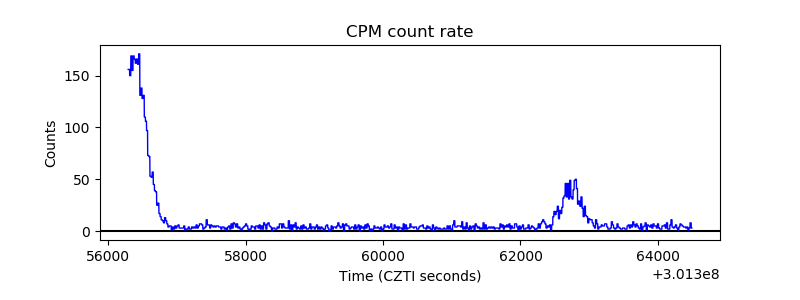

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

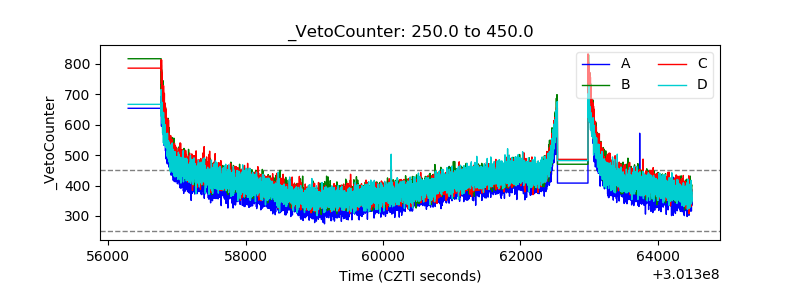

| Veto Counter |  |
