| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_003T04_9000003046_20609cztM0_level2.evt | modeM0/AS1A06_003T04_9000003046_20609cztM0_level2_quad_clean.evt |
| Size (bytes) | 507,035,520 | 83,845,440 |
| Size | 483.5 MB | 80.0 MB |
| Events in quadrant A | 3,318,640 | 531,538 |
| Events in quadrant B | 3,755,597 | 537,039 |
| Events in quadrant C | 3,606,933 | 511,141 |
| Events in quadrant D | 4,231,304 | 503,633 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13869 | 2 |
| B | 0 | 15164 | 2 |
| C | 0 | 14480 | 2 |
| D | 0 | 16711 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6530 | 73 | 1.117917% |
| B | 6530 | 103 | 1.577335% |
| C | 6530 | 84 | 1.286371% |
| D | 6530 | 179 | 2.741194% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7670 | 6531 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7670 | 6531 | 20 | 20 | 0.26% | 0.31% |  |
| C | 7670 | 6531 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7670 | 6531 | 110 | 110 | 1.43% | 1.68% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 210 | 25646 | 145.86 | 850 | 834 | 170.1 |
| A | 15 | 174 | 20001 | 112.67 | 850 | 834 | 170.1 |
| A | 0 | 226 | 7454 | 38.92 | 850 | 834 | 170.1 |
| B | 7 | 220 | 291142 | 1825.58 | 839 | 819 | 159.0 |
| B | 0 | 190 | 54295 | 336.26 | 839 | 819 | 159.0 |
| B | 0 | 189 | 50210 | 310.58 | 839 | 819 | 159.0 |
| C | 3 | 233 | 203227 | 1086.79 | 801 | 807 | 186.3 |
| C | 8 | 208 | 152094 | 812.26 | 801 | 807 | 186.3 |
| C | 14 | 238 | 127255 | 678.9 | 801 | 807 | 186.3 |
| D | 1 | 52 | 503238 | 2547.12 | 819 | 794 | 197.3 |
| D | 13 | 153 | 209448 | 1057.76 | 819 | 794 | 197.3 |
| D | 5 | 222 | 197548 | 997.44 | 819 | 794 | 197.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

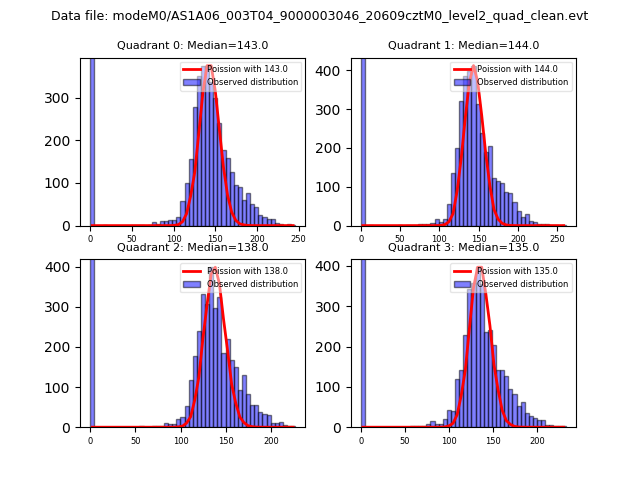

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

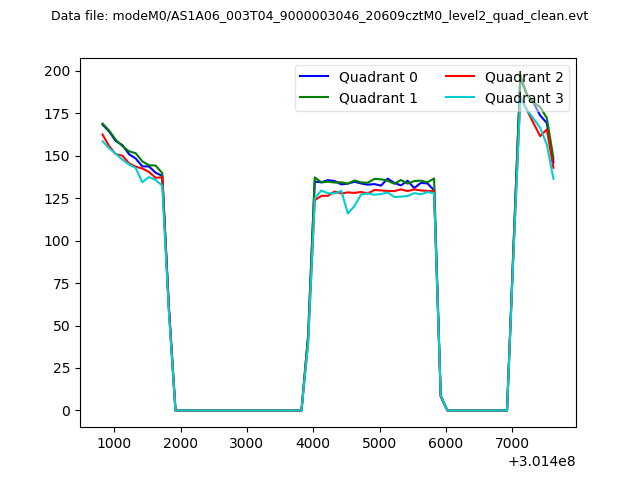

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

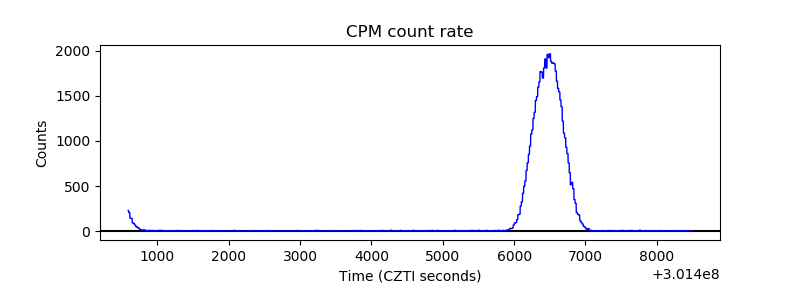

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
