| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_003T04_9000003046_20610cztM0_level2.evt | modeM0/AS1A06_003T04_9000003046_20610cztM0_level2_quad_clean.evt |
| Size (bytes) | 527,428,800 | 74,188,800 |
| Size | 503.0 MB | 70.8 MB |
| Events in quadrant A | 3,531,422 | 458,015 |
| Events in quadrant B | 3,928,159 | 464,878 |
| Events in quadrant C | 3,768,621 | 440,375 |
| Events in quadrant D | 4,305,799 | 431,273 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14605 | 1 |
| B | 0 | 15889 | 1 |
| C | 0 | 15281 | 1 |
| D | 0 | 16933 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6476 | 92 | 1.420630% |
| B | 6476 | 124 | 1.914762% |
| C | 6477 | 108 | 1.667439% |
| D | 6477 | 170 | 2.624672% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

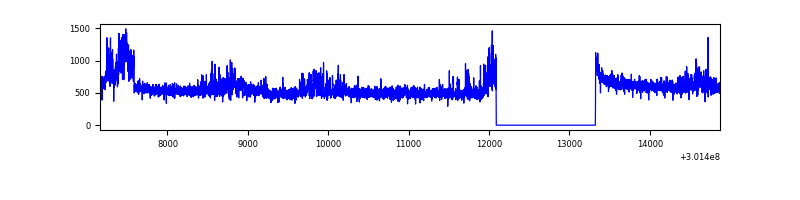

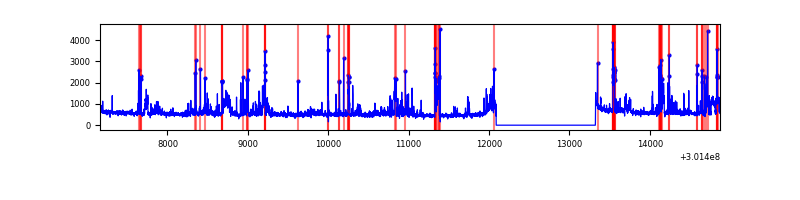

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7711 | 6477 | 3 | 3 | 0.04% | 0.05% |  |
| B | 7711 | 6477 | 28 | 28 | 0.36% | 0.43% |  |
| C | 7712 | 6478 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7712 | 6478 | 90 | 90 | 1.17% | 1.39% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 16 | 62696 | 350.04 | 891 | 876 | 176.6 |
| A | 13 | 210 | 19070 | 103.02 | 891 | 876 | 176.6 |
| A | 12 | 16 | 9740 | 50.19 | 891 | 876 | 176.6 |
| B | 7 | 220 | 342252 | 2102.63 | 875 | 857 | 162.4 |
| B | 0 | 190 | 43750 | 264.17 | 875 | 857 | 162.4 |
| B | 0 | 189 | 37057 | 222.95 | 875 | 857 | 162.4 |
| C | 8 | 208 | 200548 | 1026.77 | 841 | 849 | 194.5 |
| C | 3 | 233 | 153951 | 787.19 | 841 | 849 | 194.5 |
| C | 14 | 238 | 134437 | 686.85 | 841 | 849 | 194.5 |
| D | 1 | 52 | 404935 | 1947.77 | 859 | 834 | 207.5 |
| D | 5 | 222 | 267004 | 1282.94 | 859 | 834 | 207.5 |
| D | 2 | 165 | 181276 | 869.73 | 859 | 834 | 207.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

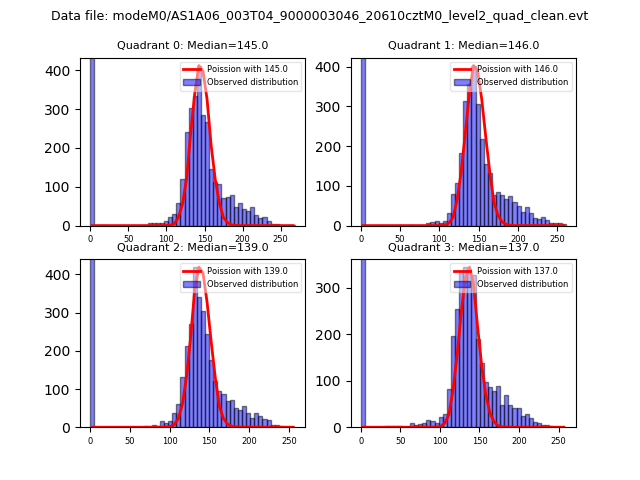

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

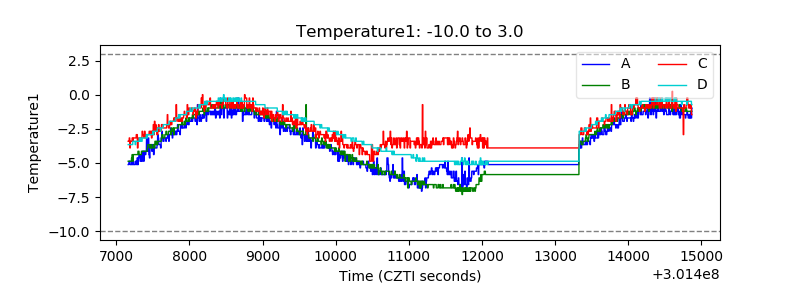

| Temperature 1 |  |

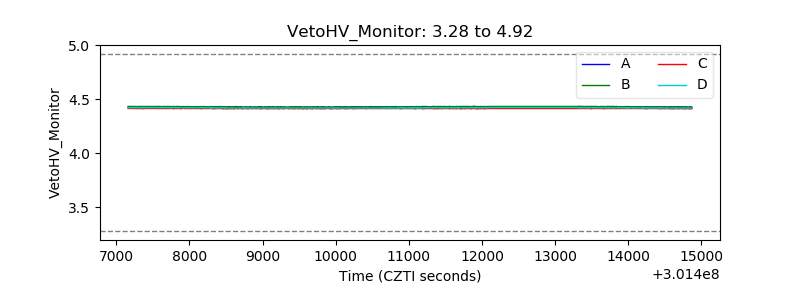

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

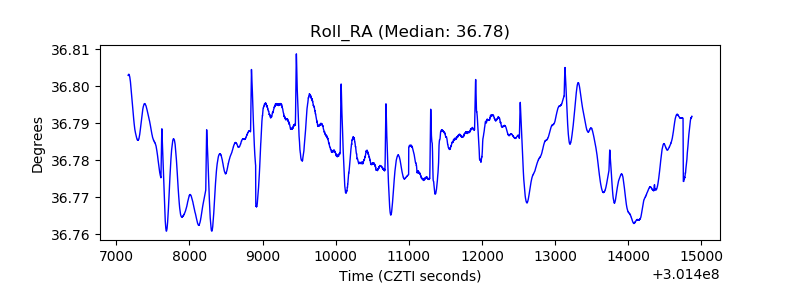

| _Roll_RA |  |
| Veto Counter |  |
