| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_005T02_9000003048_20615cztM0_level2.evt | modeM0/AS1A06_005T02_9000003048_20615cztM0_level2_quad_clean.evt |
| Size (bytes) | 401,181,120 | 60,235,200 |
| Size | 382.6 MB | 57.4 MB |
| Events in quadrant A | 1,911,211 | 412,130 |
| Events in quadrant B | 2,084,782 | 411,472 |
| Events in quadrant C | 1,995,316 | 397,772 |
| Events in quadrant D | 5,904,405 | 337,914 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7908 | 1 |
| B | 0 | 8513 | 1 |
| C | 0 | 8102 | 1 |
| D | 0 | 20144 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 78 | 0 |
| B | 0 | 78 | 0 |
| C | 0 | 78 | 0 |
| D | 0 | 78 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3733 | 17 | 0.455398% |
| B | 3733 | 54 | 1.446558% |
| C | 3733 | 43 | 1.151889% |
| D | 3733 | 1112 | 29.788374% |

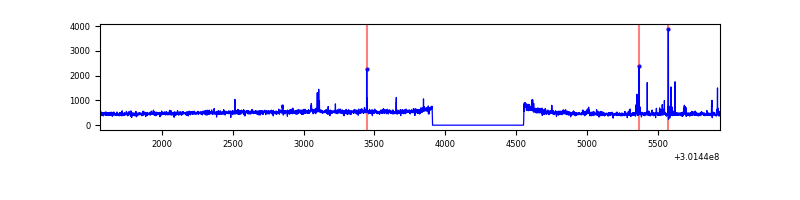

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4378 | 3734 | 3 | 3 | 0.07% | 0.08% |  |
| B | 4378 | 3734 | 14 | 14 | 0.32% | 0.37% |  |
| C | 4378 | 3734 | 0 | 0 | 0.00% | 0.00% |  |
| D | 4378 | 3734 | 1064 | 1064 | 24.30% | 28.49% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 16 | 37674 | 380.19 | 476 | 465 | 97.9 |
| A | 15 | 174 | 25138 | 252.1 | 476 | 465 | 97.9 |
| A | 8 | 205 | 10792 | 105.52 | 476 | 465 | 97.9 |
| B | 7 | 220 | 165144 | 1795.06 | 471 | 459 | 91.7 |
| B | 0 | 190 | 16765 | 177.73 | 471 | 459 | 91.7 |
| B | 0 | 219 | 13925 | 146.78 | 471 | 459 | 91.7 |
| C | 3 | 9 | 89751 | 833.6 | 452 | 455 | 107.1 |
| C | 14 | 238 | 70701 | 655.76 | 452 | 455 | 107.1 |
| C | 8 | 208 | 27253 | 250.17 | 452 | 455 | 107.1 |
| D | 1 | 52 | 3485186 | 33709.55 | 421 | 407 | 103.4 |
| D | 5 | 222 | 680914 | 6582.8 | 421 | 407 | 103.4 |
| D | 2 | 165 | 88106 | 848.34 | 421 | 407 | 103.4 |

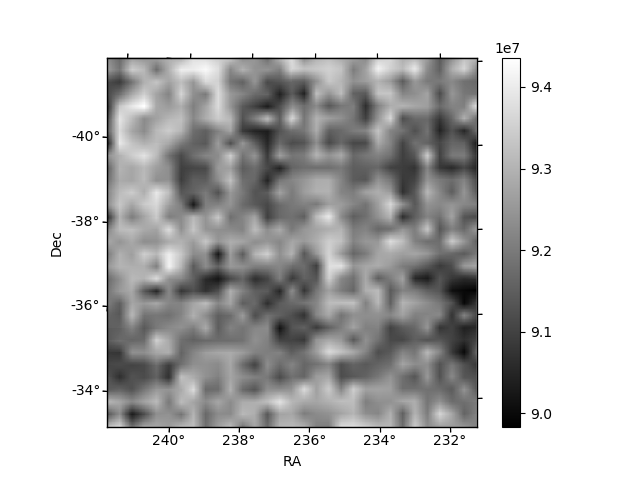

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

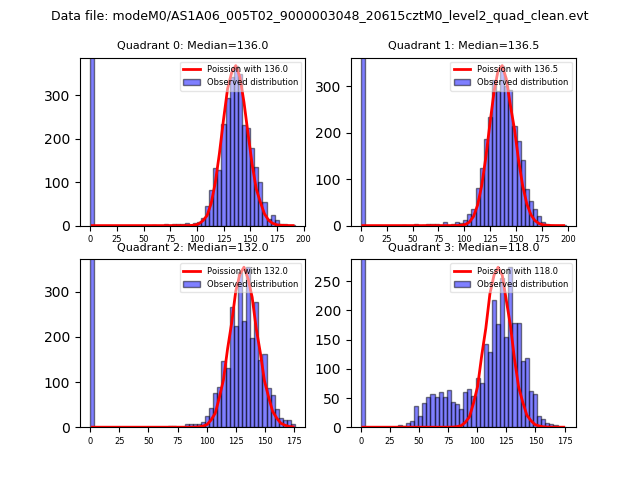

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

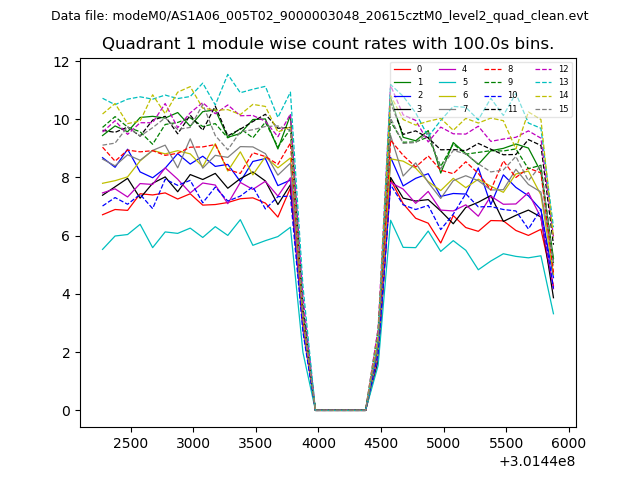

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

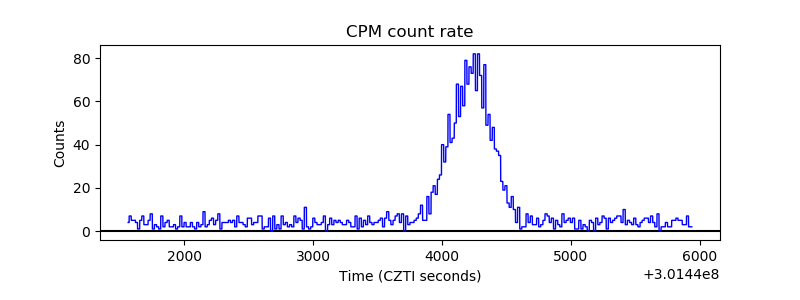

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

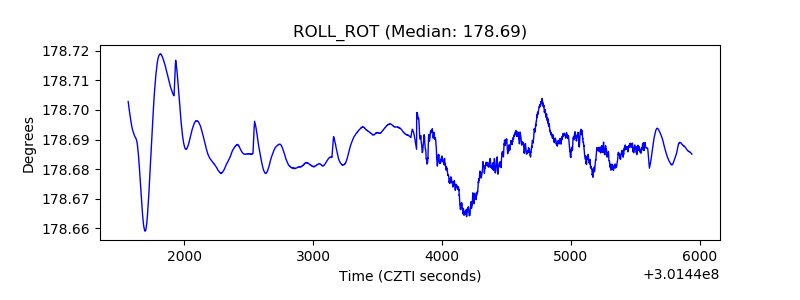

| _ROLL_ROT |  |

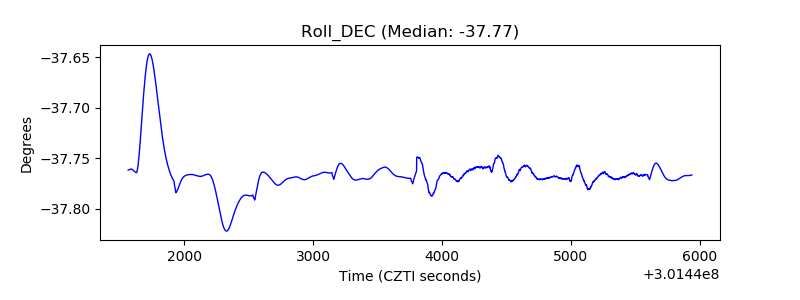

| _Roll_DEC |  |
| _Roll_RA |  |

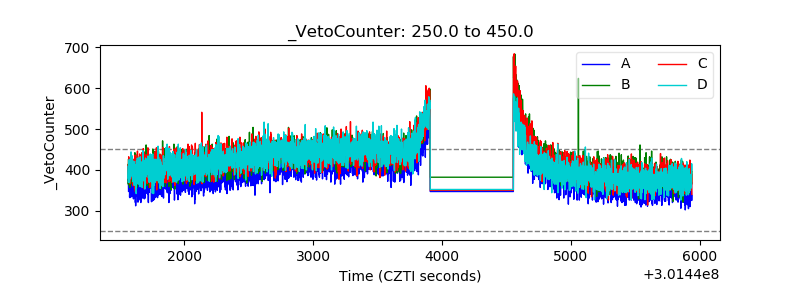

| Veto Counter |  |
