| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_005T02_9000003048_20623cztM0_level2.evt | modeM0/AS1A06_005T02_9000003048_20623cztM0_level2_quad_clean.evt |
| Size (bytes) | 507,997,440 | 96,989,760 |
| Size | 484.5 MB | 92.5 MB |
| Events in quadrant A | 3,403,633 | 641,355 |
| Events in quadrant B | 3,493,381 | 639,213 |
| Events in quadrant C | 3,431,451 | 613,798 |
| Events in quadrant D | 4,613,799 | 587,981 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14199 | 2 |
| B | 0 | 14453 | 2 |
| C | 0 | 14360 | 3 |
| D | 0 | 18064 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6517 | 74 | 1.135492% |
| B | 6517 | 89 | 1.365659% |
| C | 6516 | 118 | 1.810927% |
| D | 6516 | 333 | 5.110497% |

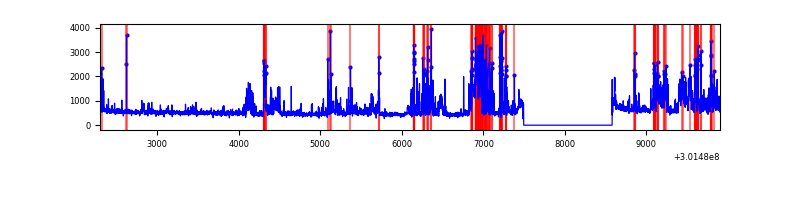

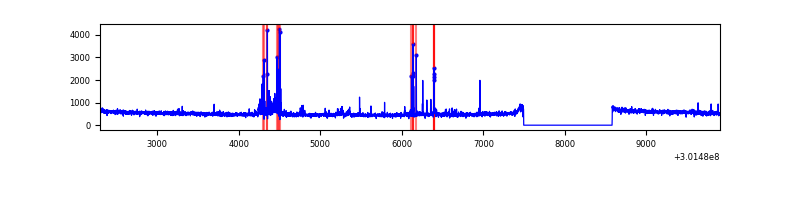

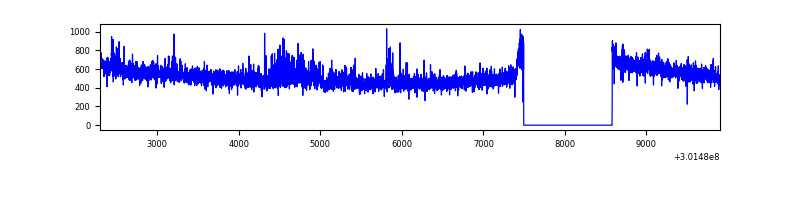

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7602 | 6518 | 9 | 9 | 0.12% | 0.14% |  |
| B | 7602 | 6517 | 17 | 17 | 0.22% | 0.26% |  |
| C | 7601 | 6517 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7601 | 6517 | 194 | 194 | 2.55% | 2.98% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 16 | 77590 | 451.31 | 846 | 828 | 170.1 |
| A | 12 | 16 | 55166 | 319.48 | 846 | 828 | 170.1 |
| A | 12 | 194 | 15690 | 87.38 | 846 | 828 | 170.1 |
| B | 7 | 220 | 97537 | 613.08 | 835 | 816 | 157.8 |
| B | 3 | 64 | 25714 | 157.82 | 835 | 816 | 157.8 |
| B | 12 | 111 | 18274 | 110.66 | 835 | 816 | 157.8 |
| C | 8 | 208 | 154803 | 830.43 | 802 | 807 | 185.4 |
| C | 14 | 238 | 128061 | 686.23 | 802 | 807 | 185.4 |
| C | 3 | 233 | 14197 | 72.21 | 802 | 807 | 185.4 |
| D | 1 | 52 | 461711 | 2374.53 | 807 | 784 | 194.1 |
| D | 5 | 222 | 360065 | 1850.88 | 807 | 784 | 194.1 |
| D | 2 | 165 | 358656 | 1843.62 | 807 | 784 | 194.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

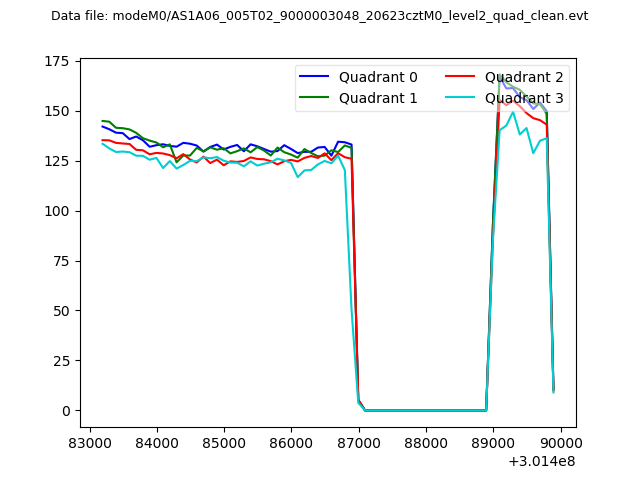

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

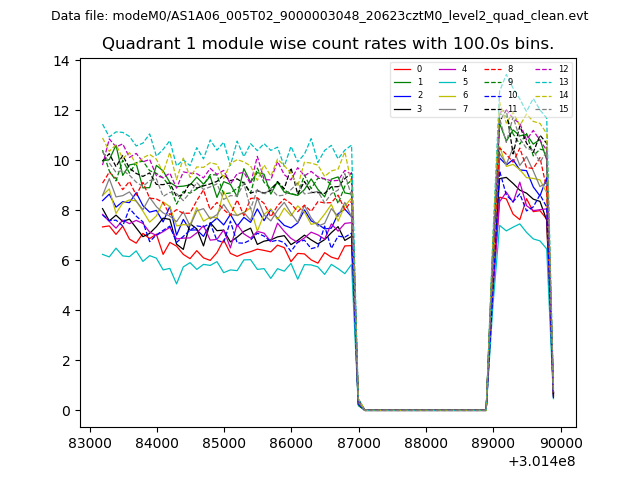

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

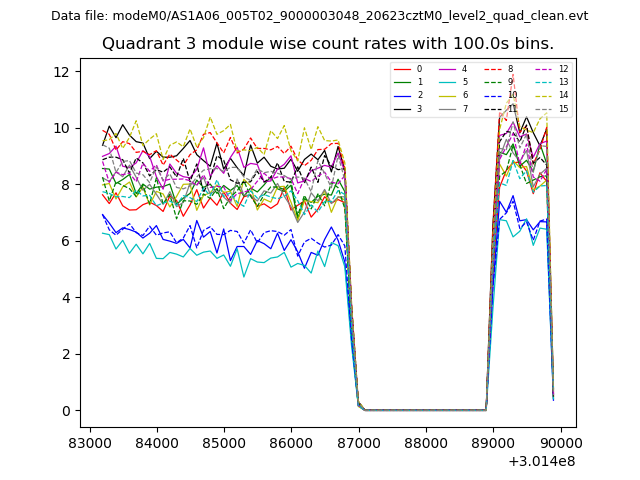

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

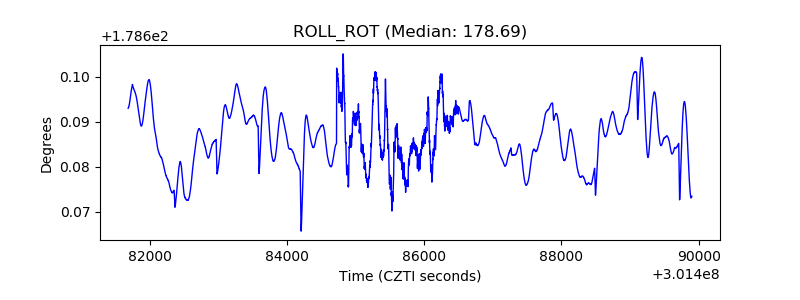

| _ROLL_ROT |  |
| _Roll_DEC |  |

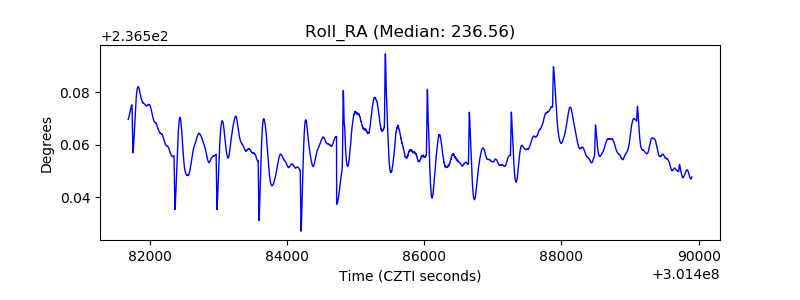

| _Roll_RA |  |
| Veto Counter |  |
