| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_005T02_9000003048_20626cztM0_level2.evt | modeM0/AS1A06_005T02_9000003048_20626cztM0_level2_quad_clean.evt |
| Size (bytes) | 497,574,720 | 105,618,240 |
| Size | 474.5 MB | 100.7 MB |
| Events in quadrant A | 3,145,008 | 729,856 |
| Events in quadrant B | 3,406,917 | 718,651 |
| Events in quadrant C | 3,395,884 | 674,882 |
| Events in quadrant D | 4,708,344 | 650,205 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13135 | 1 |
| B | 0 | 13959 | 1 |
| C | 0 | 14089 | 1 |
| D | 0 | 18039 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6086 | 55 | 0.903713% |
| B | 6087 | 98 | 1.609989% |
| C | 6087 | 101 | 1.659274% |
| D | 6087 | 393 | 6.456382% |

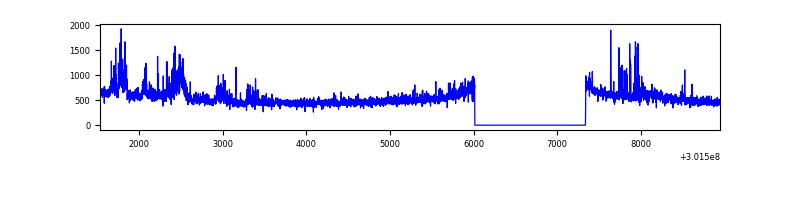

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

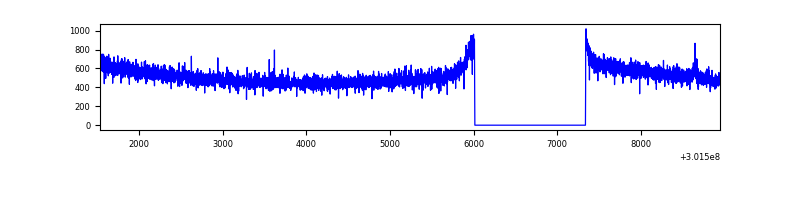

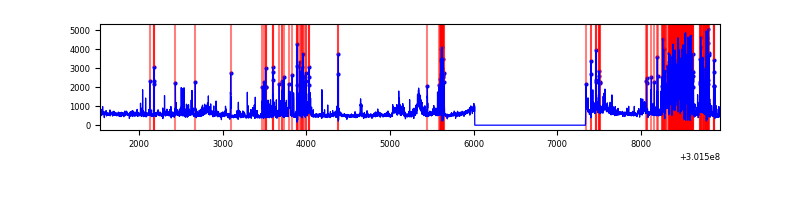

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7411 | 6087 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7412 | 6088 | 19 | 19 | 0.26% | 0.31% |  |
| C | 7412 | 6088 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7412 | 6088 | 262 | 262 | 3.53% | 4.30% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 16 | 8814 | 49.21 | 816 | 803 | 162.8 |
| A | 12 | 194 | 7853 | 43.3 | 816 | 803 | 162.8 |
| A | 0 | 226 | 7155 | 39.02 | 816 | 803 | 162.8 |
| B | 7 | 220 | 121903 | 809.62 | 796 | 780 | 149.6 |
| B | 0 | 197 | 44298 | 290.89 | 796 | 780 | 149.6 |
| B | 0 | 190 | 34933 | 228.29 | 796 | 780 | 149.6 |
| C | 3 | 233 | 196057 | 1133.23 | 753 | 759 | 172.3 |
| C | 8 | 208 | 124812 | 719.83 | 753 | 759 | 172.3 |
| C | 14 | 238 | 120593 | 695.34 | 753 | 759 | 172.3 |
| D | 1 | 52 | 681961 | 3715.34 | 762 | 742 | 183.4 |
| D | 5 | 222 | 500108 | 2723.52 | 762 | 742 | 183.4 |
| D | 13 | 153 | 237844 | 1293.14 | 762 | 742 | 183.4 |

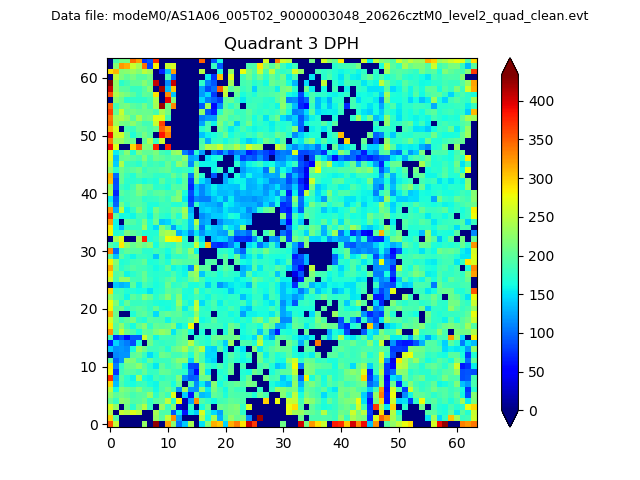

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

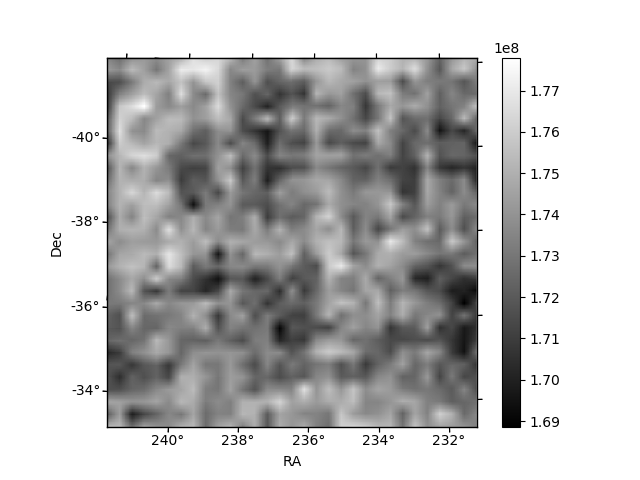

| Plot type | Count rate plots | Images |
|---|---|---|

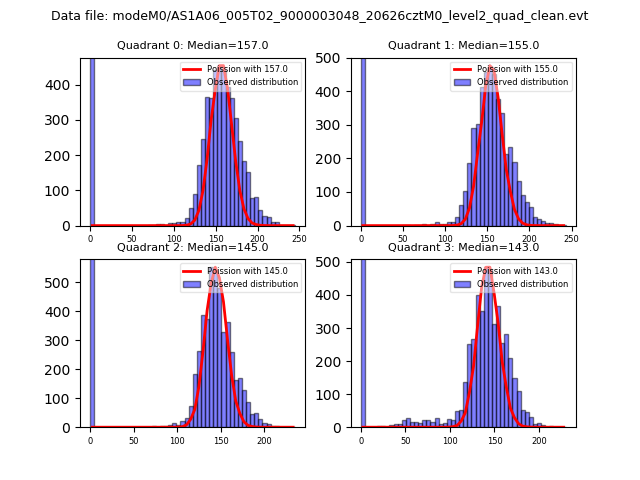

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

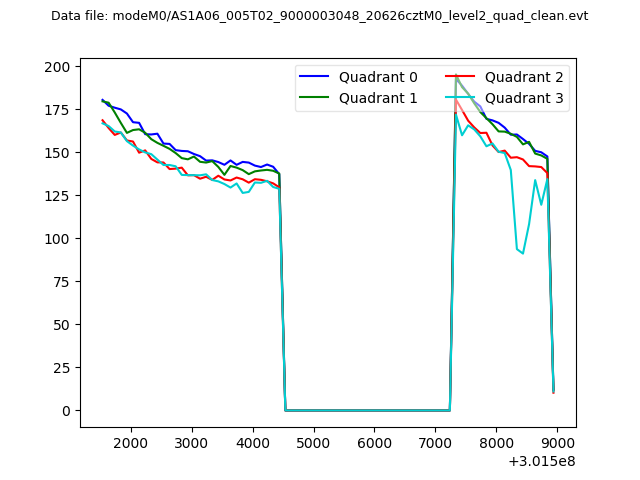

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

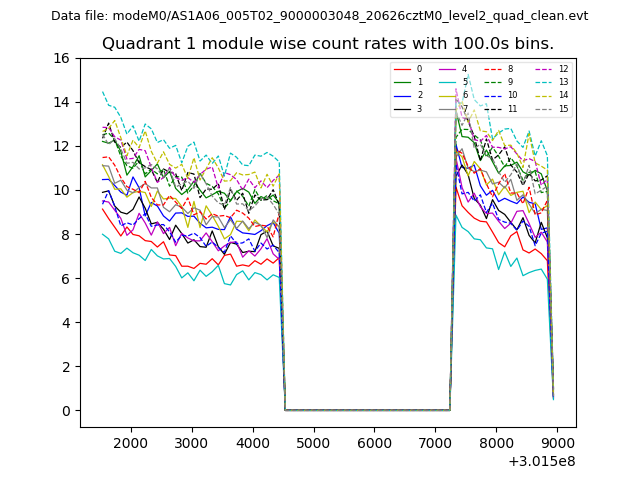

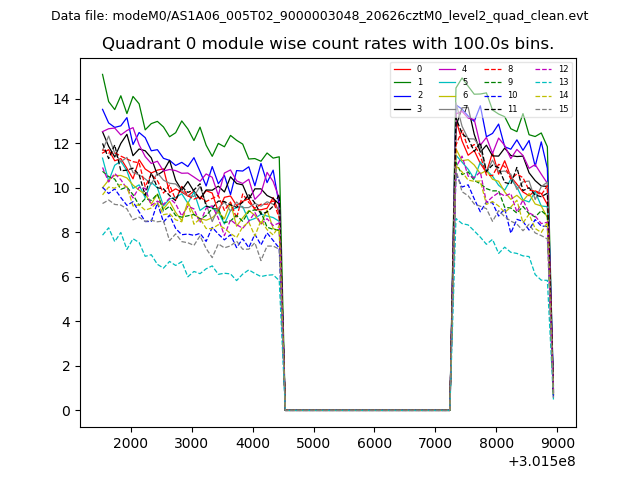

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

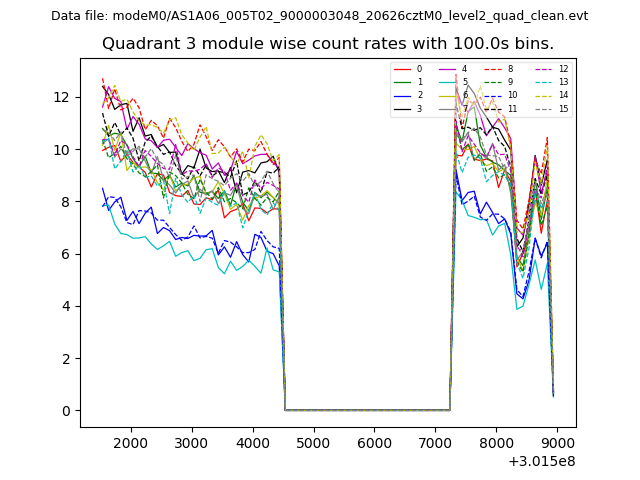

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

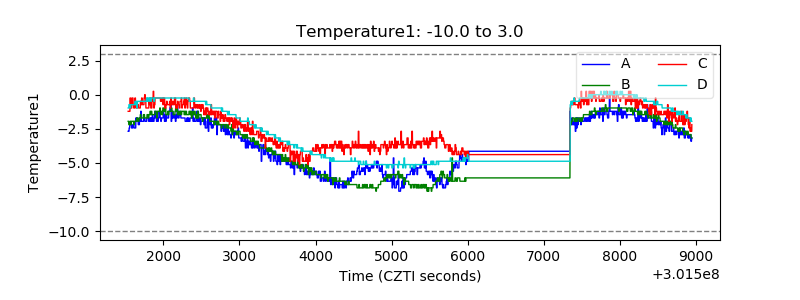

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

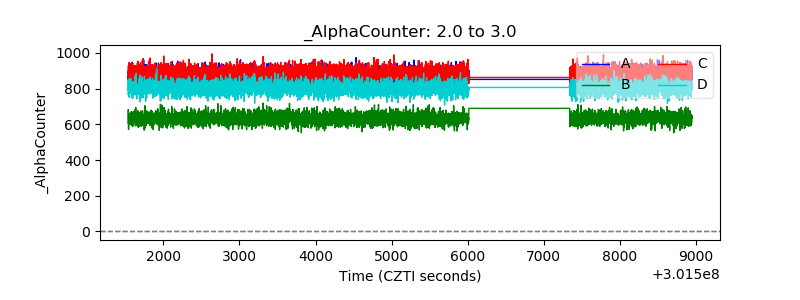

| Alpha Counter |  |

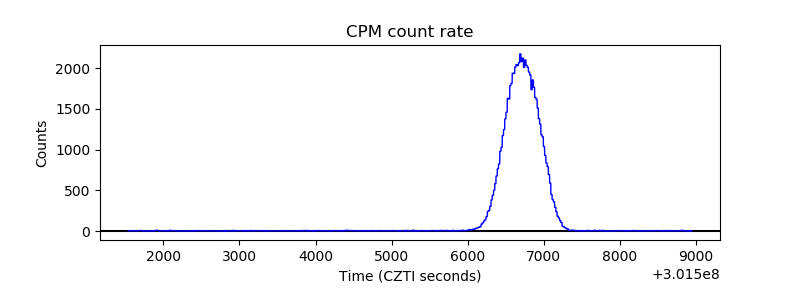

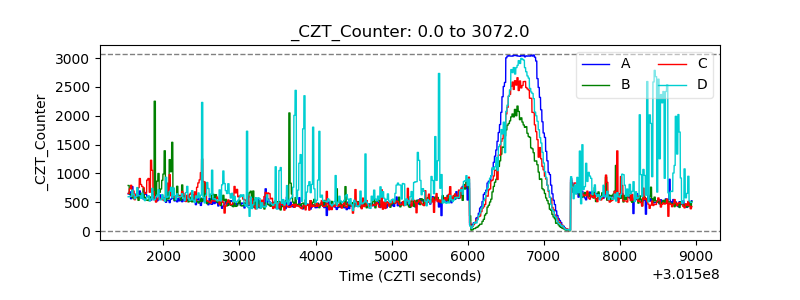

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

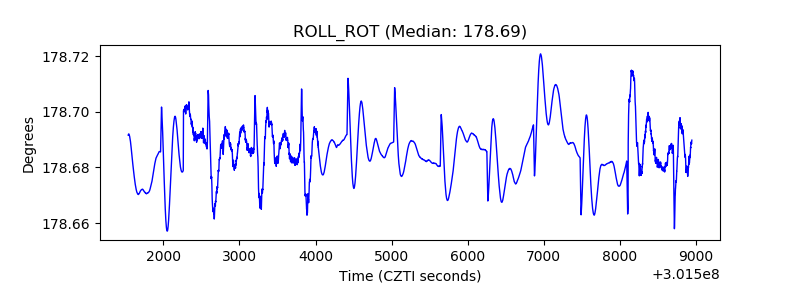

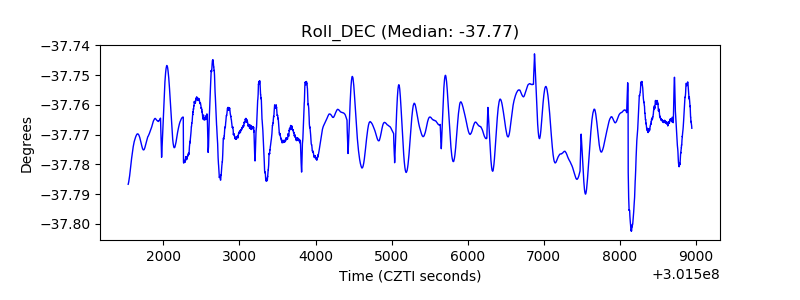

| _ROLL_ROT |  |
| _Roll_DEC |  |

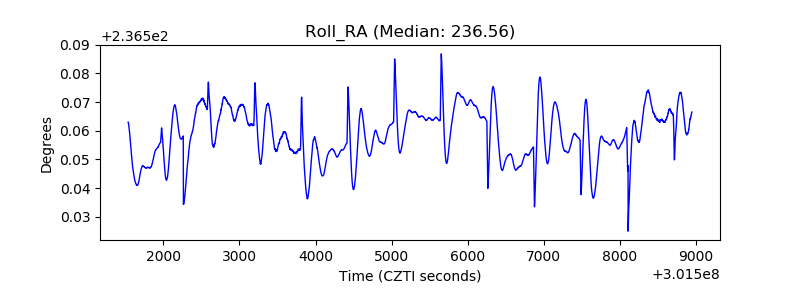

| _Roll_RA |  |

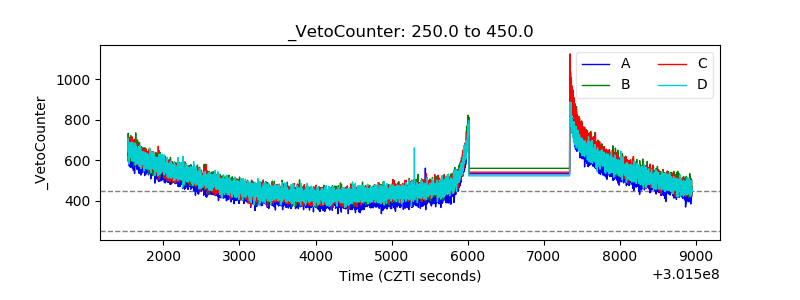

| Veto Counter |  |
