| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_007T06_9000003050_20639cztM0_level2.evt | modeM0/AS1A05_007T06_9000003050_20639cztM0_level2_quad_clean.evt |
| Size (bytes) | 521,749,440 | 116,700,480 |
| Size | 497.6 MB | 111.3 MB |
| Events in quadrant A | 3,084,523 | 820,939 |
| Events in quadrant B | 3,410,055 | 805,004 |
| Events in quadrant C | 3,149,544 | 773,644 |
| Events in quadrant D | 5,755,250 | 720,455 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 118 | 0 |
| B | 0 | 118 | 0 |
| C | 0 | 118 | 0 |
| D | 0 | 118 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12986 | 6 |
| B | 0 | 14008 | 6 |
| C | 0 | 13002 | 6 |
| D | 0 | 21158 | 10 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5937 | 74 | 1.246421% |
| B | 5938 | 105 | 1.768272% |
| C | 5937 | 79 | 1.330638% |
| D | 5936 | 720 | 12.129380% |

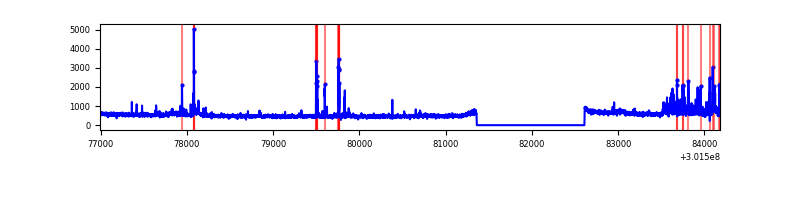

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

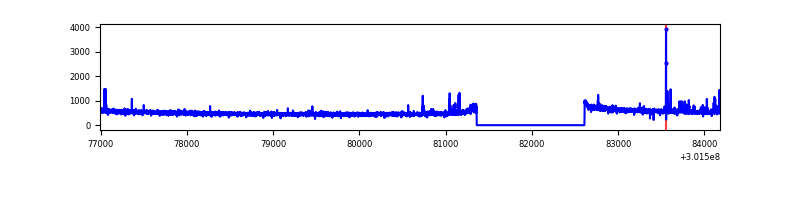

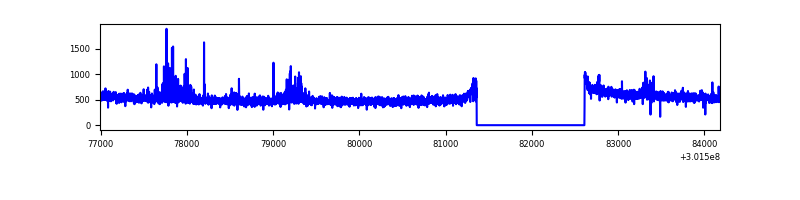

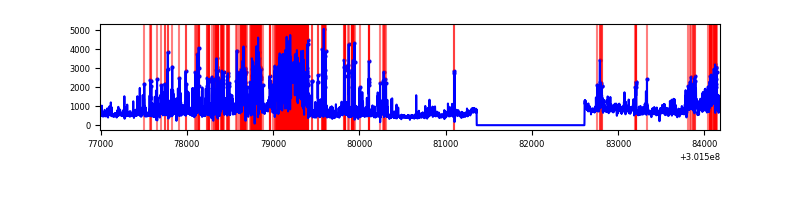

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7189 | 5940 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7189 | 5940 | 26 | 26 | 0.36% | 0.44% |  |
| C | 7189 | 5940 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7188 | 5939 | 544 | 544 | 7.57% | 9.16% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 16 | 70148 | 445.53 | 784 | 771 | 155.7 |
| A | 0 | 226 | 7018 | 40.12 | 784 | 771 | 155.7 |
| A | 12 | 194 | 5769 | 32.1 | 784 | 771 | 155.7 |
| B | 7 | 220 | 174059 | 1221.38 | 764 | 746 | 141.9 |
| B | 0 | 219 | 51155 | 355.25 | 764 | 746 | 141.9 |
| B | 0 | 197 | 41410 | 286.57 | 764 | 746 | 141.9 |
| C | 14 | 238 | 116492 | 671.31 | 745 | 754 | 172.4 |
| C | 8 | 208 | 114562 | 660.12 | 745 | 754 | 172.4 |
| C | 7 | 247 | 7285 | 37.88 | 745 | 754 | 172.4 |
| D | 1 | 52 | 1360649 | 7746.69 | 732 | 713 | 175.6 |
| D | 1 | 20 | 920108 | 5237.21 | 732 | 713 | 175.6 |
| D | 12 | 227 | 414846 | 2359.05 | 732 | 713 | 175.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

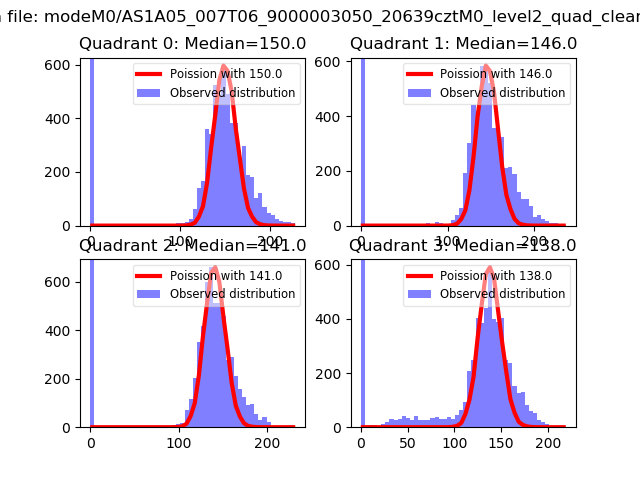

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

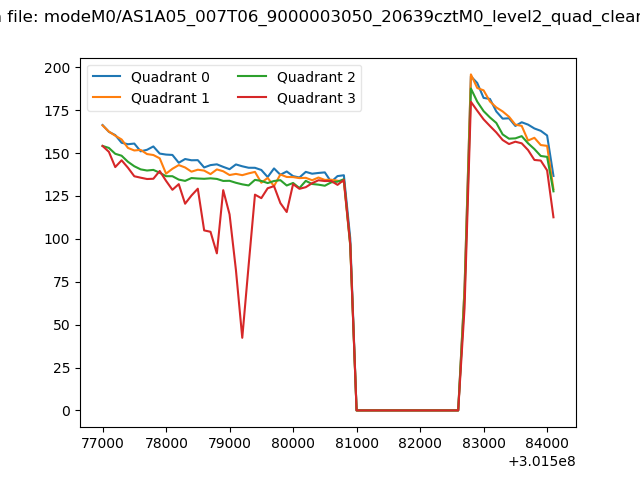

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

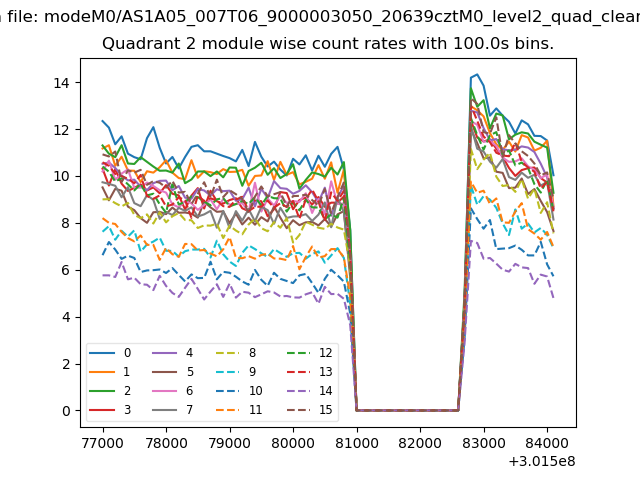

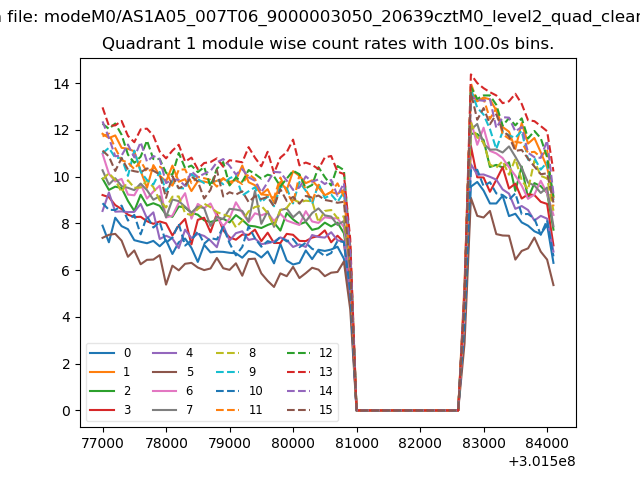

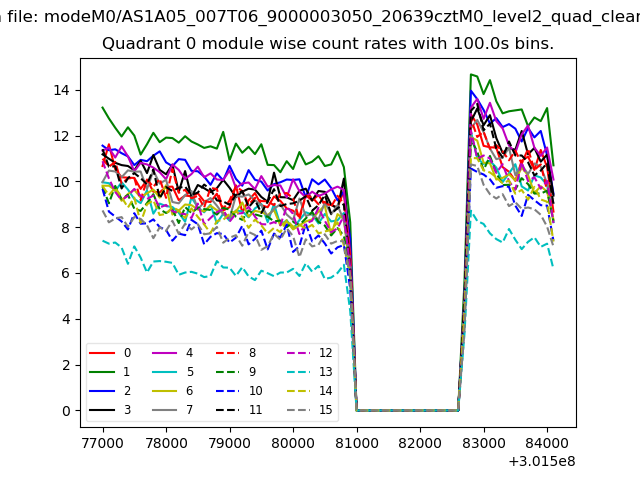

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

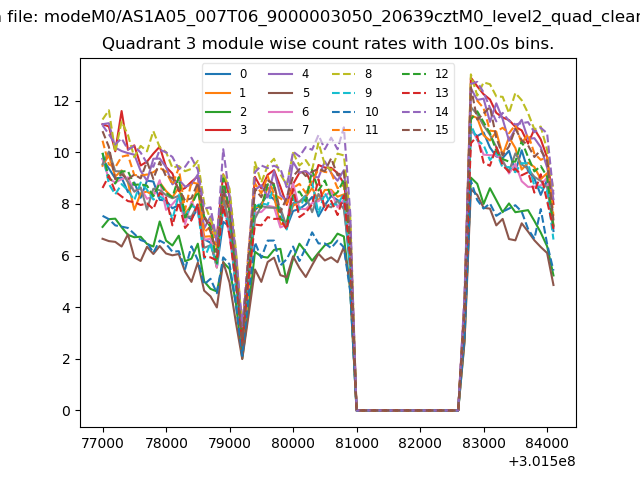

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

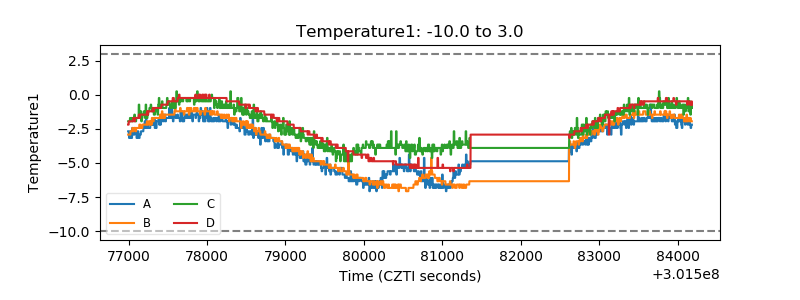

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

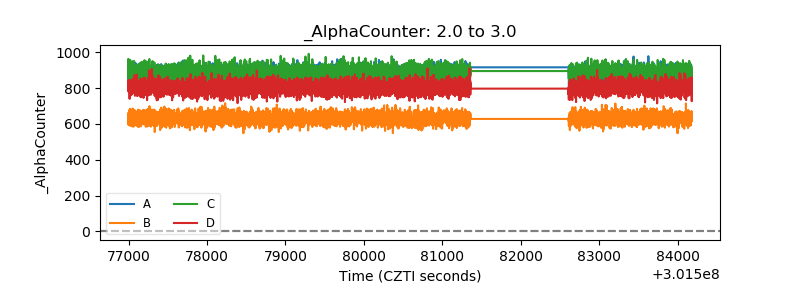

| Alpha Counter |  |

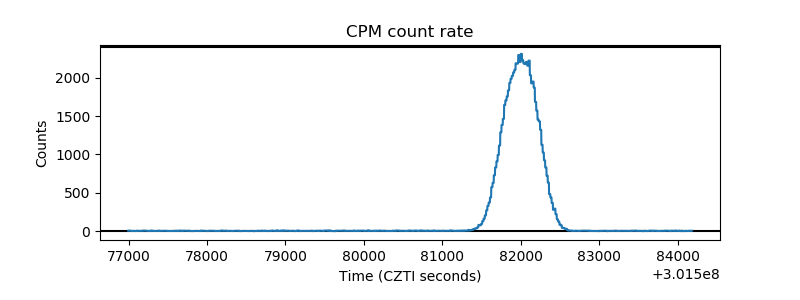

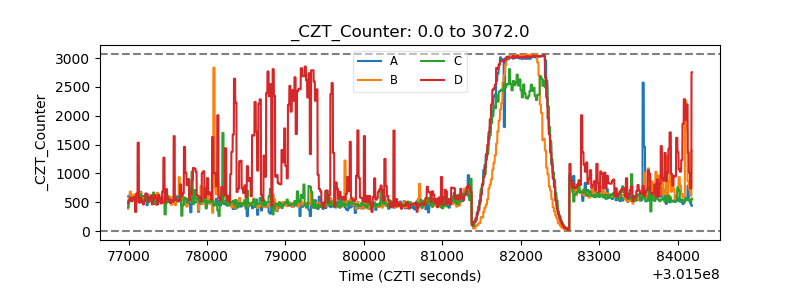

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

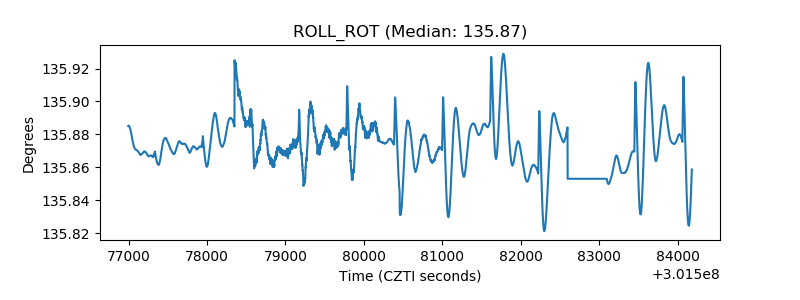

| _ROLL_ROT |  |

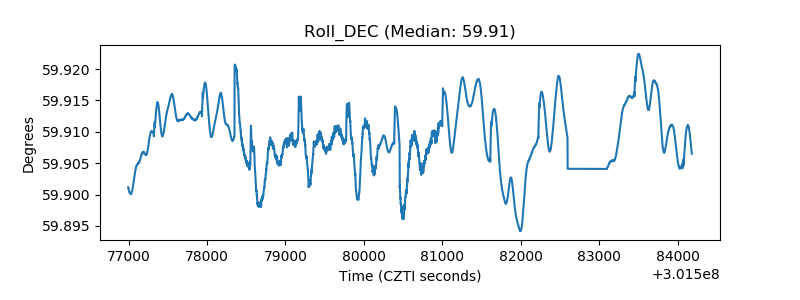

| _Roll_DEC |  |

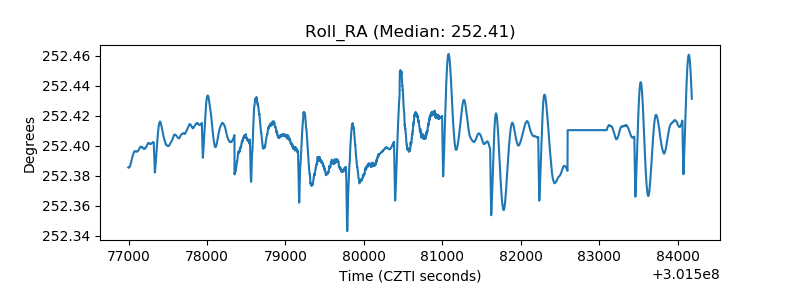

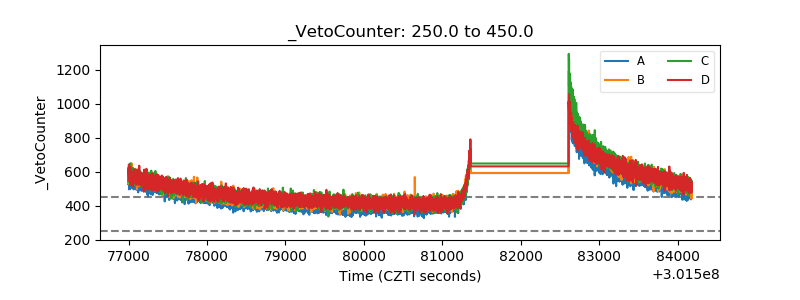

| _Roll_RA |  |
| Veto Counter |  |
