| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_082T09_9000003054_20645cztM0_level2.evt | modeM0/AS1A05_082T09_9000003054_20645cztM0_level2_quad_clean.evt |
| Size (bytes) | 363,093,120 | 67,769,280 |
| Size | 346.3 MB | 64.6 MB |
| Events in quadrant A | 2,546,662 | 432,117 |
| Events in quadrant B | 2,657,675 | 433,240 |
| Events in quadrant C | 2,550,403 | 415,595 |
| Events in quadrant D | 2,886,879 | 406,076 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10908 | 1 |
| B | 0 | 11122 | 1 |
| C | 0 | 10837 | 1 |
| D | 0 | 12045 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 106 | 0 |
| B | 0 | 106 | 0 |
| C | 0 | 106 | 0 |
| D | 0 | 106 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5210 | 69 | 1.324376% |
| B | 5210 | 98 | 1.880998% |
| C | 5210 | 86 | 1.650672% |
| D | 5209 | 96 | 1.842964% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 5545 | 5211 | 0 | 0 | 0.00% | 0.00% |  |
| B | 5545 | 5211 | 1 | 1 | 0.02% | 0.02% |  |
| C | 5545 | 5211 | 0 | 0 | 0.00% | 0.00% |  |
| D | 5544 | 5210 | 43 | 43 | 0.78% | 0.83% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 16 | 40990 | 304.97 | 649 | 635 | 132.3 |
| A | 12 | 194 | 12023 | 86.06 | 649 | 635 | 132.3 |
| A | 0 | 226 | 5620 | 37.67 | 649 | 635 | 132.3 |
| B | 0 | 197 | 31359 | 246.72 | 644 | 629 | 124.6 |
| B | 0 | 244 | 21494 | 167.52 | 644 | 629 | 124.6 |
| B | 0 | 190 | 16299 | 125.81 | 644 | 629 | 124.6 |
| C | 14 | 238 | 96109 | 651.6 | 620 | 625 | 146.5 |
| C | 3 | 9 | 30959 | 207.01 | 620 | 625 | 146.5 |
| C | 13 | 61 | 4356 | 25.46 | 620 | 625 | 146.5 |
| D | 1 | 52 | 205787 | 1332.88 | 625 | 606 | 153.9 |
| D | 13 | 153 | 131718 | 851.72 | 625 | 606 | 153.9 |
| D | 2 | 165 | 119324 | 771.21 | 625 | 606 | 153.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

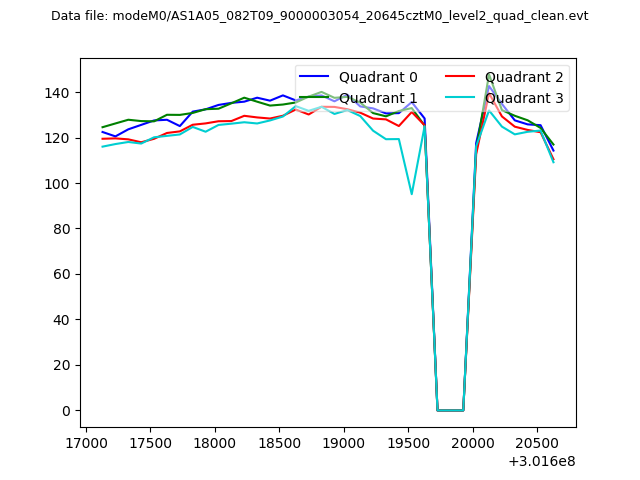

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

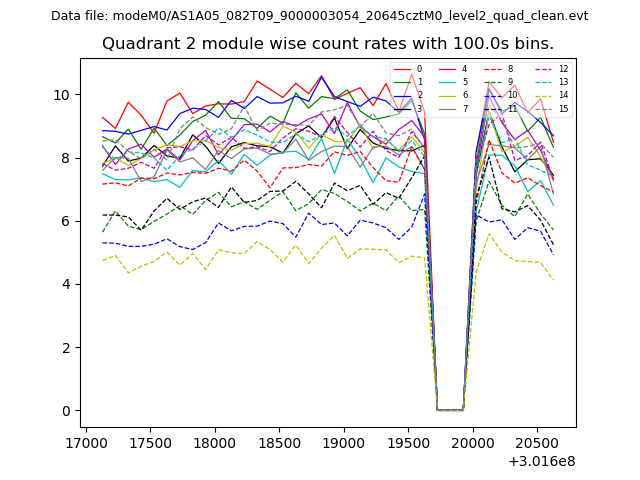

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

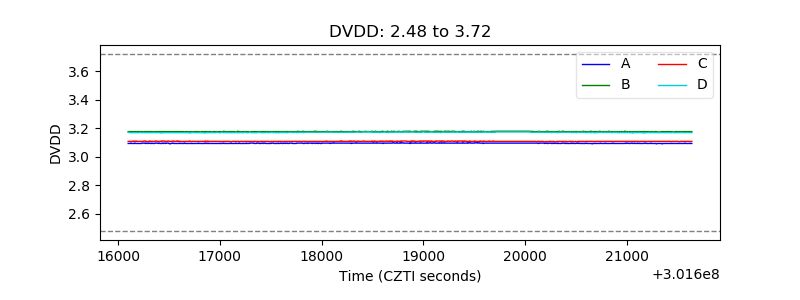

| D_VDD |  |

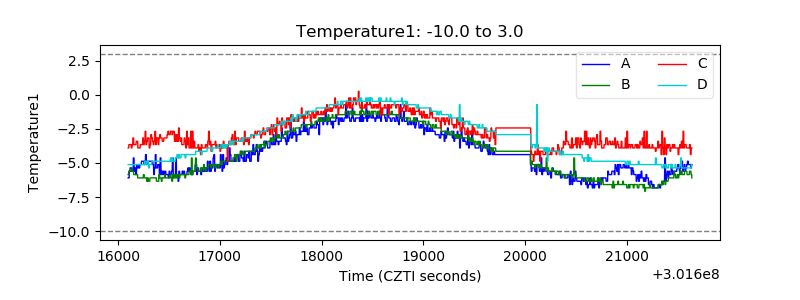

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

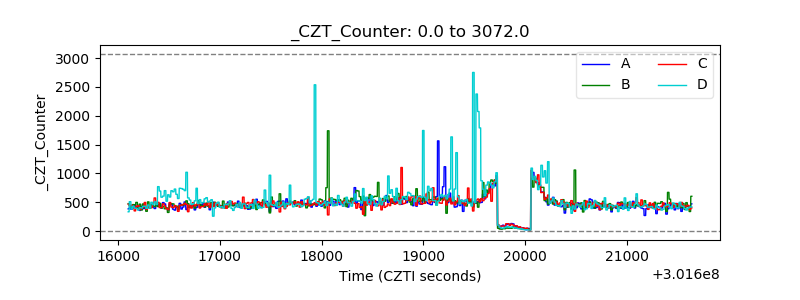

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

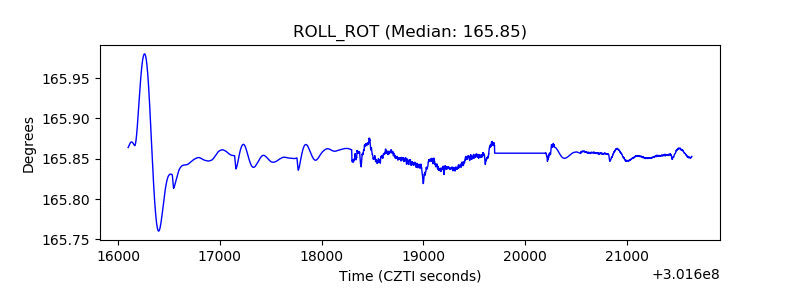

| _ROLL_ROT |  |

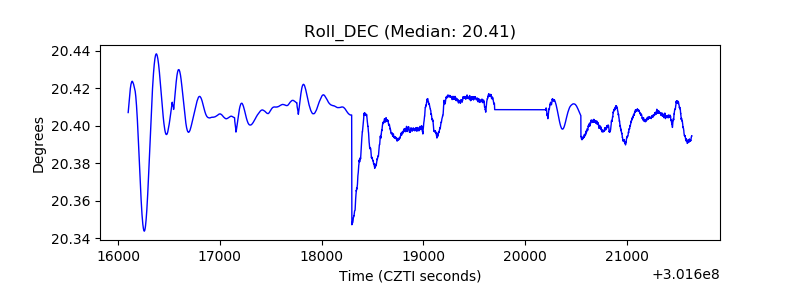

| _Roll_DEC |  |
| _Roll_RA |  |

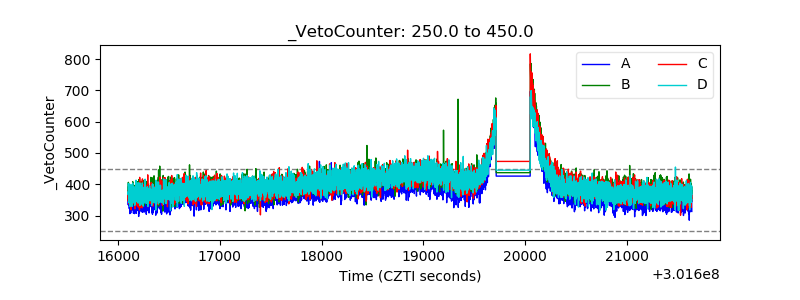

| Veto Counter |  |
