| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_022T09_9000003058_20663cztM0_level2.evt | modeM0/AS1A05_022T09_9000003058_20663cztM0_level2_quad_clean.evt |
| Size (bytes) | 362,318,400 | 89,058,240 |
| Size | 345.5 MB | 84.9 MB |
| Events in quadrant A | 2,499,855 | 585,546 |
| Events in quadrant B | 2,765,670 | 585,084 |
| Events in quadrant C | 2,533,983 | 576,292 |
| Events in quadrant D | 2,796,115 | 562,703 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11264 | 1 |
| B | 0 | 11924 | 1 |
| C | 0 | 11204 | 1 |
| D | 0 | 12231 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 114 | 0 |
| B | 0 | 114 | 0 |
| C | 0 | 114 | 0 |
| D | 0 | 114 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5531 | 31 | 0.560477% |
| B | 5532 | 92 | 1.663051% |
| C | 5532 | 67 | 1.211135% |
| D | 5532 | 116 | 2.096891% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6001 | 5532 | 2 | 2 | 0.03% | 0.04% |  |
| B | 6002 | 5533 | 27 | 27 | 0.45% | 0.49% |  |
| C | 6002 | 5533 | 0 | 0 | 0.00% | 0.00% |  |
| D | 6002 | 5533 | 71 | 71 | 1.18% | 1.28% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 16 | 21748 | 161.66 | 640 | 626 | 130.7 |
| A | 15 | 174 | 9860 | 70.67 | 640 | 626 | 130.7 |
| A | 8 | 205 | 8744 | 62.13 | 640 | 626 | 130.7 |
| B | 7 | 220 | 151858 | 1252.46 | 635 | 618 | 120.8 |
| B | 3 | 64 | 36096 | 293.8 | 635 | 618 | 120.8 |
| B | 6 | 36 | 18604 | 148.95 | 635 | 618 | 120.8 |
| C | 14 | 238 | 96544 | 658.5 | 617 | 620 | 145.7 |
| C | 7 | 247 | 28322 | 190.17 | 617 | 620 | 145.7 |
| C | 13 | 61 | 4335 | 25.5 | 617 | 620 | 145.7 |
| D | 2 | 165 | 169675 | 1131.42 | 618 | 600 | 149.4 |
| D | 1 | 52 | 152917 | 1019.27 | 618 | 600 | 149.4 |
| D | 1 | 239 | 43697 | 288.4 | 618 | 600 | 149.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

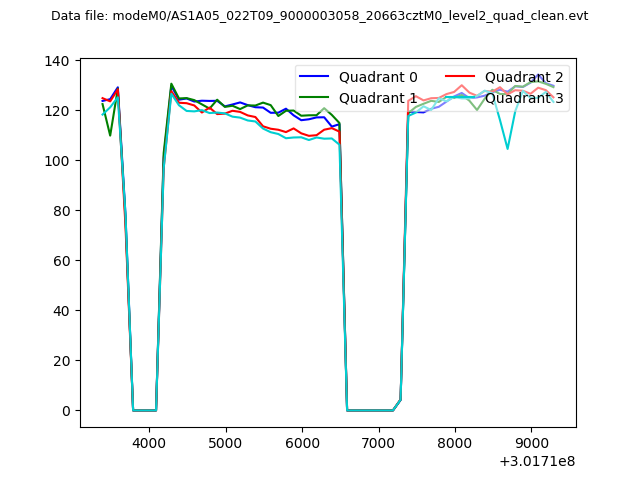

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

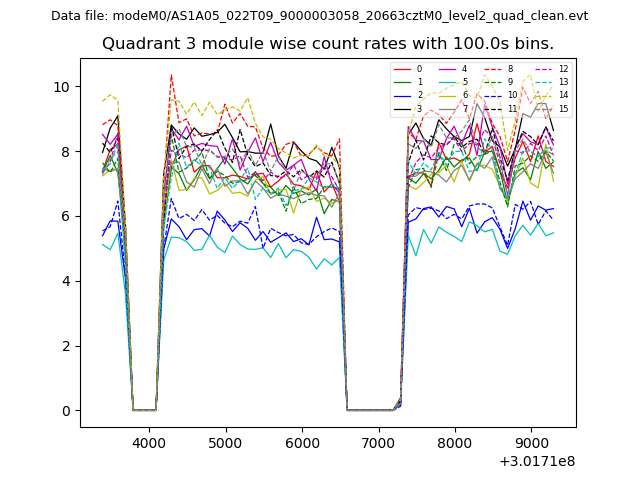

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

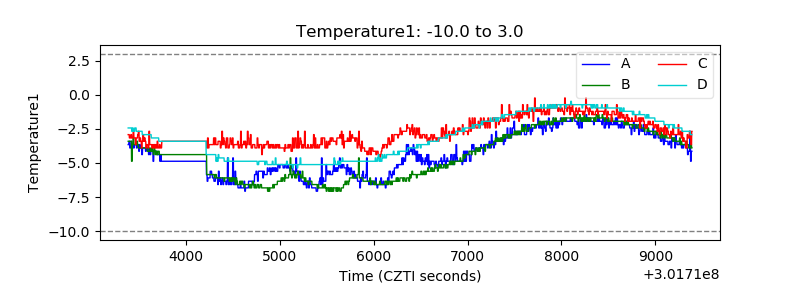

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

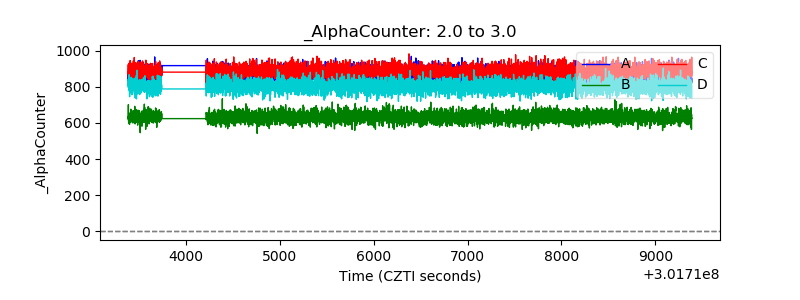

| Alpha Counter |  |

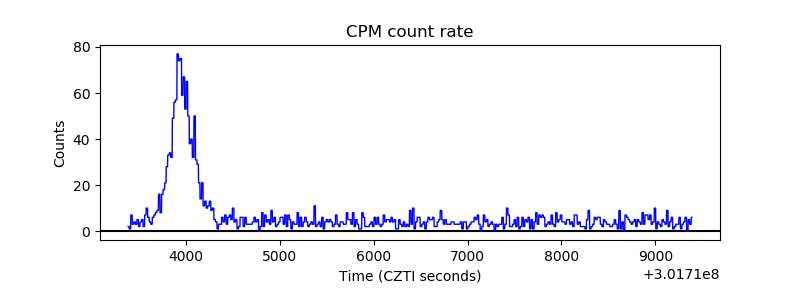

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

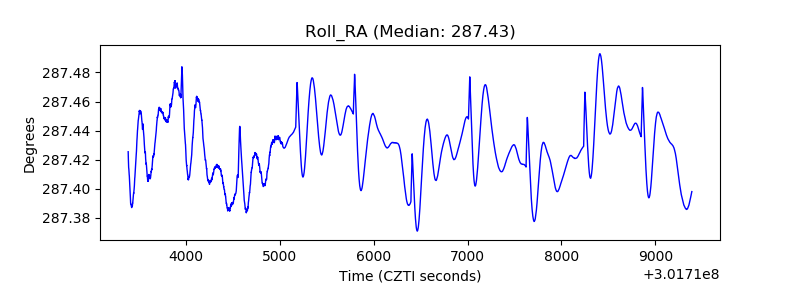

| _Roll_RA |  |
| Veto Counter |  |
