| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_229T02_9000003060_20664cztM0_level2.evt | modeM0/AS1A05_229T02_9000003060_20664cztM0_level2_quad_clean.evt |
| Size (bytes) | 514,808,640 | 83,911,680 |
| Size | 491.0 MB | 80.0 MB |
| Events in quadrant A | 3,819,268 | 513,651 |
| Events in quadrant B | 3,883,069 | 514,778 |
| Events in quadrant C | 3,642,070 | 500,848 |
| Events in quadrant D | 3,739,104 | 491,649 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16160 | 2 |
| B | 0 | 16232 | 2 |
| C | 0 | 15448 | 2 |
| D | 0 | 16121 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 0 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7477 | 131 | 1.752040% |
| B | 7478 | 99 | 1.323883% |
| C | 7478 | 93 | 1.243648% |
| D | 7478 | 79 | 1.056432% |

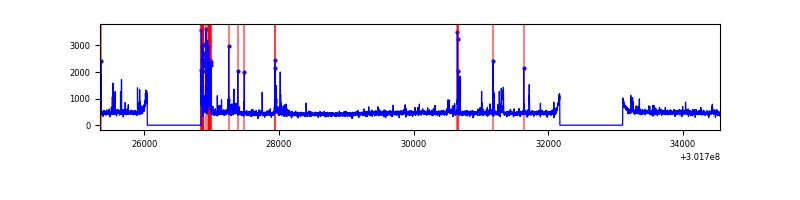

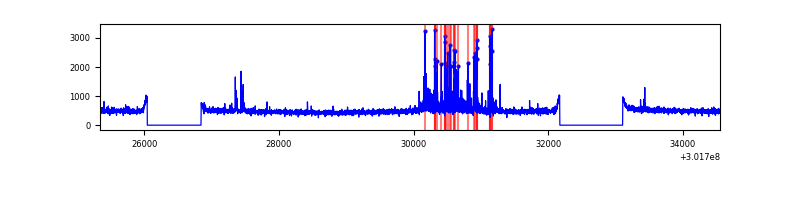

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9212 | 7479 | 72 | 72 | 0.78% | 0.96% |  |
| B | 9213 | 7480 | 28 | 28 | 0.30% | 0.37% |  |
| C | 9213 | 7480 | 2 | 2 | 0.02% | 0.03% |  |
| D | 9213 | 7480 | 39 | 39 | 0.42% | 0.52% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 16 | 317561 | 1747.89 | 902 | 883 | 181.2 |
| A | 13 | 252 | 33846 | 181.94 | 902 | 883 | 181.2 |
| A | 0 | 226 | 7968 | 39.11 | 902 | 883 | 181.2 |
| B | 7 | 220 | 258354 | 1499.82 | 909 | 886 | 171.7 |
| B | 12 | 111 | 20832 | 116.19 | 909 | 886 | 171.7 |
| B | 11 | 111 | 18076 | 100.14 | 909 | 886 | 171.7 |
| C | 14 | 238 | 137443 | 665.83 | 874 | 881 | 205.1 |
| C | 8 | 208 | 62141 | 298.68 | 874 | 881 | 205.1 |
| C | 7 | 247 | 14421 | 66.02 | 874 | 881 | 205.1 |
| D | 1 | 52 | 264475 | 1240.25 | 879 | 854 | 212.6 |
| D | 7 | 238 | 60891 | 282.45 | 879 | 854 | 212.6 |
| D | 13 | 153 | 41282 | 190.2 | 879 | 854 | 212.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

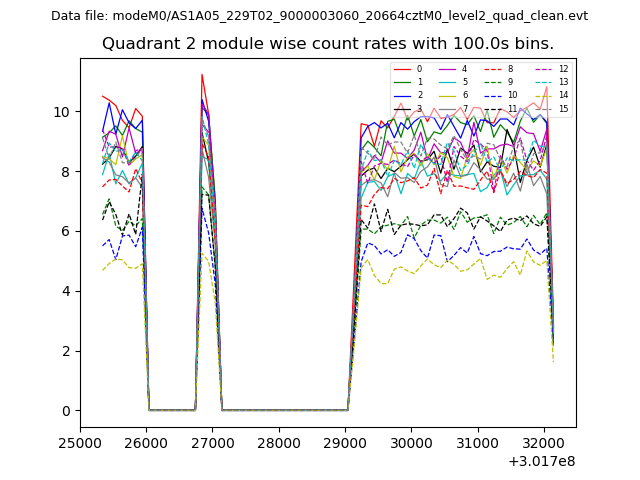

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

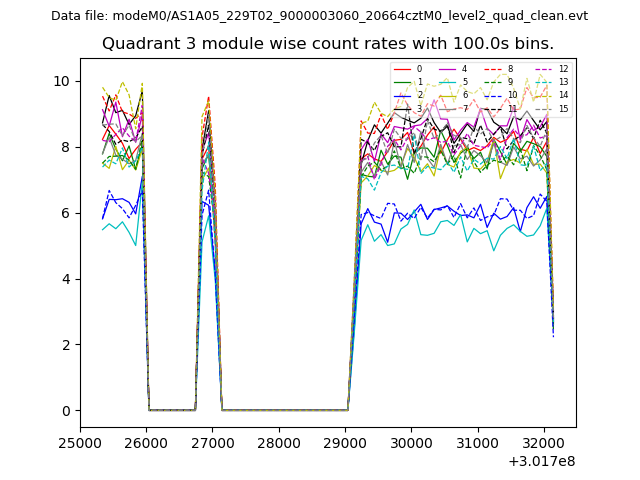

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

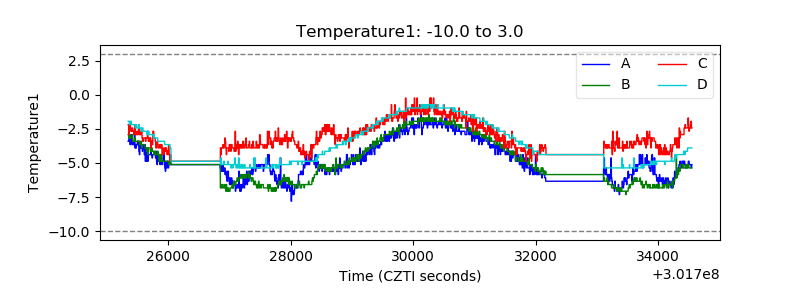

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

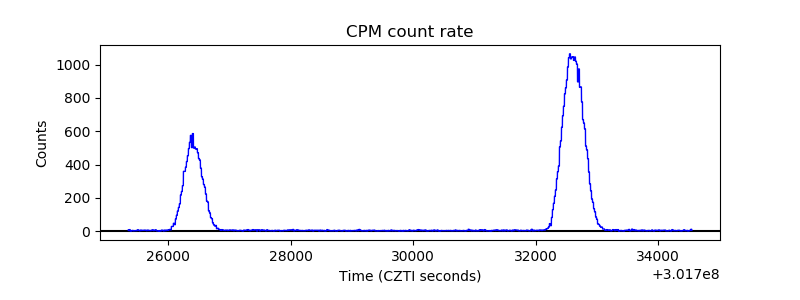

| _CPM_Rate |  |

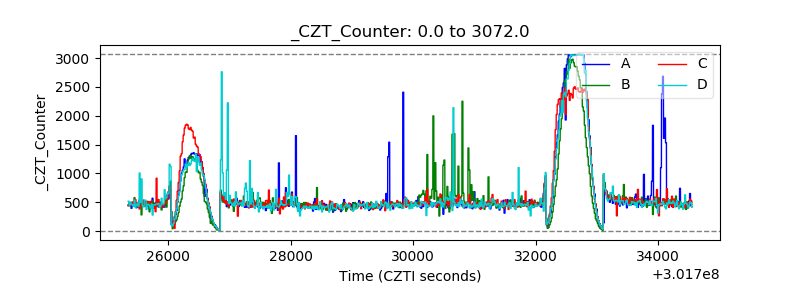

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

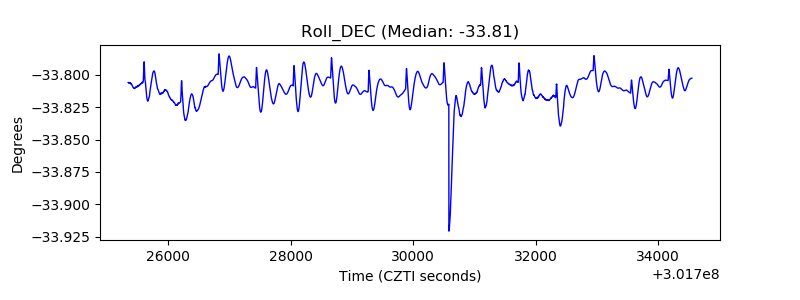

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
