| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_229T02_9000003060_20670cztM0_level2.evt | modeM0/AS1A05_229T02_9000003060_20670cztM0_level2_quad_clean.evt |
| Size (bytes) | 518,178,240 | 106,571,520 |
| Size | 494.2 MB | 101.6 MB |
| Events in quadrant A | 3,113,699 | 748,062 |
| Events in quadrant B | 3,385,471 | 741,922 |
| Events in quadrant C | 3,011,484 | 714,059 |
| Events in quadrant D | 5,798,335 | 627,392 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12796 | 3 |
| B | 0 | 13754 | 2 |
| C | 0 | 12516 | 2 |
| D | 0 | 20991 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 116 | 0 |
| B | 0 | 116 | 0 |
| C | 0 | 116 | 0 |
| D | 0 | 116 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5658 | 93 | 1.643690% |
| B | 5658 | 136 | 2.403676% |
| C | 5658 | 108 | 1.908802% |
| D | 5659 | 1116 | 19.720799% |

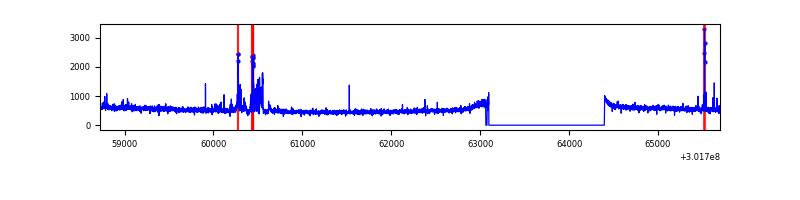

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6973 | 5660 | 17 | 17 | 0.24% | 0.30% |  |
| B | 6973 | 5660 | 36 | 36 | 0.52% | 0.64% |  |
| C | 6973 | 5660 | 0 | 0 | 0.00% | 0.00% |  |
| D | 6974 | 5661 | 917 | 917 | 13.15% | 16.20% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 16 | 143271 | 931.36 | 765 | 754 | 153.0 |
| A | 8 | 205 | 12355 | 75.81 | 765 | 754 | 153.0 |
| A | 9 | 143 | 10040 | 60.68 | 765 | 754 | 153.0 |
| B | 7 | 220 | 322203 | 2270.63 | 749 | 734 | 141.6 |
| B | 0 | 190 | 42213 | 292.98 | 749 | 734 | 141.6 |
| B | 4 | 216 | 35637 | 246.53 | 749 | 734 | 141.6 |
| C | 14 | 238 | 114650 | 689.62 | 716 | 722 | 165.2 |
| C | 8 | 208 | 70921 | 424.92 | 716 | 722 | 165.2 |
| C | 7 | 247 | 21605 | 126.41 | 716 | 722 | 165.2 |
| D | 1 | 20 | 3122416 | 19196.94 | 680 | 663 | 162.6 |
| D | 7 | 38 | 34741 | 209.56 | 680 | 663 | 162.6 |
| D | 2 | 234 | 24685 | 147.72 | 680 | 663 | 162.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

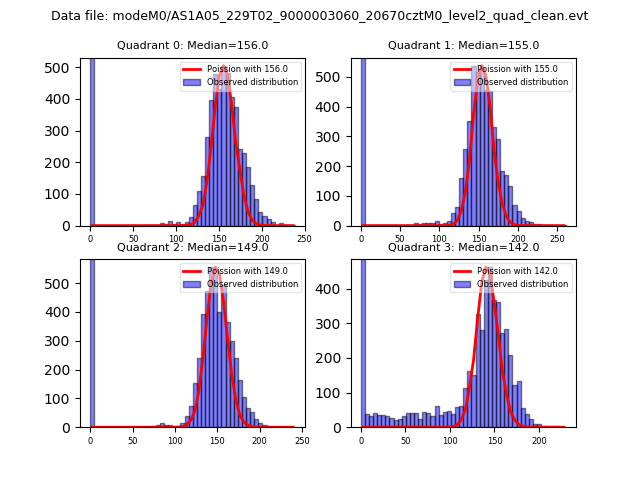

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

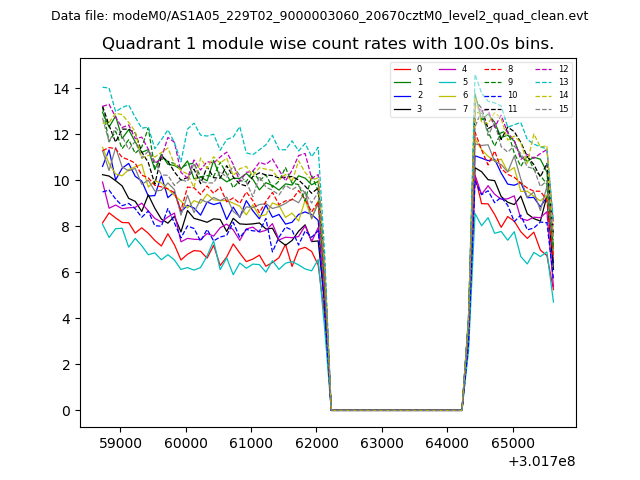

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

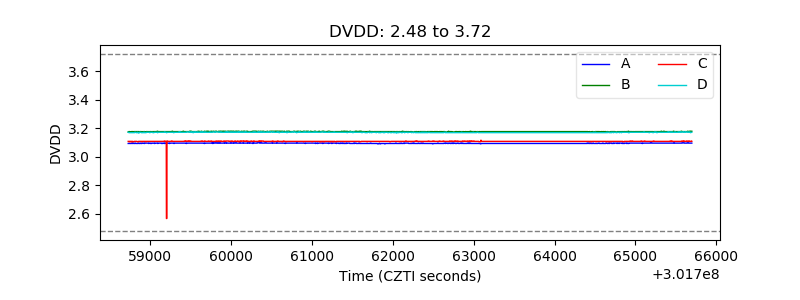

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

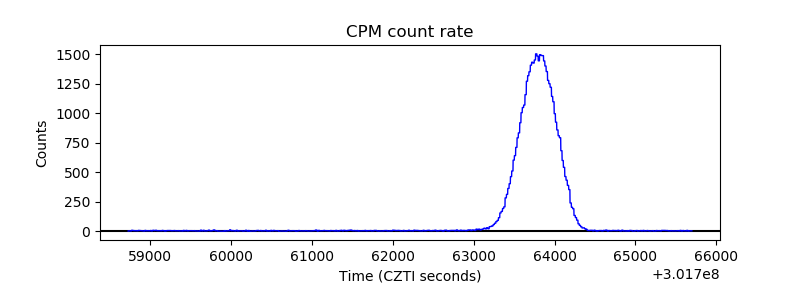

| _CPM_Rate |  |

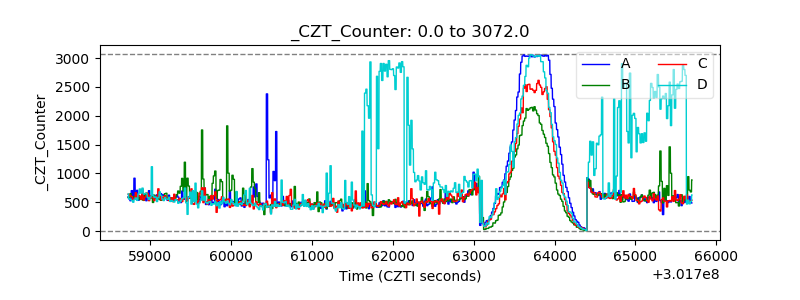

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

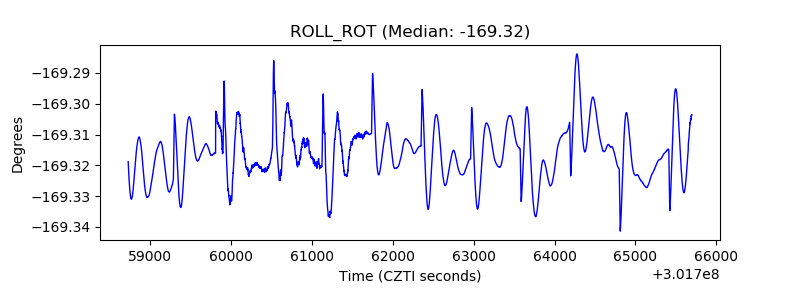

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

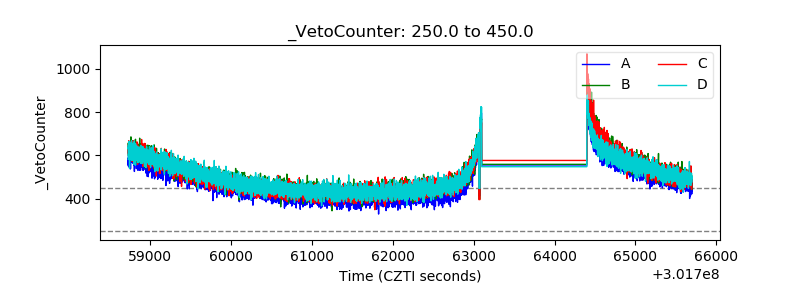

| Veto Counter |  |
