| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_229T02_9000003060_20682cztM0_level2.evt | modeM0/AS1A05_229T02_9000003060_20682cztM0_level2_quad_clean.evt |
| Size (bytes) | 515,819,520 | 97,133,760 |
| Size | 491.9 MB | 92.6 MB |
| Events in quadrant A | 3,564,582 | 628,248 |
| Events in quadrant B | 3,892,056 | 628,745 |
| Events in quadrant C | 3,622,911 | 613,950 |
| Events in quadrant D | 4,083,755 | 599,994 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14837 | 2 |
| B | 0 | 15864 | 2 |
| C | 0 | 15129 | 2 |
| D | 0 | 16496 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 24 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6756 | 107 | 1.583777% |
| B | 6756 | 167 | 2.471877% |
| C | 6757 | 164 | 2.427113% |
| D | 6757 | 148 | 2.190321% |

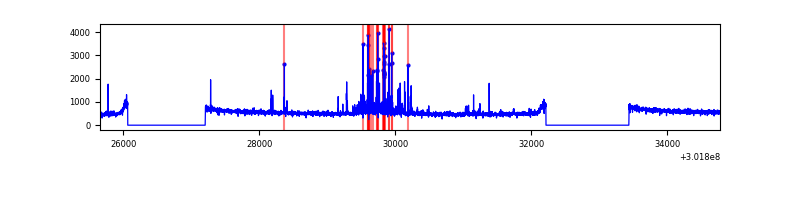

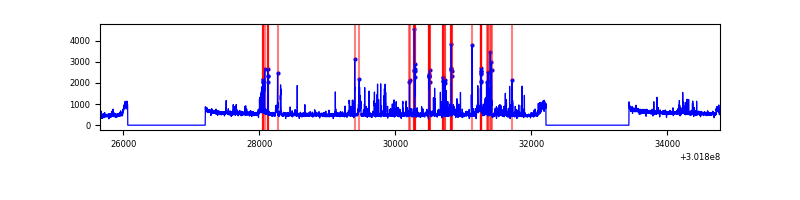

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9116 | 6757 | 0 | 0 | 0.00% | 0.00% |  |
| B | 9116 | 6758 | 32 | 32 | 0.35% | 0.47% |  |
| C | 9117 | 6758 | 0 | 0 | 0.00% | 0.00% |  |
| D | 9117 | 6758 | 55 | 55 | 0.60% | 0.81% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 8008 | 38.38 | 926 | 908 | 185.0 |
| A | 3 | 137 | 6932 | 32.56 | 926 | 908 | 185.0 |
| A | 12 | 194 | 6556 | 30.53 | 926 | 908 | 185.0 |
| B | 7 | 220 | 233959 | 1373.68 | 914 | 894 | 169.7 |
| B | 3 | 64 | 27371 | 156.05 | 914 | 894 | 169.7 |
| B | 12 | 111 | 19931 | 112.2 | 914 | 894 | 169.7 |
| C | 14 | 238 | 141594 | 691.56 | 884 | 893 | 203.5 |
| C | 7 | 247 | 19146 | 89.72 | 884 | 893 | 203.5 |
| C | 3 | 233 | 11450 | 51.89 | 884 | 893 | 203.5 |
| D | 1 | 52 | 285364 | 1324.77 | 902 | 878 | 214.7 |
| D | 13 | 153 | 165728 | 767.66 | 902 | 878 | 214.7 |
| D | 1 | 20 | 110039 | 508.33 | 902 | 878 | 214.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

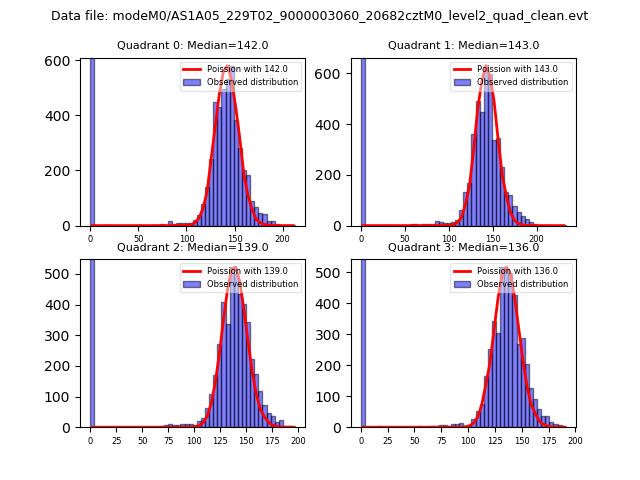

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

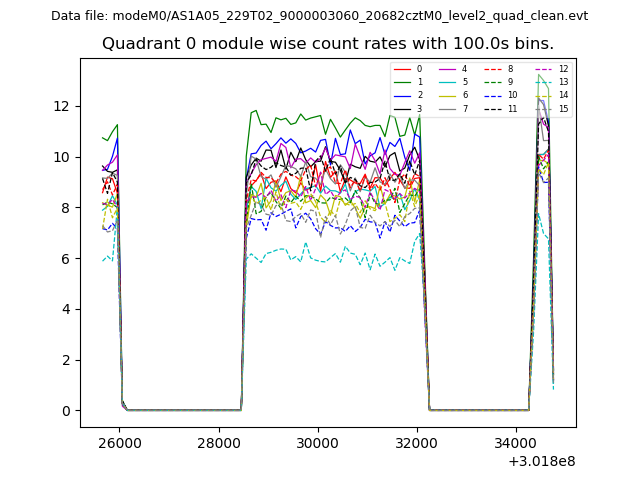

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

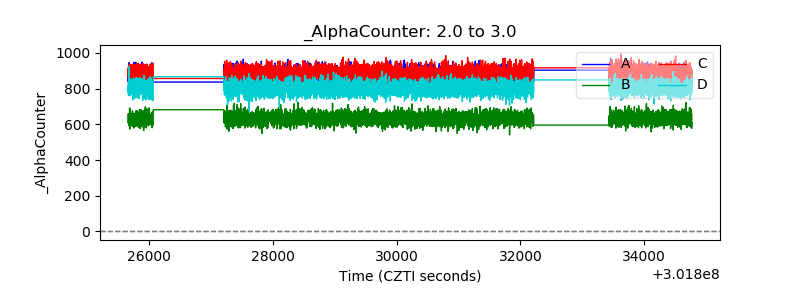

| Alpha Counter |  |
| _CPM_Rate |  |

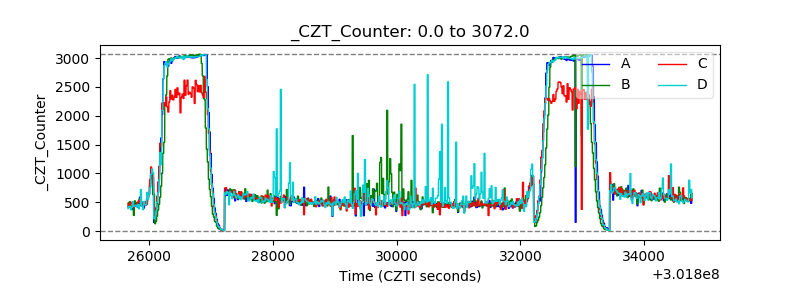

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

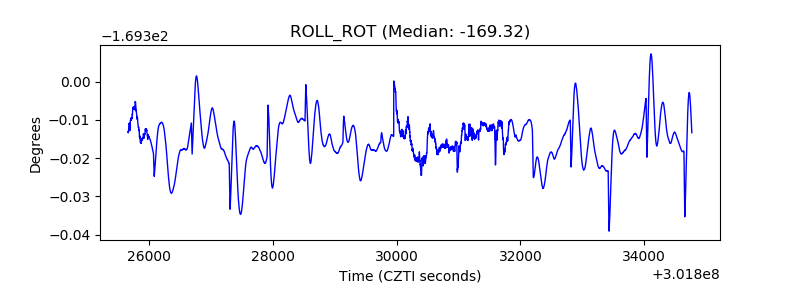

| _ROLL_ROT |  |
| _Roll_DEC |  |

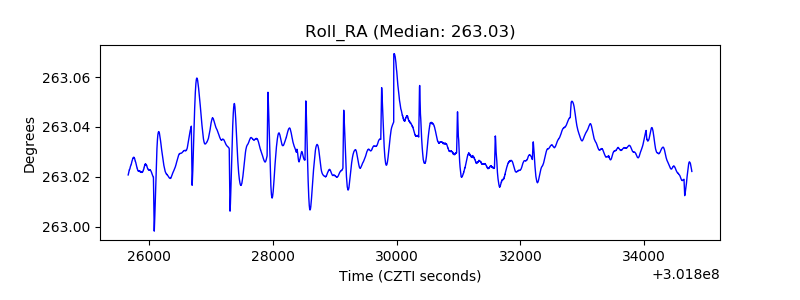

| _Roll_RA |  |
| Veto Counter |  |
