| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_229T02_9000003060_20688cztM0_level2.evt | modeM0/AS1A05_229T02_9000003060_20688cztM0_level2_quad_clean.evt |
| Size (bytes) | 545,820,480 | 106,868,160 |
| Size | 520.5 MB | 101.9 MB |
| Events in quadrant A | 3,466,594 | 701,955 |
| Events in quadrant B | 3,707,222 | 703,169 |
| Events in quadrant C | 3,478,652 | 678,868 |
| Events in quadrant D | 5,379,423 | 641,260 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15153 | 2 |
| B | 0 | 15704 | 2 |
| C | 0 | 15167 | 2 |
| D | 0 | 20907 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 0 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7339 | 47 | 0.640414% |
| B | 7339 | 70 | 0.953808% |
| C | 7339 | 81 | 1.103693% |
| D | 7339 | 492 | 6.703911% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7714 | 7340 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7714 | 7340 | 5 | 5 | 0.06% | 0.07% |  |
| C | 7714 | 7340 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7714 | 7340 | 344 | 344 | 4.46% | 4.69% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 16 | 9141 | 45.36 | 900 | 881 | 182.1 |
| A | 0 | 226 | 8041 | 39.32 | 900 | 881 | 182.1 |
| A | 3 | 137 | 7170 | 34.53 | 900 | 881 | 182.1 |
| B | 7 | 220 | 84947 | 495.53 | 893 | 874 | 169.7 |
| B | 0 | 190 | 34914 | 200.63 | 893 | 874 | 169.7 |
| B | 0 | 197 | 29501 | 168.73 | 893 | 874 | 169.7 |
| C | 14 | 238 | 133988 | 663.53 | 852 | 858 | 200.6 |
| C | 3 | 233 | 12979 | 60.41 | 852 | 858 | 200.6 |
| C | 7 | 247 | 11123 | 51.16 | 852 | 858 | 200.6 |
| D | 1 | 52 | 914112 | 4458.42 | 848 | 825 | 204.8 |
| D | 5 | 222 | 806868 | 3934.89 | 848 | 825 | 204.8 |
| D | 12 | 227 | 192117 | 933.84 | 848 | 825 | 204.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

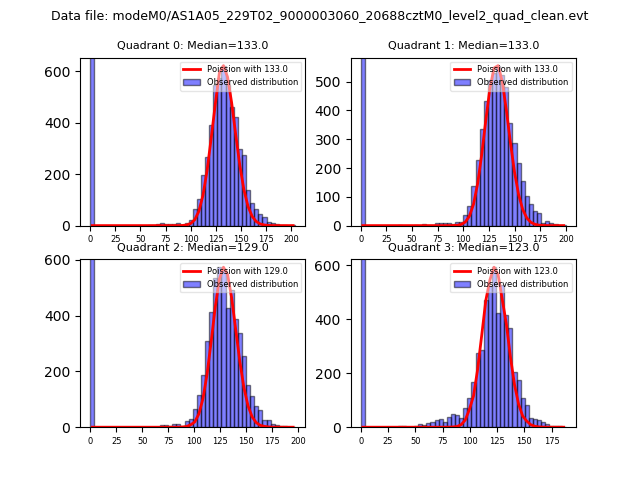

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
