| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_229T02_9000003060_20694cztM0_level2.evt | modeM0/AS1A05_229T02_9000003060_20694cztM0_level2_quad_clean.evt |
| Size (bytes) | 456,030,720 | 67,530,240 |
| Size | 434.9 MB | 64.4 MB |
| Events in quadrant A | 3,103,697 | 405,829 |
| Events in quadrant B | 3,448,670 | 406,883 |
| Events in quadrant C | 3,191,601 | 398,631 |
| Events in quadrant D | 3,632,127 | 386,708 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13197 | 2 |
| B | 0 | 14240 | 3 |
| C | 0 | 13425 | 2 |
| D | 0 | 14920 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6400 | 38 | 0.593750% |
| B | 6399 | 71 | 1.109548% |
| C | 6399 | 77 | 1.203313% |
| D | 6399 | 73 | 1.140803% |

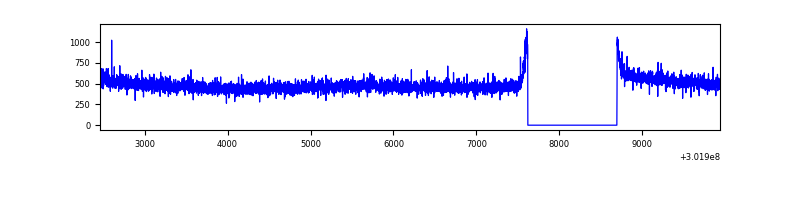

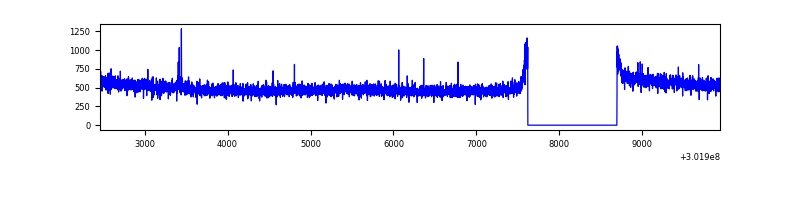

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7475 | 6401 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7474 | 6400 | 9 | 9 | 0.12% | 0.14% |  |
| C | 7474 | 6399 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7474 | 6400 | 30 | 30 | 0.40% | 0.47% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 7045 | 38.65 | 807 | 790 | 161.8 |
| A | 3 | 137 | 6472 | 35.11 | 807 | 790 | 161.8 |
| A | 12 | 194 | 5685 | 30.25 | 807 | 790 | 161.8 |
| B | 7 | 220 | 126123 | 828.92 | 807 | 789 | 151.2 |
| B | 0 | 197 | 101621 | 666.87 | 807 | 789 | 151.2 |
| B | 3 | 64 | 39128 | 253.56 | 807 | 789 | 151.2 |
| C | 14 | 238 | 122509 | 671.19 | 779 | 784 | 181.4 |
| C | 7 | 247 | 21244 | 112.82 | 779 | 784 | 181.4 |
| C | 9 | 54 | 7657 | 37.9 | 779 | 784 | 181.4 |
| D | 1 | 52 | 374450 | 1964.44 | 783 | 762 | 190.2 |
| D | 5 | 222 | 122336 | 639.1 | 783 | 762 | 190.2 |
| D | 12 | 227 | 65860 | 342.21 | 783 | 762 | 190.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

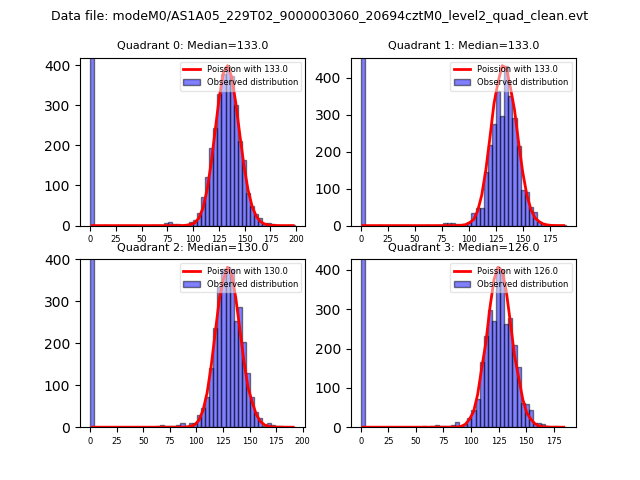

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

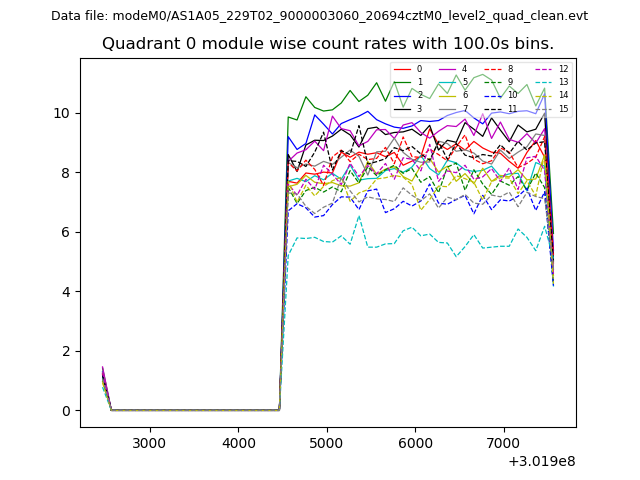

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

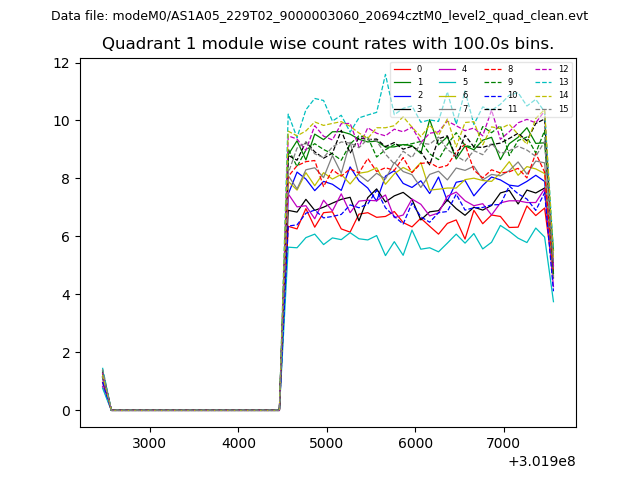

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

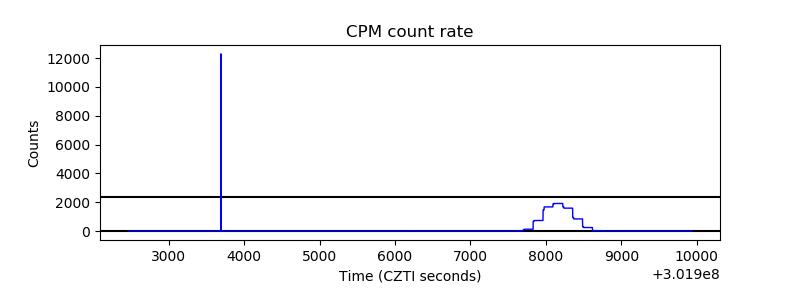

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

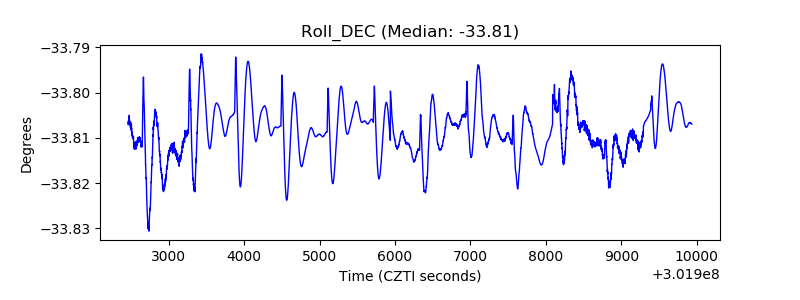

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

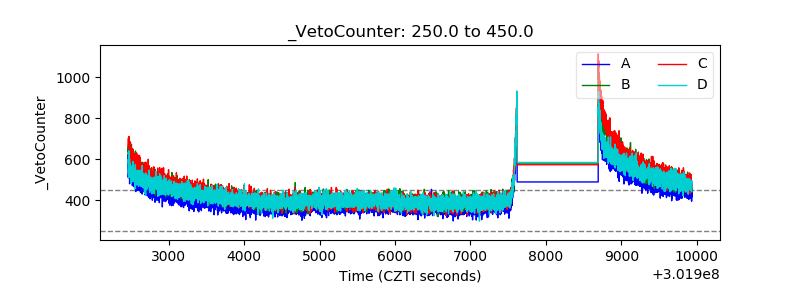

| Veto Counter |  |
