| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_165T07_9000003062_20711cztM0_level2.evt | modeM0/AS1A05_165T07_9000003062_20711cztM0_level2_quad_clean.evt |
| Size (bytes) | 554,172,480 | 109,926,720 |
| Size | 528.5 MB | 104.8 MB |
| Events in quadrant A | 3,295,772 | 755,482 |
| Events in quadrant B | 3,535,779 | 748,645 |
| Events in quadrant C | 3,310,665 | 716,138 |
| Events in quadrant D | 6,219,433 | 674,597 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13867 | 2 |
| B | 0 | 14583 | 1 |
| C | 0 | 13916 | 1 |
| D | 0 | 22923 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6223 | 78 | 1.253415% |
| B | 6224 | 103 | 1.654884% |
| C | 6224 | 122 | 1.960154% |
| D | 6224 | 666 | 10.700514% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

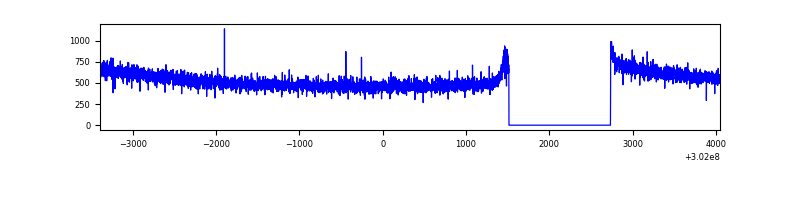

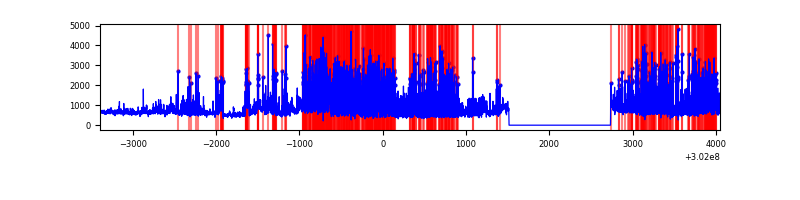

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7443 | 6223 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7444 | 6224 | 16 | 16 | 0.21% | 0.26% |  |
| C | 7444 | 6224 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7444 | 6224 | 577 | 577 | 7.75% | 9.27% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 7573 | 38.91 | 857 | 844 | 172.9 |
| A | 3 | 137 | 6485 | 32.62 | 857 | 844 | 172.9 |
| A | 12 | 194 | 6256 | 31.3 | 857 | 844 | 172.9 |
| B | 7 | 220 | 158850 | 1016.18 | 833 | 815 | 155.5 |
| B | 0 | 230 | 33767 | 211.88 | 833 | 815 | 155.5 |
| B | 0 | 197 | 30165 | 188.72 | 833 | 815 | 155.5 |
| C | 14 | 238 | 128804 | 691.67 | 805 | 812 | 185.0 |
| C | 7 | 247 | 30190 | 158.76 | 805 | 812 | 185.0 |
| C | 3 | 233 | 12447 | 62.88 | 805 | 812 | 185.0 |
| D | 5 | 222 | 2594319 | 13257.05 | 810 | 790 | 195.6 |
| D | 1 | 52 | 240289 | 1224.22 | 810 | 790 | 195.6 |
| D | 1 | 20 | 200405 | 1020.35 | 810 | 790 | 195.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

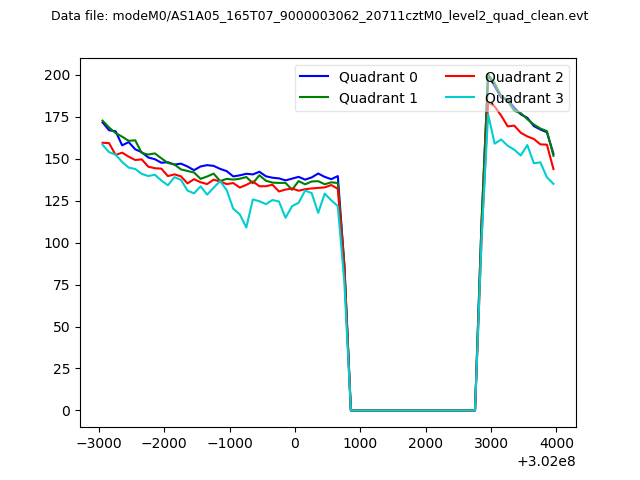

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

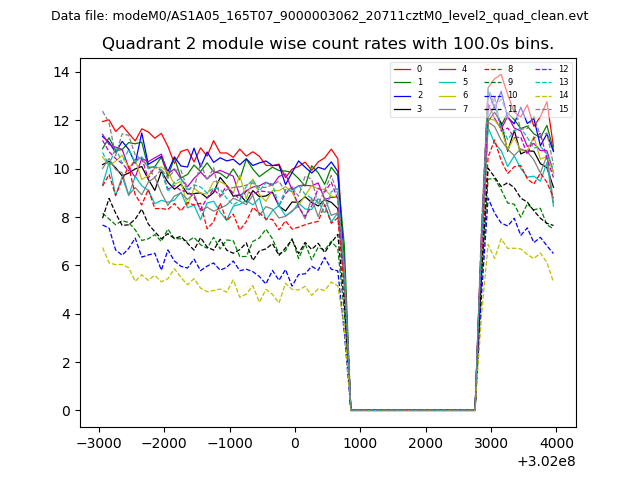

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

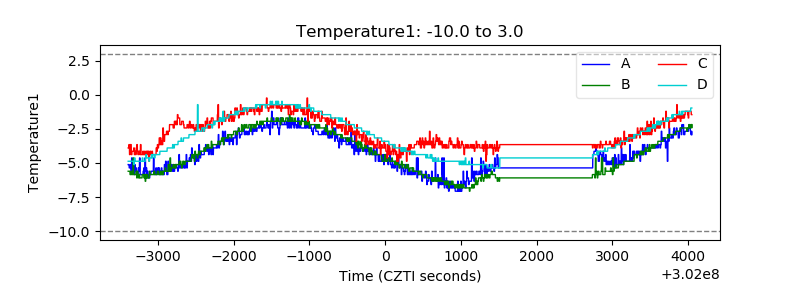

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

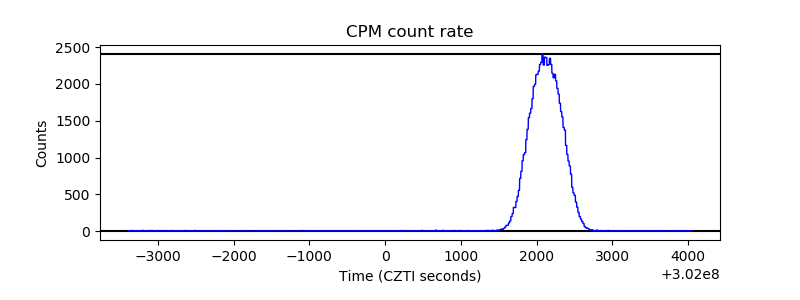

| _CPM_Rate |  |

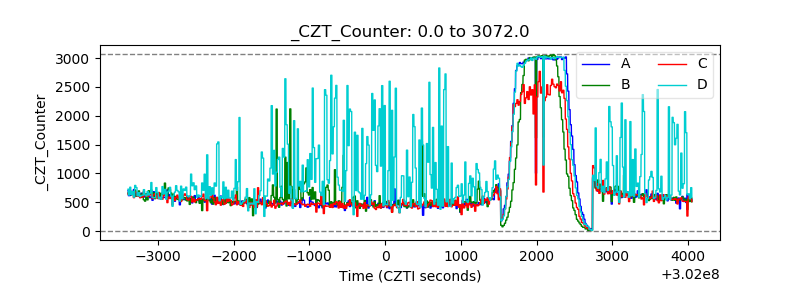

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

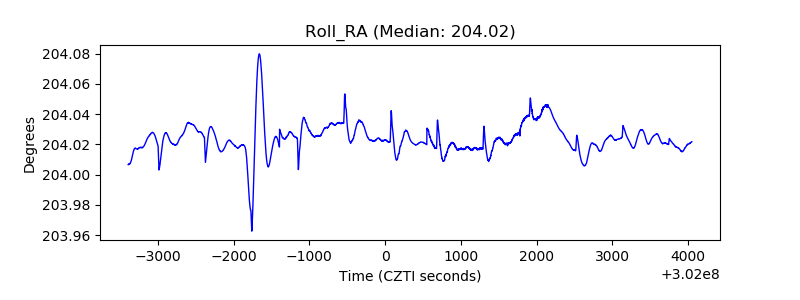

| _Roll_RA |  |
| Veto Counter |  |
