| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_165T07_9000003062_20722cztM0_level2.evt | modeM0/AS1A05_165T07_9000003062_20722cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,662,644,160 | 274,619,520 |
| Size | 1.5 GB | 261.9 MB |
| Events in quadrant A | 10,759,276 | 1,746,434 |
| Events in quadrant B | 11,451,315 | 1,737,404 |
| Events in quadrant C | 10,608,685 | 1,671,565 |
| Events in quadrant D | 16,003,013 | 1,600,963 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 460 | 0 |
| B | 0 | 460 | 0 |
| C | 0 | 460 | 0 |
| D | 0 | 460 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 46625 | 4 |
| B | 0 | 48536 | 5 |
| C | 0 | 46155 | 4 |
| D | 0 | 62784 | 4 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30 | 0 |
| B | 0 | 30 | 0 |
| C | 0 | 30 | 0 |
| D | 0 | 30 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 22682 | 116 | 0.511419% |
| B | 22682 | 279 | 1.230050% |
| C | 22682 | 202 | 0.890574% |
| D | 22682 | 1143 | 5.039238% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 25583 | 22687 | 3 | 3 | 0.01% | 0.01% |  |
| B | 25583 | 22687 | 59 | 59 | 0.23% | 0.26% |  |
| C | 25583 | 22687 | 2 | 2 | 0.01% | 0.01% |  |
| D | 25583 | 22687 | 885 | 885 | 3.46% | 3.90% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 253 | 155938 | 279.63 | 2737 | 2683 | 548.1 |
| A | 9 | 143 | 39673 | 67.49 | 2737 | 2683 | 548.1 |
| A | 8 | 205 | 30502 | 50.76 | 2737 | 2683 | 548.1 |
| B | 7 | 220 | 486851 | 941.7 | 2705 | 2639 | 514.2 |
| B | 3 | 64 | 118896 | 226.1 | 2705 | 2639 | 514.2 |
| B | 0 | 190 | 66905 | 124.98 | 2705 | 2639 | 514.2 |
| C | 14 | 238 | 406912 | 670.4 | 2595 | 2611 | 603.1 |
| C | 8 | 208 | 33105 | 50.56 | 2595 | 2611 | 603.1 |
| C | 7 | 247 | 31959 | 48.66 | 2595 | 2611 | 603.1 |
| D | 1 | 52 | 3900268 | 6236.3 | 2601 | 2529 | 625.0 |
| D | 1 | 239 | 1398405 | 2233.37 | 2601 | 2529 | 625.0 |
| D | 5 | 222 | 555999 | 885.54 | 2601 | 2529 | 625.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

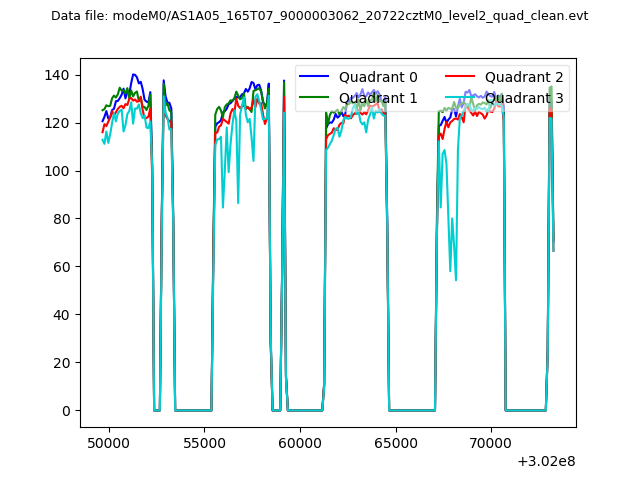

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

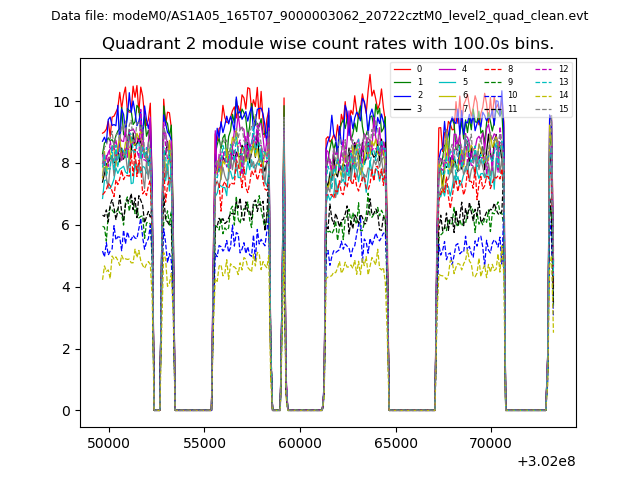

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

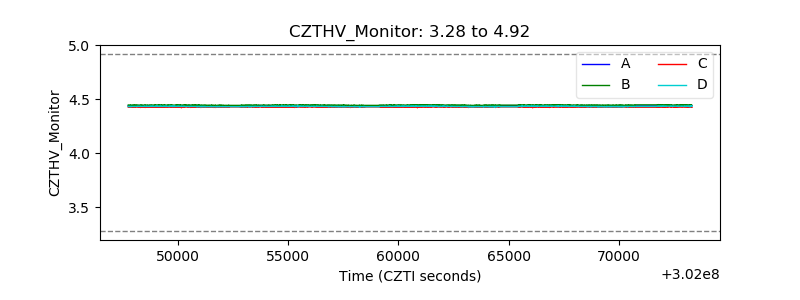

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

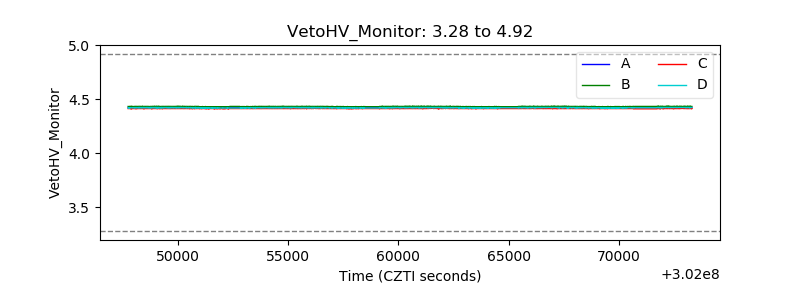

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

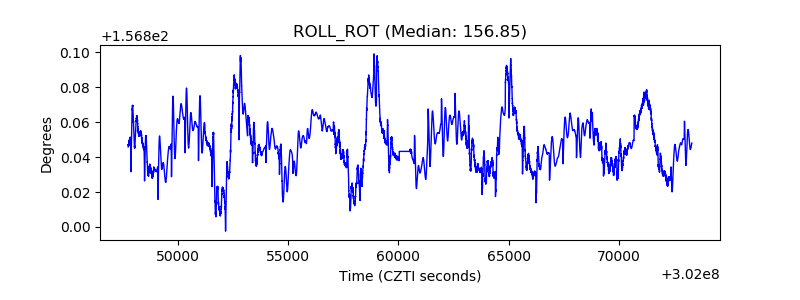

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

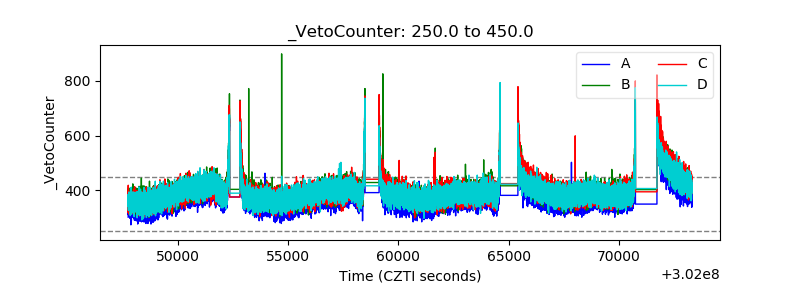

| Veto Counter |  |
