| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_165T07_9000003062_20896cztM0_level2.evt | modeM0/AS1A05_165T07_9000003062_20896cztM0_level2_quad_clean.evt |
| Size (bytes) | 520,441,920 | 88,223,040 |
| Size | 496.3 MB | 84.1 MB |
| Events in quadrant A | 3,002,874 | 573,590 |
| Events in quadrant B | 3,383,681 | 579,290 |
| Events in quadrant C | 3,033,279 | 556,075 |
| Events in quadrant D | 5,903,109 | 511,753 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 2 |
| B | 0 | 134 | 6 |
| C | 0 | 134 | 6 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13531 | 371 |
| B | 0 | 14549 | 411 |
| C | 0 | 13537 | 355 |
| D | 0 | 22855 | 937 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 1 |
| C | 0 | 14 | 1 |
| D | 0 | 15 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6482 | 14 | 0.215983% |
| B | 6468 | 73 | 1.128633% |
| C | 6489 | 40 | 0.616428% |
| D | 6417 | 606 | 9.443665% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7635 | 6597 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7635 | 6590 | 22 | 22 | 0.29% | 0.33% |  |
| C | 7635 | 6607 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7635 | 6546 | 504 | 504 | 6.60% | 7.70% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 16 | 8306 | 47.76 | 778 | 763 | 157.9 |
| A | 0 | 226 | 6650 | 37.28 | 778 | 763 | 157.9 |
| A | 3 | 137 | 6423 | 35.84 | 778 | 763 | 157.9 |
| B | 7 | 220 | 170590 | 1131.53 | 777 | 757 | 150.1 |
| B | 0 | 189 | 42492 | 278.06 | 777 | 757 | 150.1 |
| B | 0 | 230 | 37328 | 243.66 | 777 | 757 | 150.1 |
| C | 14 | 238 | 117614 | 669.31 | 746 | 751 | 174.6 |
| C | 9 | 54 | 7262 | 37.29 | 746 | 751 | 174.6 |
| C | 13 | 61 | 5146 | 25.17 | 746 | 751 | 174.6 |
| D | 1 | 52 | 970313 | 5481.38 | 719 | 700 | 176.9 |
| D | 5 | 222 | 940825 | 5314.68 | 719 | 700 | 176.9 |
| D | 7 | 38 | 918264 | 5187.14 | 719 | 700 | 176.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

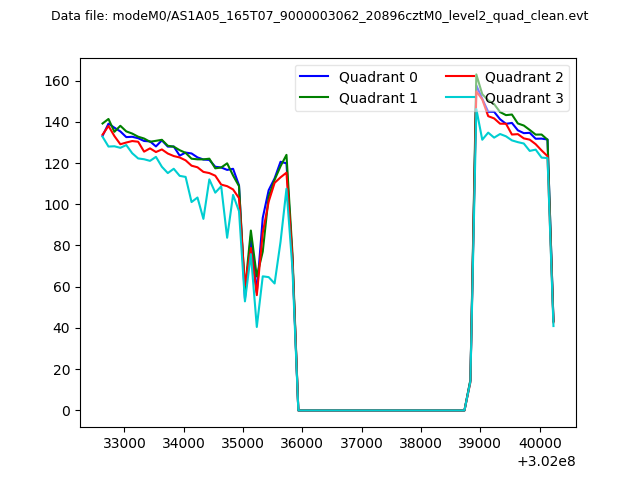

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

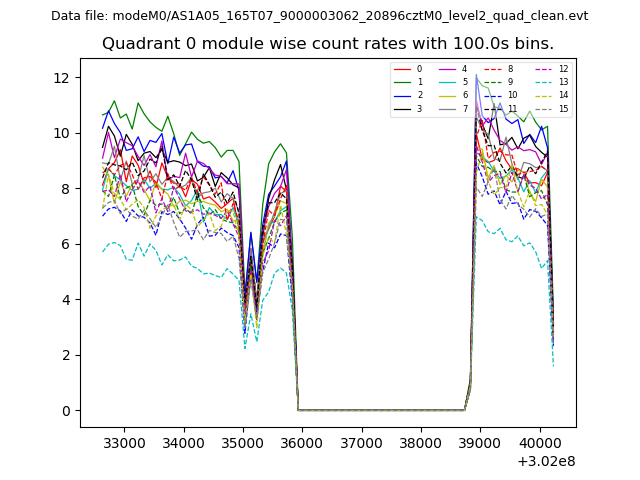

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

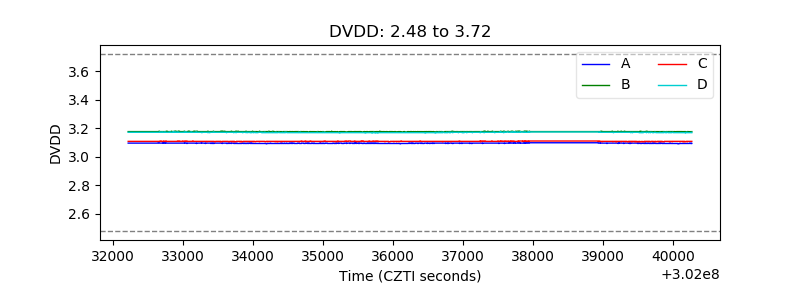

| D_VDD |  |

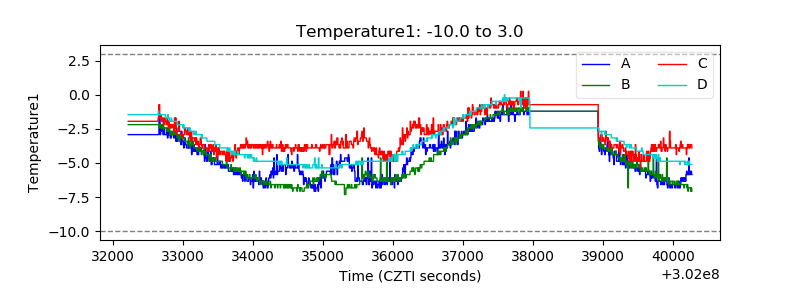

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

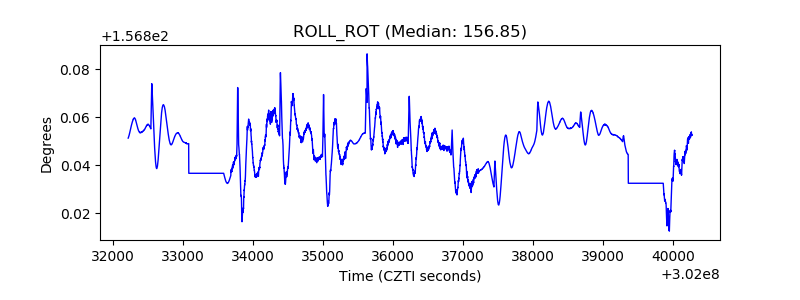

| _ROLL_ROT |  |

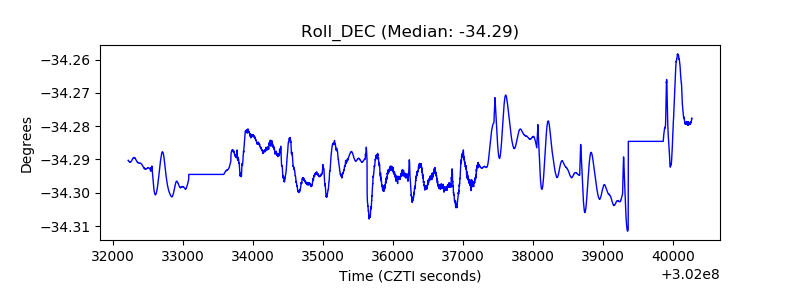

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
