| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_002T02_9000003064_20733cztM0_level2.evt | modeM0/AS1A06_002T02_9000003064_20733cztM0_level2_quad_clean.evt |
| Size (bytes) | 343,039,680 | 55,863,360 |
| Size | 327.1 MB | 53.3 MB |
| Events in quadrant A | 2,326,824 | 392,704 |
| Events in quadrant B | 2,441,064 | 390,547 |
| Events in quadrant C | 1,852,216 | 216,027 |
| Events in quadrant D | 3,439,719 | 352,934 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 3 |
| B | 0 | 4 | 4 |
| C | 0 | 3 | 3 |
| D | 0 | 3 | 3 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13824 | 3410 |
| B | 0 | 14095 | 3518 |
| C | 0 | 14023 | 6048 |
| D | 0 | 19207 | 5522 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 38 |
| B | 0 | 137 | 37 |
| C | 0 | 137 | 33 |
| D | 0 | 137 | 35 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5157 | 6 | 0.116347% |
| B | 5134 | 18 | 0.350604% |
| C | 3885 | 25 | 0.643501% |
| D | 5052 | 32 | 0.633413% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

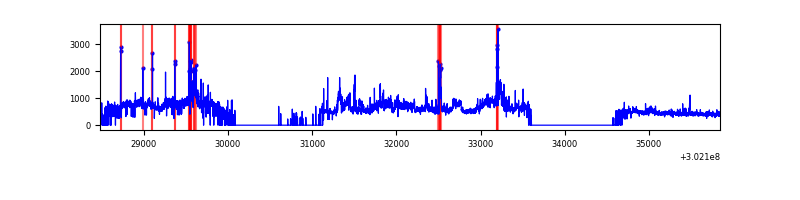

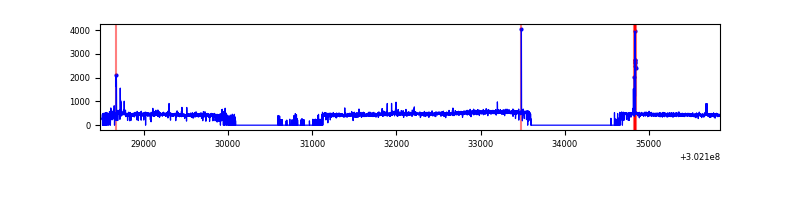

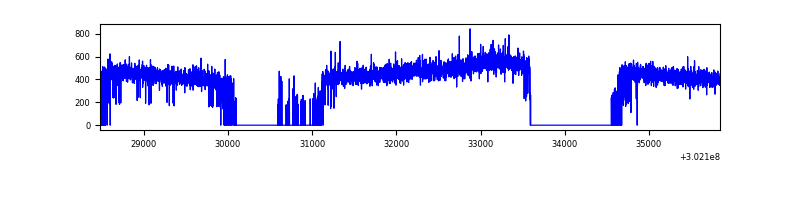

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7350 | 5350 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7339 | 5333 | 10 | 10 | 0.14% | 0.19% |  |
| C | 5030 | 4044 | 1 | 1 | 0.02% | 0.02% |  |
| D | 7344 | 5262 | 29 | 29 | 0.39% | 0.55% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 5204 | 37.3 | 605 | 591 | 123.7 |
| A | 3 | 137 | 5008 | 35.71 | 605 | 591 | 123.7 |
| A | 12 | 194 | 4285 | 29.87 | 605 | 591 | 123.7 |
| B | 3 | 64 | 43809 | 370.95 | 600 | 584 | 116.5 |
| B | 10 | 247 | 20354 | 169.66 | 600 | 584 | 116.5 |
| B | 12 | 111 | 14110 | 116.07 | 600 | 584 | 116.5 |
| C | 14 | 238 | 69198 | 660.83 | 437 | 440 | 104.0 |
| C | 3 | 233 | 36760 | 349.07 | 437 | 440 | 104.0 |
| C | 7 | 247 | 31955 | 302.89 | 437 | 440 | 104.0 |
| D | 1 | 20 | 682545 | 4871.76 | 574 | 557 | 140.0 |
| D | 1 | 52 | 471484 | 3364.05 | 574 | 557 | 140.0 |
| D | 2 | 165 | 52421 | 370.49 | 574 | 557 | 140.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

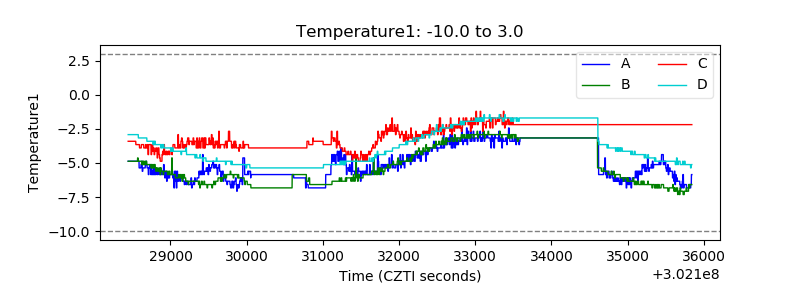

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

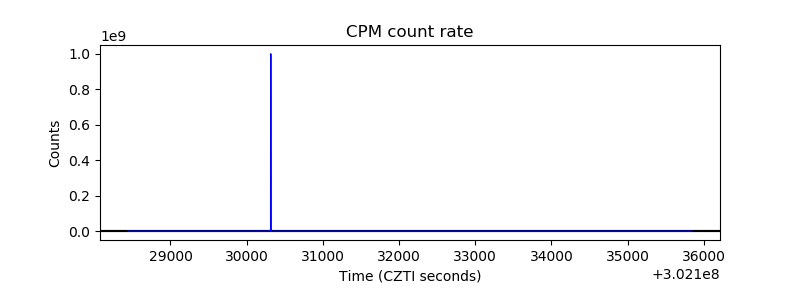

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

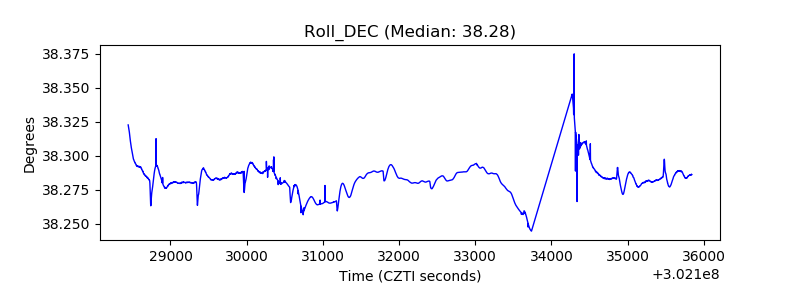

| _Roll_DEC |  |

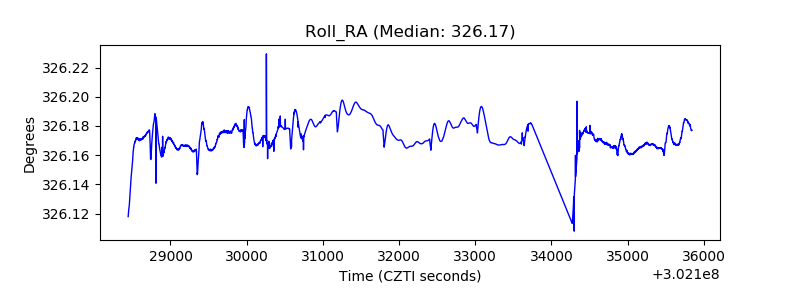

| _Roll_RA |  |

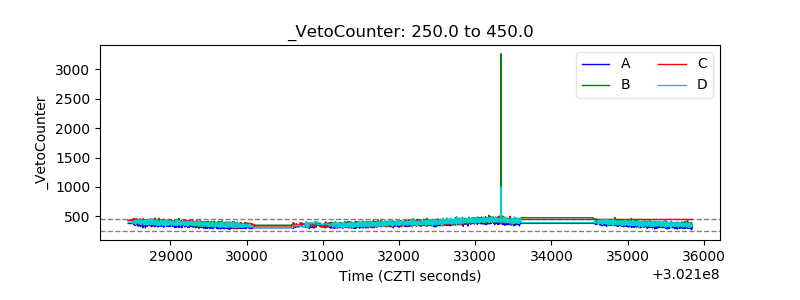

| Veto Counter |  |
