| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_002T02_9000003064_20736cztM0_level2.evt | modeM0/AS1A06_002T02_9000003064_20736cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,302,779,520 | 274,651,200 |
| Size | 1.2 GB | 261.9 MB |
| Events in quadrant A | 8,653,672 | 1,812,458 |
| Events in quadrant B | 8,973,230 | 1,823,904 |
| Events in quadrant C | 9,023,125 | 1,703,317 |
| Events in quadrant D | 11,531,166 | 1,681,327 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 38712 | 6 |
| B | 0 | 39330 | 22 |
| C | 0 | 38877 | 16 |
| D | 0 | 47185 | 18 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 384 | 0 |
| B | 0 | 384 | 0 |
| C | 0 | 384 | 0 |
| D | 0 | 384 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18839 | 123 | 0.652901% |
| B | 18830 | 208 | 1.104620% |
| C | 18833 | 245 | 1.300908% |
| D | 18834 | 464 | 2.463630% |

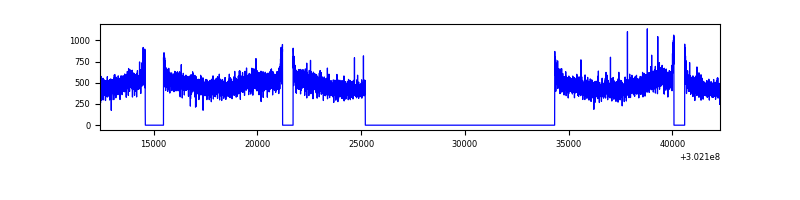

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 29878 | 18844 | 4 | 4 | 0.01% | 0.02% |  |
| B | 29878 | 18843 | 24 | 24 | 0.08% | 0.13% |  |
| C | 29878 | 18843 | 0 | 0 | 0.00% | 0.00% |  |
| D | 29878 | 18842 | 208 | 208 | 0.70% | 1.10% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 240 | 23698 | 47.78 | 2242 | 2197 | 450.0 |
| A | 0 | 226 | 19279 | 37.96 | 2242 | 2197 | 450.0 |
| A | 3 | 137 | 18728 | 36.74 | 2242 | 2197 | 450.0 |
| B | 3 | 64 | 164747 | 383.36 | 2232 | 2175 | 424.1 |
| B | 12 | 111 | 52277 | 118.15 | 2232 | 2175 | 424.1 |
| B | 11 | 111 | 45687 | 102.61 | 2232 | 2175 | 424.1 |
| C | 14 | 238 | 331372 | 660.5 | 2139 | 2156 | 498.4 |
| C | 7 | 247 | 288522 | 574.53 | 2139 | 2156 | 498.4 |
| C | 3 | 233 | 65131 | 126.35 | 2139 | 2156 | 498.4 |
| D | 1 | 20 | 1433492 | 2748.3 | 2159 | 2095 | 520.8 |
| D | 1 | 52 | 1033385 | 1980.09 | 2159 | 2095 | 520.8 |
| D | 5 | 222 | 340227 | 649.22 | 2159 | 2095 | 520.8 |

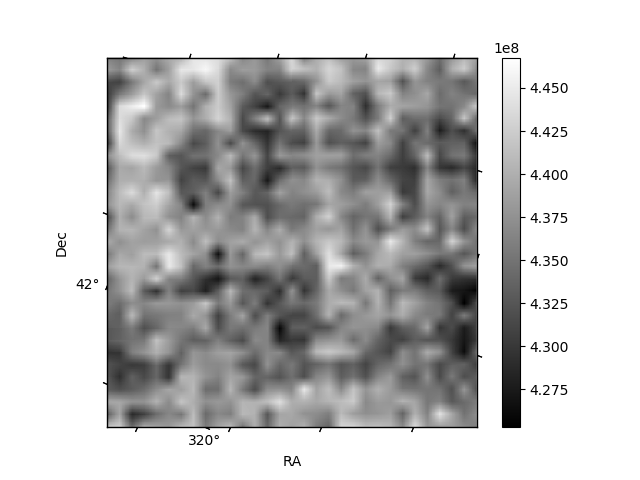

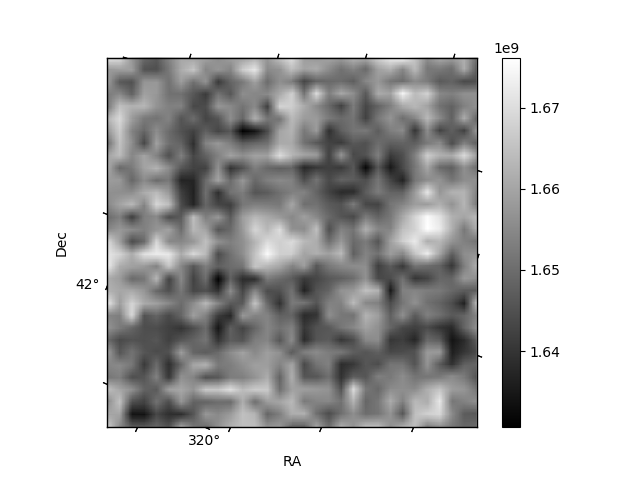

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

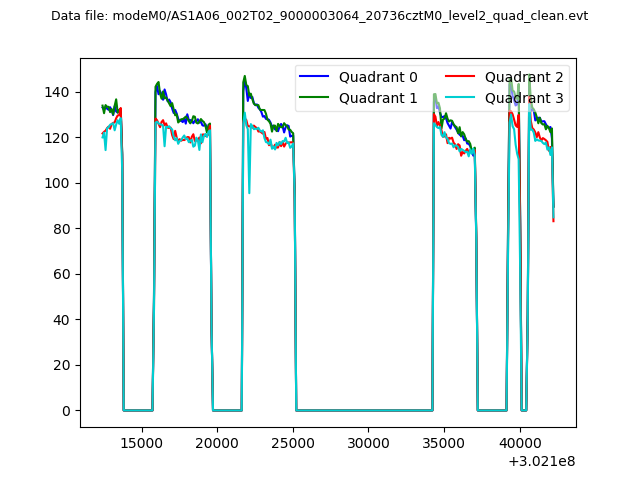

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

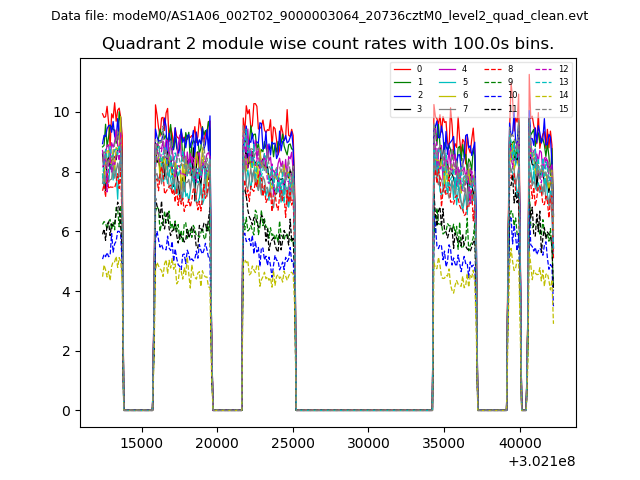

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

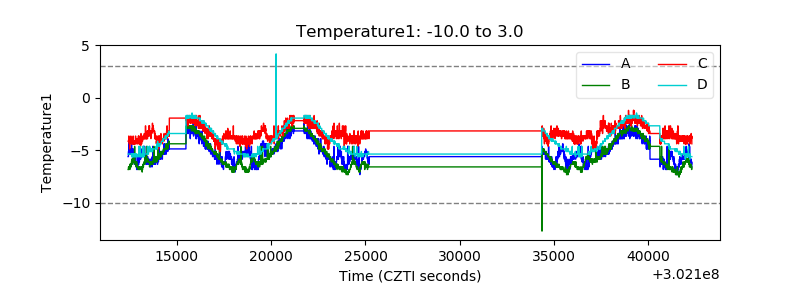

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

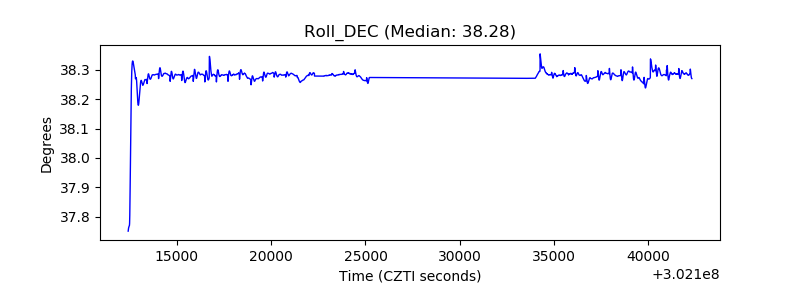

| _Roll_DEC |  |

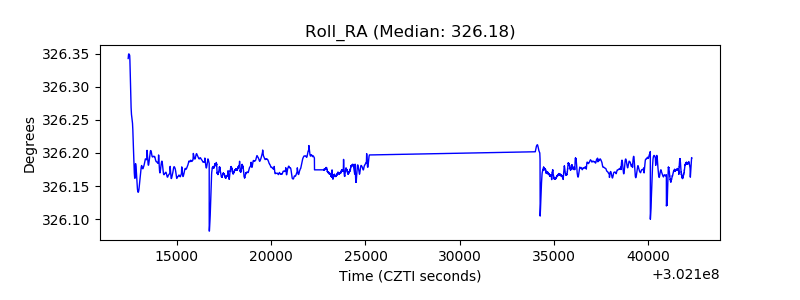

| _Roll_RA |  |
| Veto Counter |  |
