| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_063T03_9000003066cztM0_level2.evt | modeM0/AS1A05_063T03_9000003066cztM0_level2_quad_clean.evt |
| Size (bytes) | 300,384,000 | 74,024,640 |
| Size | 286.5 MB | 70.6 MB |
| Events in quadrant A | 1,815,932 | 424,709 |
| Events in quadrant B | 1,904,034 | 418,808 |
| Events in quadrant C | 1,697,654 | 407,621 |
| Events in quadrant D | 3,091,560 | 398,525 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17798 | 2 |
| B | 0 | 18172 | 2 |
| C | 0 | 17494 | 2 |
| D | 0 | 21583 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 172 | 0 |
| B | 0 | 172 | 0 |
| C | 0 | 172 | 0 |
| D | 0 | 172 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8522 | 61 | 0.715794% |
| B | 8522 | 112 | 1.314245% |
| C | 8522 | 89 | 1.044356% |
| D | 8522 | 126 | 1.478526% |

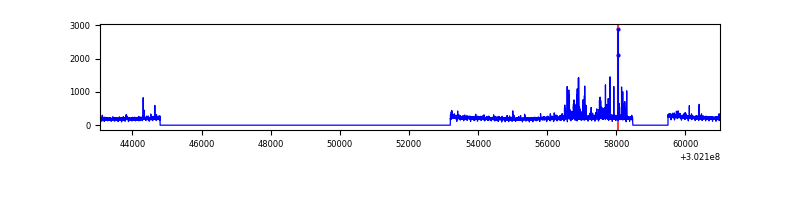

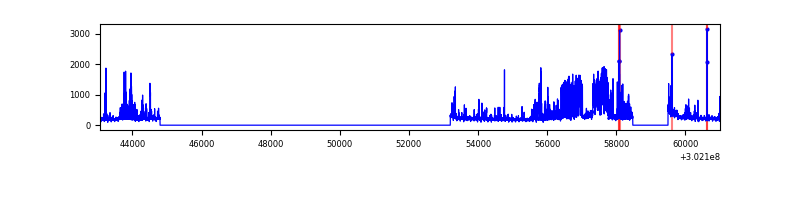

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

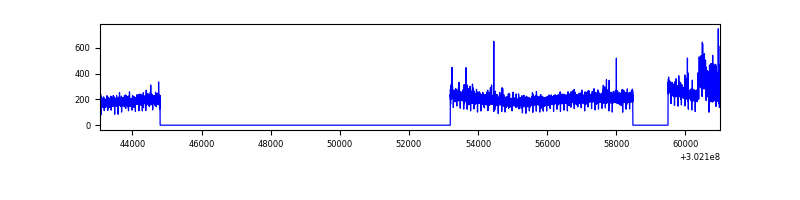

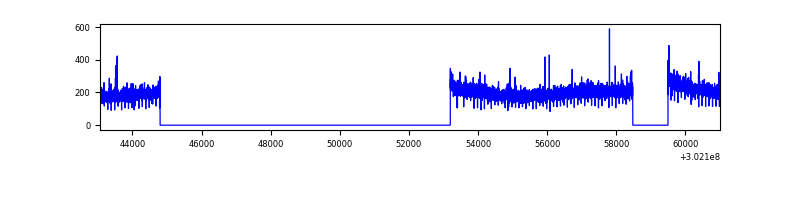

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 17941 | 8522 | 0 | 0 | 0.00% | 0.00% |  |
| B | 17941 | 8522 | 2 | 2 | 0.01% | 0.02% |  |
| C | 17941 | 8521 | 0 | 0 | 0.00% | 0.00% |  |
| D | 17941 | 8522 | 6 | 6 | 0.03% | 0.07% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 240 | 75850 | 755.74 | 453 | 443 | 99.8 |
| A | 0 | 226 | 2914 | 24.76 | 453 | 443 | 99.8 |
| A | 12 | 194 | 2902 | 24.64 | 453 | 443 | 99.8 |
| B | 7 | 220 | 61388 | 703.03 | 452 | 442 | 86.7 |
| B | 0 | 197 | 34921 | 397.72 | 452 | 442 | 86.7 |
| B | 0 | 198 | 15253 | 170.85 | 452 | 442 | 86.7 |
| C | 3 | 233 | 15218 | 141.96 | 434 | 429 | 104.2 |
| C | 7 | 247 | 8527 | 77.73 | 434 | 429 | 104.2 |
| C | 9 | 54 | 6863 | 61.76 | 434 | 429 | 104.2 |
| D | 1 | 52 | 866249 | 8200.87 | 444 | 429 | 105.6 |
| D | 5 | 222 | 233196 | 2204.72 | 444 | 429 | 105.6 |
| D | 12 | 227 | 128878 | 1216.64 | 444 | 429 | 105.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

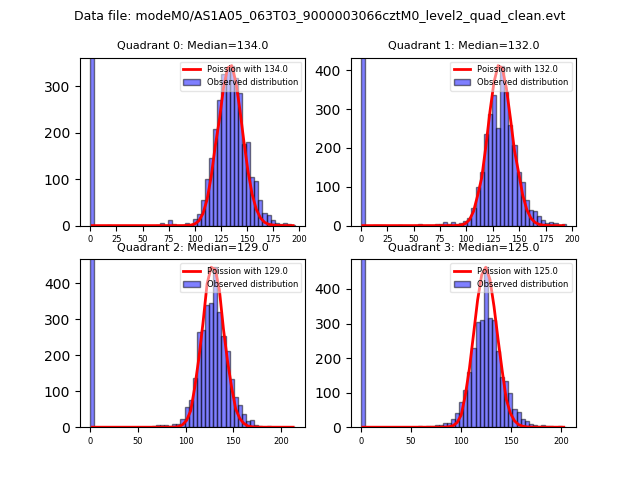

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

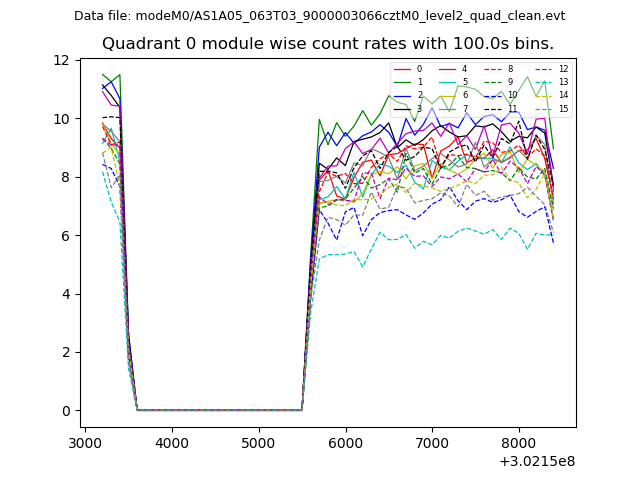

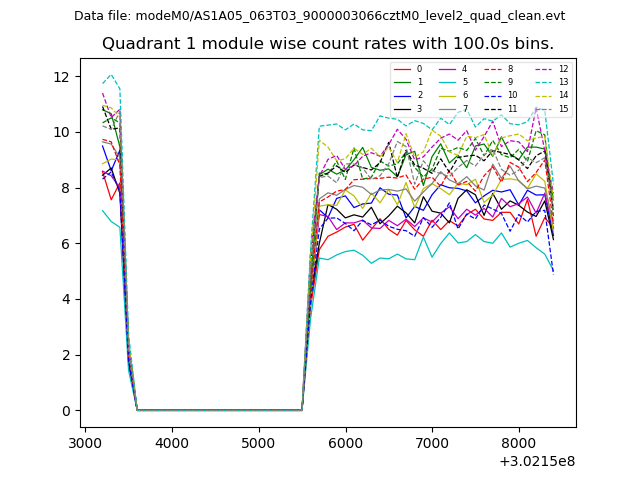

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

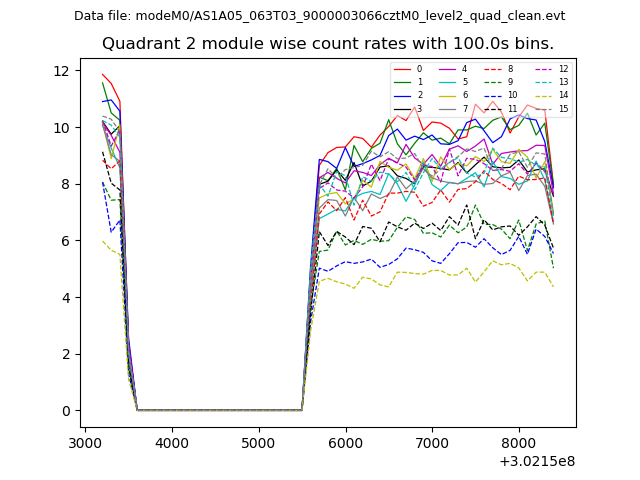

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

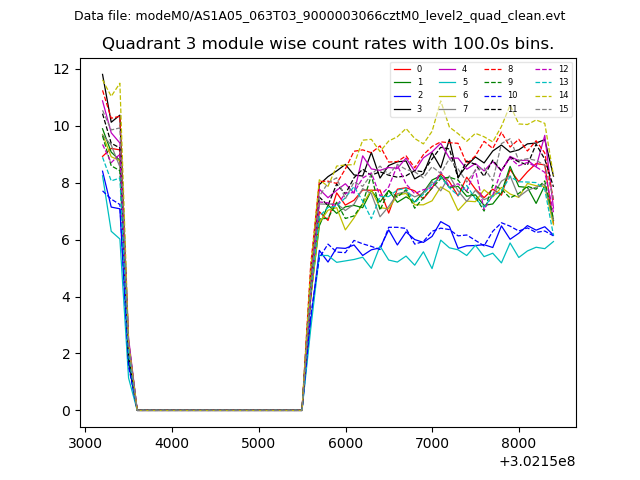

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

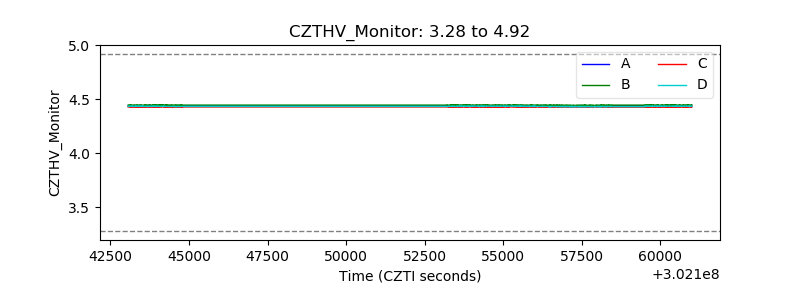

| CZT HV Monitor |  |

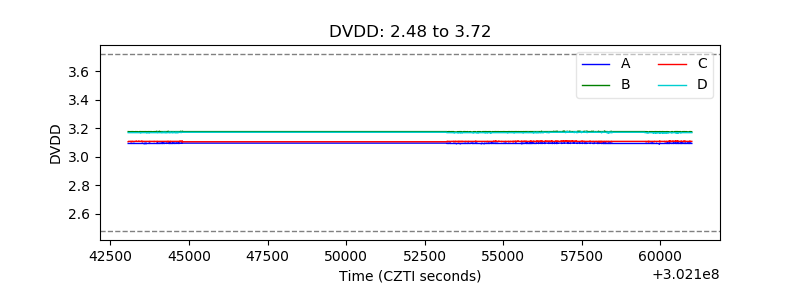

| D_VDD |  |

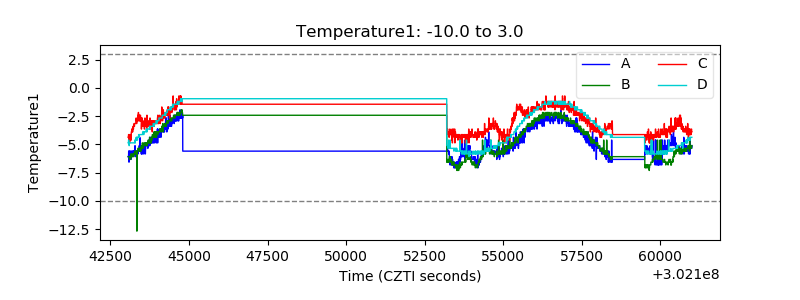

| Temperature 1 |  |

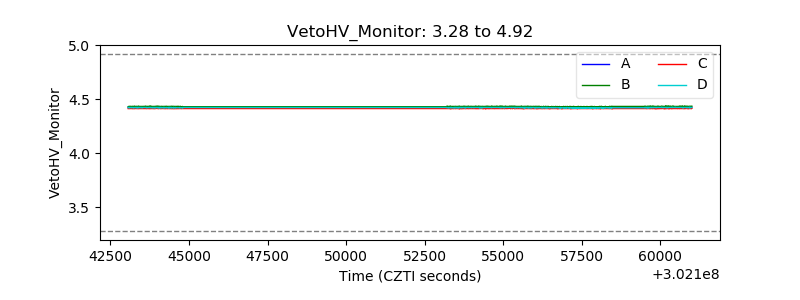

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

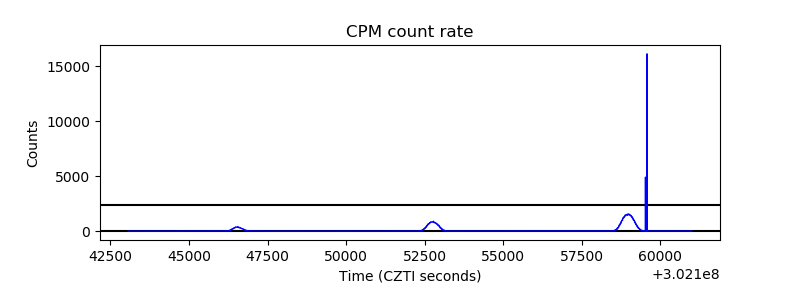

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

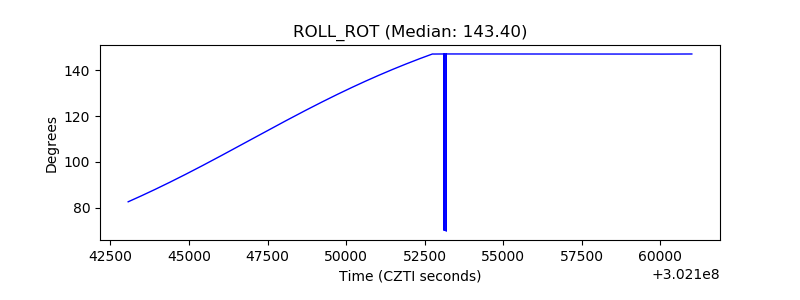

| _ROLL_ROT |  |

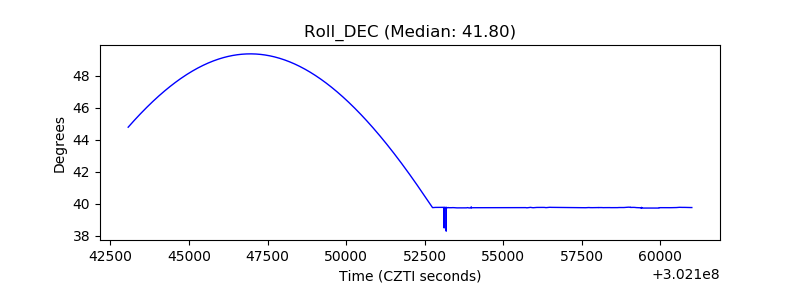

| _Roll_DEC |  |
| _Roll_RA |  |

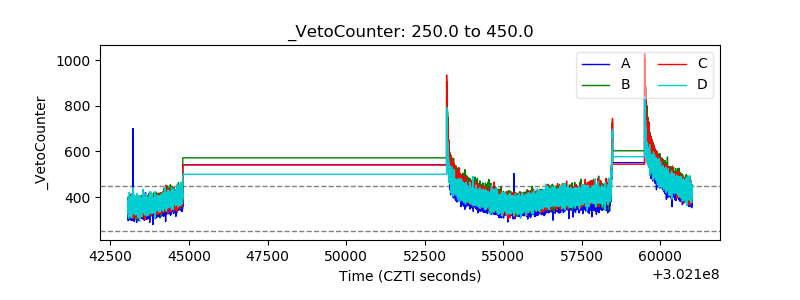

| Veto Counter |  |
